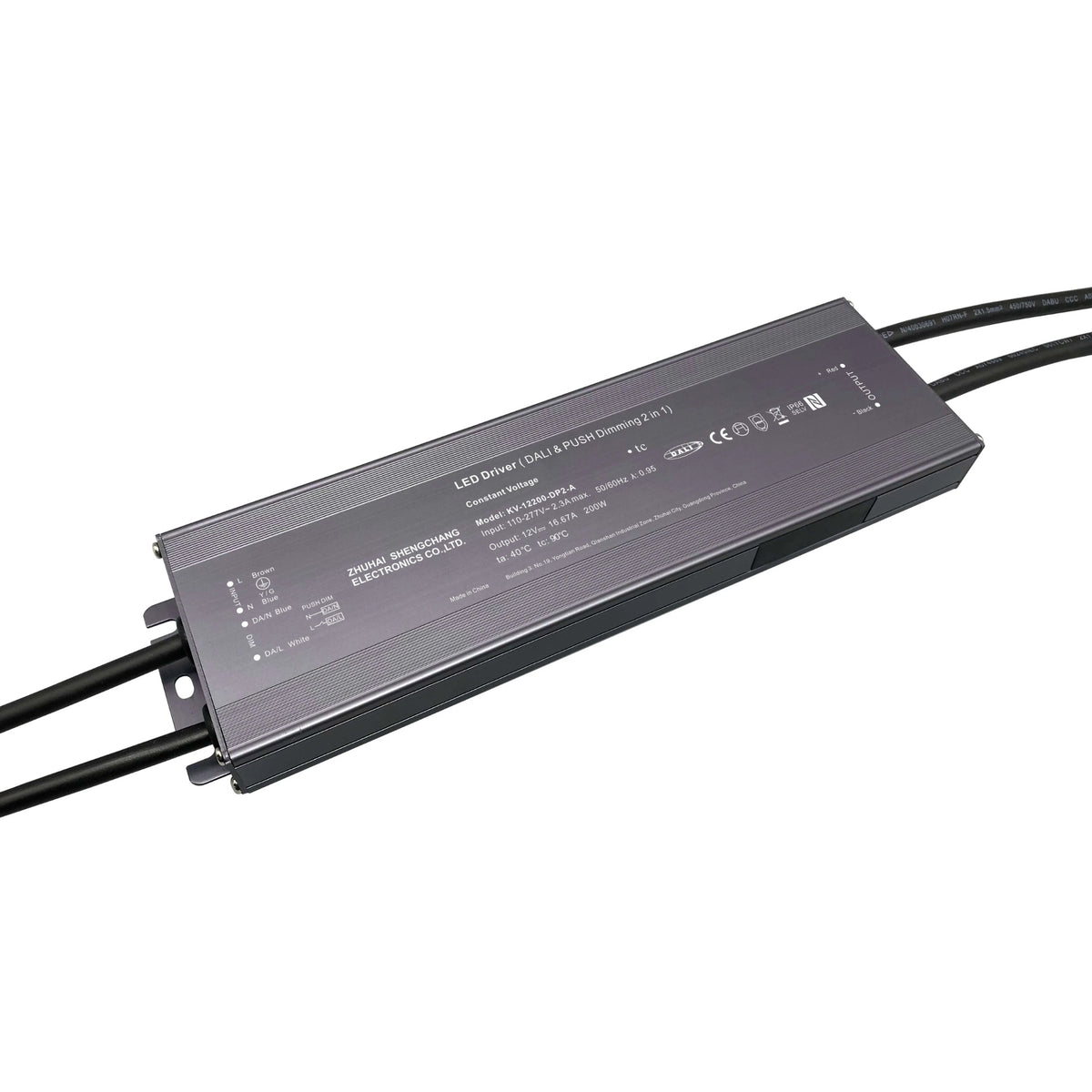

200W 24V DALI-2 Dimmable IP66 LED Driver
200W 24V DALI-2 Dimmable IP66 LED Driver
100% Light UK

200W 24V DALI-2 Dimmable IP66 LED Driver

SKU: AS-DP2-IP200/24

The 200W 24V DALI-2 Dimmable IP66 LED Driver by 100% Light UK is designed to power larger 24V LED lighting systems where digital dimming and control are required. With a maximum output of 200W, it provides substantial capacity for extensive LED installations. Rated IP66, the driver offers enhanced protection against dust and moisture while supporting controlled DALI dimming. Its combination of 24V operation, high output and digital control makes it a versatile choice for demanding residential, hospitality and architectural projects.
£199.19 £199.19

Tax included and shipping calculated at checkout

You can't add more 200W 24V DALI-2 Dimmable IP66 LED Driver in Default Title to cart

The 200W 24V DALI-2 Dimmable IP66 LED Driver by 100% Light UK is designed to power larger 24V LED lighting systems where digital dimming and control are required. With a maximum output of 200W, it provides substantial capacity for extensive LED installations.

Rated IP66, the driver offers enhanced protection against dust and moisture while supporting controlled DALI dimming. Its combination of 24V operation, high output and digital control makes it a versatile choice for demanding residential, hospitality and architectural projects.

Driver Type: Constant Voltage

Output Voltage: 24V DC (24-26V adjustable via NFC)

Output Current: 8.33A

Rated Power: 200W

Voltage / Current Tolerance: ±0.5V

Maximum Load: 200W

Supply Voltage: 100-277V AC

Frequency Range: 50/60Hz

Full Load Efficiency: 93.5%

Power Factor: 0.95

Dimmable: Yes

Dimming Protocol: DALI-2 / Push

Short Circuit: Yes

Over Load: Yes

Over Temperature: Yes

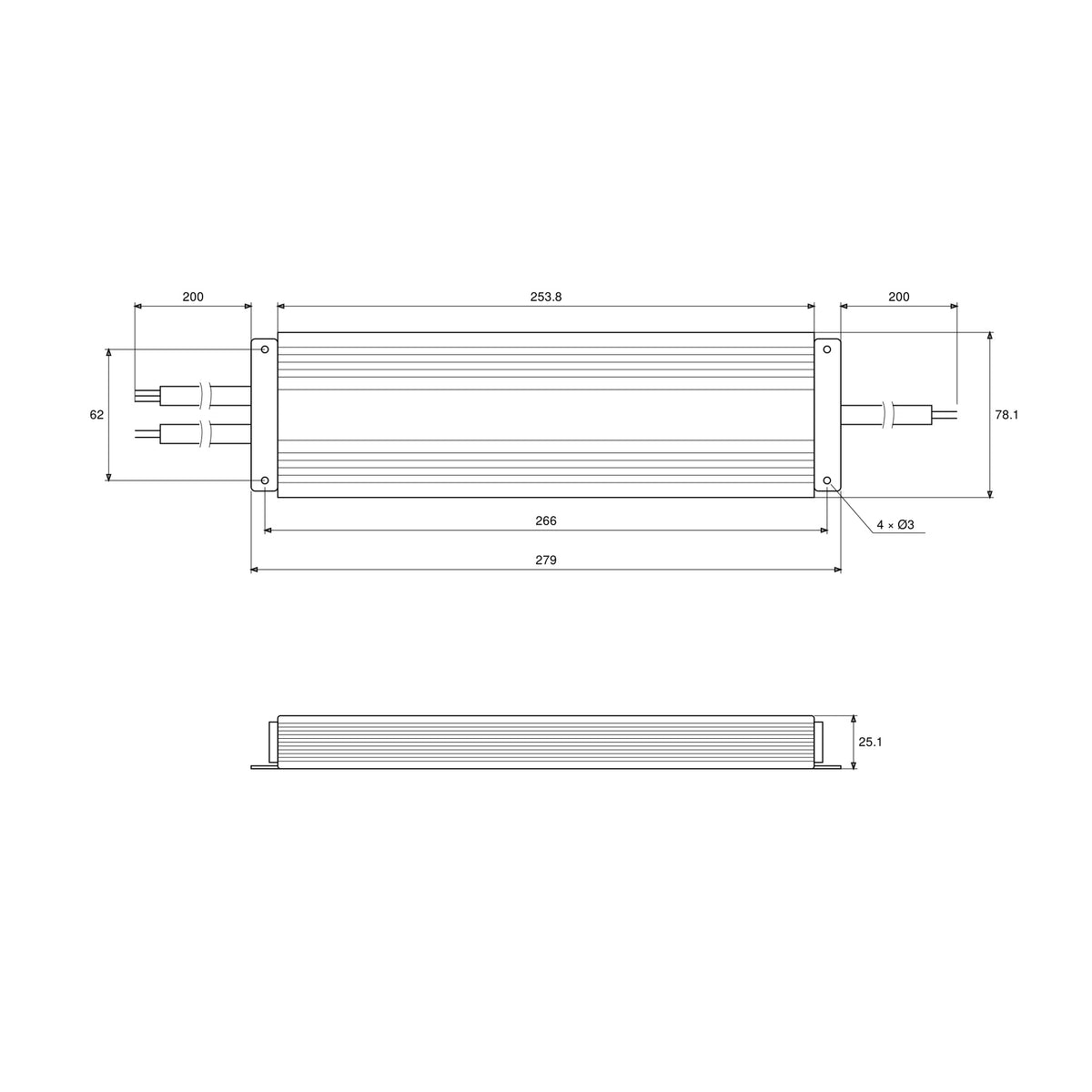

Overall Dimensions (L x W x H): 279 x 78 x 25.1mm

Housing Material: Aluminium

Mounting Method: Independent (remote)

Cable Entry / Terminals: Pre Leaded

Maximum Cable Size: Input 3 x 1.0mm² / Output 2 x 1.5mm² / Dim 2 x 1.0mm²

Weight: 1.05kg

IP Rating: IP66

Working Temperature (ta): -40°C to +40°C

Warranty: 5 years
Download Spec Sheet
The 200W 24V DALI-2 Dimmable IP66 LED Driver by 100% Light UK is designed to power larger 24V LED lighting systems where digital dimming and control are required. With a maximum output of 200W, it provides substantial capacity for extensive LED installations.

Rated IP66, the driver offers enhanced protection against dust and moisture while supporting controlled DALI dimming. Its combination of 24V operation, high output and digital control makes it a versatile choice for demanding residential, hospitality and architectural projects.

Driver Type: Constant Voltage

Output Voltage: 24V DC (24-26V adjustable via NFC)

Output Current: 8.33A

Rated Power: 200W

Voltage / Current Tolerance: ±0.5V

Maximum Load: 200W

Supply Voltage: 100-277V AC

Frequency Range: 50/60Hz

Full Load Efficiency: 93.5%

Power Factor: 0.95

Dimmable: Yes

Dimming Protocol: DALI-2 / Push

Short Circuit: Yes

Over Load: Yes

Over Temperature: Yes

Overall Dimensions (L x W x H): 279 x 78 x 25.1mm

Housing Material: Aluminium

Mounting Method: Independent (remote)

Cable Entry / Terminals: Pre Leaded

Maximum Cable Size: Input 3 x 1.0mm² / Output 2 x 1.5mm² / Dim 2 x 1.0mm²

Weight: 1.05kg

IP Rating: IP66

Working Temperature (ta): -40°C to +40°C

Warranty: 5 years
