20W LED Driver DALI2 DT6 250-700mA
20W LED Driver DALI2 DT6 250-700mA
100% Light UK

20W LED Driver DALI2 DT6 250-700mA

SKU: AS20-DP2-250-700

The 20W LED Driver DALI2 DT6 250-700mA by 100% Light UK is a versatile constant-current LED driver designed for professional architectural lighting installations. Offering a selectable output range from 250mA to 700mA, it can be configured to suit a variety of compatible LED luminaires while providing up to 20W of output power. Designed for DALI-2 DT6 lighting control, the driver enables precise digital dimming and straightforward integration into compatible control systems. Its flexible current settings make it a practical specification choice for residential, hospitality and architectural projects where dependable LED control and adaptability are required.
£51.59 £51.59

Tax included and shipping calculated at checkout

Usually ships within 2-3 working days

You can't add more 20W LED Driver DALI2 DT6 250-700mA in Default Title to cart

Usually ships within 2-3 working days
The 20W LED Driver DALI2 DT6 250-700mA by 100% Light UK is a versatile constant-current LED driver designed for professional architectural lighting installations. Offering a selectable output range from 250mA to 700mA, it can be configured to suit a variety of compatible LED luminaires while providing up to 20W of output power.

Designed for DALI-2 DT6 lighting control, the driver enables precise digital dimming and straightforward integration into compatible control systems. Its flexible current settings make it a practical specification choice for residential, hospitality and architectural projects where dependable LED control and adaptability are required.

Driver Type: Constant Current

Output Voltage: 4V - 42V

Output Current: 250mA - 700mA

Output Current Options: 250mA / 350mA / 400mA / 450mA / 500mA / 550mA / 600mA / 700mA

Rated Power: 10.5W / 14.7W / 16.8W / 18.9W / 20W / 19.8W / 19.8W / 20.3W

Maximum Load: 20W

Supply Voltage: 200-240V AC

Frequency Range: 47-63Hz

Full Load Efficiency: 78%

Power Factor: ≥0.9

Standby Power: 1.5W

Dimmable: Yes

Dimming Protocol: DALI / PUSH

Short Circuit: Yes

Over Temperature: Yes

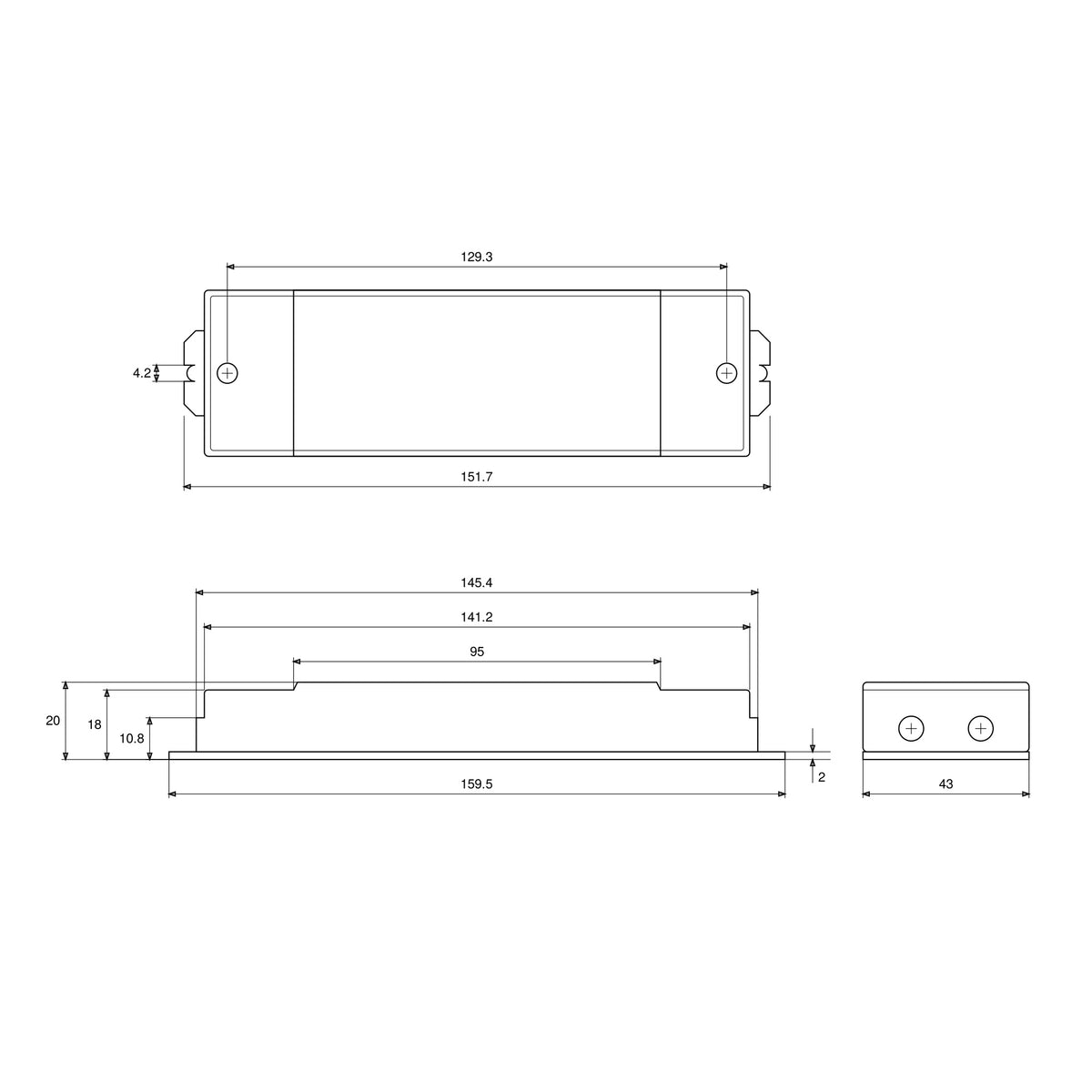

Overall Dimensions (L x W x H): 159.5 x 43 x 20mm

Cable Entry / Terminals: Screw terminals

Weight: 0.115kg

IP Rating: IP20

Warranty: 5 years
Download Spec Sheet
The 20W LED Driver DALI2 DT6 250-700mA by 100% Light UK is a versatile constant-current LED driver designed for professional architectural lighting installations. Offering a selectable output range from 250mA to 700mA, it can be configured to suit a variety of compatible LED luminaires while providing up to 20W of output power.

Designed for DALI-2 DT6 lighting control, the driver enables precise digital dimming and straightforward integration into compatible control systems. Its flexible current settings make it a practical specification choice for residential, hospitality and architectural projects where dependable LED control and adaptability are required.

Driver Type: Constant Current

Output Voltage: 4V - 42V

Output Current: 250mA - 700mA

Output Current Options: 250mA / 350mA / 400mA / 450mA / 500mA / 550mA / 600mA / 700mA

Rated Power: 10.5W / 14.7W / 16.8W / 18.9W / 20W / 19.8W / 19.8W / 20.3W

Maximum Load: 20W

Supply Voltage: 200-240V AC

Frequency Range: 47-63Hz

Full Load Efficiency: 78%

Power Factor: ≥0.9

Standby Power: 1.5W

Dimmable: Yes

Dimming Protocol: DALI / PUSH

Short Circuit: Yes

Over Temperature: Yes

Overall Dimensions (L x W x H): 159.5 x 43 x 20mm

Cable Entry / Terminals: Screw terminals

Weight: 0.115kg

IP Rating: IP20

Warranty: 5 years
