Vendor:
100% Light UK
20W LED Driver Mains Dimmable 250-700mA
Regular price
£47.99
Sale price
£47.99
Usually ships within 2-3 working days
Share

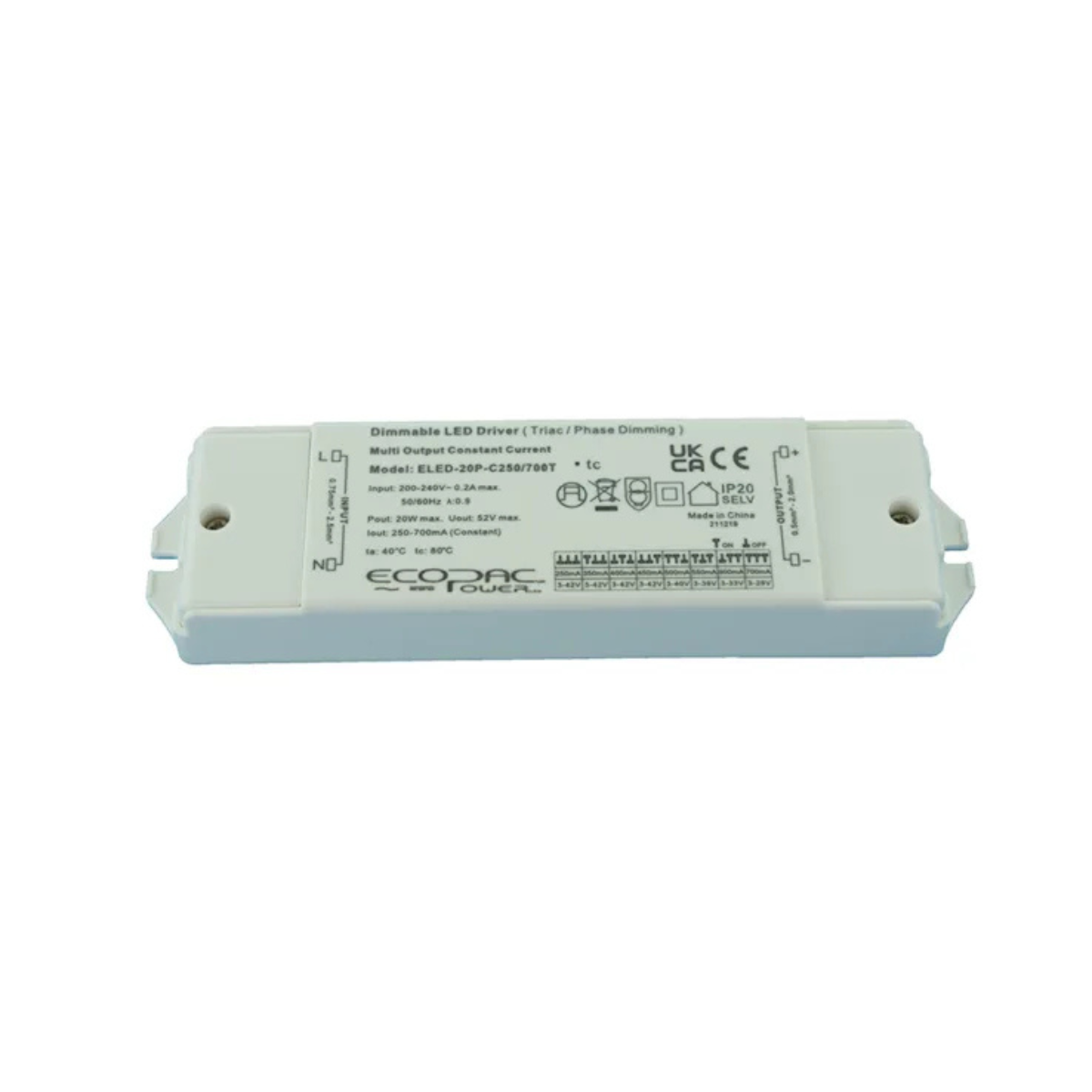

The 20W LED Driver Mains Dimmable 250-700mA by 100% Light UK is a versatile constant-current LED driver designed for professional architectural lighting installations. Its selectable 250–700mA output range allows the driver to be matched to compatible LED fittings with different current requirements, providing flexibility across a variety of lighting applications.
Designed for mains dimming, the 20W driver provides a practical solution where smooth control and adaptable current output are required within a lighting scheme. Its compact driver format and adjustable output make it particularly suited to residential, hospitality and architectural projects using compatible constant-current LED luminaires.
Designed for mains dimming, the 20W driver provides a practical solution where smooth control and adaptable current output are required within a lighting scheme. Its compact driver format and adjustable output make it particularly suited to residential, hospitality and architectural projects using compatible constant-current LED luminaires.
Driver Type: Constant Current
Output Voltage: 3V - 42V
Output Current: 250mA - 700mA
Output Current Options: 250mA / 350mA / 400mA / 450mA / 500mA / 550mA / 600mA / 700mA
Rated Power: 10.5W / 14.7W / 16.8W / 18.9W / 20W / 19.8W / 19.8W / 20.3W
Maximum Load: 20W
Supply Voltage: 200-240V AC
Frequency Range: 47-63Hz
Full Load Efficiency: 78%
Power Factor: ≥0.9
Standby Power: 1.5W
Dimmable: Yes
Dimming Protocol: Leading & trailing edge (Triac) — selector switch
Short Circuit: Yes
Over Temperature: Yes

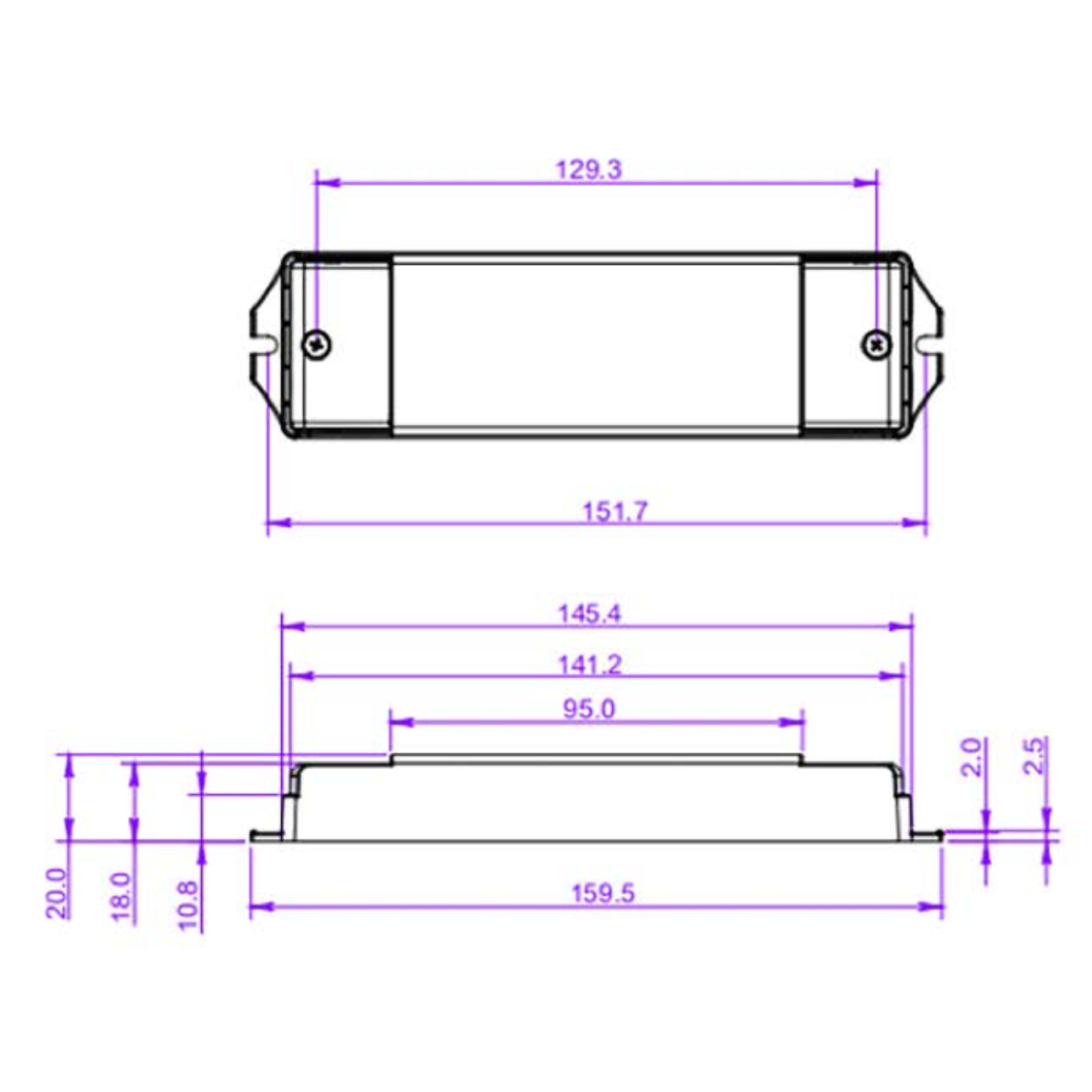

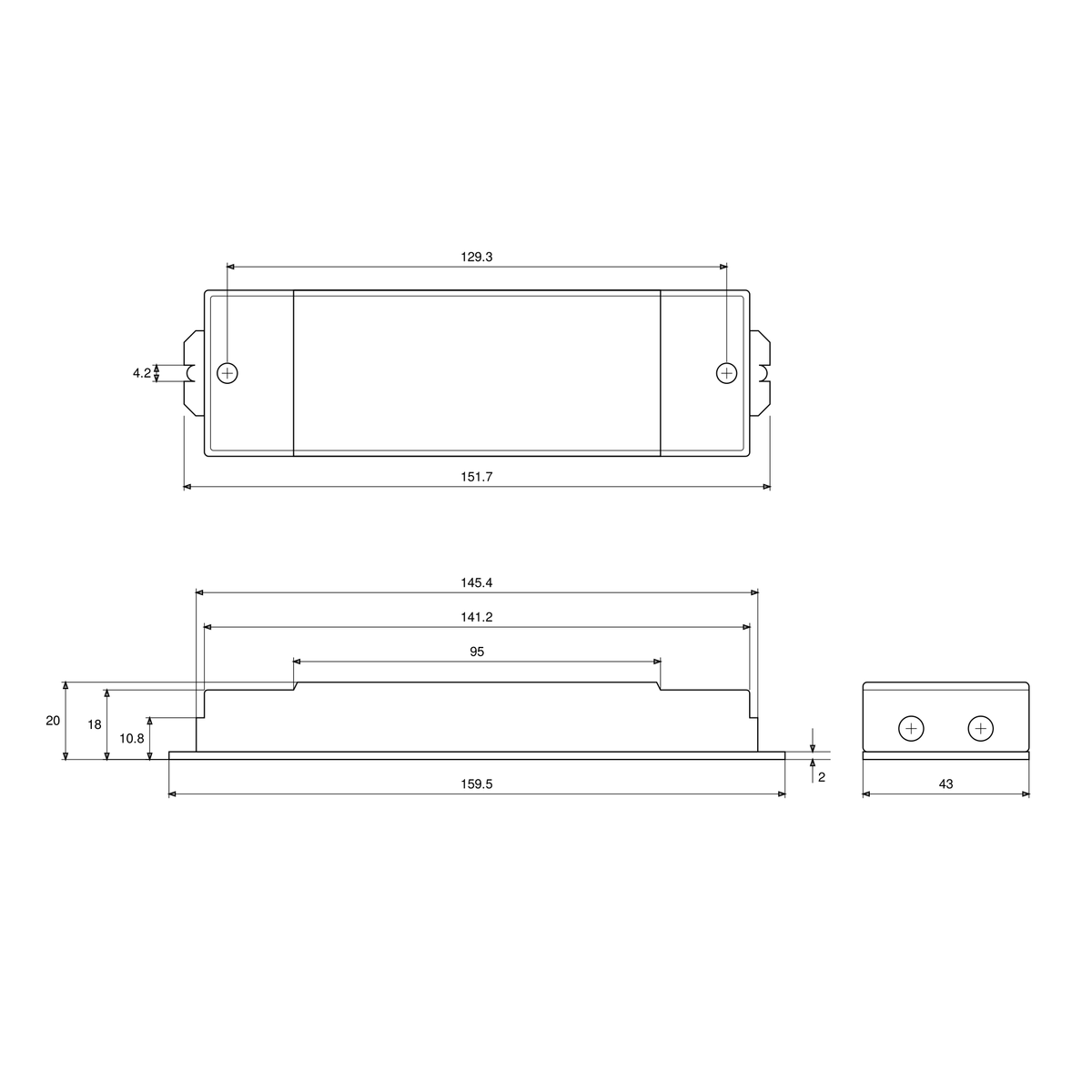

Overall Dimensions (L x W x H): 159.5 x 43 x 20mm
Cable Entry / Terminals: Screw terminals
Weight: 0.115kg
IP Rating: IP20
Warranty: 5 years
