Vendor:
100% Light UK
20W LED Driver Mains Dimmable 250-700mA
Regular price
£47.99
Sale price
£47.99
Usually ships within 2-3 working days
Share

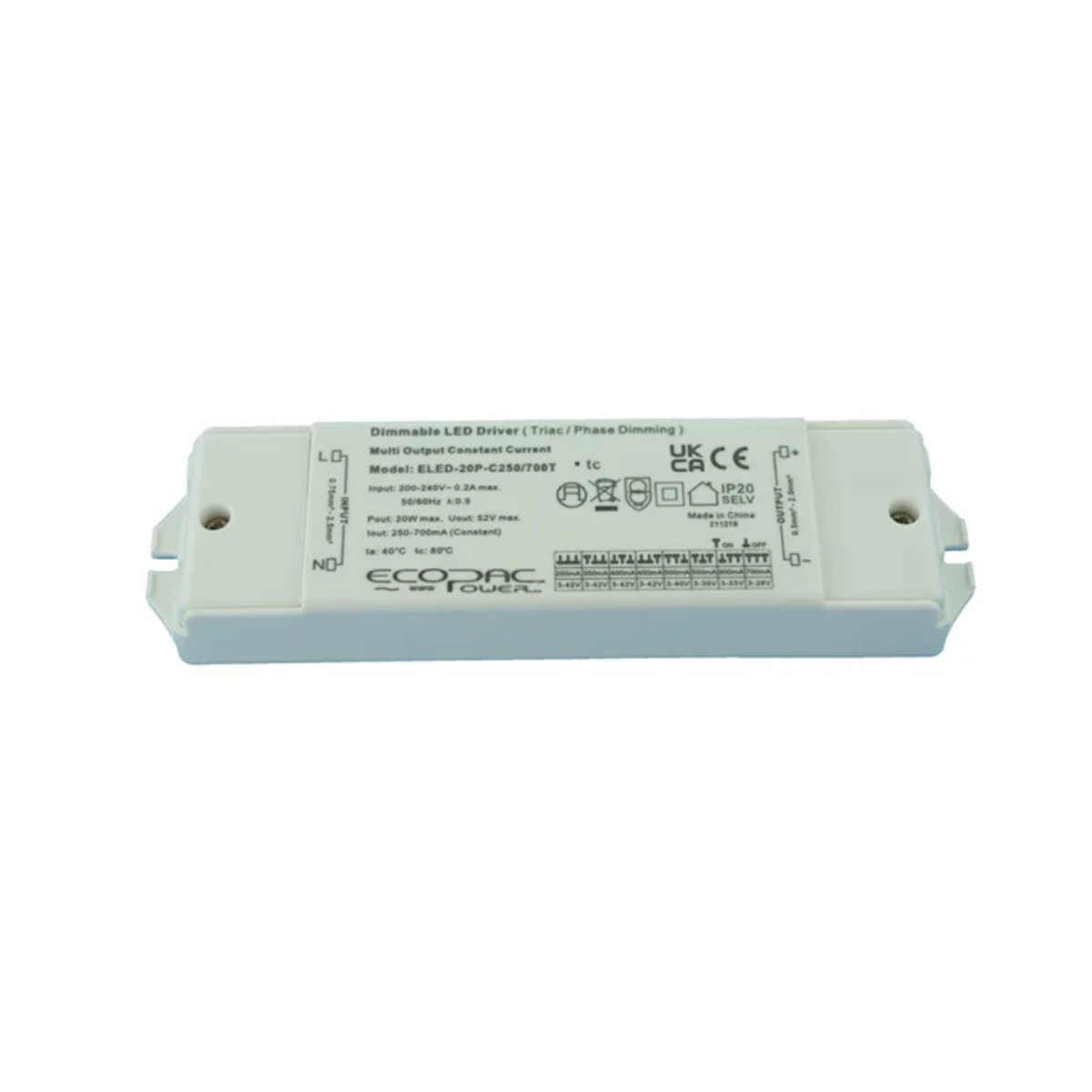

The 20W LED Driver Mains Dimmable 250–700mA is a versatile and reliable power solution designed to deliver consistent performance for LED lighting applications. Featuring constant current output with multiple selectable levels via dip switch, this driver allows for precise control to suit a range of lighting requirements. Its compatibility with both leading and trailing edge Triac dimmers ensures smooth and flicker-free dimming, providing enhanced flexibility for modern lighting systems..
Engineered for efficiency and durability, this LED driver operates on a 200–240VAC input and includes built-in active PFC functionality for improved performance. Housed in a robust plastic casing, it offers easy installation and reliable protection against short circuit and overload. With passive cooling through free air convection and an IP20 rating for indoor use, this driver is ideal for residential and commercial LED lighting applications.
Engineered for efficiency and durability, this LED driver operates on a 200–240VAC input and includes built-in active PFC functionality for improved performance. Housed in a robust plastic casing, it offers easy installation and reliable protection against short circuit and overload. With passive cooling through free air convection and an IP20 rating for indoor use, this driver is ideal for residential and commercial LED lighting applications.
Height: 129.3mm
Width: 43mm
Depth: 20mm
Weight: 0.21kg
Wattage:12W
Output Range: 3 - 42Vdc
Output Current: 250 / 350 / 400 / 450 / 500 / 550 / 600 / 700mA
Input Voltage: 220-240Vac
Mains Frequency: 50/60Hz
Output Tolerance: 5%
Ripple Current: 100%
Dimmable: Yes
Dimming Type: Mains - Trailing Edge
Startup Time: < 0.5 second
Output Isolation: SELV
Surge Protection: 2 kV / 6kV
Circuit Lifetime: 50,000 hrs at Tc max
IP rating: IP20
