Vendor:
100% Light UK

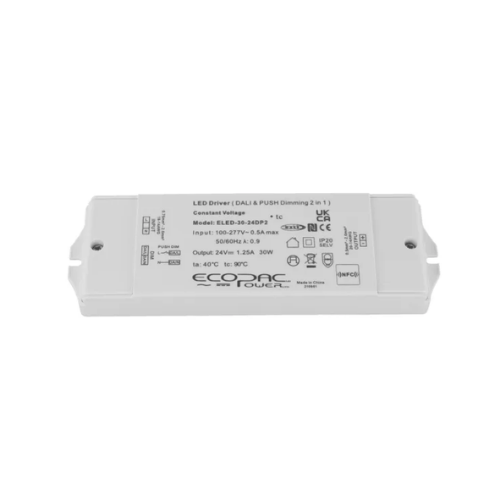

30W 24V DALI Dimmable IP20 LED Driver
Regular price
£55.20
Sale price
£55.20
Usually ships within 2-3 working days
Share
The 30W 24V DALI Dimmable IP20 LED Driver is a constant-voltage unit with PWM output and NFC regulation, engineered for precision LED control in professional lighting installations. Compatible with both DALI and DALI2 systems, it also supports push dimming from 0–100%, offering flexible integration across residential and commercial projects.
Designed for indoor use with an IP20 rating, it operates on a wide AC input range of 100–277VAC and includes built-in active PFC for stable performance. With efficiency up to 83% and integrated protections against short circuit, overload and over temperature, the driver is cooled by free air convection for reliable, long-term operation. Ideal for intelligent LED lighting schemes requiring dependable dimming control.
Designed for indoor use with an IP20 rating, it operates on a wide AC input range of 100–277VAC and includes built-in active PFC for stable performance. With efficiency up to 83% and integrated protections against short circuit, overload and over temperature, the driver is cooled by free air convection for reliable, long-term operation. Ideal for intelligent LED lighting schemes requiring dependable dimming control.

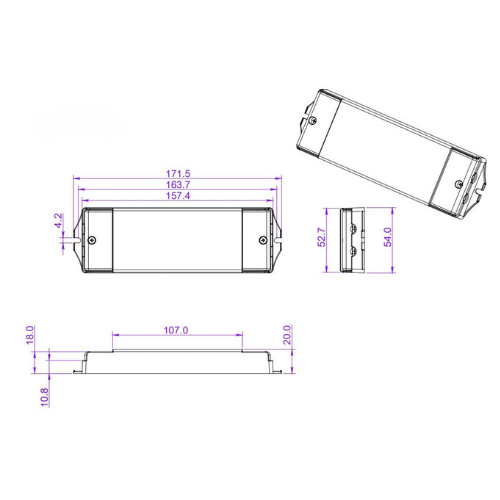

Height: 171mm
Width: 52.7mm
Depth: 20mm
Weight: 0.21kg
Wattage: 30W
Output Range: 24V
Output Current: 1.25A
Input Voltage: 220-240Vac
Mains Frequency: 47-63Hz
Output Tolerance: ±0.5V
Ripple Current: -
Dimmable: Yes
Dimming Type: DALI
Startup Time: -
Output Isolation: SELV
Surge Protection: 2 kV / 6kV
Circuit Lifetime: -
Inrush Current: 30A (Twidth=90s 230VAC)
IP rating: IP20
