Vendor: LightGraphix

LD71M Downlight

SKU: LD71M-C1-350-LW27-NB-WWH SC

The LD71M Downlight is a compact, miniature LED fitting designed for discreet architectural applications. At 12mm smaller in diameter than the LD71, it offers a more subtle appearance while maintaining excellent performance. With the LED recessed by 10mm and a matt painted bezel that can be colour-matched to the mounting surface, the LD71M delivers a refined low-glare effect ideal for displays, niches, picture lighting, or general downlighting.

Bezel Colour: White (RAL 9016)
Colour Temperature: 2700K
Beam Degree: 12° Narrow
Regular price £99.22 Sale price £99.22

VAT included and shipping calculated at checkout

You can't add more LD71M Downlight in White (RAL 9016) / 2700K / 12° Narrow to cart

Usually ships within 4 weeks

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

The LD71M Downlight is a compact, miniature LED fitting designed for discreet architectural applications. At 12mm smaller in diameter than the LD71, it offers a more subtle appearance while maintaining excellent performance. With the LED recessed by 10mm and a matt painted bezel that can be colour-matched to the mounting surface, the LD71M delivers a refined low-glare effect ideal for displays, niches, picture lighting, or general downlighting.

Offering up to 25° of tilt, this adjustable downlight provides versatile directional control to highlight specific features or create soft ambient effects. It achieves a high-quality light output with a typical CRI of 93 in warm white, ensuring accurate colour rendering. Rated IP40 as standard with an optional IP54 version for bathrooms, spas, and damp areas, the LD71M combines discretion, flexibility, and performance, making it suitable for both residential and commercial interiors.

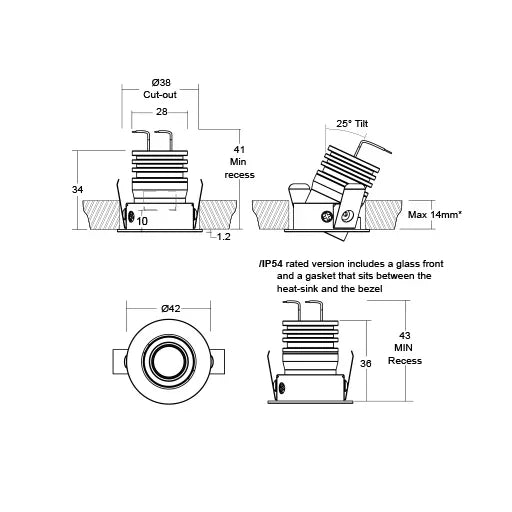

Overall Diameter: 42mm Ø

Depth: 39mm

Cut Out: 38mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 1.2W @ 350mA / 1.7W @ 500mA / 2.4W @ 700mA

Lumens: 109lm / 142lm / 189lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 31°/ 48°

Driver Required: Yes - Remote mounted 350mA / 500mA / 700mA

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 3.0V / 3.2V / 3.4V

IP rating: IP40

Fire rated: -

The LD71M Downlight is a compact, miniature LED fitting designed for discreet architectural applications. At 12mm smaller in diameter than the LD71, it offers a more subtle appearance while maintaining excellent performance. With the LED recessed by 10mm and a matt painted bezel that can be colour-matched to the mounting surface, the LD71M delivers a refined low-glare effect ideal for displays, niches, picture lighting, or general downlighting.

Offering up to 25° of tilt, this adjustable downlight provides versatile directional control to highlight specific features or create soft ambient effects. It achieves a high-quality light output with a typical CRI of 93 in warm white, ensuring accurate colour rendering. Rated IP40 as standard with an optional IP54 version for bathrooms, spas, and damp areas, the LD71M combines discretion, flexibility, and performance, making it suitable for both residential and commercial interiors.

Overall Diameter: 42mm Ø

Depth: 39mm

Cut Out: 38mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 1.2W @ 350mA / 1.7W @ 500mA / 2.4W @ 700mA

Lumens: 109lm / 142lm / 189lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 31°/ 48°

Driver Required: Yes - Remote mounted 350mA / 500mA / 700mA

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 3.0V / 3.2V / 3.4V

IP rating: IP40

Fire rated: -
