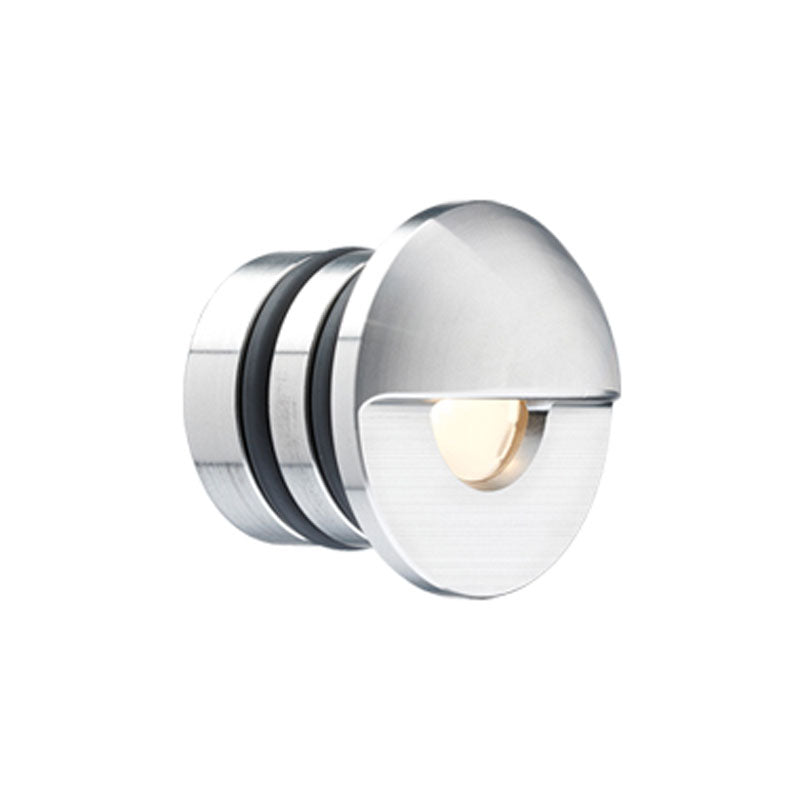

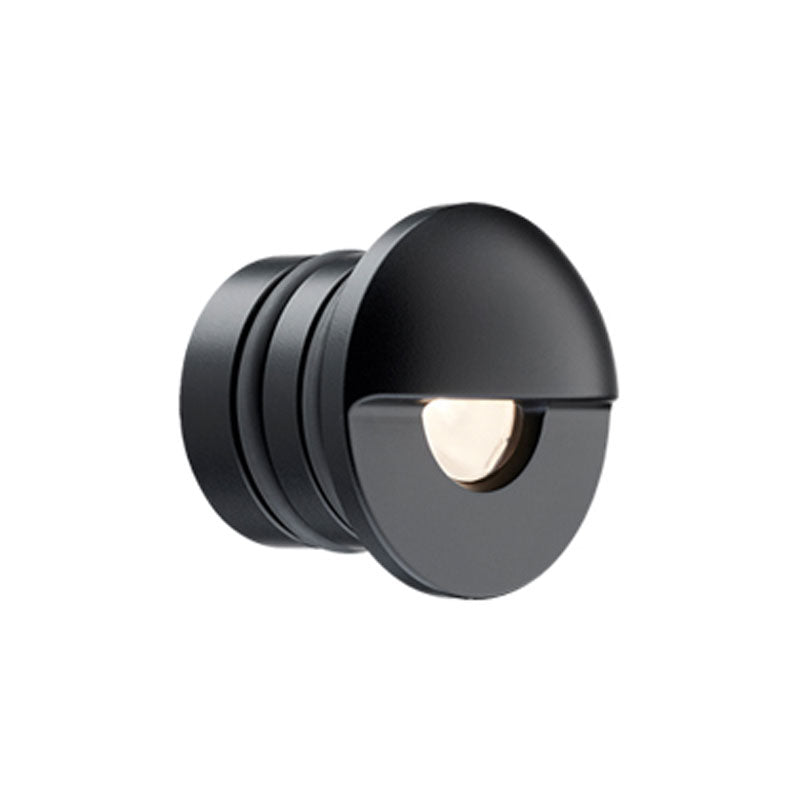

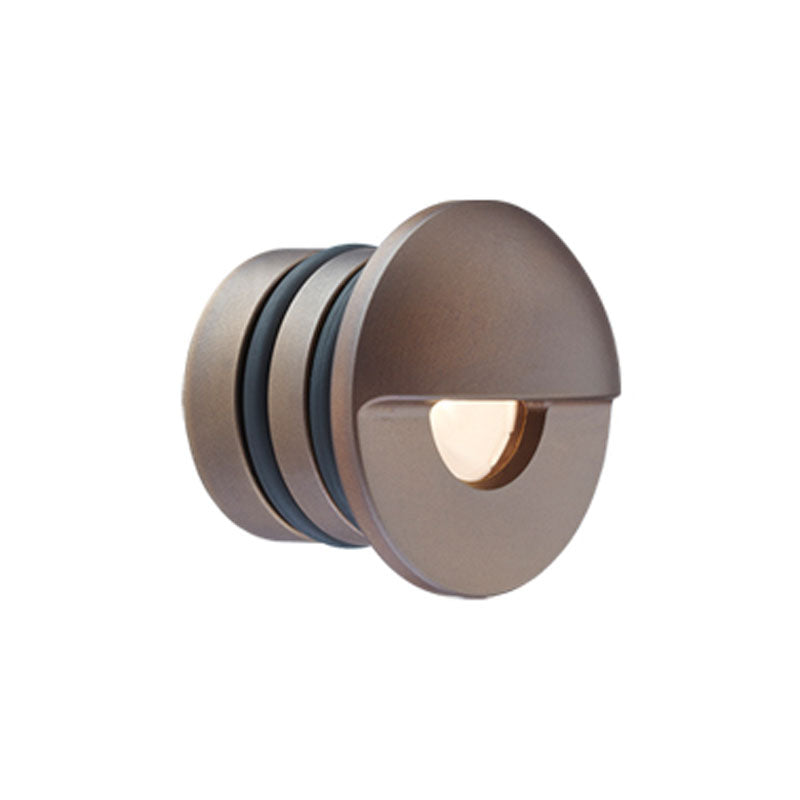

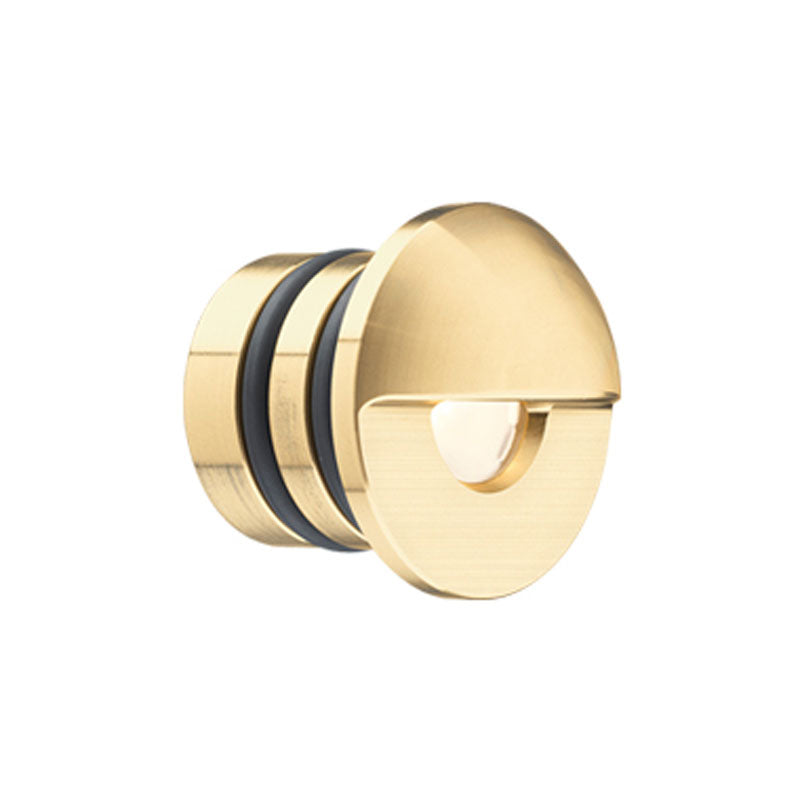

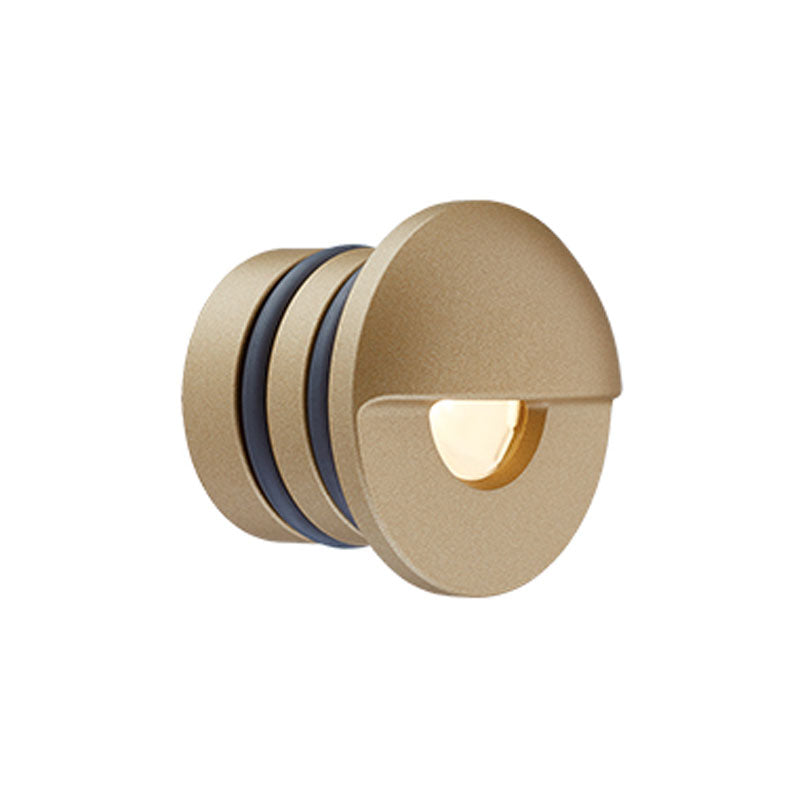

LD42D Wall Light

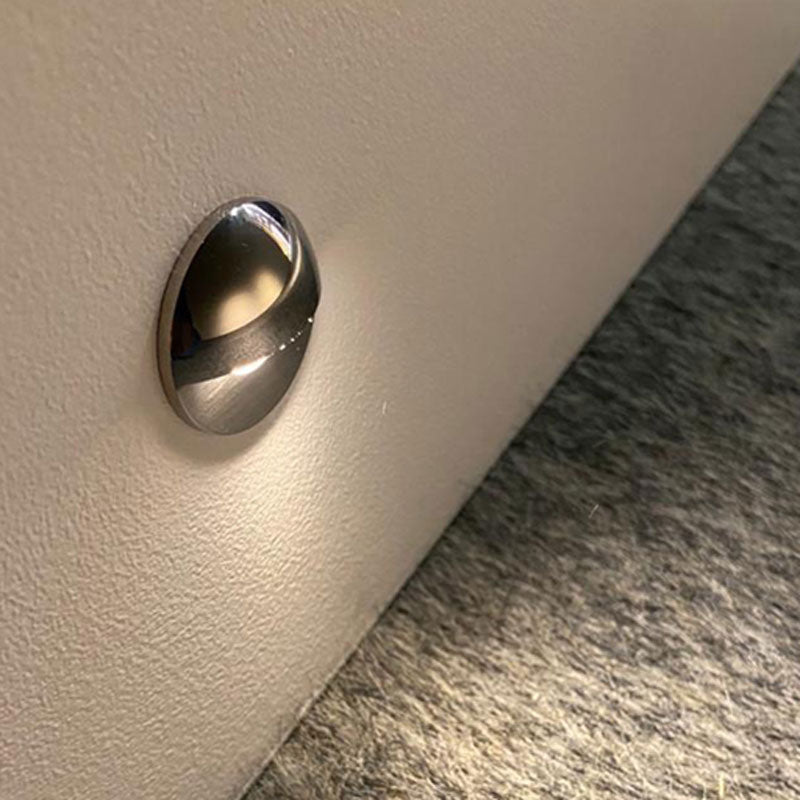

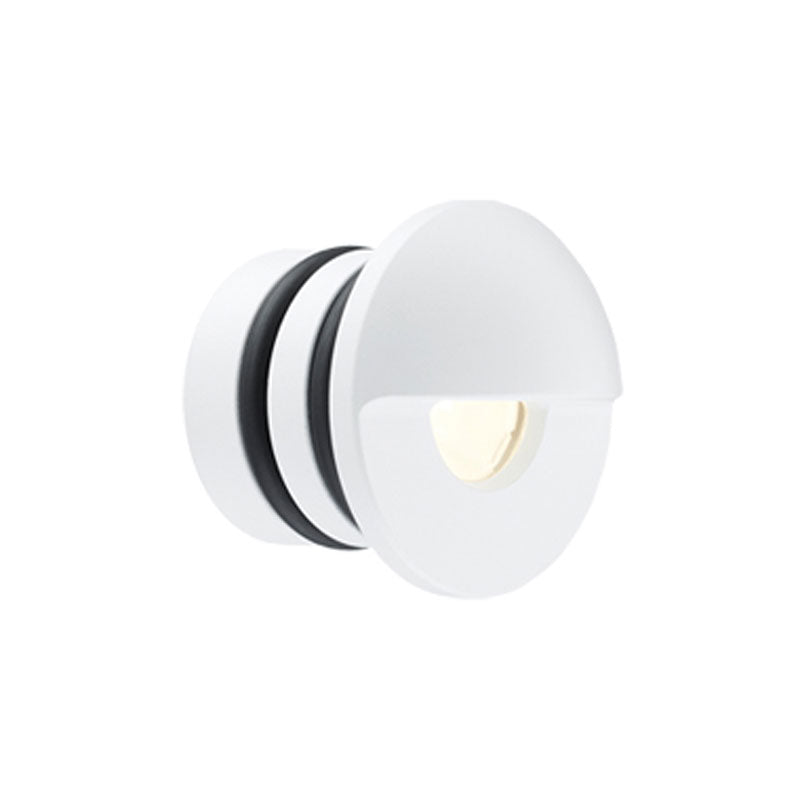

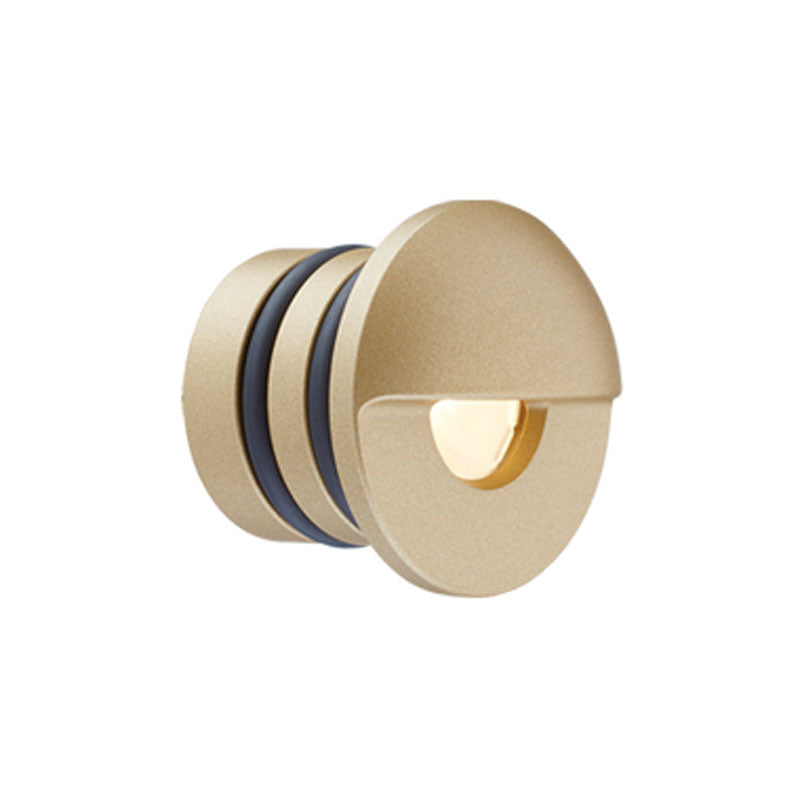

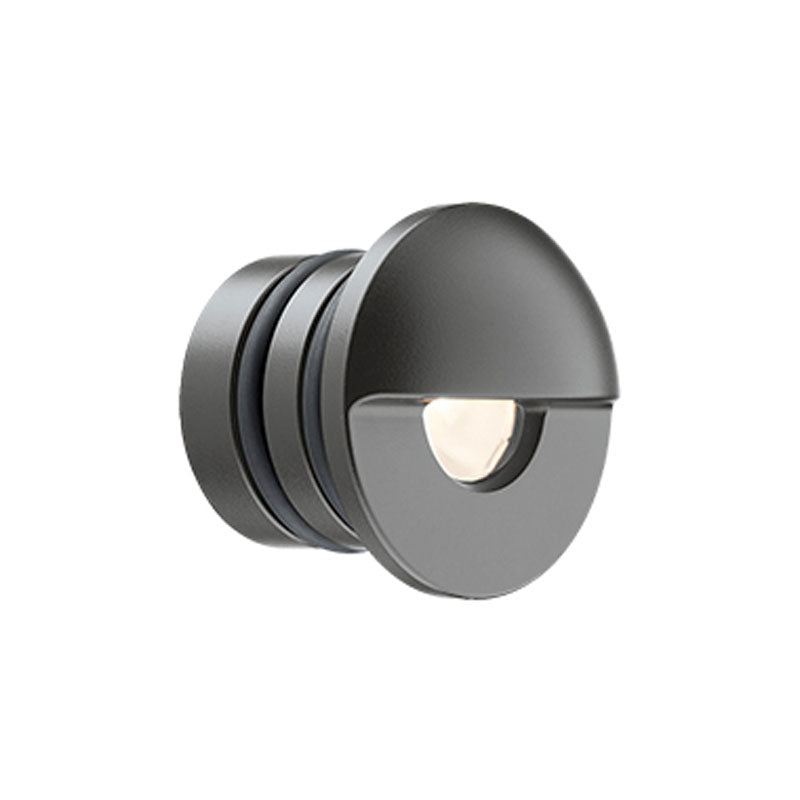

The LD42D is a miniature, high-performance recessed wall light, perfect for discreet step and pathway illumination in interior, exterior, and marine environments. An evolution of the popular LD42 range, it features a newly designed machined domed bezel that obscures the light source when viewed from above, delivering exceptional glare control and a clean architectural aesthetic.

Regular price £137.40 Sale price £137.40

VAT included and shipping calculated at checkout

You can't add more LD42D Wall Light in Default Title to cart

Usually ships within 4 weeks

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

The LD42D is a miniature, high-performance recessed wall light, perfect for discreet step and pathway illumination in interior, exterior, and marine environments. An evolution of the popular LD42 range, it features a newly designed machined domed bezel that obscures the light source when viewed from above, delivering exceptional glare control and a clean architectural aesthetic.

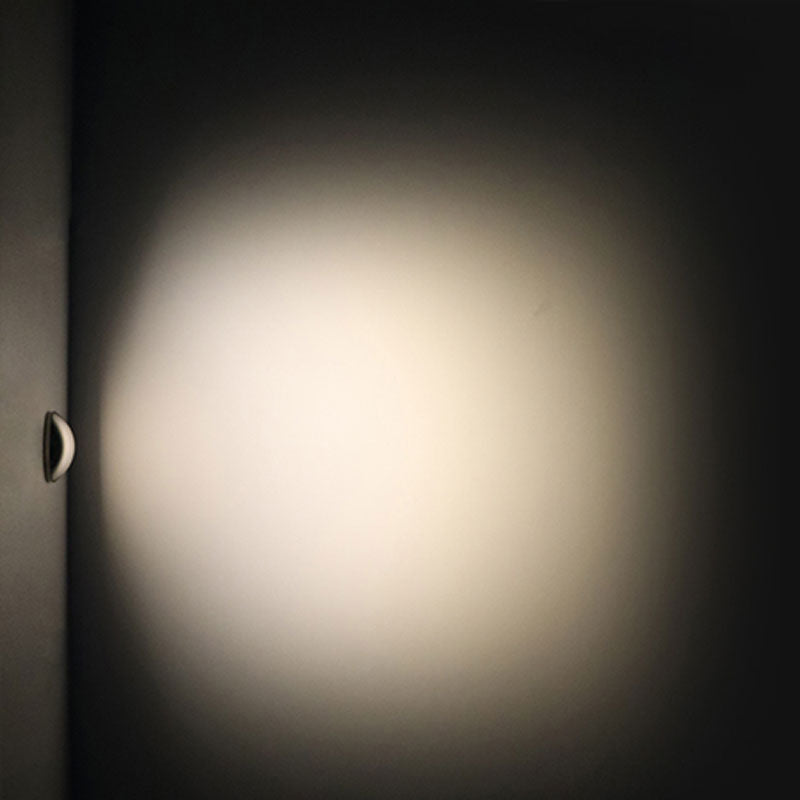

Capable of producing a powerful floor wash reaching up to 3 metres, the LD42D offers a range of beam angles—from narrow to oval—with the option of a 20° tilt lens to focus light precisely onto the lit surface. Constructed from machined 316 stainless steel with 1.2mm thick glass, it is CB Certified and rated IP67 for robust performance in harsh conditions. Fixing options include spring clips or a recommended fixing sleeve with O-rings for secure installation.

Overall Diameter: 36mm Ø

Depth: 35mm

Cut Out: 28mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 1.2W @350mA / 1.7W @500mA

Lumens: 133lm / 142lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 31° / 51°

Driver Required: Yes - Remote mounted 350mA / 500mA / 700mA

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 2.8V

IP rating: IP68

Fire rated: -

The LD42D is a miniature, high-performance recessed wall light, perfect for discreet step and pathway illumination in interior, exterior, and marine environments. An evolution of the popular LD42 range, it features a newly designed machined domed bezel that obscures the light source when viewed from above, delivering exceptional glare control and a clean architectural aesthetic.

Capable of producing a powerful floor wash reaching up to 3 metres, the LD42D offers a range of beam angles—from narrow to oval—with the option of a 20° tilt lens to focus light precisely onto the lit surface. Constructed from machined 316 stainless steel with 1.2mm thick glass, it is CB Certified and rated IP67 for robust performance in harsh conditions. Fixing options include spring clips or a recommended fixing sleeve with O-rings for secure installation.

Overall Diameter: 36mm Ø

Depth: 35mm

Cut Out: 28mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 1.2W @350mA / 1.7W @500mA

Lumens: 133lm / 142lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 31° / 51°

Driver Required: Yes - Remote mounted 350mA / 500mA / 700mA

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 2.8V

IP rating: IP68

Fire rated: -
