Vendor: LightGraphix

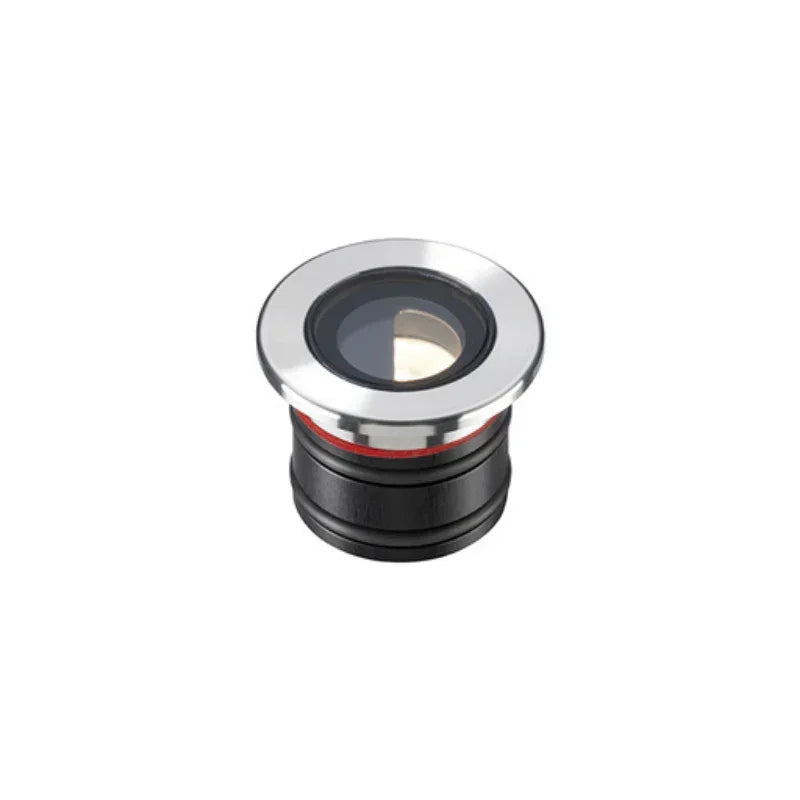

LD43 Uplight

SKU: LD43-C1

The LD43 Uplight is a compact recessed LED fitting designed for low-glare architectural uplighting. Featuring a shallow profile, IP66 protection and replaceable LED engines, it delivers strong performance for interior, bathroom and marine applications. Optional glare shields and tilt accessories provide additional control for tailored lighting effects.

Regular price £104.51 Sale price £104.51

Tax included and shipping calculated at checkout

You can't add more LD43 Uplight in Default Title to cart

Usually ships within 4 weeks

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

The LD43 is a compact, high-performance recessed uplight designed for interior use, including bathrooms and other low-profile applications. Its shallow depth and slim cable entry make it ideal for discreet installations. Featuring a flush glass finish and walkover-rated bezel, the LD43 is engineered for in-ground use, with the LED and optics recessed 10mm into the body to minimise glare.

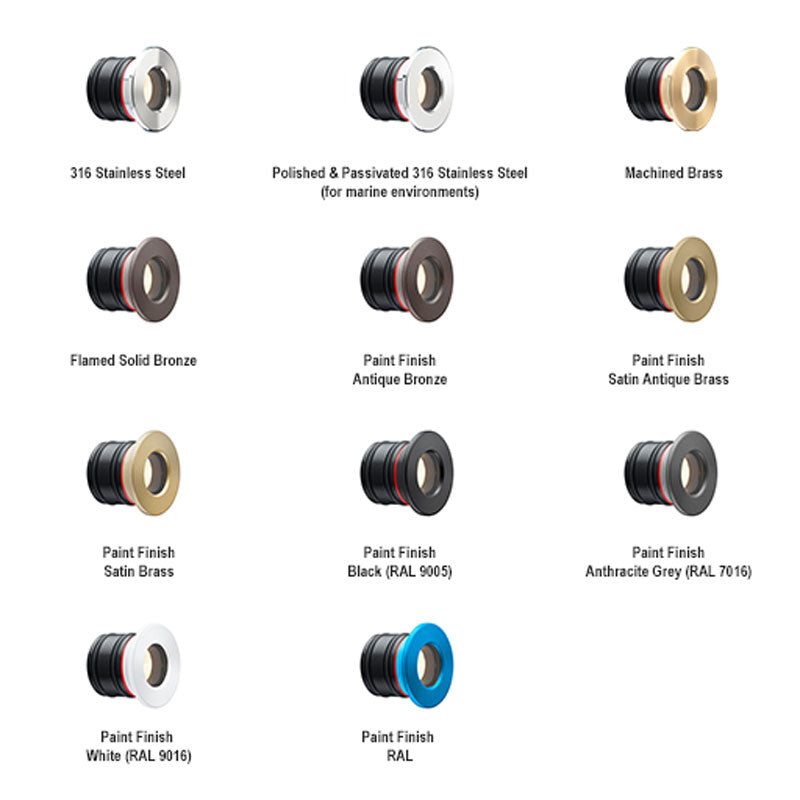

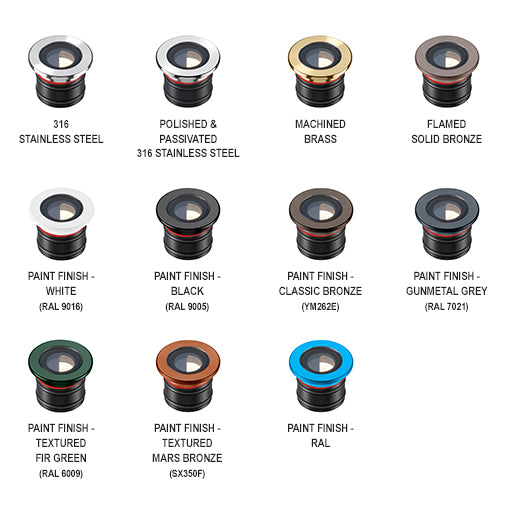

A range of accessories—including tilt lenses and glare shields—enable customisation for different lighting effects. Aperture reductions of 50% or 70%, with or without an integrated 20° tilt film, help focus light precisely onto the surface for a more concentrated beam. Despite its miniature size, the LD43 delivers impressive light output and can be paired with the LD42 wall light for a cohesive wall and floor washing effect. For exterior ground-recessed applications, alternatives such as the LD41, LD60, or LD56 are recommended. Constructed from 316 stainless steel with a hard anodised aluminium body and 3.3mm borosilicate glass, the LD43 is rated IP66 for robust interior performance.

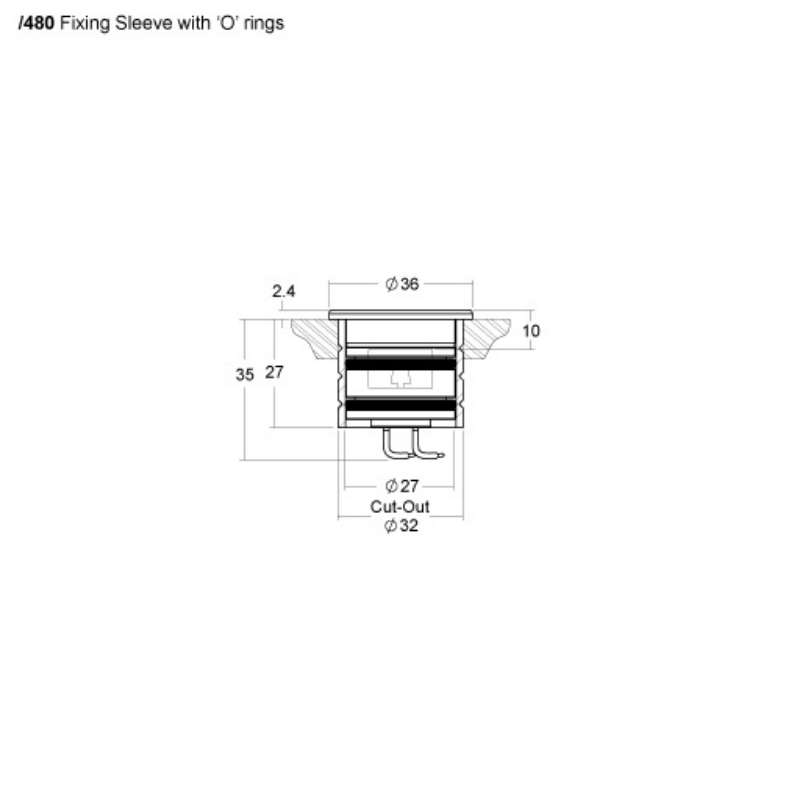

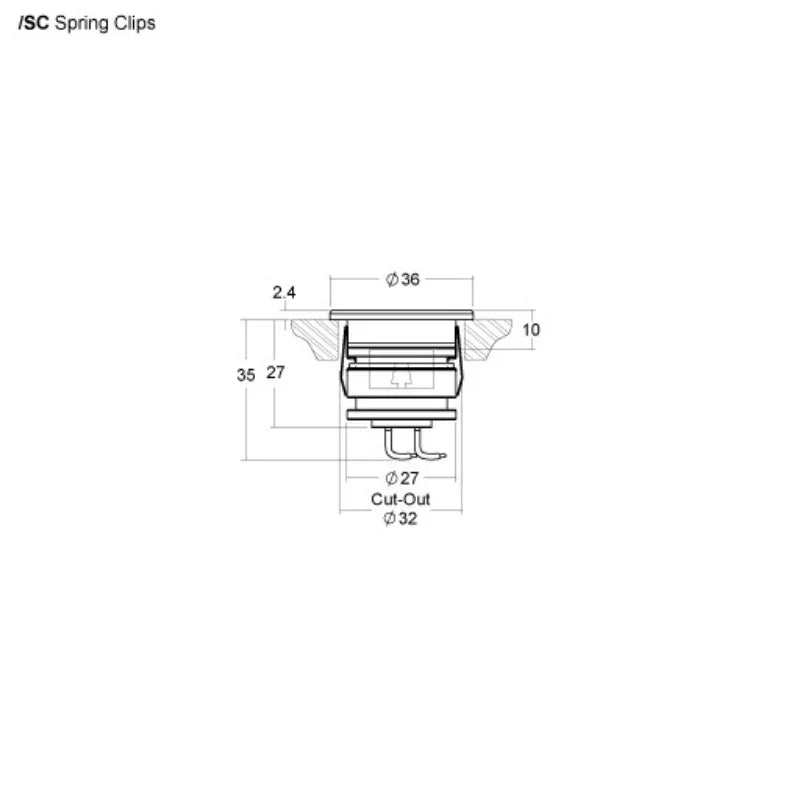

Overall Diameter: 36mm Ø

Depth: 35mm

Cut Out: 32mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 1.2W

Lumens: 103lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 31° / 48°

Driver Required: Yes - Remote mounted 350mA

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 2.6V

IP rating: IP66

Fire rated: -

The LD43 is a compact, high-performance recessed uplight designed for interior use, including bathrooms and other low-profile applications. Its shallow depth and slim cable entry make it ideal for discreet installations. Featuring a flush glass finish and walkover-rated bezel, the LD43 is engineered for in-ground use, with the LED and optics recessed 10mm into the body to minimise glare.

A range of accessories—including tilt lenses and glare shields—enable customisation for different lighting effects. Aperture reductions of 50% or 70%, with or without an integrated 20° tilt film, help focus light precisely onto the surface for a more concentrated beam. Despite its miniature size, the LD43 delivers impressive light output and can be paired with the LD42 wall light for a cohesive wall and floor washing effect. For exterior ground-recessed applications, alternatives such as the LD41, LD60, or LD56 are recommended. Constructed from 316 stainless steel with a hard anodised aluminium body and 3.3mm borosilicate glass, the LD43 is rated IP66 for robust interior performance.

Overall Diameter: 36mm Ø

Depth: 35mm

Cut Out: 32mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 1.2W

Lumens: 103lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 31° / 48°

Driver Required: Yes - Remote mounted 350mA

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 2.6V

IP rating: IP66

Fire rated: -
