Vendor: LightGraphix

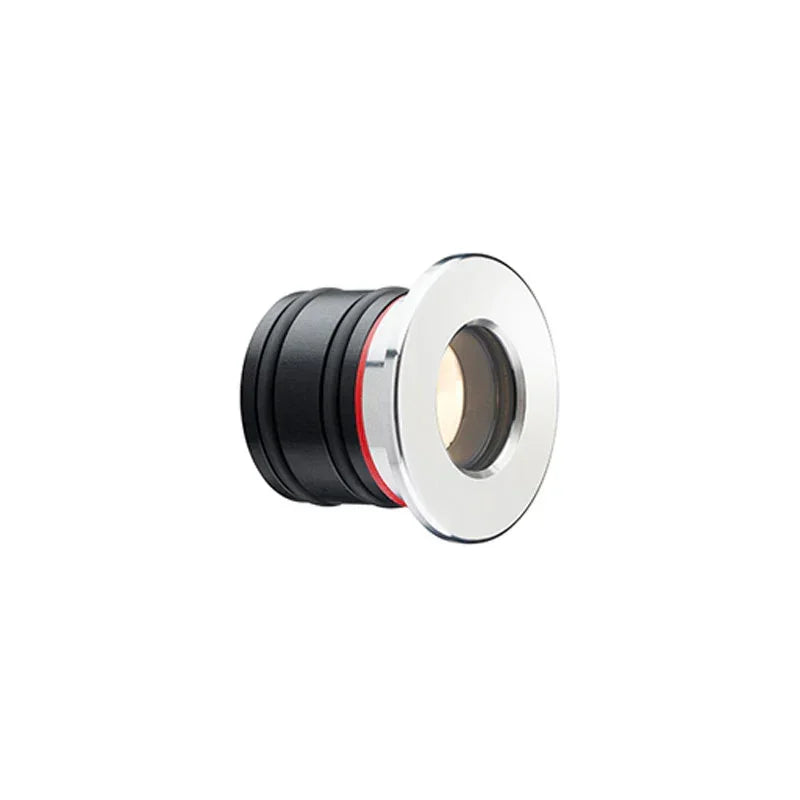

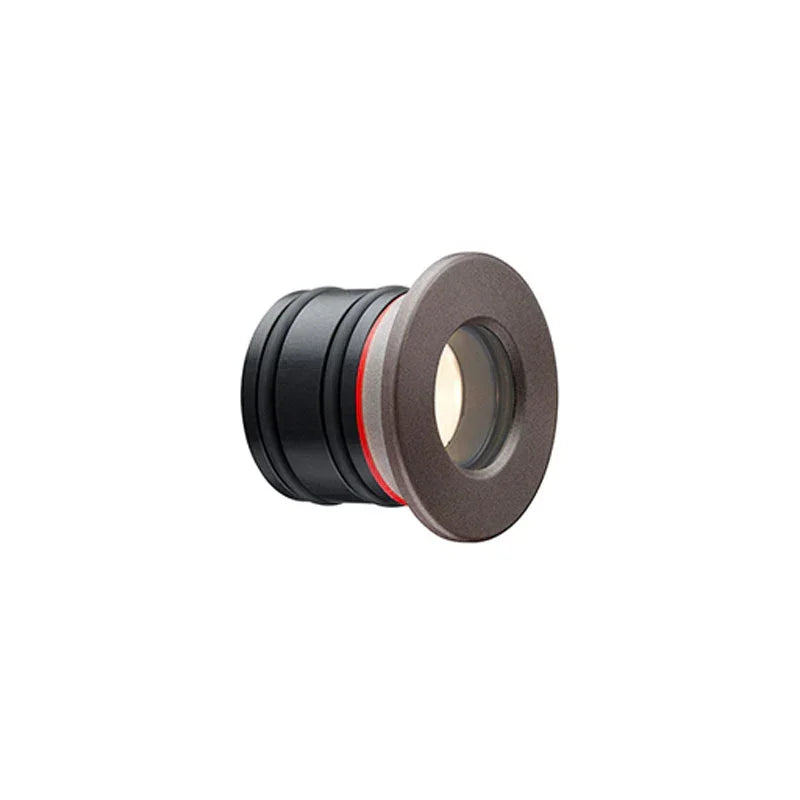

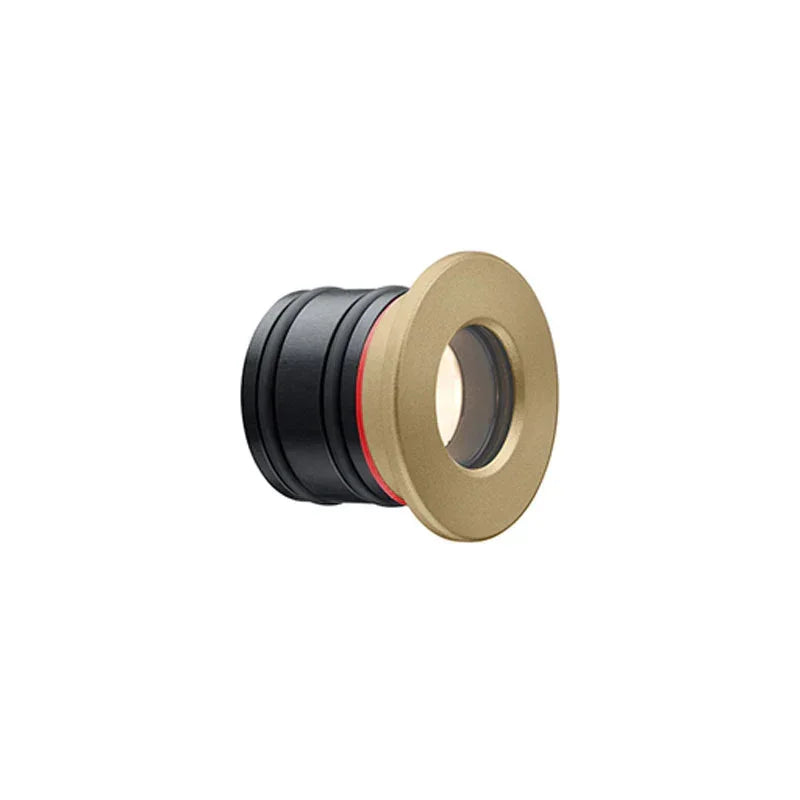

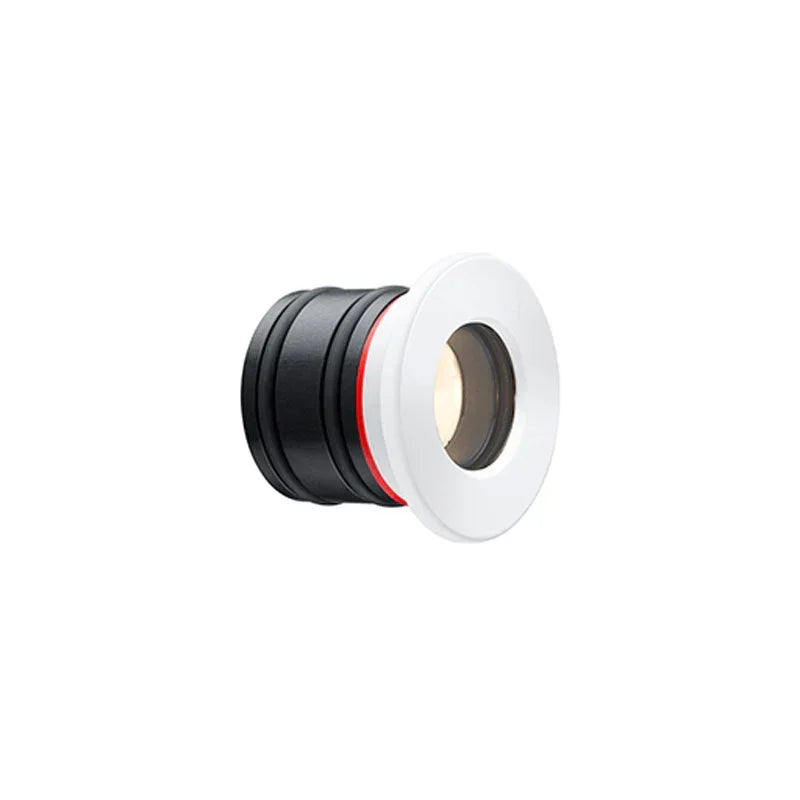

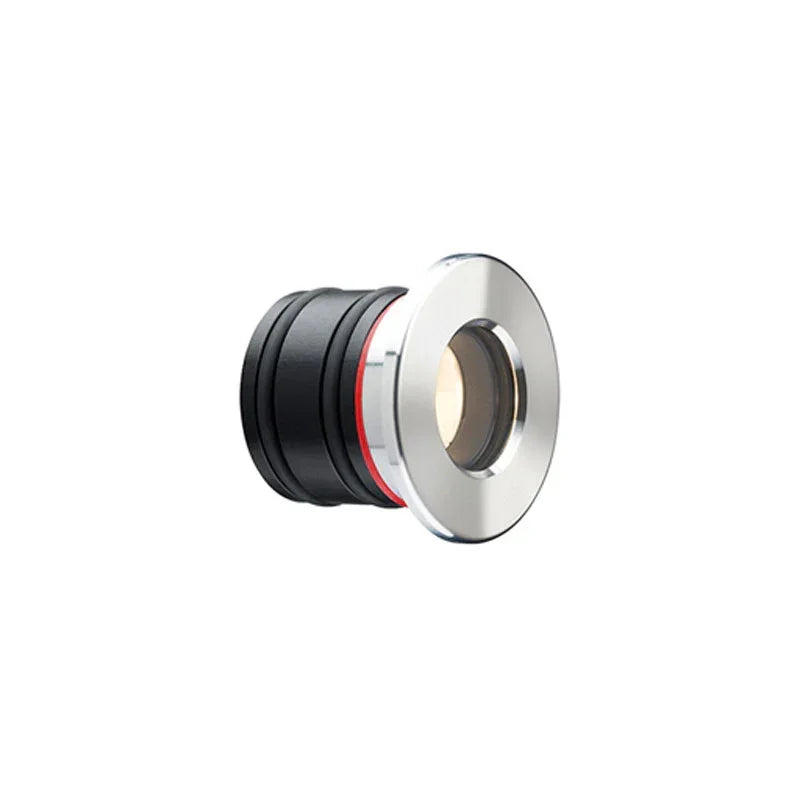

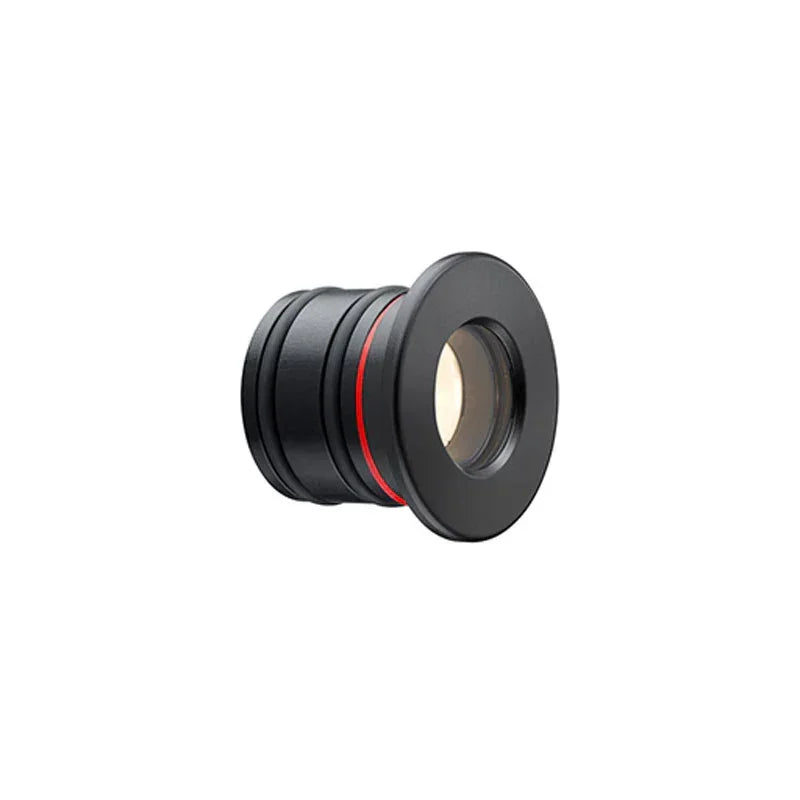

LD42 Wall Light

SKU: LD42-C1

The LD42 Wall Light is a compact yet powerful recessed LED wall light, ideal for both interior and exterior applications where low glare and a discreet appearance are essential. With its IP68 rating and high-quality construction, it’s well-suited for use in bathrooms, pathways, yachts, and step lighting. The lens assembly is deeply recessed within a black anodised interior to reduce glare, while the flush glass is secured by a gasket for a clean, glue-free appearance behind the precision-machined 316 stainless steel bezel.

Regular price £93.67 Sale price £93.67

Tax included and shipping calculated at checkout

You can't add more LD42 Wall Light in Default Title to cart

Usually ships within 4 weeks

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

The LD42 Wall Light is a powerful yet discreet miniature recessed LED fitting designed for applications where low glare and precise illumination are essential. Its compact form makes it ideal for steps, pathways, bathrooms, floor washing and yacht lighting, with the light source carefully recessed to improve visual comfort. A black anodised internal finish further reduces glare, while the clean machined bezel and concealed glass gasket create a refined architectural appearance without a visible glue line.

Manufactured from 316 stainless steel, hard anodised aluminium and 3.3mm borosilicate glass, the LD42 Wall Light is engineered for demanding interior and exterior environments. Rated IP68, it offers excellent protection against water and dust, although it is not intended for permanent submersion. The replaceable NICHIA C1 LED engine is available in 1.2W at 350mA or 1.7W at 500mA, with fixing options including spring clips or a dedicated fixing sleeve with O-rings. Optional tilt lens and glare shield accessories provide additional control for more specialised lighting applications.

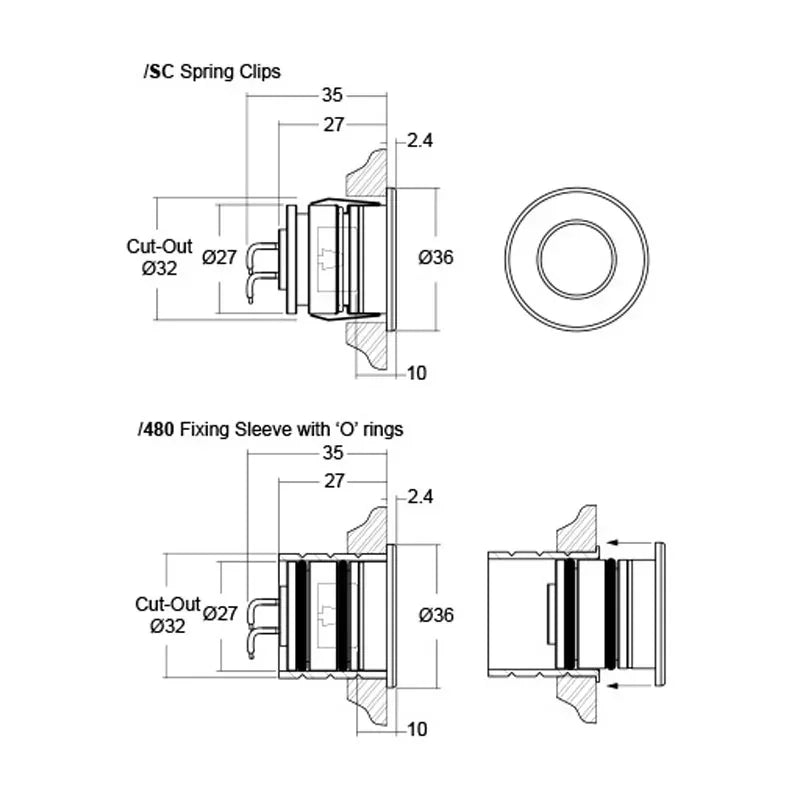

Overall Diameter: 36mm Ø

Depth: 35mm

Cut Out: 32mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 1.2W @350mA / 1.7W @500mA

Lumens: 133lm / 142lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 31° / 48°

Driver Required: Yes - Remote mounted 350mA / 500mA / 700mA

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 2.8V

IP rating: IP68

Fire rated: -

The LD42 Wall Light is a powerful yet discreet miniature recessed LED fitting designed for applications where low glare and precise illumination are essential. Its compact form makes it ideal for steps, pathways, bathrooms, floor washing and yacht lighting, with the light source carefully recessed to improve visual comfort. A black anodised internal finish further reduces glare, while the clean machined bezel and concealed glass gasket create a refined architectural appearance without a visible glue line.

Manufactured from 316 stainless steel, hard anodised aluminium and 3.3mm borosilicate glass, the LD42 Wall Light is engineered for demanding interior and exterior environments. Rated IP68, it offers excellent protection against water and dust, although it is not intended for permanent submersion. The replaceable NICHIA C1 LED engine is available in 1.2W at 350mA or 1.7W at 500mA, with fixing options including spring clips or a dedicated fixing sleeve with O-rings. Optional tilt lens and glare shield accessories provide additional control for more specialised lighting applications.

Overall Diameter: 36mm Ø

Depth: 35mm

Cut Out: 32mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 1.2W @350mA / 1.7W @500mA

Lumens: 133lm / 142lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 31° / 48°

Driver Required: Yes - Remote mounted 350mA / 500mA / 700mA

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 2.8V

IP rating: IP68

Fire rated: -
