LightGraphix

LD47 Wall Light

SKU: LD47-C1-

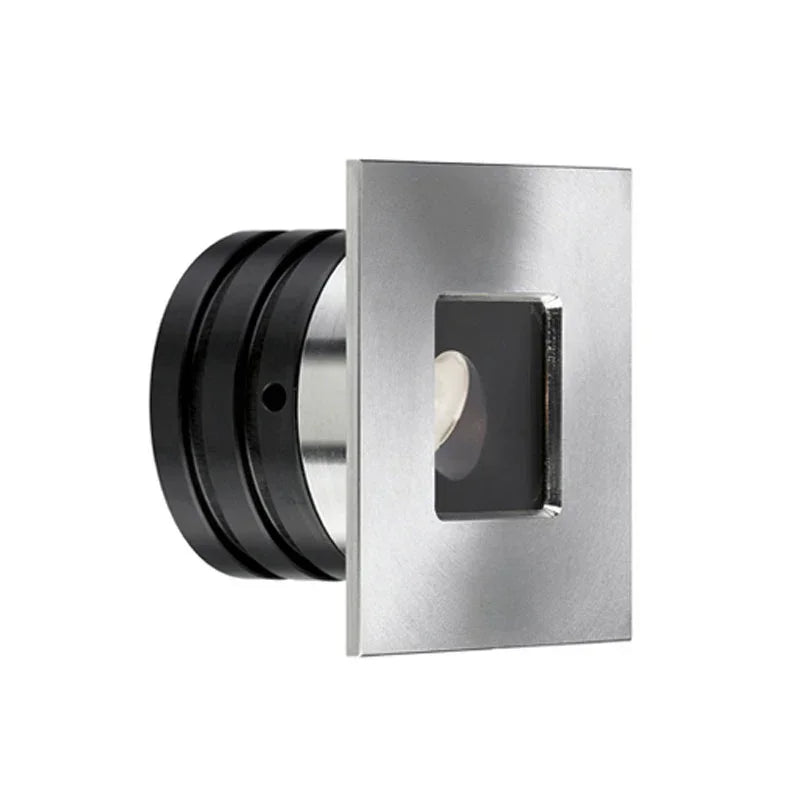

The LD47 Wall Light is a recessed LED fitting with a 20° tilted optic designed for low-glare floor washing. Featuring IP67 protection, a machined 316 stainless steel bezel and replaceable NICHIA LED engine, it is suited to demanding interior and exterior applications. Multiple beam, finish and dimming options provide flexibility for steps, pathways and architectural circulation areas.
£151.64 £151.64

Tax included and shipping calculated at checkout

You can't add more LD47 Wall Light in Default Title to cart

Usually ships within 4 weeks

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

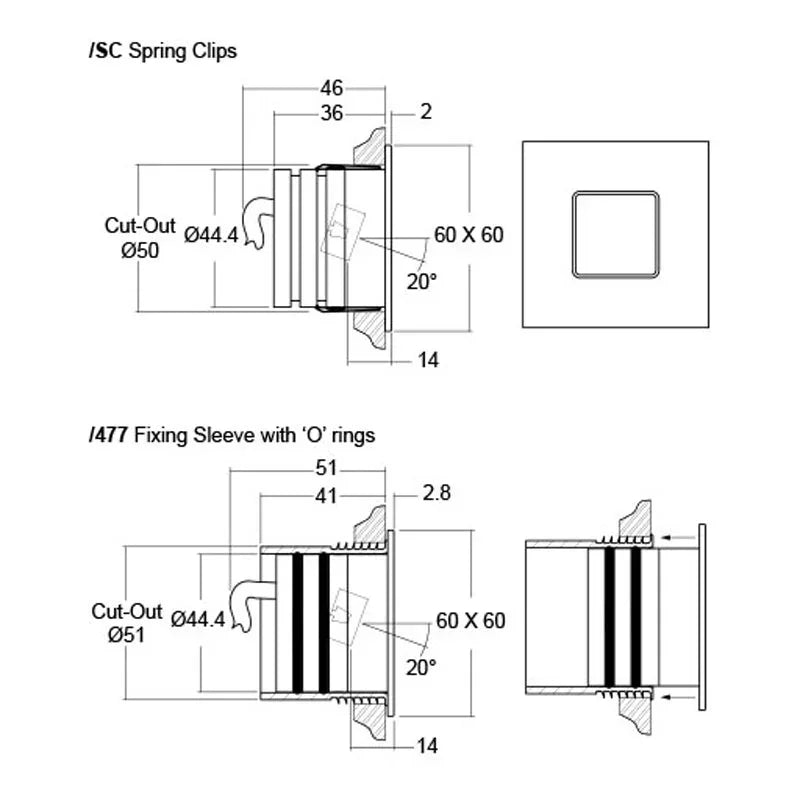

The LD47 Wall Light is a compact recessed LED fitting designed to create a controlled floor-wash effect with minimal glare. Its LED and lens assembly are recessed and tilted by 20° within a black anodised body, directing light towards the floor while reducing direct view of the source. Available in both square and round versions, the LD47 has a clean architectural appearance with no visible fixings and a concealed glass gasket, avoiding the visible glue line often found on similar fittings.

Manufactured with a machined 316 stainless steel bezel, hard anodised aluminium body and 5mm borosilicate glass, the LD47 Wall Light is built for demanding interior and exterior environments and is rated IP67. It uses a replaceable NICHIA C1 LED engine, available in 1.2W at 350mA, 1.7W at 500mA or 2.4W at 700mA, with a choice of beam angles and colour temperatures. An integral anti-wicking moisture barrier provides additional protection, while fixing options include spring clips or O-rings with a first-fix sleeve. Switched, 0-10V, DMX, DALI and mains dimmable driver options are also available.

Height: 60mm

Width: 60mm

Depth: 46mm

Cut Out: 50mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 1.2W @350mA / 1.7W @500mA / 2.4W @700mA

Lumens: 106lm / 138lm / 177lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 31° / 48°

Driver Required: Yes - Remote mounted

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 2.8V

IP rating: IP68

Fire rated: -
Download Spec Sheet
The LD47 Wall Light is a compact recessed LED fitting designed to create a controlled floor-wash effect with minimal glare. Its LED and lens assembly are recessed and tilted by 20° within a black anodised body, directing light towards the floor while reducing direct view of the source. Available in both square and round versions, the LD47 has a clean architectural appearance with no visible fixings and a concealed glass gasket, avoiding the visible glue line often found on similar fittings.

Manufactured with a machined 316 stainless steel bezel, hard anodised aluminium body and 5mm borosilicate glass, the LD47 Wall Light is built for demanding interior and exterior environments and is rated IP67. It uses a replaceable NICHIA C1 LED engine, available in 1.2W at 350mA, 1.7W at 500mA or 2.4W at 700mA, with a choice of beam angles and colour temperatures. An integral anti-wicking moisture barrier provides additional protection, while fixing options include spring clips or O-rings with a first-fix sleeve. Switched, 0-10V, DMX, DALI and mains dimmable driver options are also available.

Height: 60mm

Width: 60mm

Depth: 46mm

Cut Out: 50mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 1.2W @350mA / 1.7W @500mA / 2.4W @700mA

Lumens: 106lm / 138lm / 177lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 31° / 48°

Driver Required: Yes - Remote mounted

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 2.8V

IP rating: IP68

Fire rated: -
