40W LED Driver DALI2 DT6 300-1400mA
40W LED Driver DALI2 DT6 300-1400mA
100% Light UK

40W LED Driver DALI2 DT6 300-1400mA

SKU: AS40-DP2-300-1400

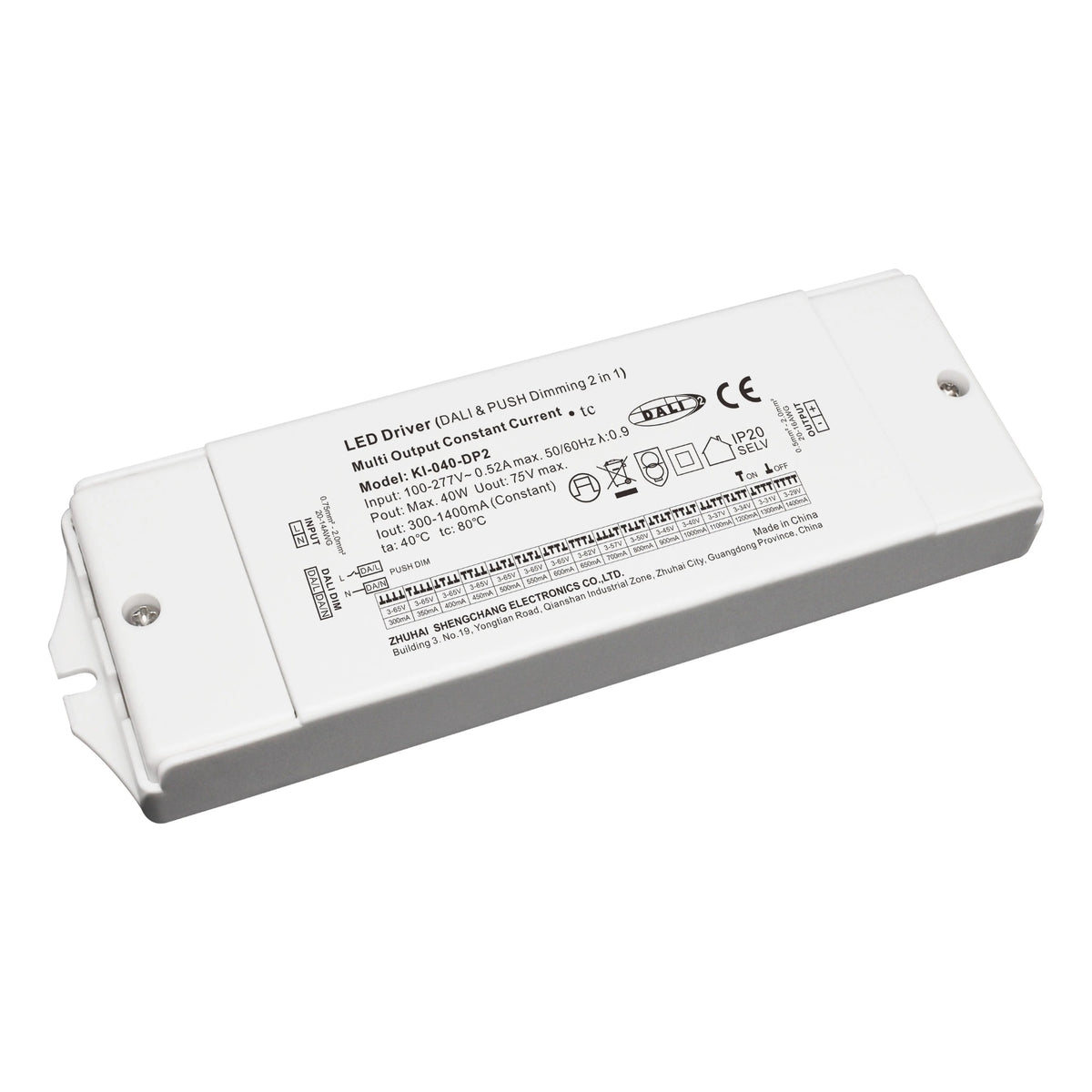

The 40W LED Driver DALI2 DT6 300-1400mA by 100% Light UK is a versatile constant-current LED driver designed for professional architectural lighting installations. Offering up to 40W output with selectable current settings from 300mA to 1400mA, it provides flexibility when specifying compatible LED luminaires across different applications. Designed for DALI-2 dimming, the driver provides precise digital lighting control and can be integrated into compatible control systems. Its broad selectable current range makes it particularly useful for residential, hospitality and architectural projects where adaptable driver performance is required.
£57.59 £57.59

Tax included and shipping calculated at checkout

Usually ships within 2-3 working days

You can't add more 40W LED Driver DALI2 DT6 300-1400mA in Default Title to cart

Usually ships within 2-3 working days
The 40W LED Driver DALI2 DT6 300-1400mA by 100% Light UK is a versatile constant-current LED driver designed for professional architectural lighting installations. Offering up to 40W output with selectable current settings from 300mA to 1400mA, it provides flexibility when specifying compatible LED luminaires across different applications.

Designed for DALI-2 dimming, the driver provides precise digital lighting control and can be integrated into compatible control systems. Its broad selectable current range makes it particularly useful for residential, hospitality and architectural projects where adaptable driver performance is required.

Driver Type: Constant Current

Output Voltage: 3V - 65V

Output Current: 300mA - 1400mA

Output Current Options: 300mA / 350mA / 400mA / 450mA / 500mA / 550mA / 600mA / 650mA / 700mA / 800mA / 900mA / 1000mA / 1100mA / 1200mA / 1300mA / 1400mA

Rated Power: 19.5W / 22.8W / 26W / 29.3W / 32.5W / 35.8W / 39W / 40W

Maximum Load: 40W

Supply Voltage: 200-240V AC

Frequency Range: 47-63Hz

Full Load Efficiency: 86%

Power Factor: ≥0.92

Standby Power: 1.5W

Dimmable: Yes

Dimming Protocol: DALI / PUSH

Short Circuit: Yes

Over Temperature: Yes

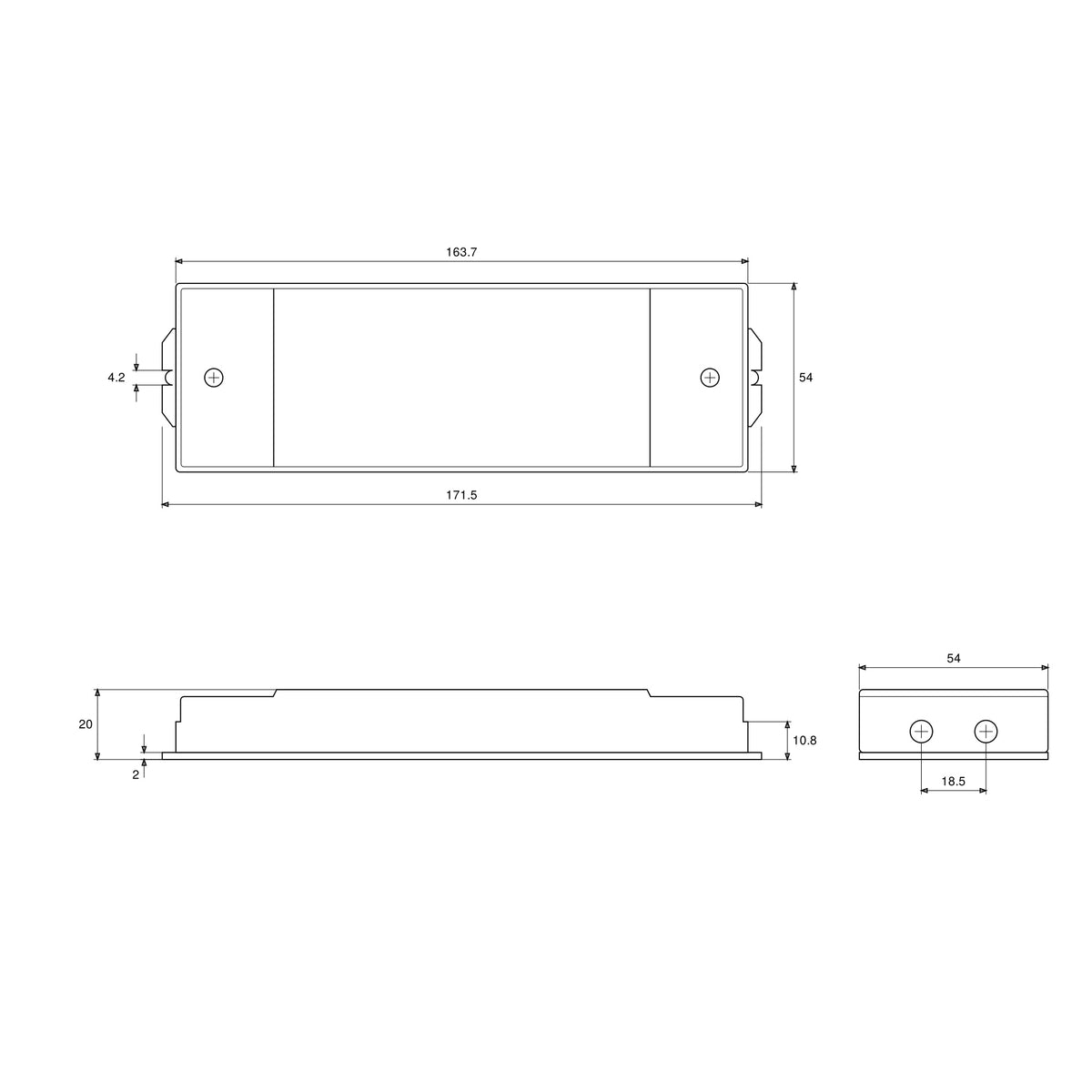

Overall Dimensions (L x W x H): 171.5 x 54 x 20mm

Cable Entry / Terminals: Screw terminals

Weight: 0.255kg

IP Rating: IP20

Warranty: 5 years
Download Spec Sheet
The 40W LED Driver DALI2 DT6 300-1400mA by 100% Light UK is a versatile constant-current LED driver designed for professional architectural lighting installations. Offering up to 40W output with selectable current settings from 300mA to 1400mA, it provides flexibility when specifying compatible LED luminaires across different applications.

Designed for DALI-2 dimming, the driver provides precise digital lighting control and can be integrated into compatible control systems. Its broad selectable current range makes it particularly useful for residential, hospitality and architectural projects where adaptable driver performance is required.

Driver Type: Constant Current

Output Voltage: 3V - 65V

Output Current: 300mA - 1400mA

Output Current Options: 300mA / 350mA / 400mA / 450mA / 500mA / 550mA / 600mA / 650mA / 700mA / 800mA / 900mA / 1000mA / 1100mA / 1200mA / 1300mA / 1400mA

Rated Power: 19.5W / 22.8W / 26W / 29.3W / 32.5W / 35.8W / 39W / 40W

Maximum Load: 40W

Supply Voltage: 200-240V AC

Frequency Range: 47-63Hz

Full Load Efficiency: 86%

Power Factor: ≥0.92

Standby Power: 1.5W

Dimmable: Yes

Dimming Protocol: DALI / PUSH

Short Circuit: Yes

Over Temperature: Yes

Overall Dimensions (L x W x H): 171.5 x 54 x 20mm

Cable Entry / Terminals: Screw terminals

Weight: 0.255kg

IP Rating: IP20

Warranty: 5 years
