LD61 Wall Light

SKU: LD61-C1

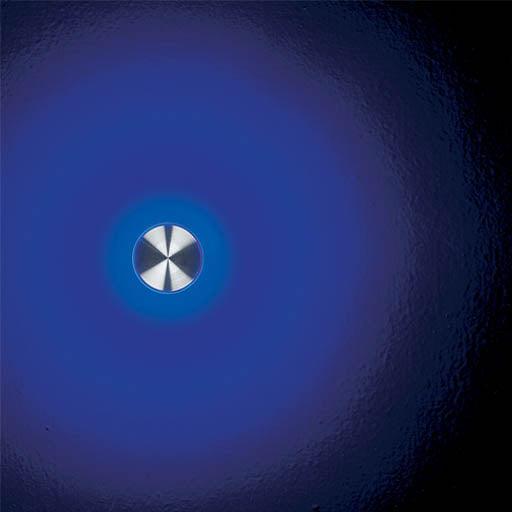

The LD61 Wall Light is a miniature recessed LED fitting that creates a soft 360° wash of illumination around the wall surface. Featuring IP67 protection, a replaceable NICHIA LED engine and concealed fixings, it delivers a clean, minimal appearance for interior and exterior applications. Multiple dimming options provide added flexibility for steps, pathways, walls and marine environments.
£114.50 £114.50

Tax included and shipping calculated at checkout

You can't add more LD61 Wall Light in Default Title to cart

Usually ships within 4 weeks

Built To Order Item, we are unable to accept returns unless they are found to be faulty.
The LD61 Wall Light is a miniature wall-mounted LED fitting designed to create a soft 360° wash of light around the surrounding surface. Its specially engineered reflector produces an even halo effect, making it ideal for illuminating walls, steps, staircases, pathways and architectural details across both interior and exterior environments. With no visible fixings and a minimal aesthetic, the LD61 integrates discreetly into premium residential, hospitality, marine and landscape schemes.

Manufactured from machined 316 stainless steel and acrylic, the LD61 Wall Light is rated IP67 for demanding applications and uses a replaceable NICHIA C1 LED engine, available in 1.2W at 350mA or 1.7W at 500mA. Installation can be completed using spring clips or O-rings with a first-fix sleeve, while an integral anti-wicking barrier provides additional protection against moisture ingress through the cable. Switched, 0-10V, DMX, DALI and mains dimmable driver options are available, offering excellent flexibility for architectural lighting control.

Overall Diameter: 44mm Ø

Depth: 40mm

Cut Out: 31mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 1.2W @350mA / 1.7W @500mA

Lumens: 133lm / 142lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 360°

Driver Required: Yes - Remote mounted

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 3V

IP rating: IP67

Fire rated: -
Download Spec Sheet
The LD61 Wall Light is a miniature wall-mounted LED fitting designed to create a soft 360° wash of light around the surrounding surface. Its specially engineered reflector produces an even halo effect, making it ideal for illuminating walls, steps, staircases, pathways and architectural details across both interior and exterior environments. With no visible fixings and a minimal aesthetic, the LD61 integrates discreetly into premium residential, hospitality, marine and landscape schemes.

Manufactured from machined 316 stainless steel and acrylic, the LD61 Wall Light is rated IP67 for demanding applications and uses a replaceable NICHIA C1 LED engine, available in 1.2W at 350mA or 1.7W at 500mA. Installation can be completed using spring clips or O-rings with a first-fix sleeve, while an integral anti-wicking barrier provides additional protection against moisture ingress through the cable. Switched, 0-10V, DMX, DALI and mains dimmable driver options are available, offering excellent flexibility for architectural lighting control.

Overall Diameter: 44mm Ø

Depth: 40mm

Cut Out: 31mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 1.2W @350mA / 1.7W @500mA

Lumens: 133lm / 142lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 360°

Driver Required: Yes - Remote mounted

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 3V

IP rating: IP67

Fire rated: -
