Vendor:
Lumino
V10S Led Strip
Usually ships within 6 weeks
Built To Order Item, we are unable to accept returns unless they are found to be faulty.
Share
• Surface mounted
• 10.5x6.8mm linear lighting profile
• Interior IP20 rated
• Custom made lengths from 105mm to 2005mm
• Suited for concealed lighting effects such as coving, under-shelf and under-cabinet
• Rotation mount with adjustable tilt up to 90 for controlled lighting throw
• PowerTHRU CLICK-CONNECT cabling for long runs up to 12m
• Dimmable 24VDC drivers in 0-10v, DALI or PHASE
• ColorCORE Premium 95Ra, 2-Step 2200-4000K, ≤1300 lm/m
• EQ™ 95Ra, 3-Step 2700/3000/4000K LEDs, ≤1170lm/m
• RGB LEDs provide at 14.4 W/m, ≤680lm/m
• 10.5x6.8mm linear lighting profile
• Interior IP20 rated
• Custom made lengths from 105mm to 2005mm
• Suited for concealed lighting effects such as coving, under-shelf and under-cabinet
• Rotation mount with adjustable tilt up to 90 for controlled lighting throw
• PowerTHRU CLICK-CONNECT cabling for long runs up to 12m
• Dimmable 24VDC drivers in 0-10v, DALI or PHASE
• ColorCORE Premium 95Ra, 2-Step 2200-4000K, ≤1300 lm/m
• EQ™ 95Ra, 3-Step 2700/3000/4000K LEDs, ≤1170lm/m
• RGB LEDs provide at 14.4 W/m, ≤680lm/m

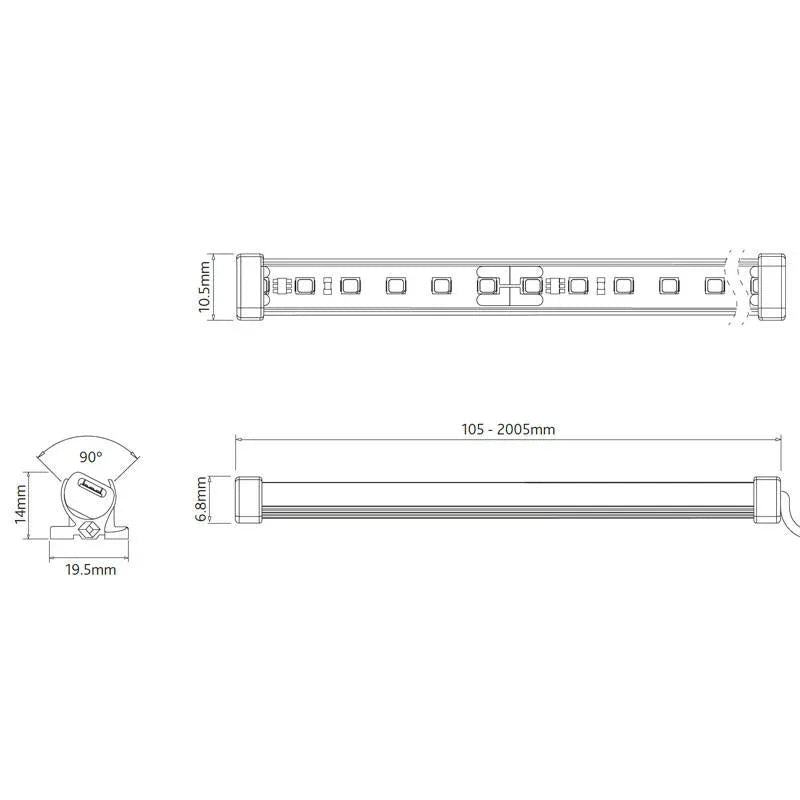

Height: 6.8mm
Width: 10.5mm
Length: 105mm - 2005mm
Cut Points: 105mm
Tilt Angle ( ): 90°
Rotation Angle ( ): -
Light Source: LED
Wattage: Spec Sheet
Number of Lamps: Spec Sheet
Lumens: Spec Sheet
Kelvin: Spec Sheet
CRI: Spec Sheet
Beam Degree: Spec Sheet
Driver Required: Yes - Remote mounted
Driver Current: -
Switched: -
Dimmable: Yes
Dimming Type: Driver Dependent
Voltage: 24V
IP rating: IP20
