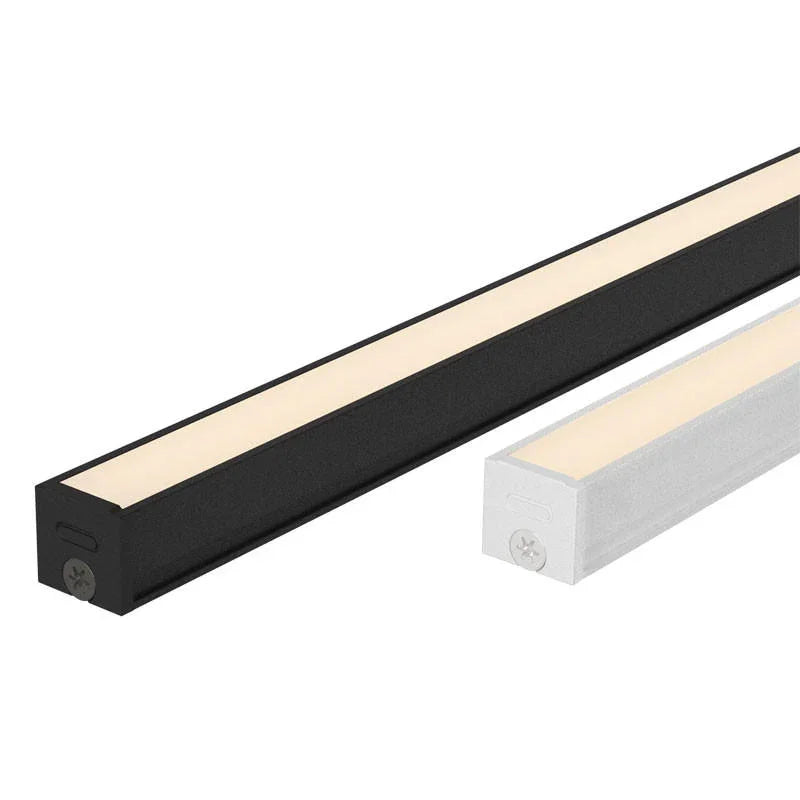

V12S Led Strip
Usually ships within 6 weeks
Built To Order Item, we are unable to accept returns unless they are found to be faulty.
Share
• Surface mounted
• 12x11mm linear lighting profile
• OPX™ diffuser • Custom made lengths from 105mm to 2005mm
• Interior IP50 or exterior IP67 rated water resistant options
• Suited to joinery
• Fixed or rotation mount options
• PowerTHRU CLICK-CONNECT cabling for long runs up to 12m (2 x 6m in parallel)
• Dimmable 24VDC drivers in 0-10v, DALI or PHASE
• ColorCORE® Premium ≤95Ra, 2-Step 2200-4000K, ≤1300 lm/m excl LOR
• 12x11mm linear lighting profile
• OPX™ diffuser • Custom made lengths from 105mm to 2005mm
• Interior IP50 or exterior IP67 rated water resistant options
• Suited to joinery
• Fixed or rotation mount options
• PowerTHRU CLICK-CONNECT cabling for long runs up to 12m (2 x 6m in parallel)
• Dimmable 24VDC drivers in 0-10v, DALI or PHASE
• ColorCORE® Premium ≤95Ra, 2-Step 2200-4000K, ≤1300 lm/m excl LOR

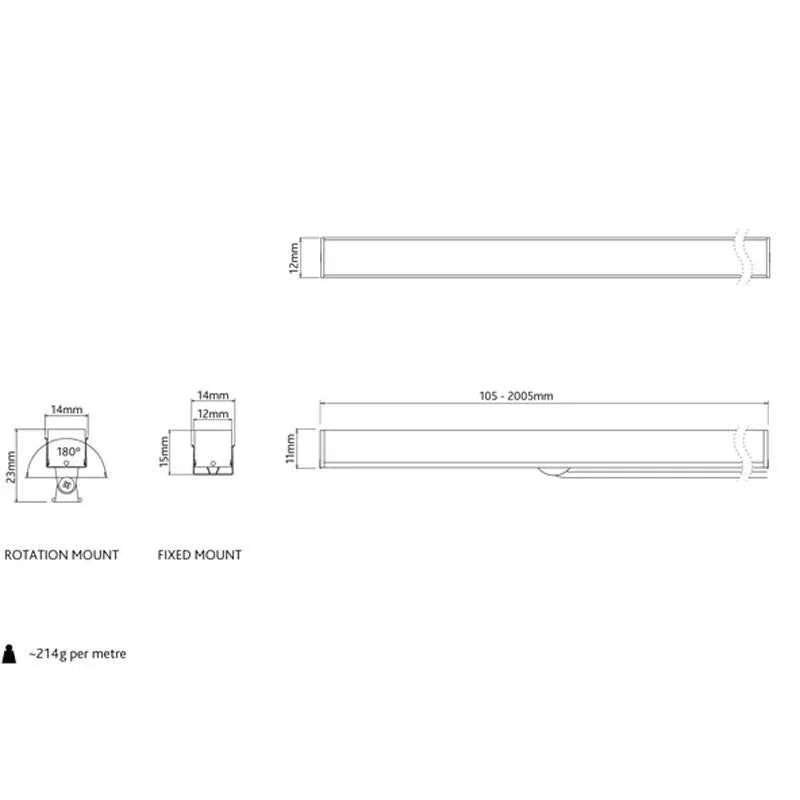

Height: 11mm
Width: 12mm
Length: 105mm - 2005mm
Cut Points: 105mm
Tilt Angle ( ): 90°
Rotation Angle ( ): -
Light Source: LED
Wattage: Spec Sheet
Number of Lamps: Spec Sheet
Lumens: Spec Sheet
Kelvin: Spec Sheet
CRI: Spec Sheet
Beam Degree: Spec Sheet
Driver Required: Yes - Remote mounted
Driver Current: -
Switched: -
Dimmable: Yes
Dimming Type: Driver Dependent
Voltage: 24V
IP rating: IP67
