Vendor:
Lumino

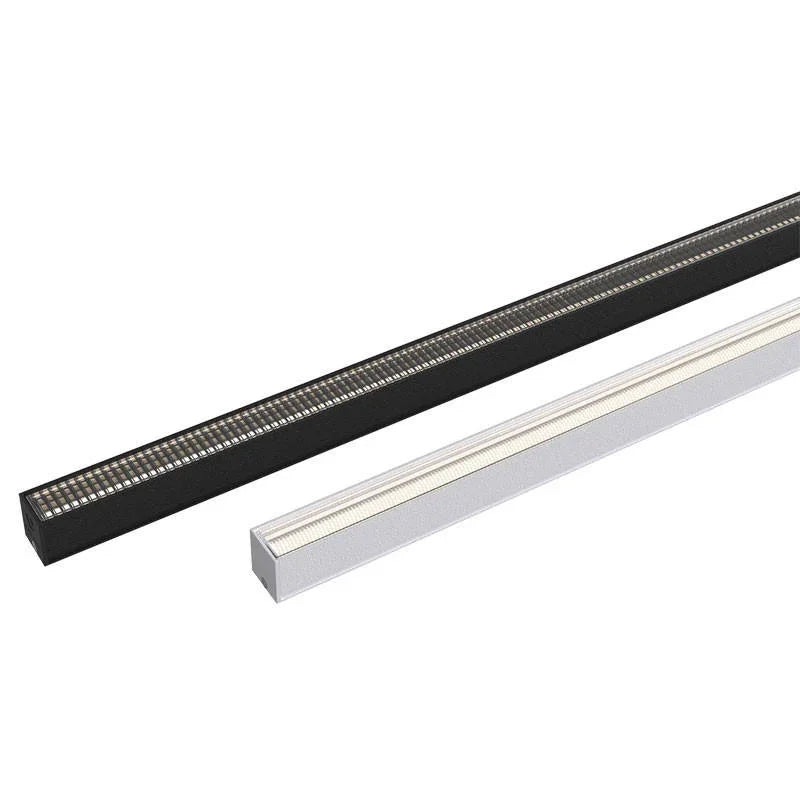

V20S Optic Led Strip
Usually ships within 6 weeks
Built To Order Item, we are unable to accept returns unless they are found to be faulty.
Share
• Surface mounted
• 20x20mm linear lighting profile

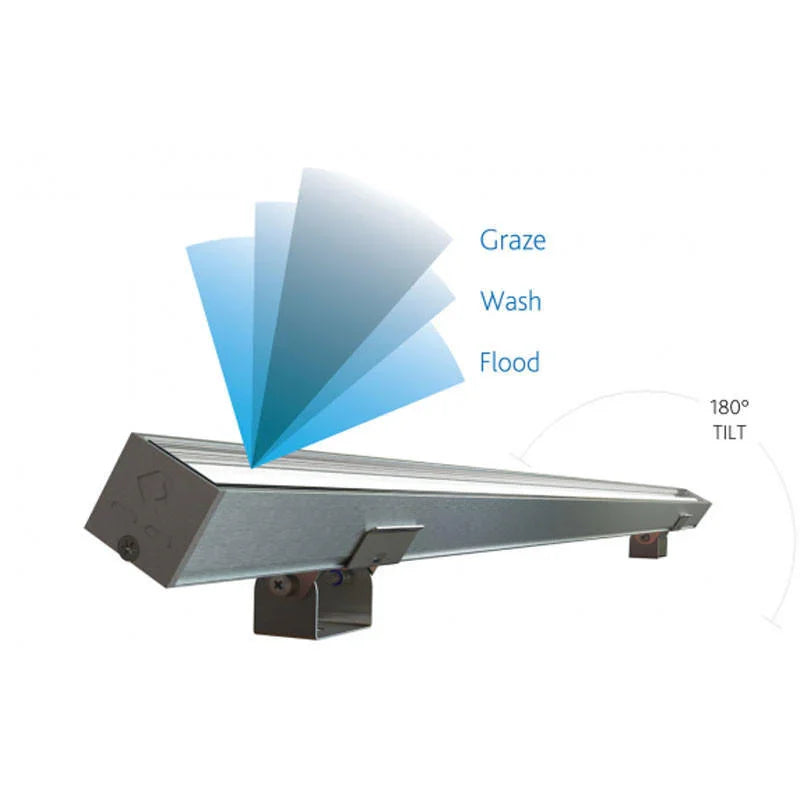

• GRAZE / WASH / FLOOD lenses and optional anti-glare louvre
• Custom made lengths from 105mm to 2005mm
• Interior IP50 or exterior IP67 rated water resistant options
• Wall grazing, wall washing and display-lighting applications
• Fixed or rotation mount options • PowerTHRU CLICK-CONNECT cabling for long runs up to 12m (2 x 6m in parallel) • Dimmable 24VDC drivers in 0-10v, DALI or PHASE
• ColorCORE® Premium 95Ra, 2-Step 2200-4000K, ≤2400 l m/m excl LOR
• EQ™ 95Ra, 3-Step 2700/3000/4000K, ≤2050l m/m excl LOR
• ColorTUNE 95Ra, 1800-4000K, ≤2210lm/m excl LOR
• RGB & RGBW LEDs for colour-mixing + white
• WarmDIM 3000K - 1800K
• 20x20mm linear lighting profile
• GRAZE / WASH / FLOOD lenses and optional anti-glare louvre
• Custom made lengths from 105mm to 2005mm
• Interior IP50 or exterior IP67 rated water resistant options
• Wall grazing, wall washing and display-lighting applications
• Fixed or rotation mount options • PowerTHRU CLICK-CONNECT cabling for long runs up to 12m (2 x 6m in parallel) • Dimmable 24VDC drivers in 0-10v, DALI or PHASE
• ColorCORE® Premium 95Ra, 2-Step 2200-4000K, ≤2400 l m/m excl LOR
• EQ™ 95Ra, 3-Step 2700/3000/4000K, ≤2050l m/m excl LOR
• ColorTUNE 95Ra, 1800-4000K, ≤2210lm/m excl LOR
• RGB & RGBW LEDs for colour-mixing + white
• WarmDIM 3000K - 1800K

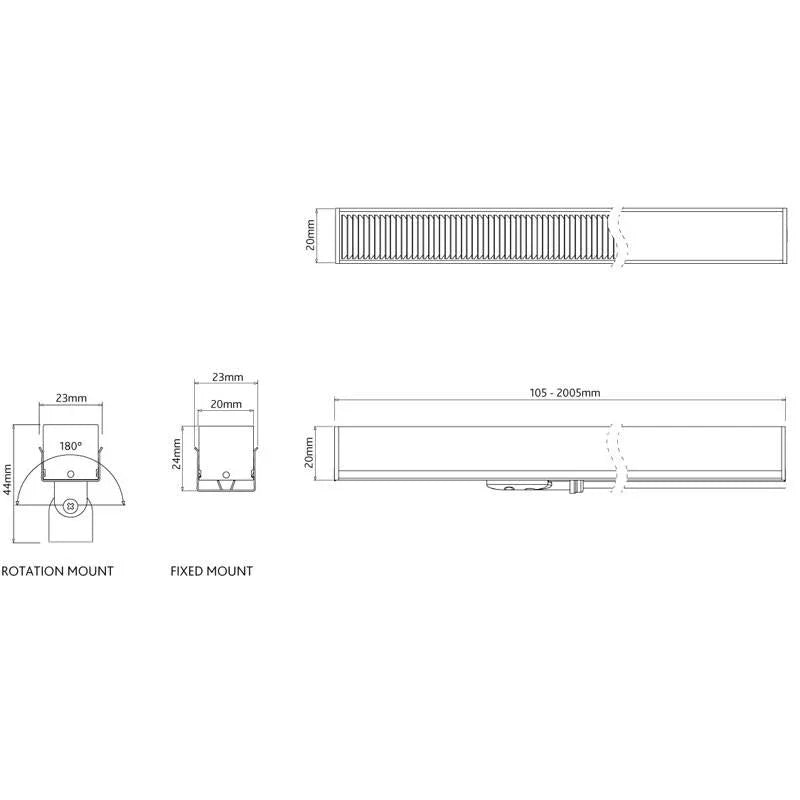

Height: 20mm
Width: 20mm
Length: 105mm - 2005mm
Cut Points: 105mm
Tilt Angle ( ): 90°
Rotation Angle ( ): -
Light Source: LED
Wattage: Spec Sheet
Number of Lamps: Spec Sheet
Lumens: Spec Sheet
Kelvin: Spec Sheet
CRI: Spec Sheet
Beam Degree: 35° / 50° / 90°
Driver Required: Yes - Remote mounted
Driver Current: -
Switched: -
Dimmable: Yes
Dimming Type: Driver Dependent
Voltage: 24V
IP rating: IP67
