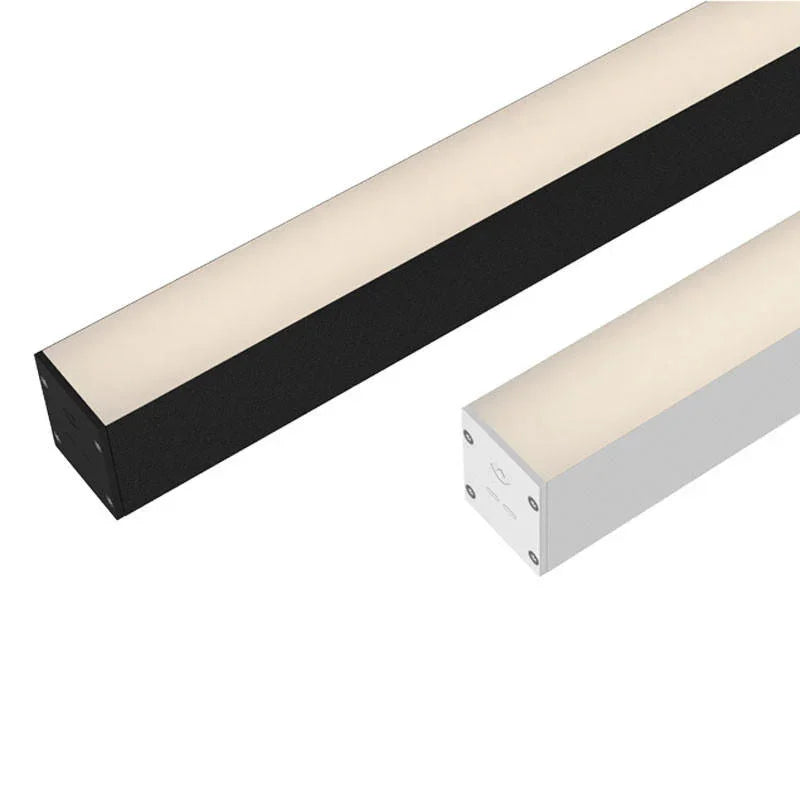

V36S Led Strip
Usually ships within 6 weeks
Built To Order Item, we are unable to accept returns unless they are found to be faulty.
Share
• Surface mounted
• 36X42mm linear lighting profile
• OPX™ diffuser gives homogeneous diffusion with no LED imaging
• Custom made lengths from 105mm to 2005mm
• Interior IP50 or exterior IP67 rated water resistant options
• Ideally suited to ceiling or wall mounted applications
• PowerTHRU connectors for long runs up to 8m (12W/m)
• Impact rating IK08
• Dimmable 24VDC drivers in 0-10v, DALI or PHASE • ColorCORE® Premium 95Ra, 2-Step 2200-4000K, ≤2900 l m/m excl LOR
• EQ™ 95Ra, 3-Step 2700/3000/4000K, ≤2050l m/m excl LOR
• ColorTUNE 95Ra, 1800-4000K, ≤2210lm/m excl LOR
• RGB & RGBW LEDs for colour-mixing + white • WarmDIM 3000K - 1800K
• 36X42mm linear lighting profile
• OPX™ diffuser gives homogeneous diffusion with no LED imaging
• Custom made lengths from 105mm to 2005mm
• Interior IP50 or exterior IP67 rated water resistant options
• Ideally suited to ceiling or wall mounted applications
• PowerTHRU connectors for long runs up to 8m (12W/m)
• Impact rating IK08
• Dimmable 24VDC drivers in 0-10v, DALI or PHASE • ColorCORE® Premium 95Ra, 2-Step 2200-4000K, ≤2900 l m/m excl LOR
• EQ™ 95Ra, 3-Step 2700/3000/4000K, ≤2050l m/m excl LOR
• ColorTUNE 95Ra, 1800-4000K, ≤2210lm/m excl LOR
• RGB & RGBW LEDs for colour-mixing + white • WarmDIM 3000K - 1800K

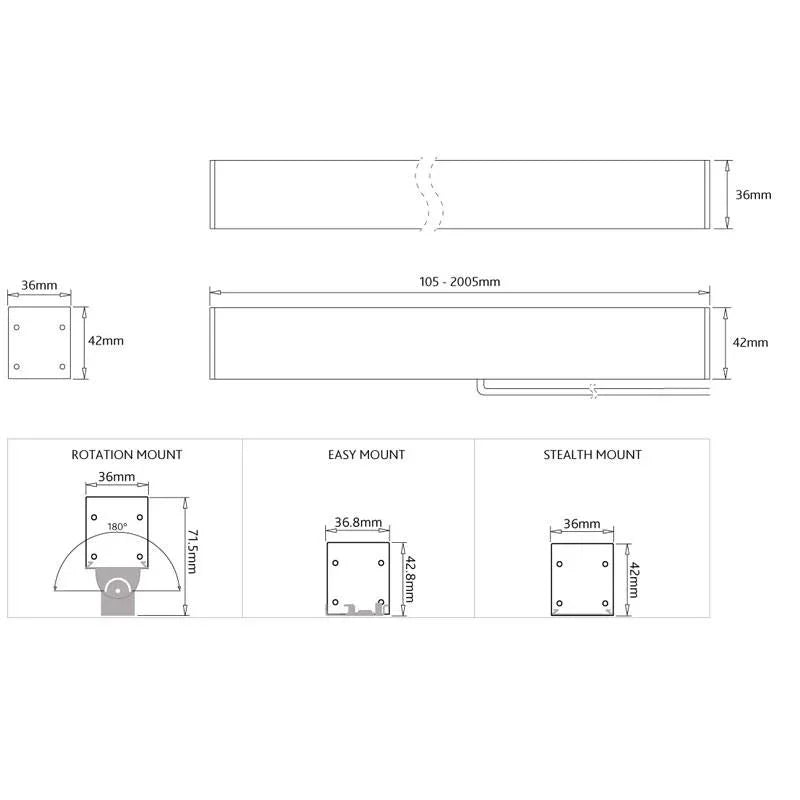

Height: 36mm
Width: 42mm
Length: 105mm - 2005mm
Cut Points: 105mm
Tilt Angle ( ): 90°
Rotation Angle ( ): -
Light Source: LED
Wattage: Spec Sheet
Number of Lamps: Spec Sheet
Lumens: Spec Sheet
Kelvin: Spec Sheet
CRI: Spec Sheet
Beam Degree: Spec Sheet
Driver Required: Yes - Remote mounted
Driver Current: -
Switched: -
Dimmable: Yes
Dimming Type: Driver Dependent
Voltage: 24V
IP rating: IP67
