Vendor:
Lumino

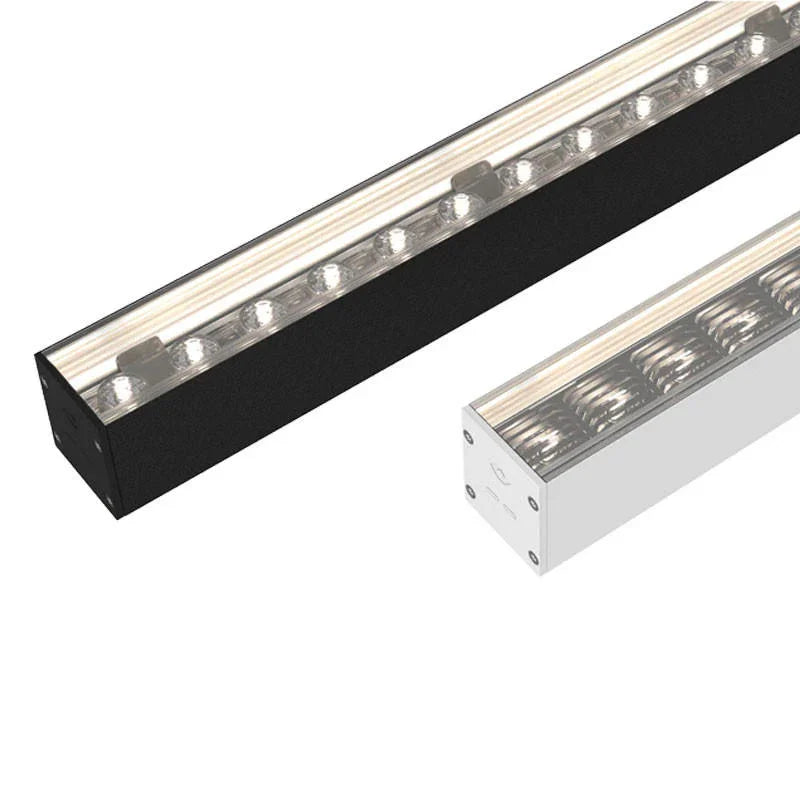

V36S Optic Led Strip
Usually ships within 6 weeks
Built To Order Item, we are unable to accept returns unless they are found to be faulty.
Share
• Surface mounted
• 36X42mm linear lighting profile
• NARROW 18°, WASH 37° or GRAZE 18° x 45° lenses
• Optional anti-glare louvre in transverse or inline orientation
• Interior IP50 or exterior IP64 rated water resistant options
• Impact rating IK08
• Suited to wall grazing, wall washing and display-lighting applications
• Lengths of 305mm, 600mm, 900mm and 1190mm
• Dimmable 350mA or 500mA drivers with options for 0-10v/DALI/DMX dimming
• Output at 500mA up to 3300lm/m excl LOR
• 60W/m @500mA, 40W/m @350mA
• ColorCORE® CRI 95Ra, 3-Step SDCM LEDs, 2700K-4000K
• 36X42mm linear lighting profile
• NARROW 18°, WASH 37° or GRAZE 18° x 45° lenses
• Optional anti-glare louvre in transverse or inline orientation
• Interior IP50 or exterior IP64 rated water resistant options
• Impact rating IK08
• Suited to wall grazing, wall washing and display-lighting applications
• Lengths of 305mm, 600mm, 900mm and 1190mm
• Dimmable 350mA or 500mA drivers with options for 0-10v/DALI/DMX dimming
• Output at 500mA up to 3300lm/m excl LOR
• 60W/m @500mA, 40W/m @350mA
• ColorCORE® CRI 95Ra, 3-Step SDCM LEDs, 2700K-4000K

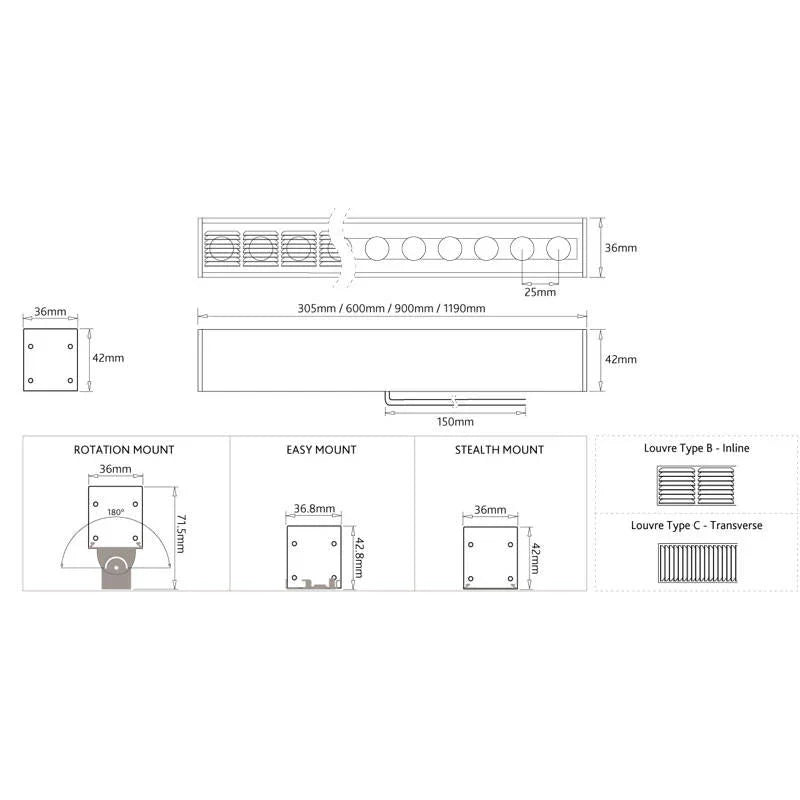

Height: 36mm
Width: 42mm
Length: 305mm / 600mm / 900mm / 1190mm
Cut Points: -
Tilt Angle (°): 90°
Rotation Angle (°): -
Light Source: LED
Wattage: Spec Sheet
Number of Lamps: Spec Sheet
Lumens: Spec Sheet
Kelvin: Spec Sheet
CRI: Spec Sheet
Beam Degree: 18° / 37° / 18°x45°
Driver Required: Yes - Remote mounted
Driver Current: -
Switched: -
Dimmable: Yes
Dimming Type: Driver Dependent
Voltage: 350mA / 500mA
IP rating: IP67
