15W 24V Dimmable IP20 LED Driver

Name: 15W 24V Dimmable IP20 LED Driver
Price: 42.0 GBP

15W 24V Dimmable IP20 LED Driver constant voltage LED drivers are high quality, Triac dimmable. These drivers can be used with leading edge and leading edge Triac dimmers.

£42.00

Tax included and shipping calculated at checkout

Usually ships within 2-3 working days

You can't add more 15W 24V Dimmable IP20 LED Driver in Default Title to cart

Usually ships within 2-3 working days

General Information

Constant voltage/ PWM Output
Leading edge dimmable
AC input: 180-240VAC
Efficiency up to 80%
Protections: Short circuit/Over loading/ Over current
Full protection plastic housing easy installation
IP20 design for indoor installation

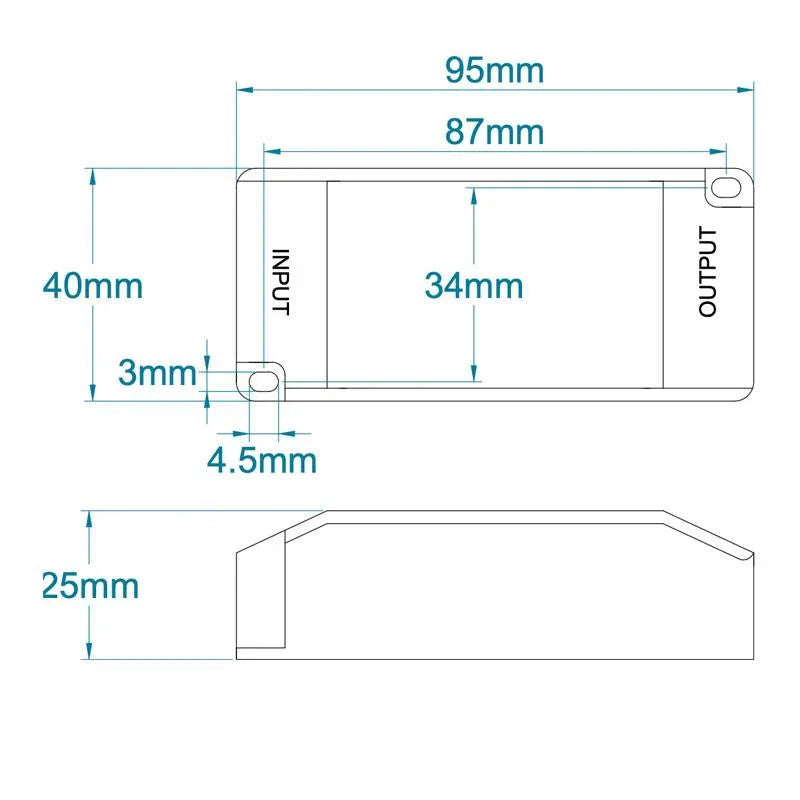

Length: 95mm

Width: 40mm

Depth: 25mm

Weight: 0.21kg

Wattage:15W

Output Range: 24V

Output Current: 0.62A

Input Voltage: 220-240Vac

Mains Frequency: 47-63Hz

Output Tolerance: ±0.5V

Ripple Current: -

Dimmable: Yes

Dimming Type: Leading Edge TRIAC dimmers

Startup Time: -

Output Isolation: SELV

Surge Protection: 2 kV / 6kV

Circuit Lifetime: -

Inrush Current: 26A (Twidth=90s 230VAC)

IP rating: IP20

Download Spec Sheet
