30W 24V Dimmable IP20 LED Driver

Name: 30W 24V Dimmable IP20 LED Driver
Price: 55.2 GBP

30W 24V Dimmable IP20 LED Driver constant voltage LED drivers are high quality, Triac dimmable. These drivers can be used with leading edge and trailing edge Triac dimmers.

£55.20

Tax included and shipping calculated at checkout

Usually ships within 2-3 working days

You can't add more 30W 24V Dimmable IP20 LED Driver in Default Title to cart

Usually ships within 2-3 working days

General Information

Constant voltage/ PWM Output
Leading & Trailing edge dimmable
AC input: 200-240VAC
Built-in active PFC function
Efficiency up to 79%
Protections: Short circuit/ Over loading/ Over current/ Over temperature
Full protection plastic housing easy installation
Cooling by free air convection
Suitable for LED lighting and moving signs

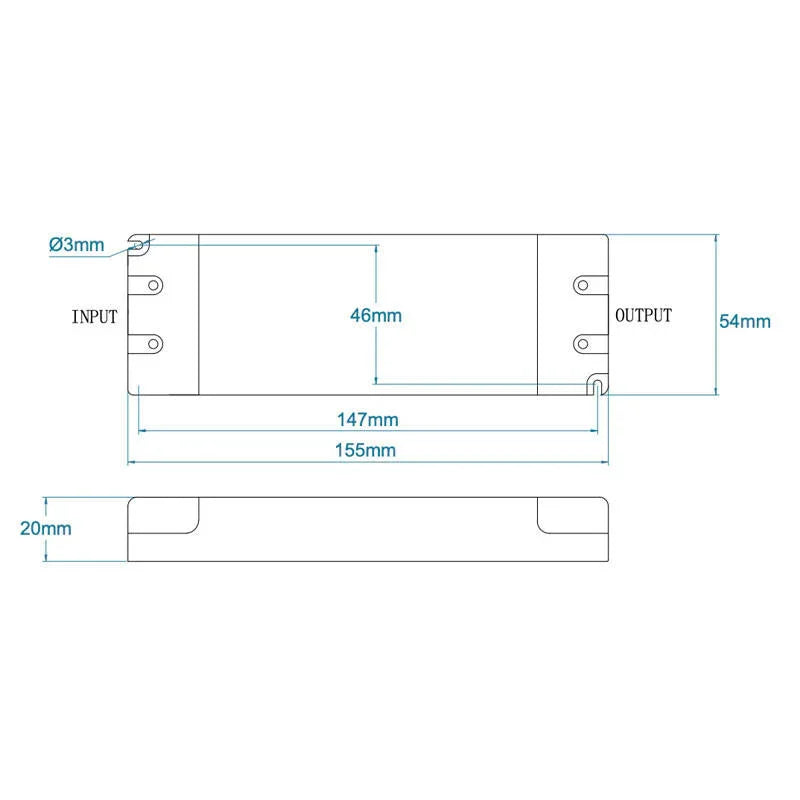

Height: 155mm

Width: 54mm

Depth: 20mm

Weight: 0.21kg

Wattage:30W

Output Range: 24V

Output Current: 1.25A

Input Voltage: 220-240Vac

Mains Frequency: 47-63Hz

Output Tolerance: ±0.5V

Ripple Current: -

Dimmable: Yes

Dimming Type: Leading / Trailing Edge TRIAC dimmers

Startup Time: -

Output Isolation: SELV

Surge Protection: 2 kV / 6kV

Circuit Lifetime: -

Inrush Current: 30A (Twidth=90s 230VAC)

IP rating: IP20

Download Spec Sheet
