LightGraphix

LD47 Wall Light

SKU: LD42-C1-350-LW27-NB-A-GS44-45-316SS-SC

The LD42D is a miniature, high-performance recessed wall light, perfect for discreet step and pathway illumination in interior, exterior, and marine environments. An evolution of the popular LD42 range, it features a newly designed machined domed bezel that obscures the light source when viewed from above, delivering exceptional glare control and a clean architectural aesthetic.
Bezel Colour: 316 Stainless Steel
Colour Temperature: 2700K
Beam Degree: 12° Narrow
£154.42 £154.42

Tax included and shipping calculated at checkout

Usually ships within 4 weeks

You can't add more LD47 Wall Light in 316 Stainless Steel / 2700K / 12° Narrow to cart

Usually ships within 4 weeks

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

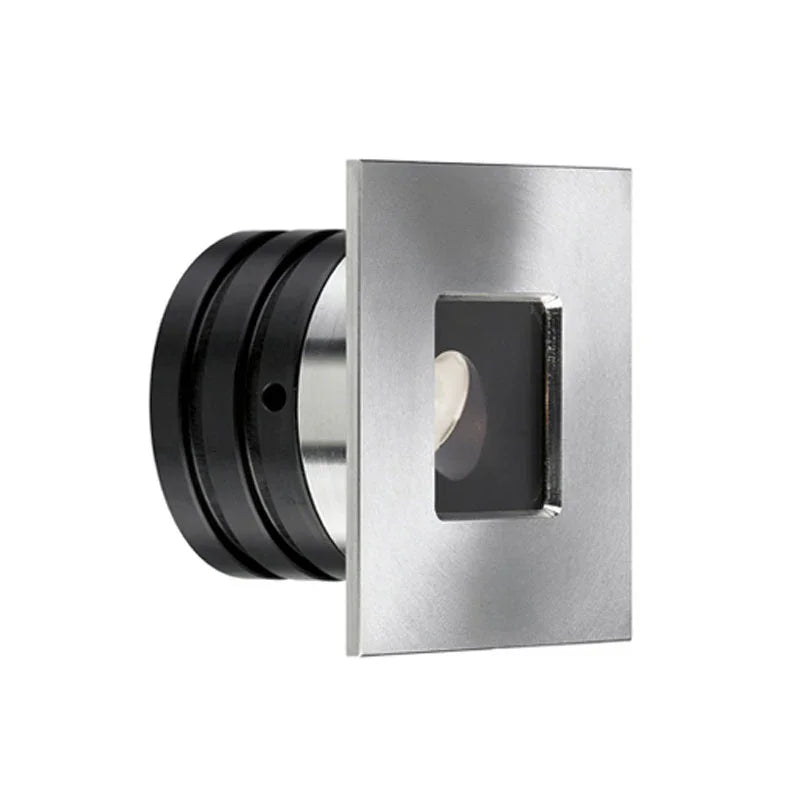

The LD47 is a high-quality recessed wall light, now upgraded with the latest LED technology and advanced optics for superior performance. Designed for both interior and exterior applications, it features a 20° inclined, recessed lens assembly that provides a precise floor wash effect with minimal glare. The clean, modern aesthetic is enhanced by a machined 316 stainless steel bezel, black anodised aluminium body, and hidden gasket fixing—eliminating any visible glue lines or fixings.

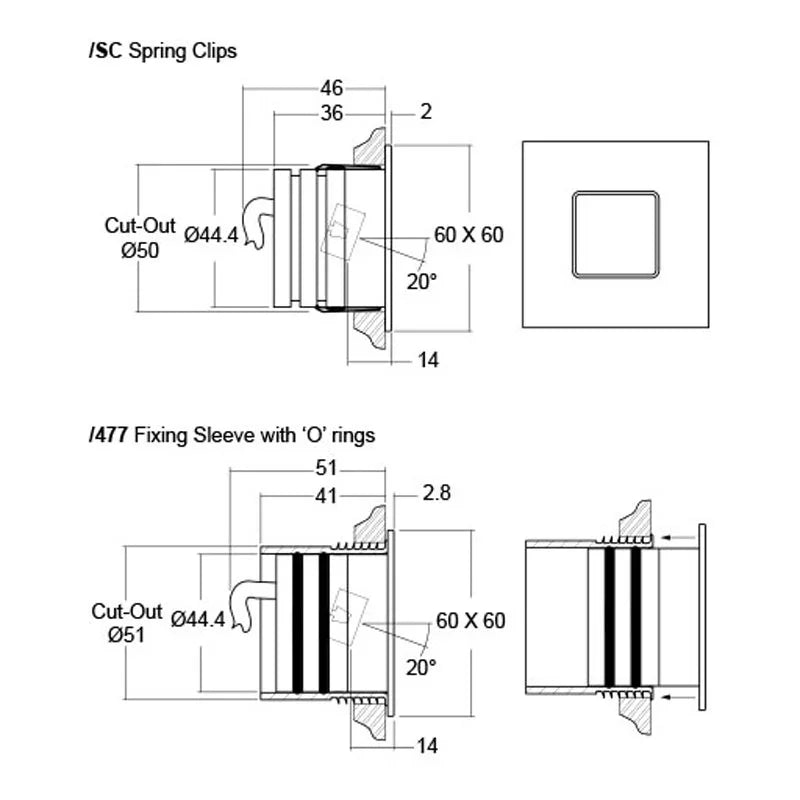

Suitable for use in bathrooms, pathways, steps, and marine environments, the LD47 is CB Certified and rated IP67 for durability in harsh conditions. With a choice of beam angles and colour temperatures, it offers design flexibility across a wide range of applications. Fixing is achieved via spring clips, O-rings, or the optional /477 fixing sleeve for secure and seamless installation.

Height: 60mm

Width: 60mm

Depth: 46mm

Cut Out: 50mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 1.2W @350mA / 1.7W @500mA / 2.4W @700mA

Lumens: 106lm / 138lm / 177lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 31° / 48°

Driver Required: Yes - Remote mounted 350mA / 500mA / 700mA

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 2.8V

IP rating: IP68

Fire rated: -
Download Spec Sheet
The LD47 is a high-quality recessed wall light, now upgraded with the latest LED technology and advanced optics for superior performance. Designed for both interior and exterior applications, it features a 20° inclined, recessed lens assembly that provides a precise floor wash effect with minimal glare. The clean, modern aesthetic is enhanced by a machined 316 stainless steel bezel, black anodised aluminium body, and hidden gasket fixing—eliminating any visible glue lines or fixings.

Suitable for use in bathrooms, pathways, steps, and marine environments, the LD47 is CB Certified and rated IP67 for durability in harsh conditions. With a choice of beam angles and colour temperatures, it offers design flexibility across a wide range of applications. Fixing is achieved via spring clips, O-rings, or the optional /477 fixing sleeve for secure and seamless installation.

Height: 60mm

Width: 60mm

Depth: 46mm

Cut Out: 50mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 1.2W @350mA / 1.7W @500mA / 2.4W @700mA

Lumens: 106lm / 138lm / 177lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 31° / 48°

Driver Required: Yes - Remote mounted 350mA / 500mA / 700mA

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 2.8V

IP rating: IP68

Fire rated: -
