LD70D HC Downlight
Regular price
£92.90
Sale price
£92.90
Usually ships within 4 weeks
Built To Order Item, we are unable to accept returns unless they are found to be faulty.
Share

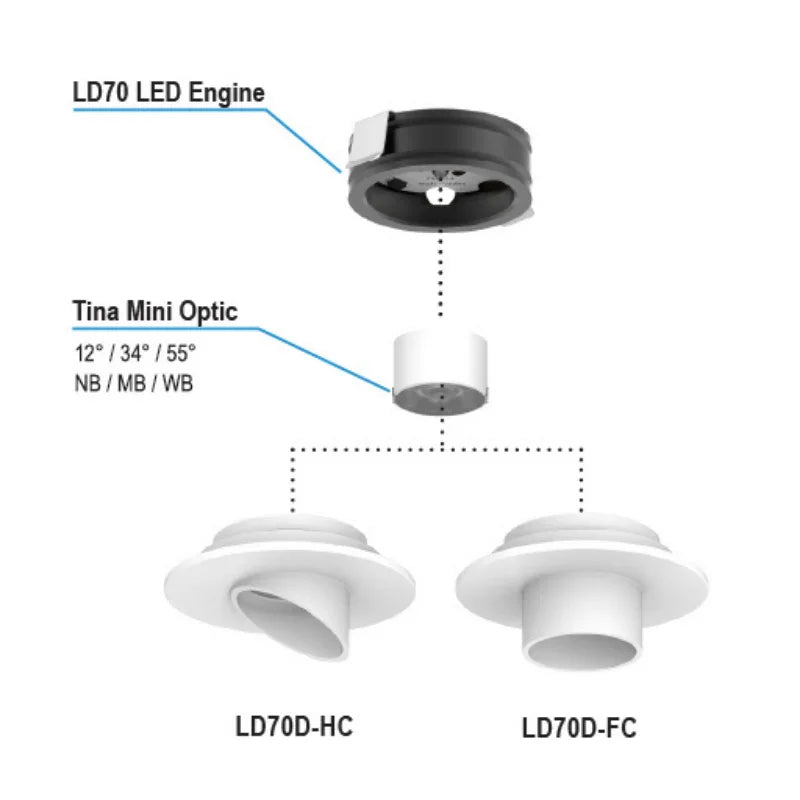

The LD70D is part of the LD70 family of ultra-shallow recessed LED downlights, designed for discreet lighting in applications such as display cabinets, shelving, and niche details. With a recess depth of just 17mm, the LD70D uses a standard narrow beam optic that ensures visual continuity with other LightGraphix fittings. It is available with optional half or full cowls for enhanced glare control and minimal bezel thickness for a refined finish.
Constructed from anodised aluminium with stainless steel spring clips, the LD70D is CB certified and rated IP20, making it ideal for interior dry environments. Cowling options include no cowl (NC), half cowl (HC), and full cowl (FC), allowing tailored glare management. For even shallower installations, the LD70 variant uses a miniature optic system at only 13mm depth, while the LD70-OP version includes an opal diffuser for a soft, wide light distribution.
Constructed from anodised aluminium with stainless steel spring clips, the LD70D is CB certified and rated IP20, making it ideal for interior dry environments. Cowling options include no cowl (NC), half cowl (HC), and full cowl (FC), allowing tailored glare management. For even shallower installations, the LD70 variant uses a miniature optic system at only 13mm depth, while the LD70-OP version includes an opal diffuser for a soft, wide light distribution.

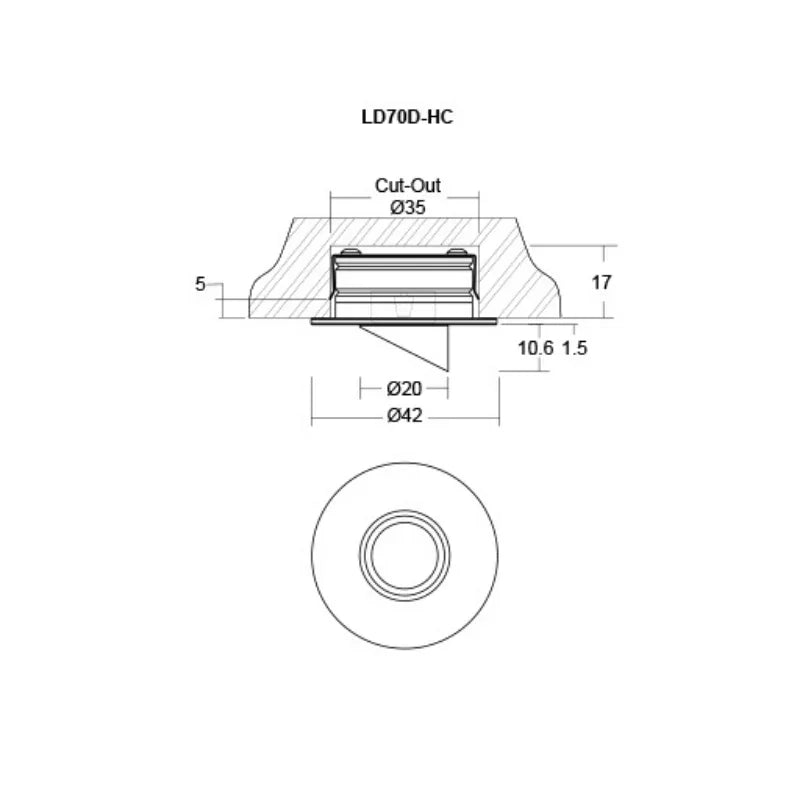

Overall Diameter: 42mm Ø
Depth: 17mm
Cut Out: 35mm Ø
Tilt Angle (°): -
Rotation Angle (°): -
Light Source: LED
Wattage: 1.2W @ 350mA / 1.7W @ 500mA / 2.4W @ 700mA
Lumens: 109lm / 142lm / 189lm
Kelvin: 2200K / 2700K / 3000K
CRI: 93+
Beam Degree: 12° / 31° / 51°
Driver Required: Yes - Remote mounted 350mA / 500mA / 700mA
Switched: -
Dimmable: Yes
Dimming Type: Driver Dependent
Voltage: 3.0V / 3.2V / 3.4V
IP rating: IP20
Fire rated: -
