Lucent Lighting

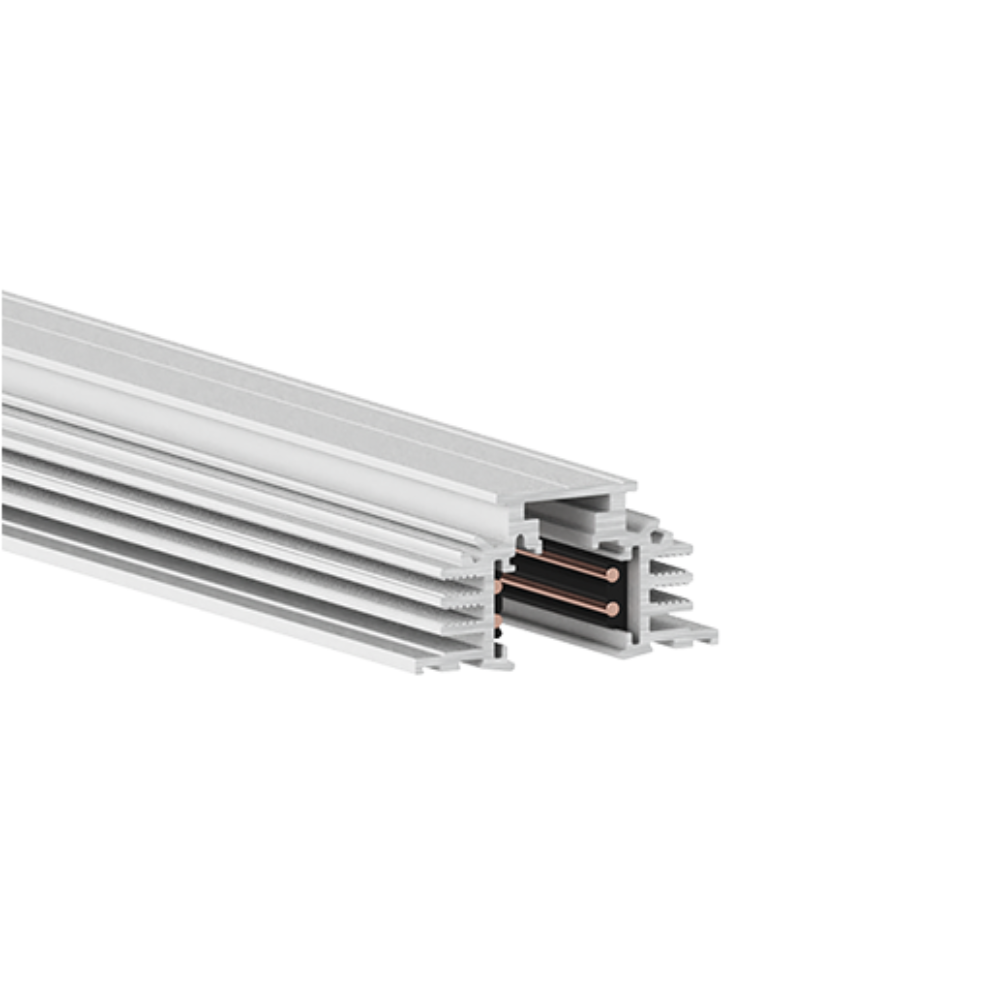

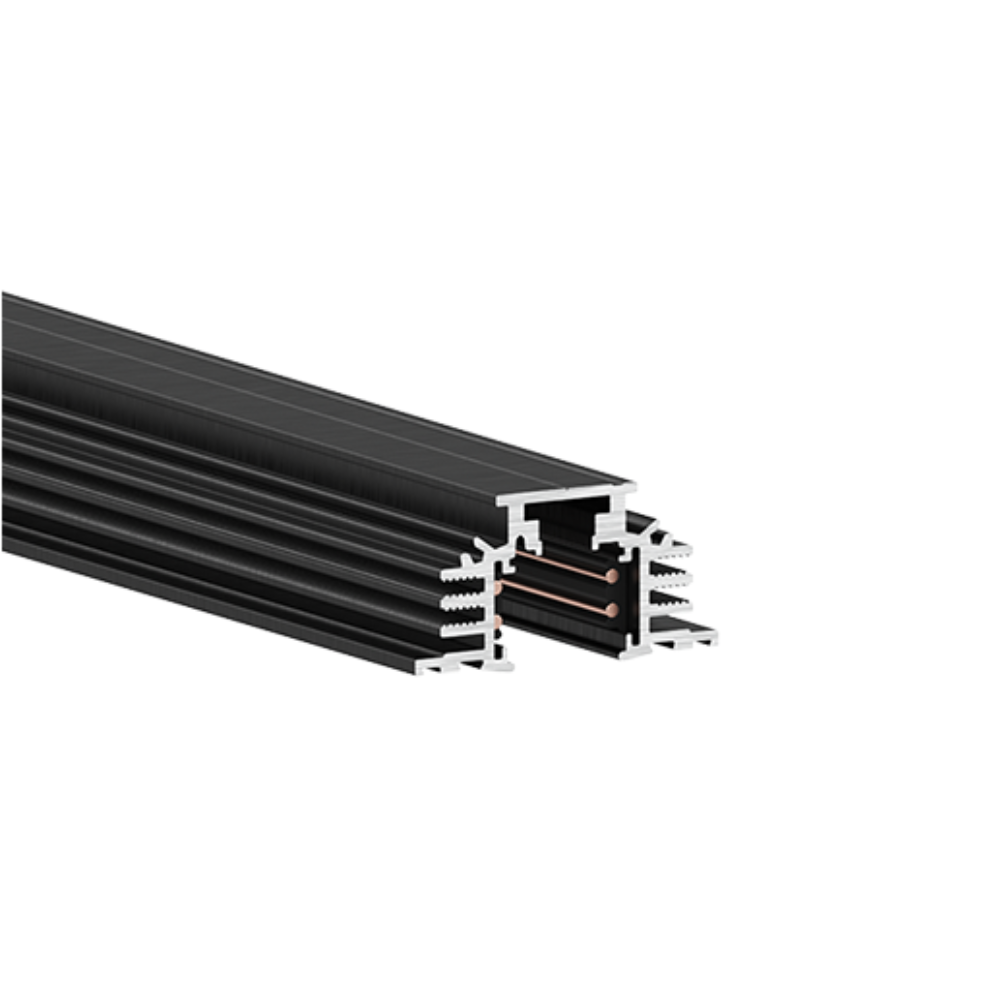

Low Voltage Trimless Track

Low Voltage Trimless Track is a 48V miniature lighting track system designed for seamless architectural integration. Featuring integrated control wiring and a simple snap-in connection, it delivers flexibility, precision and a clean, modern aesthetic.

Colour: Black

Black
White

Length: 1000mm

1000mm
2000mm

Product variants

Usually ships within 10-14 working days

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

General Information

Low Voltage Trimless Track is a compact 48V lighting track system engineered to meet the technical and design demands of contemporary lighting schemes. Designed for trimless installation, it integrates discreetly into ceilings while maintaining maximum flexibility. The system includes two additional conductors to support either 1–10V or DALI dimming signals, allowing advanced lighting control without visual compromise. Available in white or black finishes, it complements a wide range of interior styles.

The track employs a snap-in adaptor system, enabling fast and secure push-in connection of luminaires for efficient installation and future flexibility. An integrated databus within the track supports either DALI or analogue lighting control, simplifying wiring and reducing on-site complexity. When using 0–10V or DALI dimming, wiring instructions should be followed prior to cable installation. Clean, adaptable and performance-driven, Low Voltage Trimless Track is a refined solution for modern architectural lighting systems.

Length: 1000mm / 2000mm / 3000mm

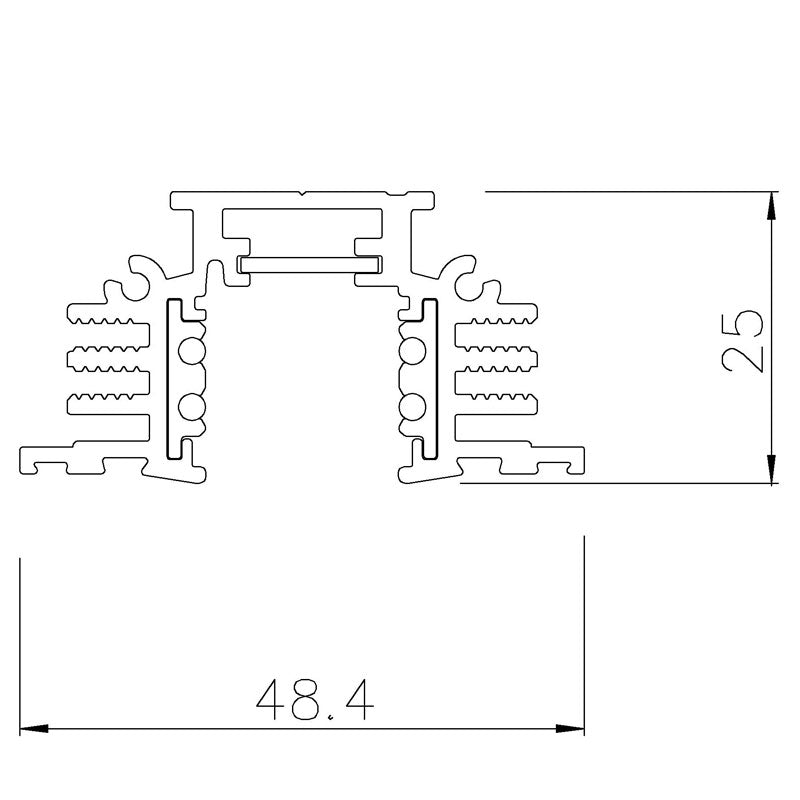

Width: 48.8mm

Depth: 25mm

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Lamp Holder: -

Wattage: -

Number of Lamps: -

Lumens:: -

Kelvin: -

CRI: -

Beam Degree: -

Driver Required: Yes - Remote Mounted

Switched: -

Dimmable: Yes

Dimming Type: Dali / 0-10V

Voltage: 48V

IP rating: IP20
