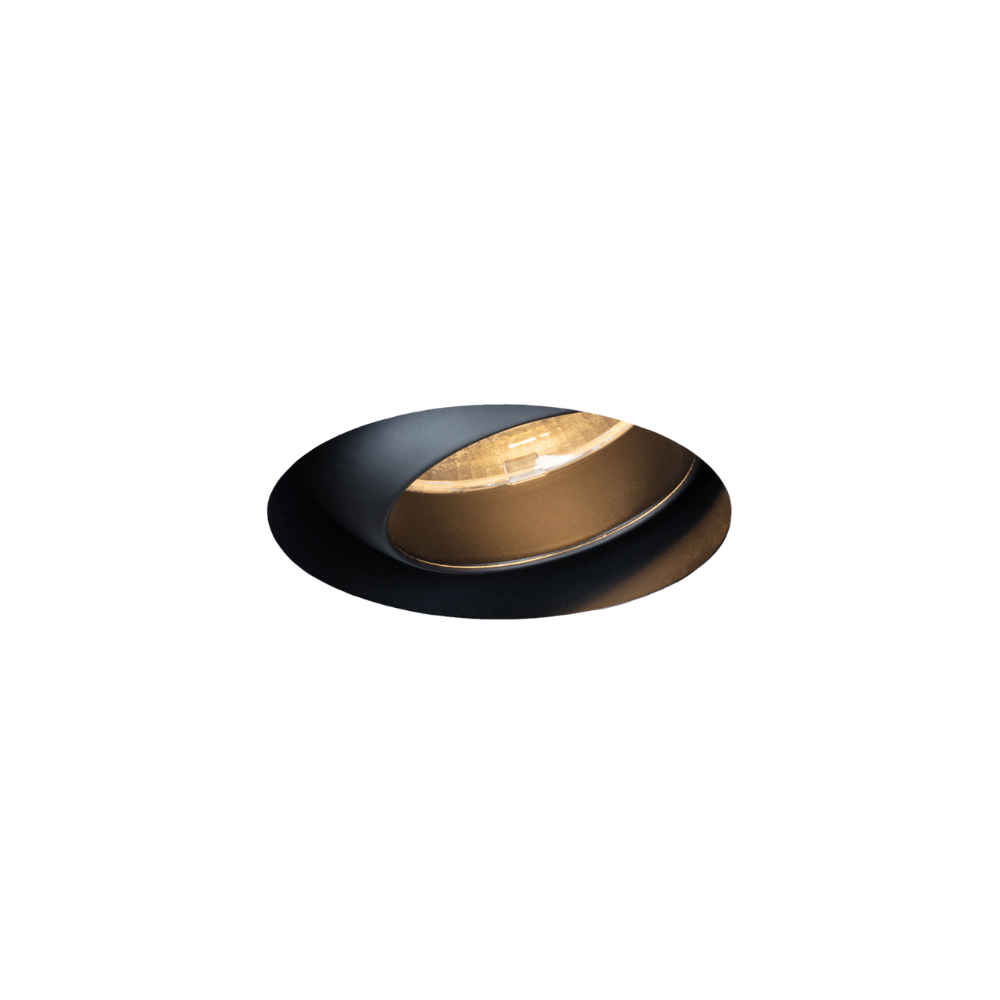

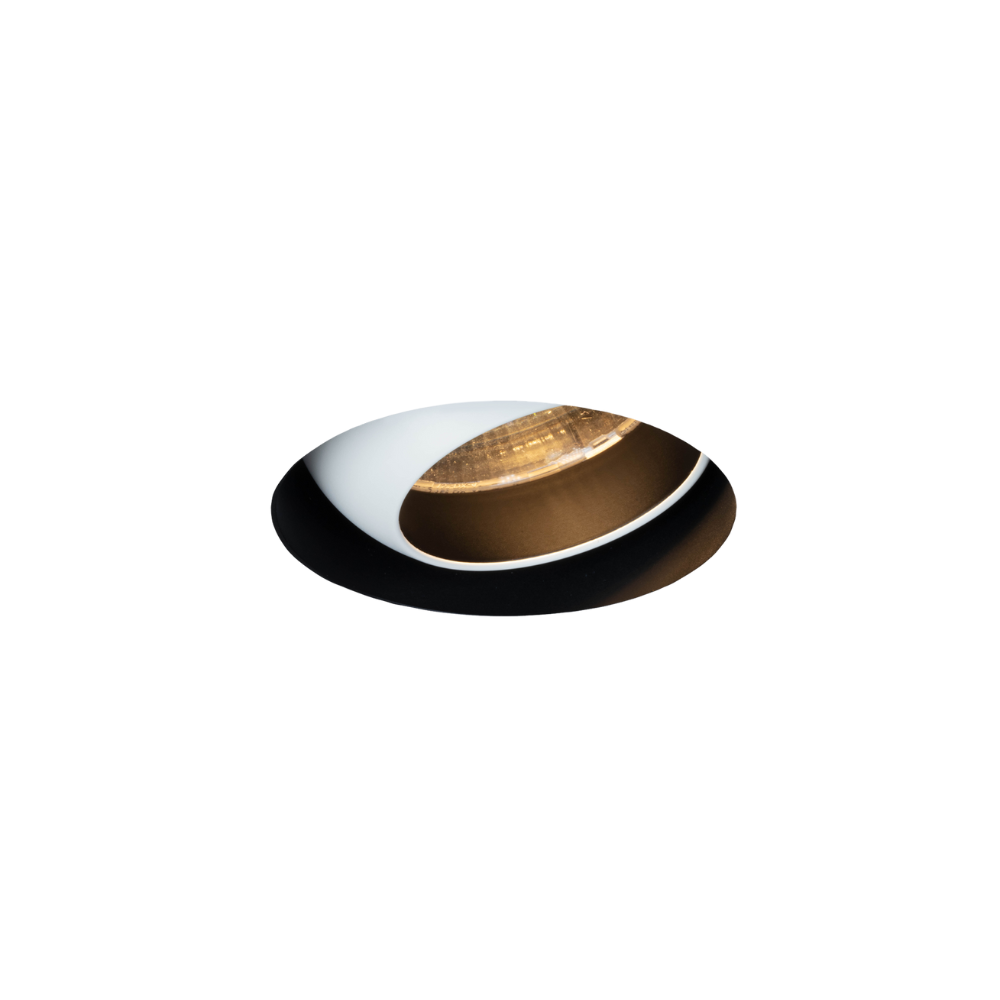

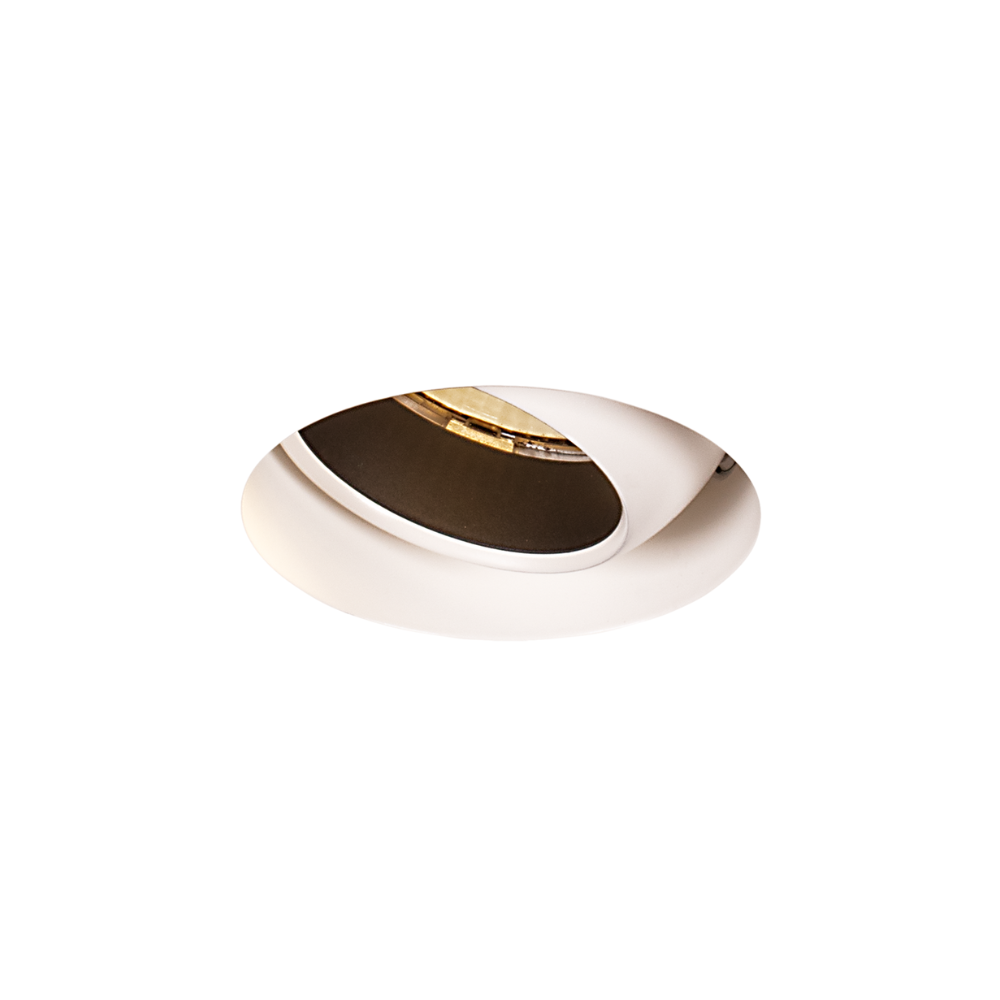

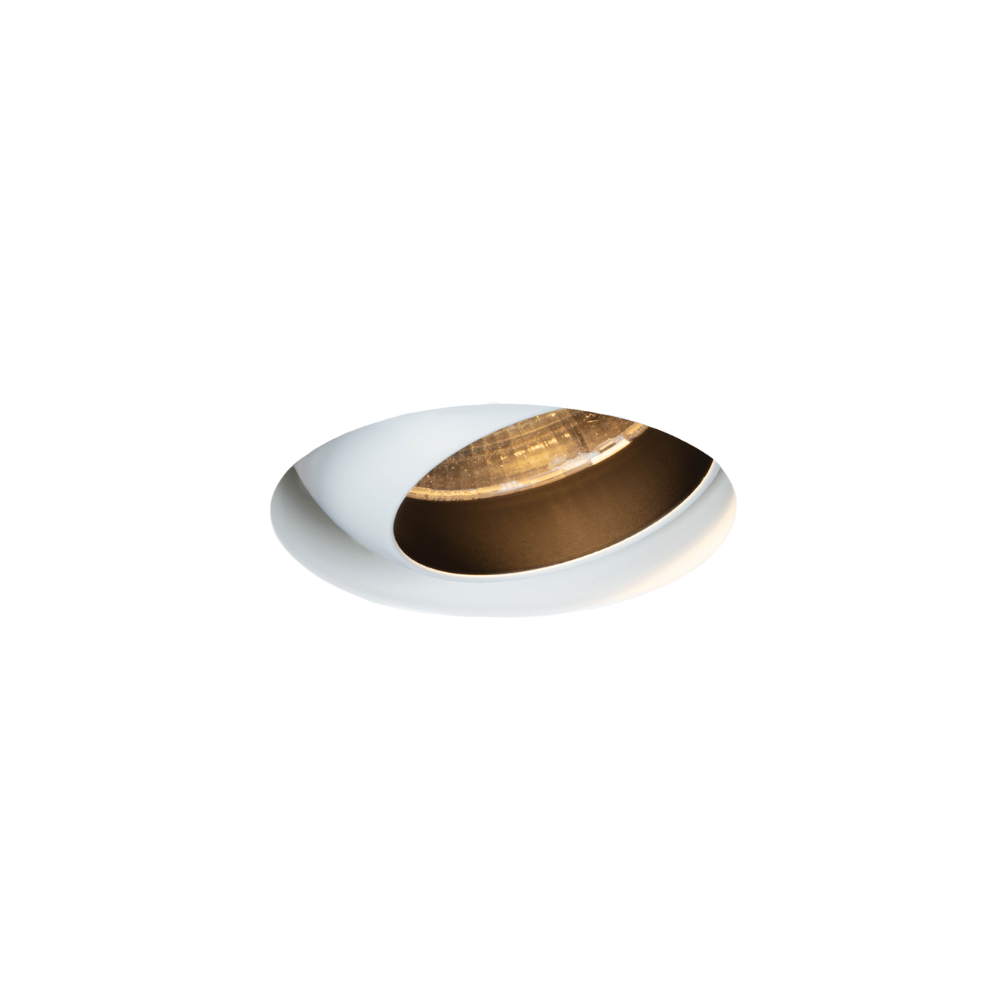

Oculus50 HO Accent Trimless Downlight
Usually ships within 10-14 working days
Built To Order Item, we are unable to accept returns unless they are found to be faulty.
Powered by the LED35 Quantum High Output series, Oculus50 HO is designed to operate at 250mA and offers a choice of three colour temperatures and four beam angles. Fully dimmable with an appropriate driver, it delivers strong, controlled illumination where higher lumen output is required. All Oculus fixtures are IP54 as standard, with IP65 available on request, and have been tested and approved to EN 1363-1:2020 and EN 1365-2:2014 for 60-minute fire rating when ordered with the correct fire rating code. For delivered lumen output, reference should be made to the luminaire data sheet.

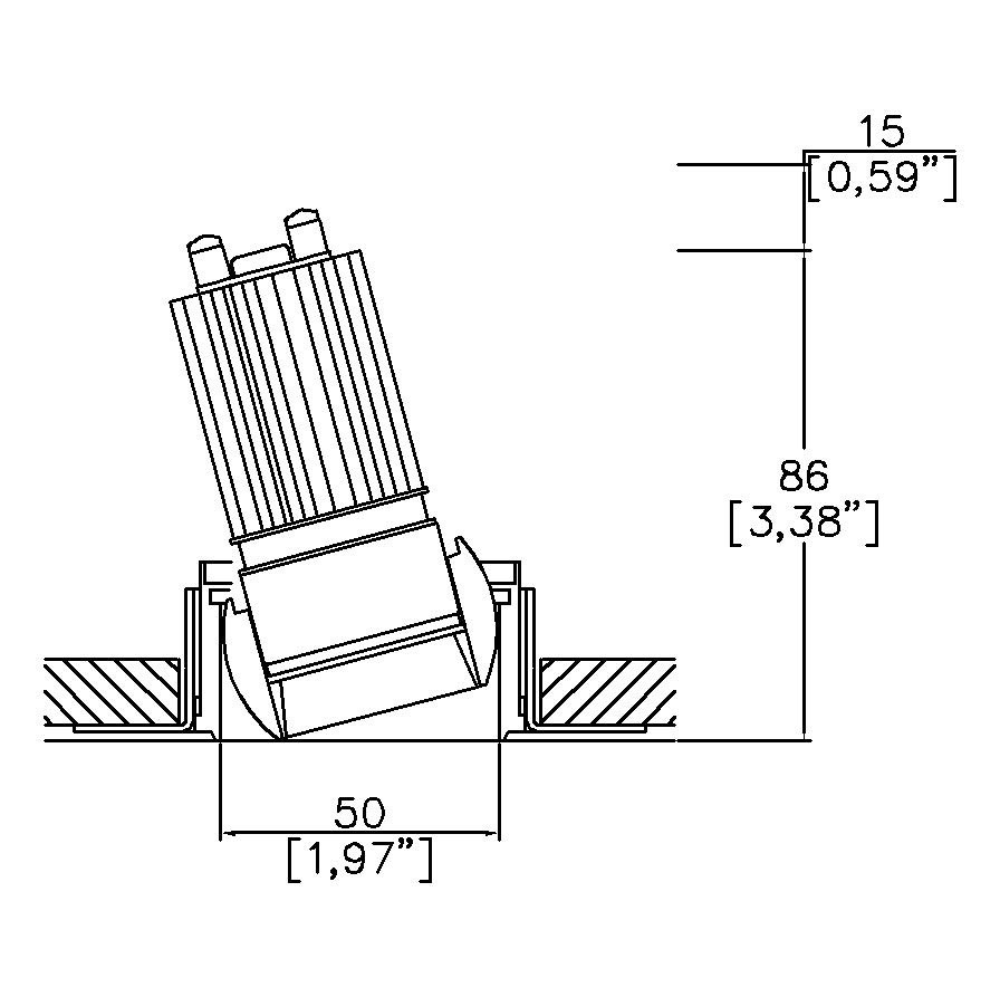

Overall Diameter: 50mm Ø
Depth: 86mm + 15mm
Cut Out: 61mm Ø
Tilt Angle (°): 30°
Rotation Angle (°): -
Light Source: LED
Lamp Holder: Integral
Wattage: 9.7W
Number of Lamps: -
Lumens:: 915lm / 966lm / 980lm/ 843lm
Kelvin: 2700K / 3000K
CRI: 95
Beam Degree: NF (17°) / MF (22°) / FL (33°) / WFL (48°)
Driver Required: Yes - Remote mounted
Switched: -
Dimmable: Yes
Dimming Type: Phase / 0-10V / Dali
Voltage: 33V
IP rating: IP54 / IP65
Fire rated: Yes
