Vendor: LightGraphix

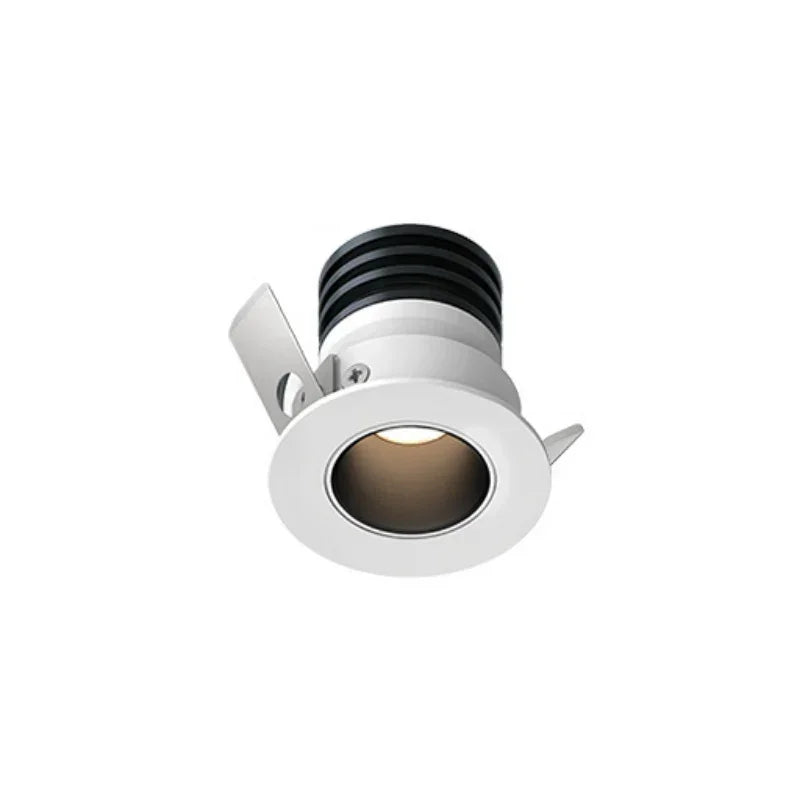

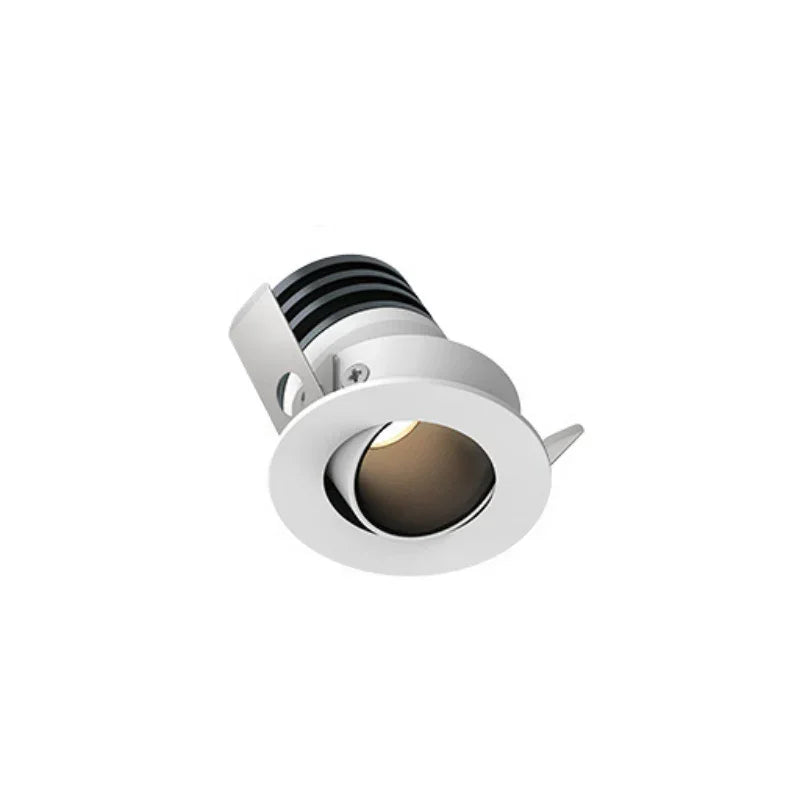

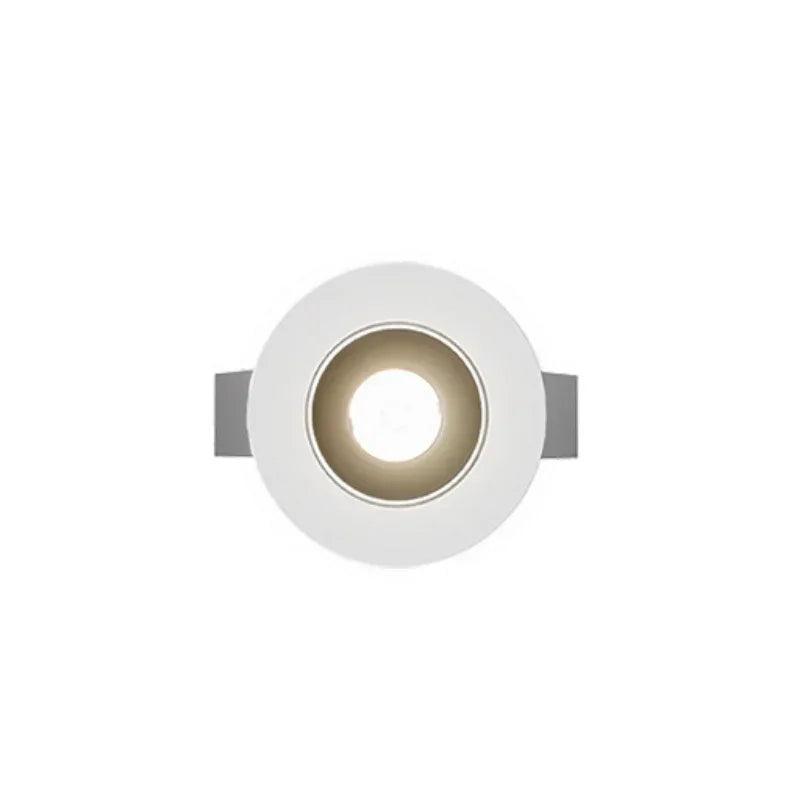

LD71DR Downlight

SKU: LD71DR-C1

The LD71DR Downlight is a miniature deep-recessed adjustable LED fitting designed for low-glare architectural lighting. Featuring a matt black baffle, 15mm recessed light source and up to 25° tilt, it delivers precise illumination with excellent visual comfort. Available with IP40 or optional IP54 protection, it is suitable for displays, niches, bathrooms and luxury interiors.

Regular price £106.26 Sale price £106.26

Tax included and shipping calculated at checkout

You can't add more LD71DR Downlight in Default Title to cart

Usually ships within 4 weeks

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

The LD71DR Downlight is a miniature adjustable deep-recessed LED downlight designed for applications where exceptional glare control is essential. Its matt black baffle and 15mm recessed LED position significantly reduce direct view of the light source, creating a discreet architectural appearance with improved visual comfort. With up to 25° of tilt, the fitting can be aimed precisely for display lighting, niches, picture lighting, wall washing or general downlighting, while the painted bezel can be matched to the surrounding mounting surface for an integrated finish.

Using a replaceable NICHIA C1 LED engine, the LD71DR Downlight is available in 1.2W, 1.7W and 2.4W versions and achieves a typical CRI of 93 in warm white for high-quality colour rendering. It is rated IP40 as standard, with an IP54 option available for bathrooms, spa areas and other wet environments. Manufactured with an anodised aluminium body and painted bezel, the LD71DR is a refined solution for premium residential, hospitality and display applications.

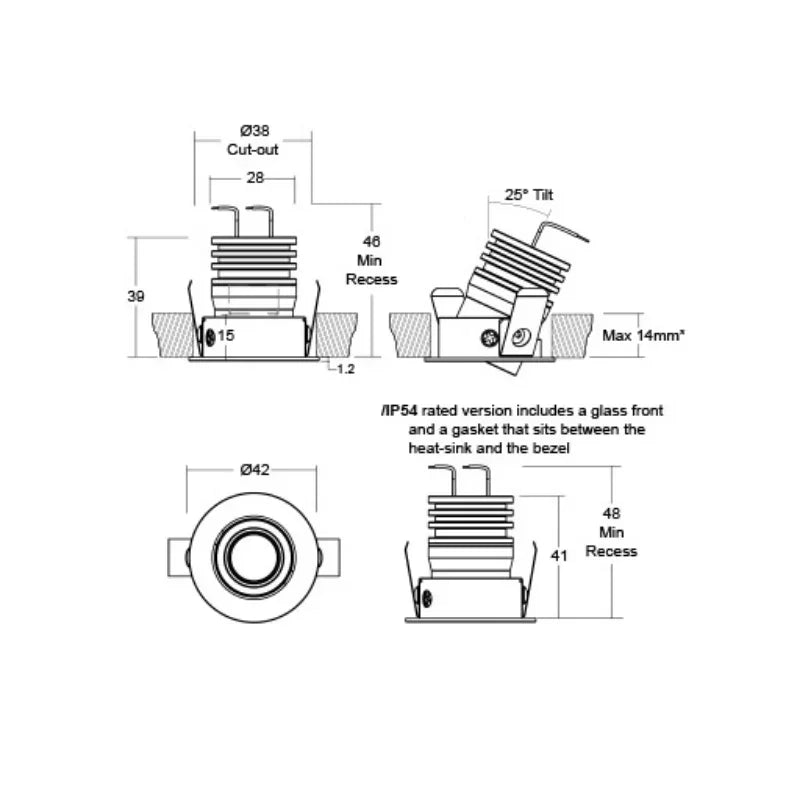

Overall Diameter: 42mm Ø

Depth: 39mm

Cut Out: 38mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 1.2W @ 350mA / 1.7W @ 500mA / 2.4W @ 700mA

Lumens: 109lm / 142lm / 189lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 31°/ 48°

Driver Required: Yes - Remote mounted 350mA / 500mA / 700mA

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 3.0V / 3.2V / 3.4V

IP rating: IP40 / IP54

Fire rated: -

The LD71DR Downlight is a miniature adjustable deep-recessed LED downlight designed for applications where exceptional glare control is essential. Its matt black baffle and 15mm recessed LED position significantly reduce direct view of the light source, creating a discreet architectural appearance with improved visual comfort. With up to 25° of tilt, the fitting can be aimed precisely for display lighting, niches, picture lighting, wall washing or general downlighting, while the painted bezel can be matched to the surrounding mounting surface for an integrated finish.

Using a replaceable NICHIA C1 LED engine, the LD71DR Downlight is available in 1.2W, 1.7W and 2.4W versions and achieves a typical CRI of 93 in warm white for high-quality colour rendering. It is rated IP40 as standard, with an IP54 option available for bathrooms, spa areas and other wet environments. Manufactured with an anodised aluminium body and painted bezel, the LD71DR is a refined solution for premium residential, hospitality and display applications.

Overall Diameter: 42mm Ø

Depth: 39mm

Cut Out: 38mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 1.2W @ 350mA / 1.7W @ 500mA / 2.4W @ 700mA

Lumens: 109lm / 142lm / 189lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 31°/ 48°

Driver Required: Yes - Remote mounted 350mA / 500mA / 700mA

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 3.0V / 3.2V / 3.4V

IP rating: IP40 / IP54

Fire rated: -
