Lucent Lighting

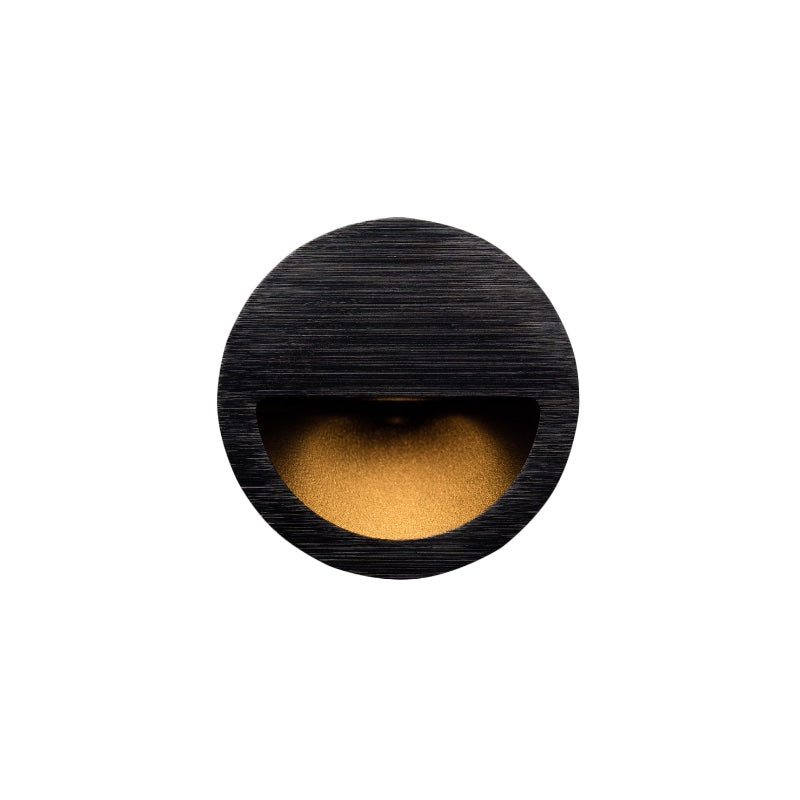

InWall40 Eyelid Floor Washer

The InWall40 Eyelid Floor Washer by Lucent Lighting is a compact recessed architectural fitting designed for low-level illumination of floors, steps and circulation areas. Its 40mm diameter faceplate and distinctive half-round aperture create a controlled asymmetric beam, directing light downwards while keeping glare to a minimum. Suitable for both interior and exterior installations, its discreet scale makes it particularly effective in luxury residential, hospitality and landscape schemes where subtle guidance lighting is required. The InWall40 Eyelid is IP66 rated and available in 2700K, 3000K and 4000K with CRI 90 performance. Faceplates can be specified in a selection of premium finishes manufactured from 316 stainless steel, solid bronze or aluminium, while phase, 0-10V, 1-10V, DALI and Bluetooth dimming options provide flexibility across different control systems. A mounting tube is also available for installation into solid walls.

Colour: Brushed Stainless Steel

Brushed Stainless Steel
Polished Stainless Steel
Flamed Bronze
Antique Bronze
Hard Anodised Matt Black
Hard Anodised Matt Silver
Matt White

Colour Temperature: 2700K

2700K
3000K

Fixing Accessories: Springs

Springs

Product variants

Usually ships within 4 weeks

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

General Information

The InWall40 Eyelid Floor Washer by Lucent Lighting is a compact recessed architectural fitting designed for low-level illumination of floors, steps and circulation areas. Its 40mm diameter faceplate and distinctive half-round aperture create a controlled asymmetric beam, directing light downwards while keeping glare to a minimum. Suitable for both interior and exterior installations, its discreet scale makes it particularly effective in luxury residential, hospitality and landscape schemes where subtle guidance lighting is required.

The InWall40 Eyelid is IP66 rated and available in 2700K, 3000K and 4000K with CRI 90 performance. Faceplates can be specified in a selection of premium finishes manufactured from 316 stainless steel, solid bronze or aluminium, while phase, 0-10V, 1-10V, DALI and Bluetooth dimming options provide flexibility across different control systems. A mounting tube is also available for installation into solid walls.

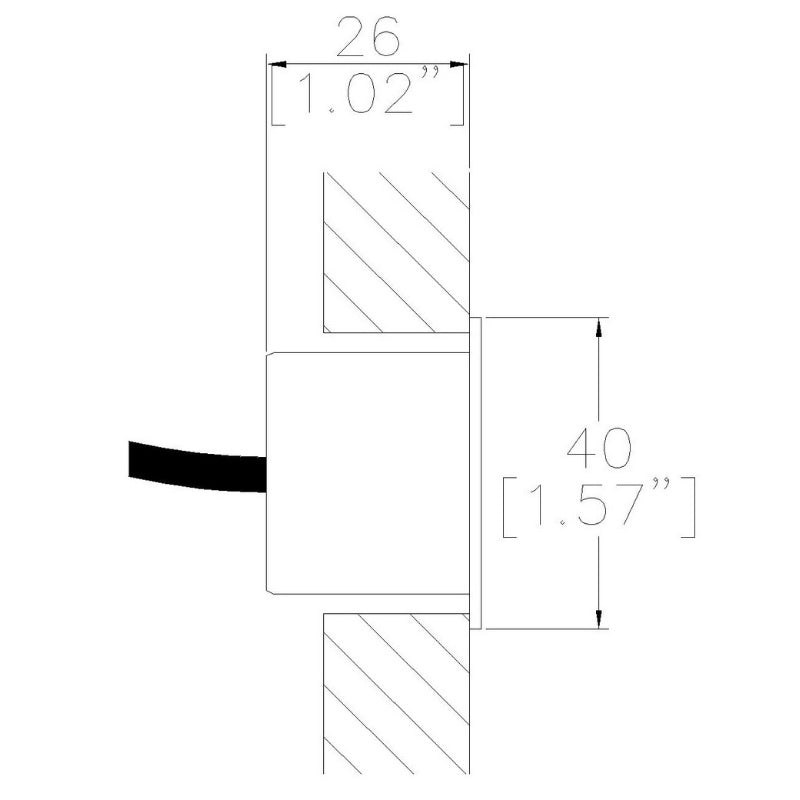

Overall Width: 40mm

Overall Depth: 26mm

Cut-out Diameter: 36mm Ø

Back Box / Wall Box Required: Optional

Mounting Method: Springs / Tube

Bezel Finish: Brushed Stainless Steel / Polished Stainless Steel / Flamed Bronze / Antique Bronze (Interior Only) / Hard Anodised Matt Silver (Interior Only) / Hard Anodised Matt Black / Matt White

Baffle Finish: Black

Light Source: Integrated LED

Lumen Output (delivered, per fitting): 18lm

Colour Temperature: 2700K / 3000K

CRI (Ra): 90

Circuit Wattage: 2.6W

Forward Voltage (Vf): 3V

Drive Current: 350mA / 700mA

Driver Required: Yes

Driver Included: No

Driver Location & Access: Remote mounted

Dimmable: Yes
