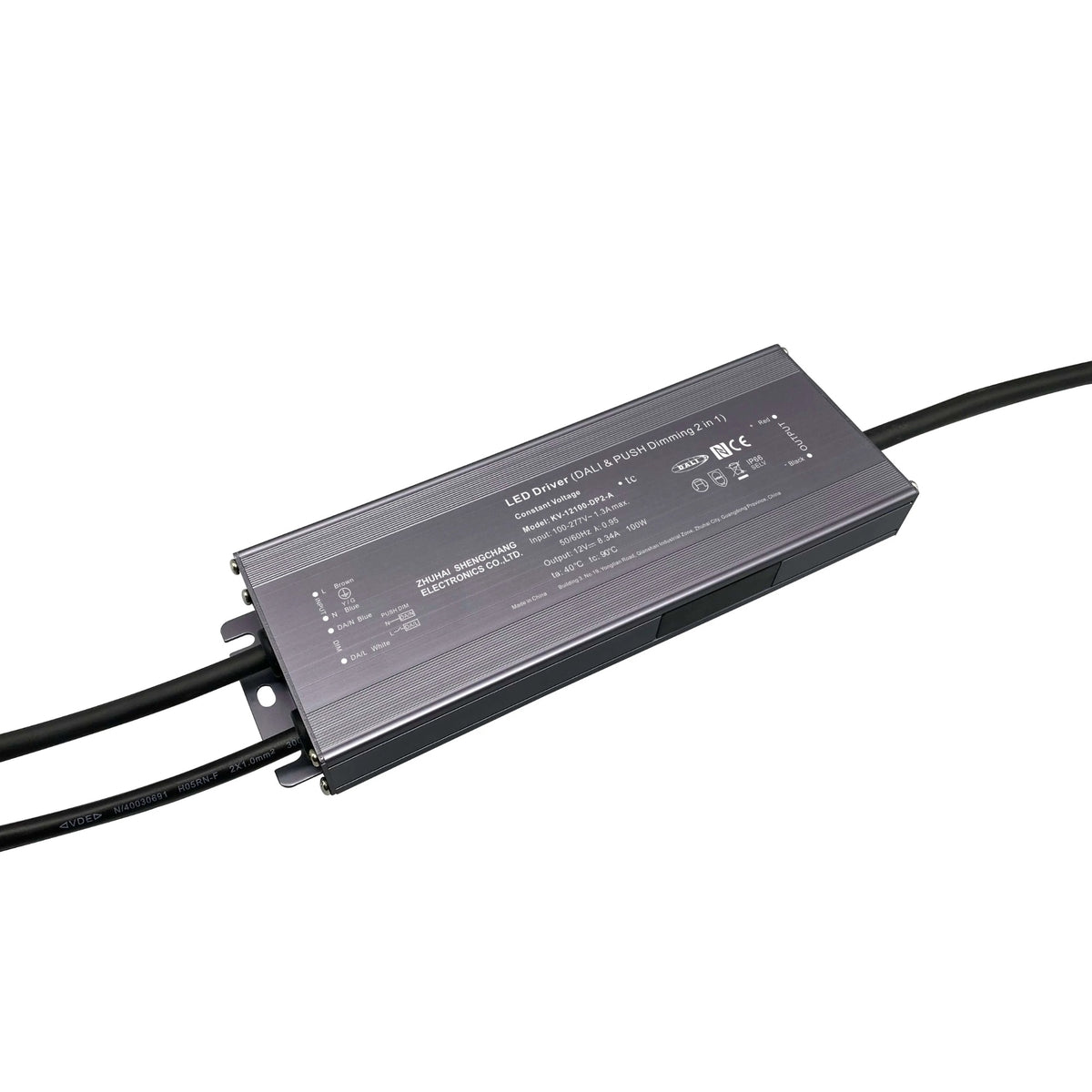

100W 24V DALI-2 Dimmable IP66 LED Driver
Regular price
£143.40
Sale price
£143.40
Share
The 100W 24V DALI-2 Dimmable IP66 LED Driver by 100% Light UK is designed to power compatible 24V LED lighting systems requiring digital dimming and control. With a maximum output of 100W, it provides increased capacity for larger LED installations.
Rated IP66, the driver offers enhanced protection against dust and moisture, making it suitable for a wider range of architectural lighting applications. Its combination of 24V operation, DALI dimming and high output makes it a versatile choice for professional lighting schemes.
Rated IP66, the driver offers enhanced protection against dust and moisture, making it suitable for a wider range of architectural lighting applications. Its combination of 24V operation, DALI dimming and high output makes it a versatile choice for professional lighting schemes.
Driver Type: Constant Voltage
Output Voltage: 24V DC
Output Current: 4.17A
Rated Power: 100W
Voltage / Current Tolerance: ±2%
Maximum Load: 100W
Supply Voltage: 100-277V AC
Frequency Range: 50/60Hz
Full Load Efficiency: 88.5%
Power Factor: 0.95
Standby Power: ≤0.5W
Dimmable: Yes
Dimming Protocol: DALI-2 / Push
Short Circuit: Yes
Over Load: Yes
Over Temperature: Yes

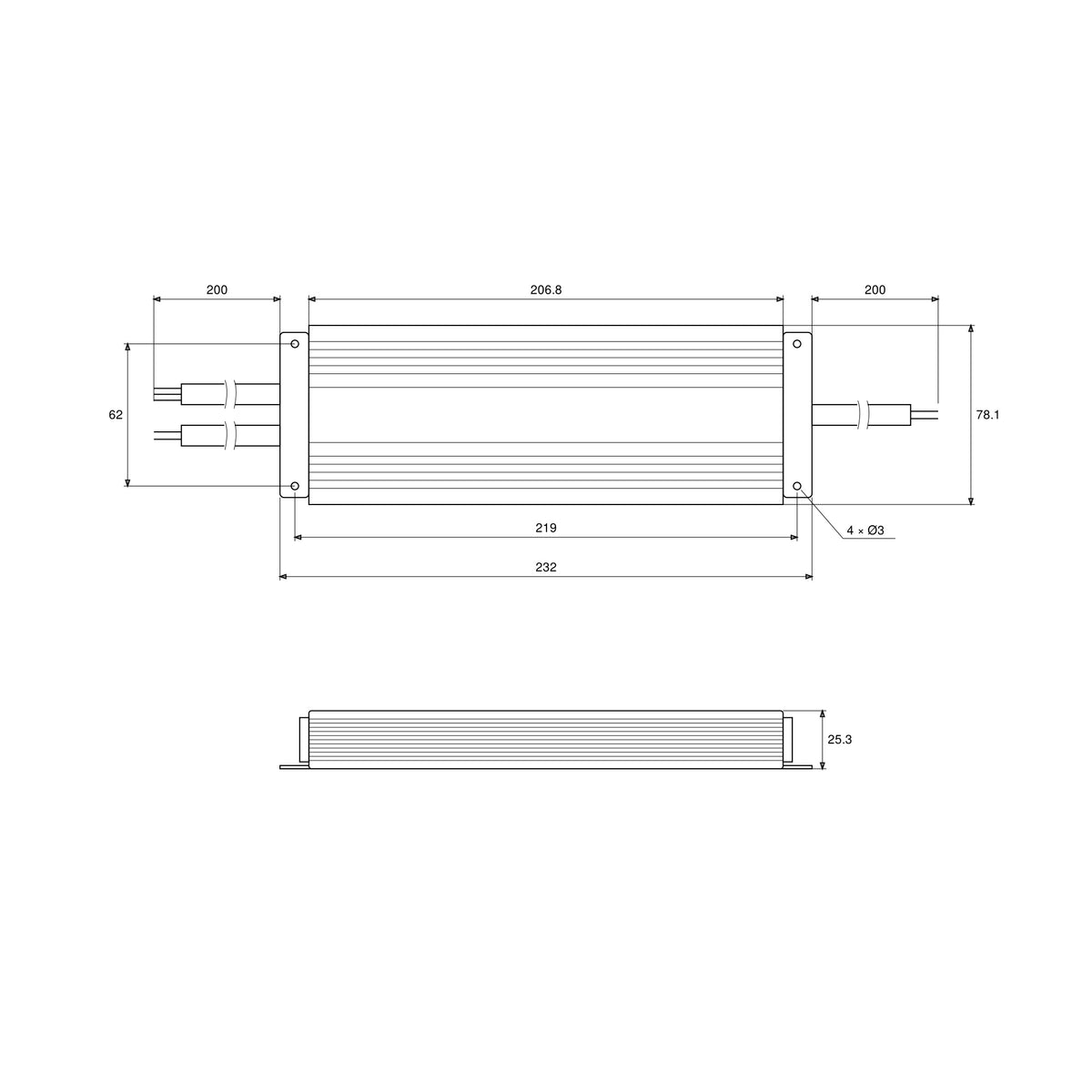

Overall Dimensions (L x W x H): 232 x 78.1 x 25.3mm
Housing Material: Aluminium
Mounting Method: Independent (remote)
Cable Entry / Terminals: Pre Leaded
Maximum Cable Size: Input 3 x 1.0mm² / Output 2 x 0.824mm² / Dim 2 x 1.0mm²
Weight: 0.85kg
IP Rating: IP66
Working Temperature (ta): -40°C to +40°C
Warranty: 5 years
