Vendor:
100% Light UK
150W 24V DALI-2 Dimmable IP66 LED Driver
Regular price
£189.00
Sale price
£189.00
Share

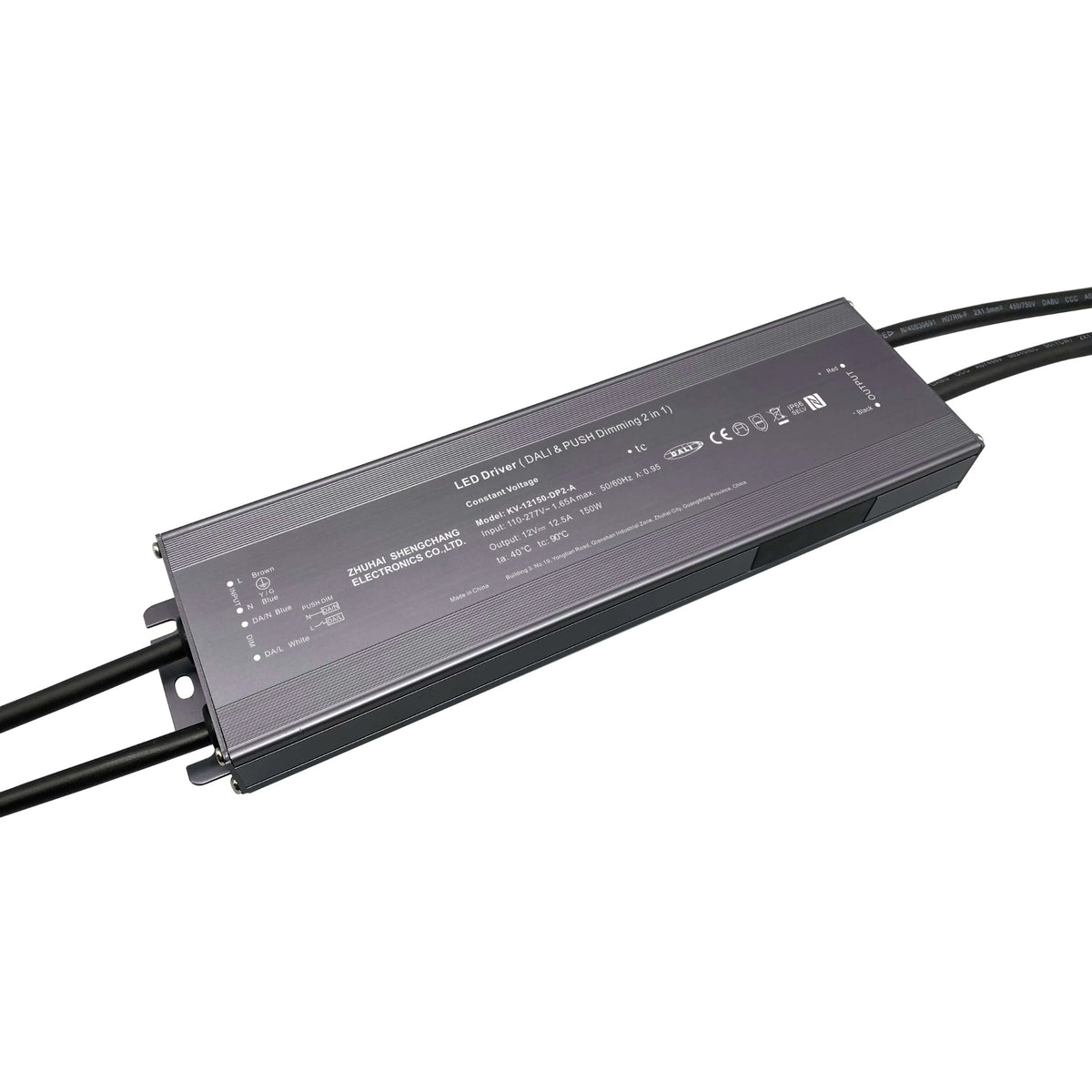

The 150W 24V DALI-2 Dimmable IP66 LED Driver by 100% Light UK is designed for compatible 24V LED lighting systems requiring digital control and higher power capacity. With a maximum output of 150W, it is well suited to substantial LED lighting installations.
Rated IP66, the driver provides enhanced protection against dust and moisture while retaining DALI dimming functionality. Its combination of high output, 24V operation and digital control makes it a practical solution for residential, hospitality and architectural lighting schemes.
Rated IP66, the driver provides enhanced protection against dust and moisture while retaining DALI dimming functionality. Its combination of high output, 24V operation and digital control makes it a practical solution for residential, hospitality and architectural lighting schemes.
Driver Type: Constant Voltage
Output Voltage: 24V DC
Output Current: 6.25A
Rated Power: 150W
Voltage / Current Tolerance: ±2%
Maximum Load: 150W
Supply Voltage: 100-277V AC
Frequency Range: 50/60Hz
Full Load Efficiency: 93.5%
Power Factor: 0.95
Standby Power: ≤0.5W
Dimmable: Yes
Dimming Protocol: DALI-2 / Push
Short Circuit: Yes
Over Load: Yes
Over Temperature: Yes

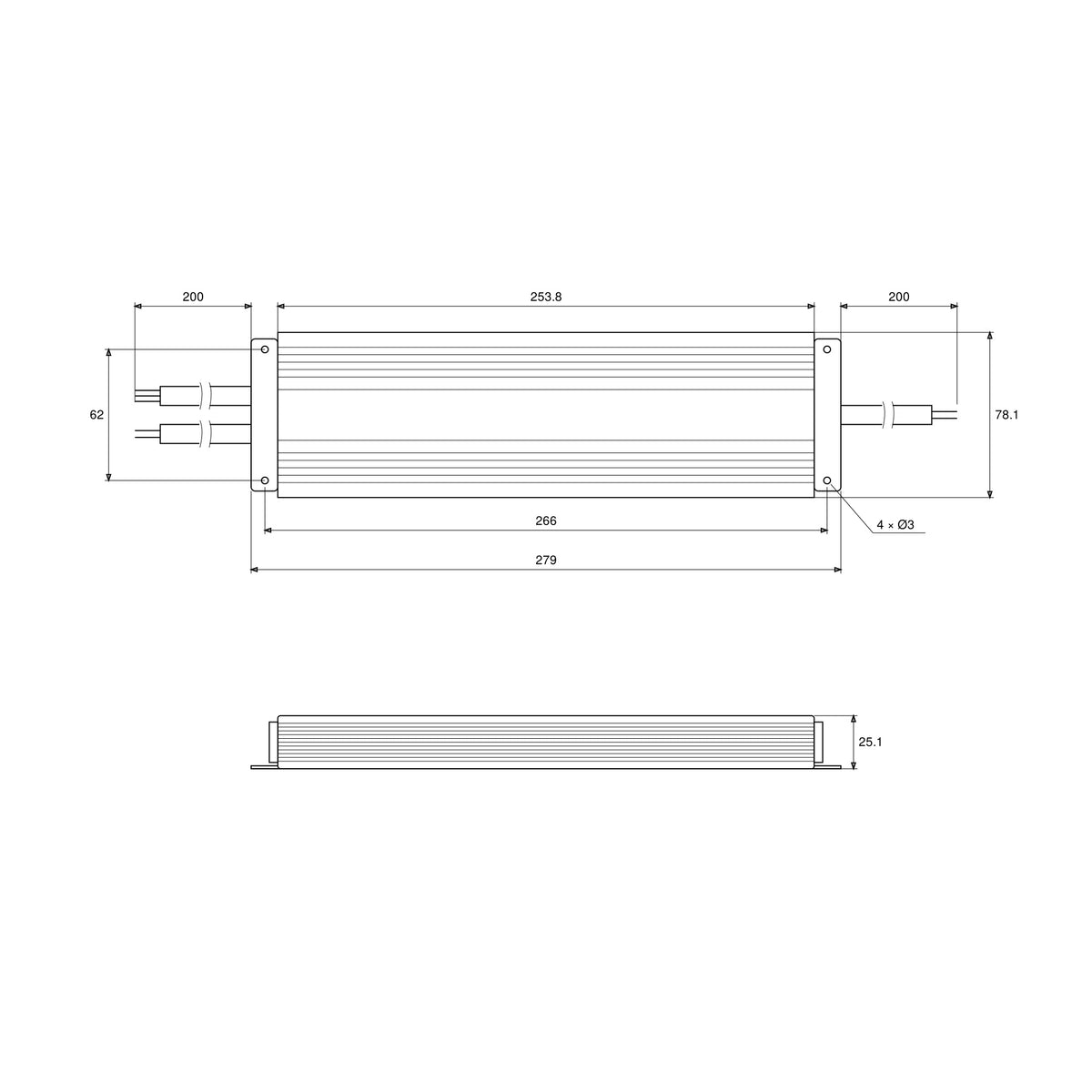

Overall Dimensions (L x W x H): 279 x 78 x 25.1mm
Housing Material: Aluminium
Mounting Method: Independent (remote)
Cable Entry / Terminals: Pre Leaded
Maximum Cable Size: Input 3 x 0.824mm² / Output 2 x 1.31mm² / Dim 2 x 0.824mm²
Weight: 1.06kg
IP Rating: IP66
Working Temperature (ta): -40°C to +40°C
Warranty: 5 years
