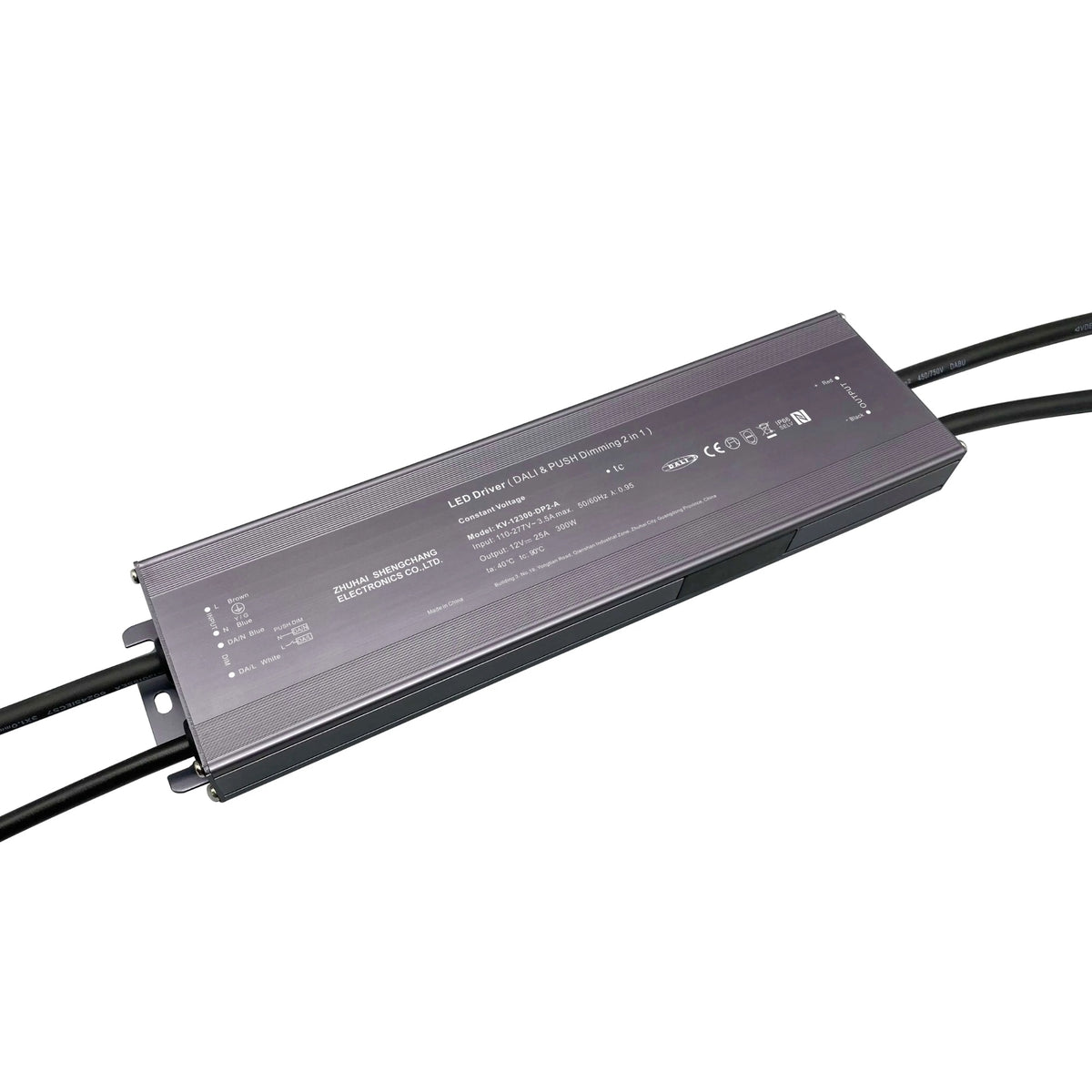

300W 24V DALI-2 Dimmable IP66 LED Driver

Name: 300W 24V DALI-2 Dimmable IP66 LED Driver
SKU: AS-DP2-IP300/24
Price: 239.99 GBP

The 300W 24V DALI-2 Dimmable IP66 LED Driver by 100% Light UK is designed for high-capacity 24V LED lighting systems requiring digital dimming and control. With a maximum output of 300W, it is suited to substantial installations where multiple fittings or longer LED runs require greater power. Rated IP66, the driver provides enhanced protection against dust and moisture while maintaining DALI dimming functionality. Its combination of high output, 24V operation and digital control makes it a robust choice for larger residential, hospitality and commercial architectural lighting schemes.

£239.99

Tax included and shipping calculated at checkout

You can't add more 300W 24V DALI-2 Dimmable IP66 LED Driver in Default Title to cart

General Information

The 300W 24V DALI-2 Dimmable IP66 LED Driver by 100% Light UK is designed for high-capacity 24V LED lighting systems requiring digital dimming and control. With a maximum output of 300W, it is suited to substantial installations where multiple fittings or longer LED runs require greater power.

Rated IP66, the driver provides enhanced protection against dust and moisture while maintaining DALI dimming functionality. Its combination of high output, 24V operation and digital control makes it a robust choice for larger residential, hospitality and commercial architectural lighting schemes.

Driver Type: Constant Voltage

Output Voltage: 24V DC

Output Current: 12.5A

Rated Power: 300W

Maximum Load: 300W

Supply Voltage: 200-240V AC

Dimmable: Yes

Dimming Protocol: DALI-2 / Push

Short Circuit: Yes

Over Load: Yes

Over Temperature: Yes

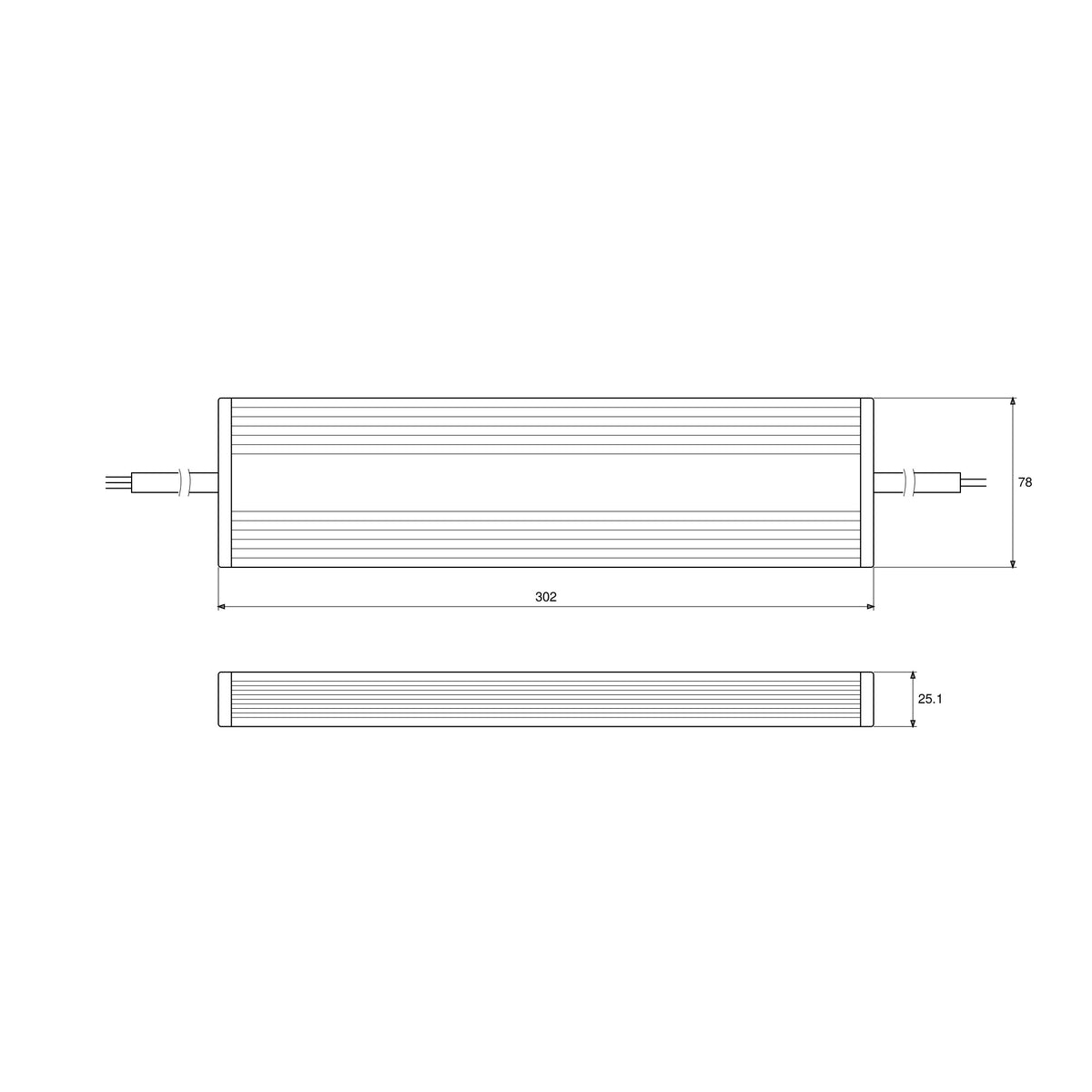

Overall Dimensions (L x W x H): 302 x 78 x 25.1mm

Housing Material: Aluminium

Mounting Method: Independent (remote)

Cable Entry / Terminals: Pre Leaded

Weight: 1.25kg

IP Rating: IP66

Working Temperature (ta): -40°C to +40°C

Warranty: 5 years

Download Spec Sheet
