Vendor:
100% Light UK
30W 24V DALI-2 Dimmable IP20 LED Driver
Regular price
£55.20
Sale price
£55.20
Share
The 30W 24V DALI-2 Dimmable IP20 LED Driver by 100% Light UK is designed to power compatible 24V LED lighting systems where digital control and dimming are required. With a maximum output of 30W, it provides additional capacity for a wide range of interior LED installations.
Rated IP20, the driver is intended for dry interior locations and can be incorporated into residential, hospitality and architectural lighting schemes. Its combination of 24V operation, 30W output and DALI dimming provides a versatile solution for controlled LED lighting.
Rated IP20, the driver is intended for dry interior locations and can be incorporated into residential, hospitality and architectural lighting schemes. Its combination of 24V operation, 30W output and DALI dimming provides a versatile solution for controlled LED lighting.
Driver Type: Constant Voltage
Output Voltage: 24V DC (24-26V adjustable via NFC)
Output Current: 1.25A
Rated Power: 30W
Voltage / Current Tolerance: ±0.3V
Maximum Load: 30W
Supply Voltage: 200-240V AC
Frequency Range: 47-63Hz
Full Load Efficiency: 84%
Power Factor: ≥0.95
Dimmable: Yes
Dimming Protocol: DALI-2 / Push
Short Circuit: Yes
Over Load: Yes
Over Temperature: Yes

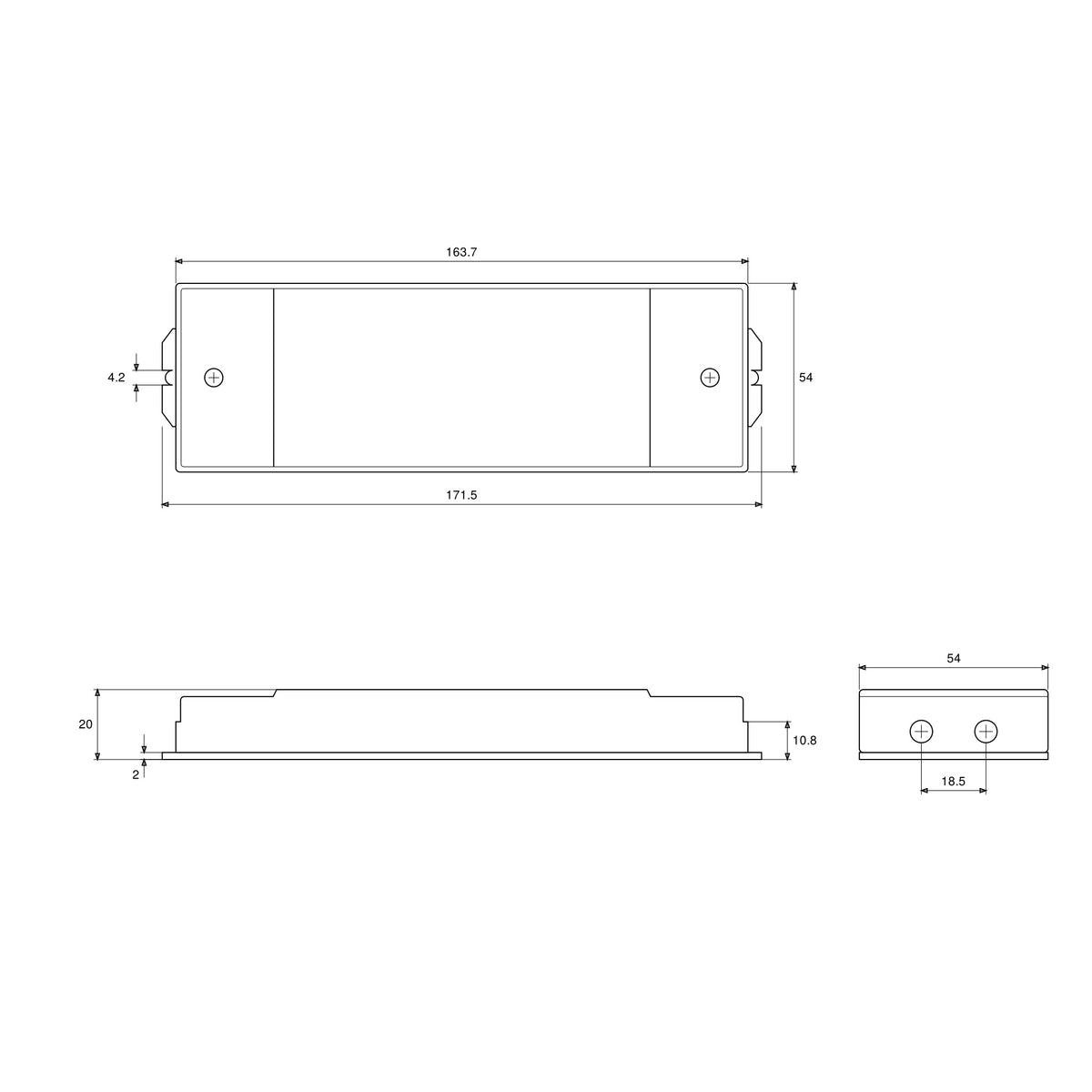

Overall Dimensions (L x W x H): 171.5 x 54 x 20mm
Housing Material: Plastic
Mounting Method: Independent (remote)
Cable Entry / Terminals: Screw terminals
Maximum Cable Size: Input 0.75-2.0mm² / Output 0.5-2.0mm²
Weight: 0.25kg
IP Rating: IP20
Working Temperature (ta): -40°C to +60°C
Warranty: 5 years
