60W 24V DALI-2 Dimmable IP20 LED Driver
Regular price
£99.60
Sale price
£99.60
Share
The 60W 24V DALI-2 Dimmable IP20 LED Driver by 100% Light UK is designed for compatible 24V LED lighting systems requiring digital dimming and control. With a maximum output of 60W, it offers increased capacity for larger LED installations.
Rated IP20, the driver is intended for interior use and can be integrated into residential, hospitality and architectural lighting schemes. Its combination of 24V operation, higher output and DALI dimming makes it a practical choice for professional LED lighting applications.
Rated IP20, the driver is intended for interior use and can be integrated into residential, hospitality and architectural lighting schemes. Its combination of 24V operation, higher output and DALI dimming makes it a practical choice for professional LED lighting applications.
Driver Type: Constant Voltage
Output Voltage: 24V DC (24-26V adjustable via NFC)
Output Current: 2.5A
Rated Power: 60W
Voltage / Current Tolerance: ±0.5V
Maximum Load: 60W
Supply Voltage: 200-240V AC
Frequency Range: 47-63Hz
Full Load Efficiency: 88%
Power Factor: ≥0.95
Dimmable: Yes
Dimming Protocol: DALI-2 / Push
Short Circuit: Yes
Over Load: Yes
Over Temperature: Yes

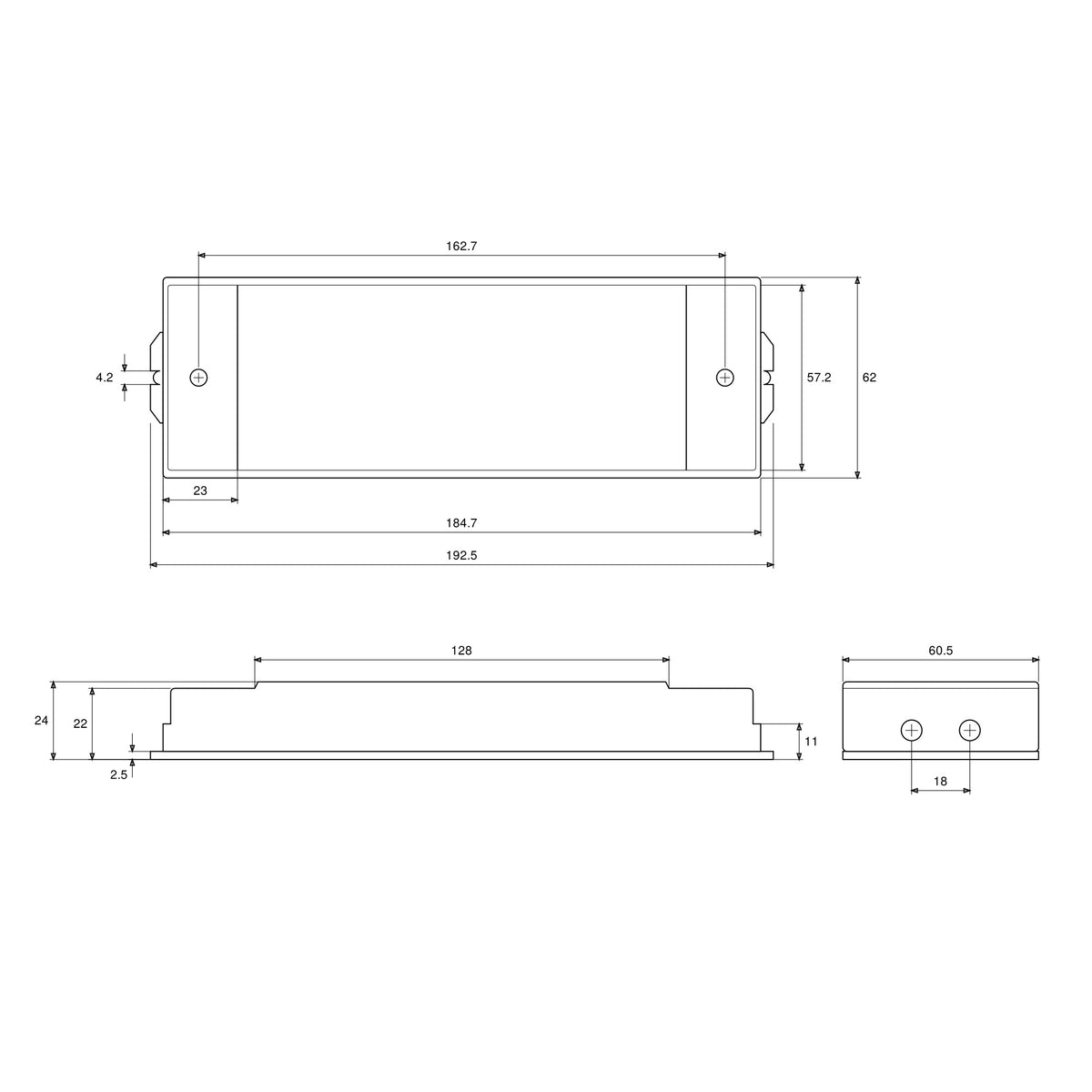

Overall Dimensions (L x W x H): 192.5 x 62 x 24mm
Housing Material: Plastic
Mounting Method: Independent (remote)
Cable Entry / Terminals: Screw terminals
Maximum Cable Size: Input 0.75-2.0mm² / Output 0.5-2.0mm²
Weight: 0.35kg
IP Rating: IP20
Working Temperature (ta): -40°C to +60°C
Warranty: 5 years
