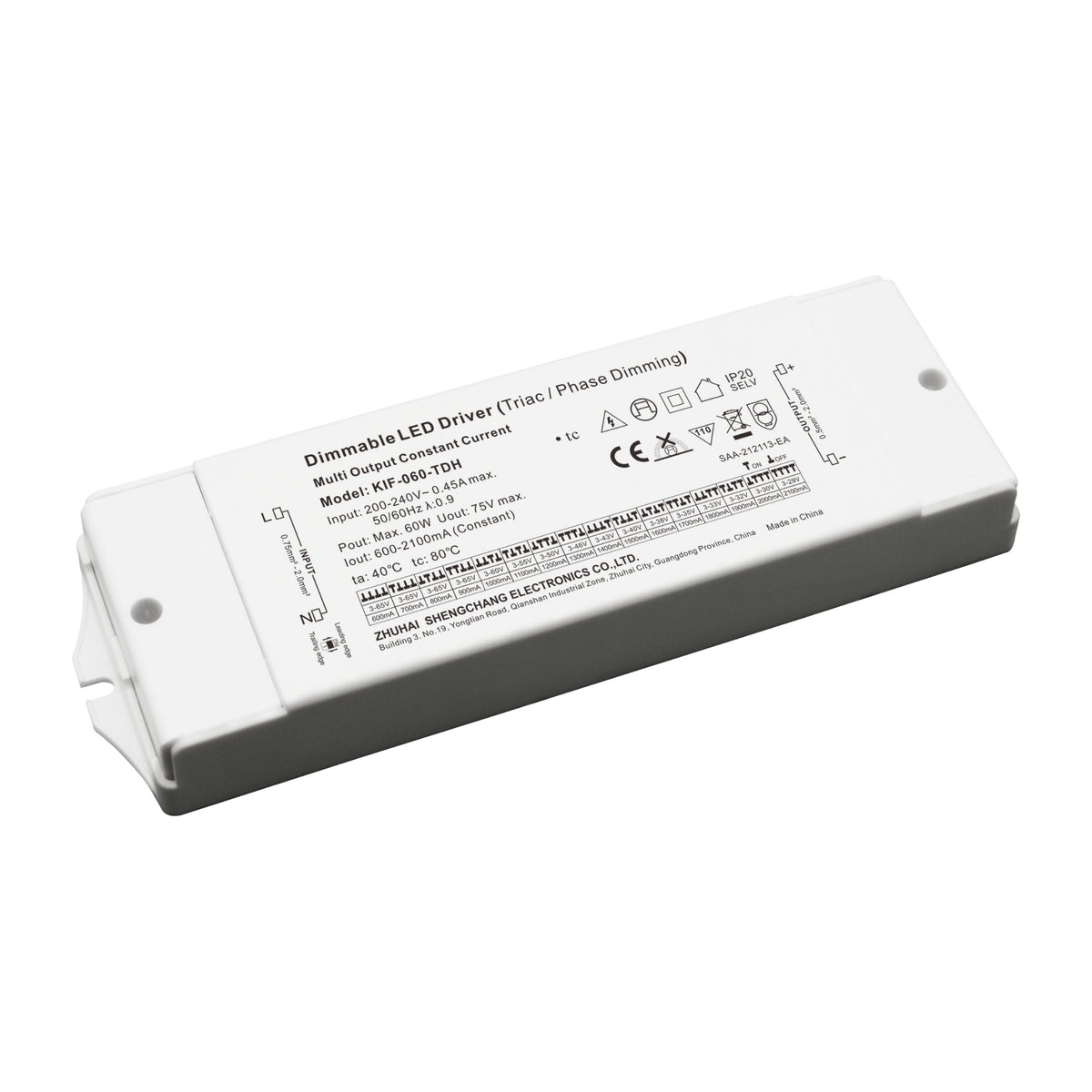

60W LED Driver Mains Dimmable 600-2100mA
60W LED Driver Mains Dimmable 600-2100mA
100% Light UK

60W LED Driver Mains Dimmable 600-2100mA

SKU: AS60-MD-600-2100

The 60W LED Driver Mains Dimmable by 100% Light UK is designed for professional constant-current LED lighting applications where adaptable output and mains dimming are required. Part of OX Power Solutions’ TRIAC dimmable constant-current range, it provides a practical solution for matching compatible LED luminaires across residential, hospitality and architectural projects. Designed for use with both leading and trailing edge dimmers, the driver uses PWM output to provide smooth dimming performance. Its combination of mains phase dimming and flexible constant-current operation makes it a versatile choice for considered architectural lighting installations.
£59.99 £59.99

Tax included and shipping calculated at checkout

You can't add more 60W LED Driver Mains Dimmable 600-2100mA in Default Title to cart

The 60W LED Driver Mains Dimmable by 100% Light UK is designed for professional constant-current LED lighting applications where adaptable output and mains dimming are required. Part of OX Power Solutions’ TRIAC dimmable constant-current range, it provides a practical solution for matching compatible LED luminaires across residential, hospitality and architectural projects.

Designed for use with both leading and trailing edge dimmers, the driver uses PWM output to provide smooth dimming performance. Its combination of mains phase dimming and flexible constant-current operation makes it a versatile choice for considered architectural lighting installations.

Driver Type: Constant Current

Output Voltage: 3V - 65V

Output Current: 600mA - 2100mA

Output Current Options: 600mA / 700mA / 800mA / 900mA / 1000mA / 1100mA / 1200mA / 1300mA / 1400mA / 1500mA / 1600mA / 1700mA / 1800mA / 1900mA / 2000mA / 2100mA

Rated Power: 39W / 45.5W / 52W / 60W

Maximum Load: 60W

Supply Voltage: 200-240V AC

Frequency Range: 47-63Hz

Full Load Efficiency: 86%

Power Factor: ≥0.92

Standby Power: 1.5W

Dimmable: Yes

Dimming Protocol: Leading & trailing edge (Triac) — selector switch

Short Circuit: Yes

Over Temperature: Yes

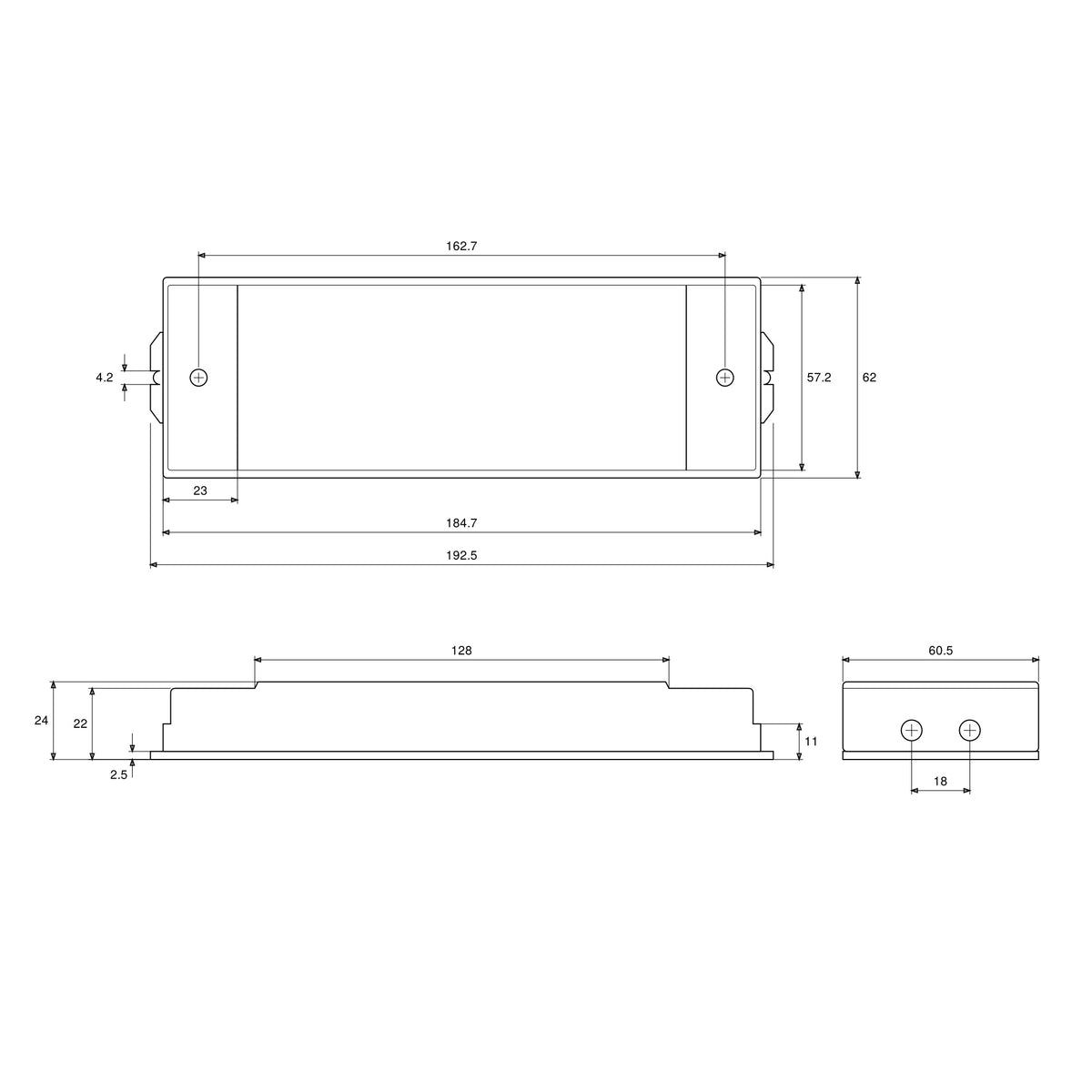

Overall Dimensions (L x W x H): 192.5 x 62 x 24mm

Cable Entry / Terminals: Screw terminals

Weight: 0.35kg

IP Rating: IP20

Warranty: 5 years
Download Spec Sheet
The 60W LED Driver Mains Dimmable by 100% Light UK is designed for professional constant-current LED lighting applications where adaptable output and mains dimming are required. Part of OX Power Solutions’ TRIAC dimmable constant-current range, it provides a practical solution for matching compatible LED luminaires across residential, hospitality and architectural projects.

Designed for use with both leading and trailing edge dimmers, the driver uses PWM output to provide smooth dimming performance. Its combination of mains phase dimming and flexible constant-current operation makes it a versatile choice for considered architectural lighting installations.

Driver Type: Constant Current

Output Voltage: 3V - 65V

Output Current: 600mA - 2100mA

Output Current Options: 600mA / 700mA / 800mA / 900mA / 1000mA / 1100mA / 1200mA / 1300mA / 1400mA / 1500mA / 1600mA / 1700mA / 1800mA / 1900mA / 2000mA / 2100mA

Rated Power: 39W / 45.5W / 52W / 60W

Maximum Load: 60W

Supply Voltage: 200-240V AC

Frequency Range: 47-63Hz

Full Load Efficiency: 86%

Power Factor: ≥0.92

Standby Power: 1.5W

Dimmable: Yes

Dimming Protocol: Leading & trailing edge (Triac) — selector switch

Short Circuit: Yes

Over Temperature: Yes

Overall Dimensions (L x W x H): 192.5 x 62 x 24mm

Cable Entry / Terminals: Screw terminals

Weight: 0.35kg

IP Rating: IP20

Warranty: 5 years
