90W 24V Dimmable IP20 LED Driver
Regular price
£116.40
Sale price
£116.40
Usually ships within 2-3 working days
Share
The 90W 24V Dimmable IP20 LED Driver by 100% Light UK is designed to provide reliable power for compatible 24V LED lighting systems. With a maximum output of 90W, it offers increased capacity for larger LED installations while retaining dimming functionality for adjustable light levels.
Rated IP20, the driver is intended for interior applications and can be incorporated into residential, hospitality and architectural lighting schemes. Its combination of 24V operation, 90W output and dimming capability makes it a versatile choice for compatible LED lighting installations.
Rated IP20, the driver is intended for interior applications and can be incorporated into residential, hospitality and architectural lighting schemes. Its combination of 24V operation, 90W output and dimming capability makes it a versatile choice for compatible LED lighting installations.
Driver Type: Constant Voltage
Output Voltage: 24V DC (21.5-25.5V adjustable)
Output Current: 3.75A
Rated Power: 90W
Voltage / Current Tolerance: ±0.5V
Minimum Load: 10%
Maximum Load: 90W
Supply Voltage: 200-240V AC
Frequency Range: 47-63Hz
Full Load Efficiency: 86%
Power Factor: ≥0.98
Dimmable: Yes
Dimming Protocol: Leading & trailing edge (Triac)
Short Circuit: Yes
Over Load: Yes
Over Temperature: Yes

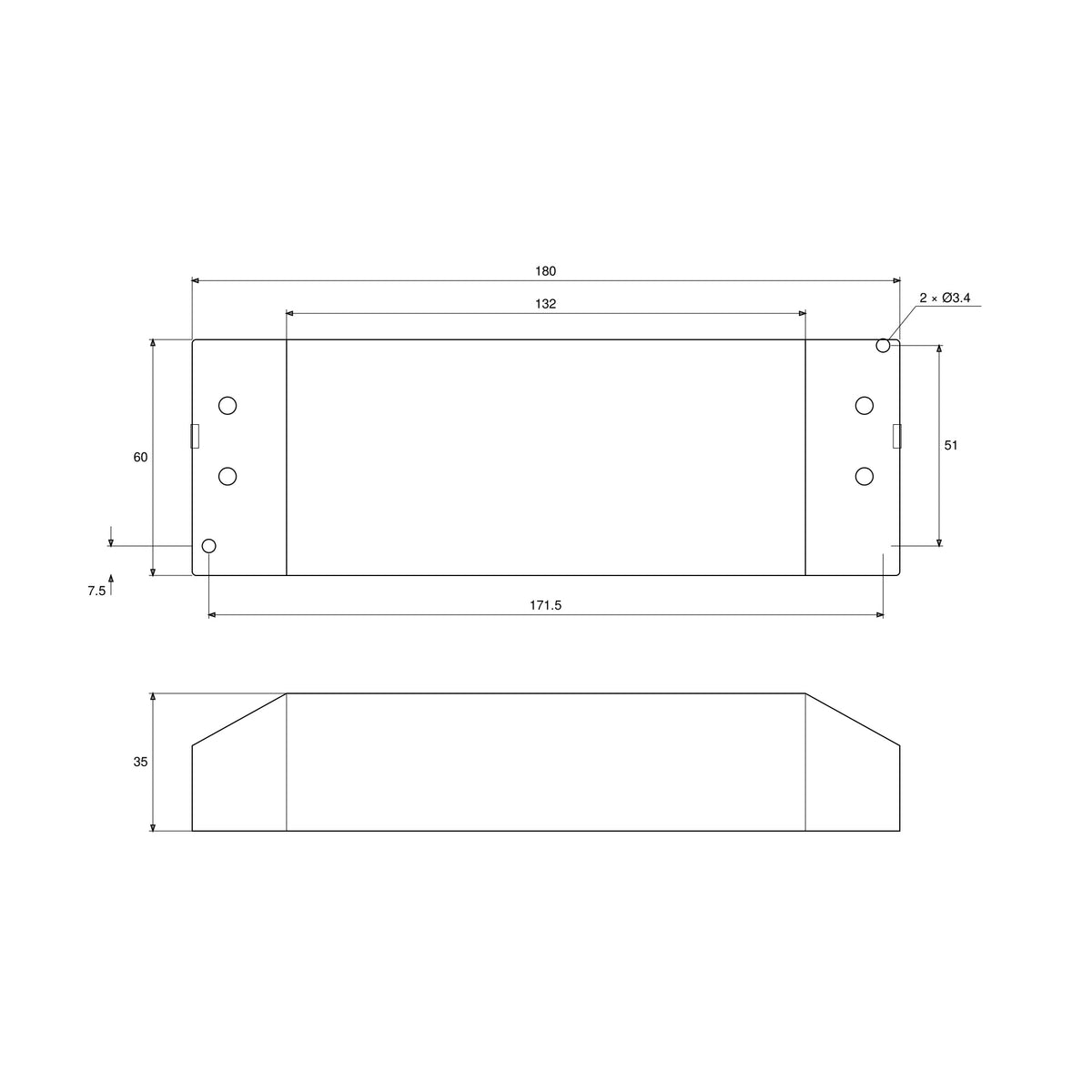

Overall Dimensions (L x W x H): 180 x 60 x 35mm
Housing Material: Plastic
Mounting Method: Independent (remote)
Cable Entry / Terminals: Screw terminals
Weight: 0.42kg
IP Rating: IP20
Working Temperature (ta): -40°C to +60°C
Warranty: 5 years
