Prado

Acrobat Mini Short Spotlight

The Acrobat Mini Short Spotlight by Prado is a compact, fully adjustable architectural fitting designed to deliver precise illumination from a discreet form. Offering 60° vertical adjustment and 360° horizontal rotation, it can be accurately directed towards artwork, joinery and architectural features. Despite its small proportions, the fitting delivers up to 675 lumens, while a recessed lens helps create a comfortable, glare-free lighting experience. The Acrobat Mini Short is available in 2700K or 3000K, with 10°, 20°, 40° and 60° beam angles to suit a variety of accent lighting applications. CRI options include 90+ and 97, while aluminium and brass finishes provide flexibility across different interior schemes. The fitting is IP20 rated for indoor use, supplied with a trimless ceiling disc and invisible hinge, with the driver specified separately.

Email For Price

General Information

The Acrobat Mini Short Spotlight by Prado is a compact, fully adjustable architectural fitting designed to deliver precise illumination from a discreet form. Offering 60° vertical adjustment and 360° horizontal rotation, it can be accurately directed towards artwork, joinery and architectural features. Despite its small proportions, the fitting delivers up to 675 lumens, while a recessed lens helps create a comfortable, glare-free lighting experience.

The Acrobat Mini Short is available in 2700K or 3000K, with 10°, 20°, 40° and 60° beam angles to suit a variety of accent lighting applications. CRI options include 90+ and 97, while aluminium and brass finishes provide flexibility across different interior schemes. The fitting is IP20 rated for indoor use, supplied with a trimless ceiling disc and invisible hinge, with the driver specified separately.

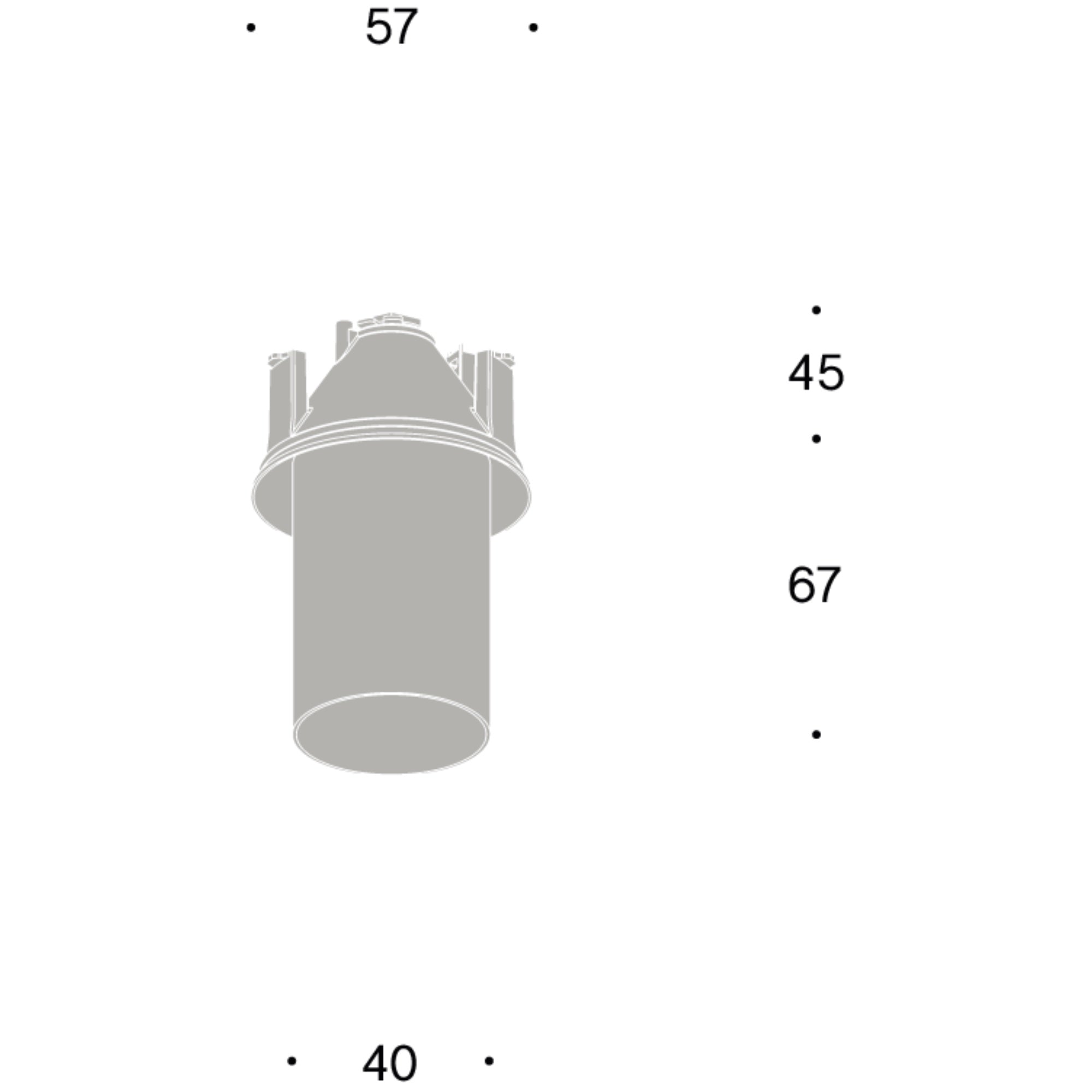

Overall Diameter: 57mm Ø

Projection from Wall / Face: 67mm

Cut-out Diameter: 76mm Ø

Recess Depth Required: 45mm

Plenum / Void Clearance Required: 55mm

Mounting Method: Plaster-in plate (trimless)

Tilt Angle: 60°

Rotation Angle: 360°

Material: Aluminium / Brass

Body Finish: Black / White / Steel / Brushed Grey / Brushed Bronze / Brushed Nickel / Light Bronze / Dark Bronze

Baffle Finish: -

Light Source: Integrated LED

Replaceable Light Engine (Zhaga): Yes

Lumen Output (delivered, per fitting): 425lm / 525lm / 525lm / 525lm

Colour Temperature: 2700K / 3000K

CRI (Ra): 90 / 97

Beam Angle: 10° / 20° / 40° / 60°

Circuit Wattage: 5.7W

Drive Current: 350mA

Driver Required: Yes

Driver Included: No

Driver Location & Access: Remote mounted

Dimmable: Yes

Dimming Protocol: Phase / 0-10V / DALI

IP Rating: IP20

Fire Rating: With fire hood

Fire Hood Required: Yes

Download Spec Sheet
