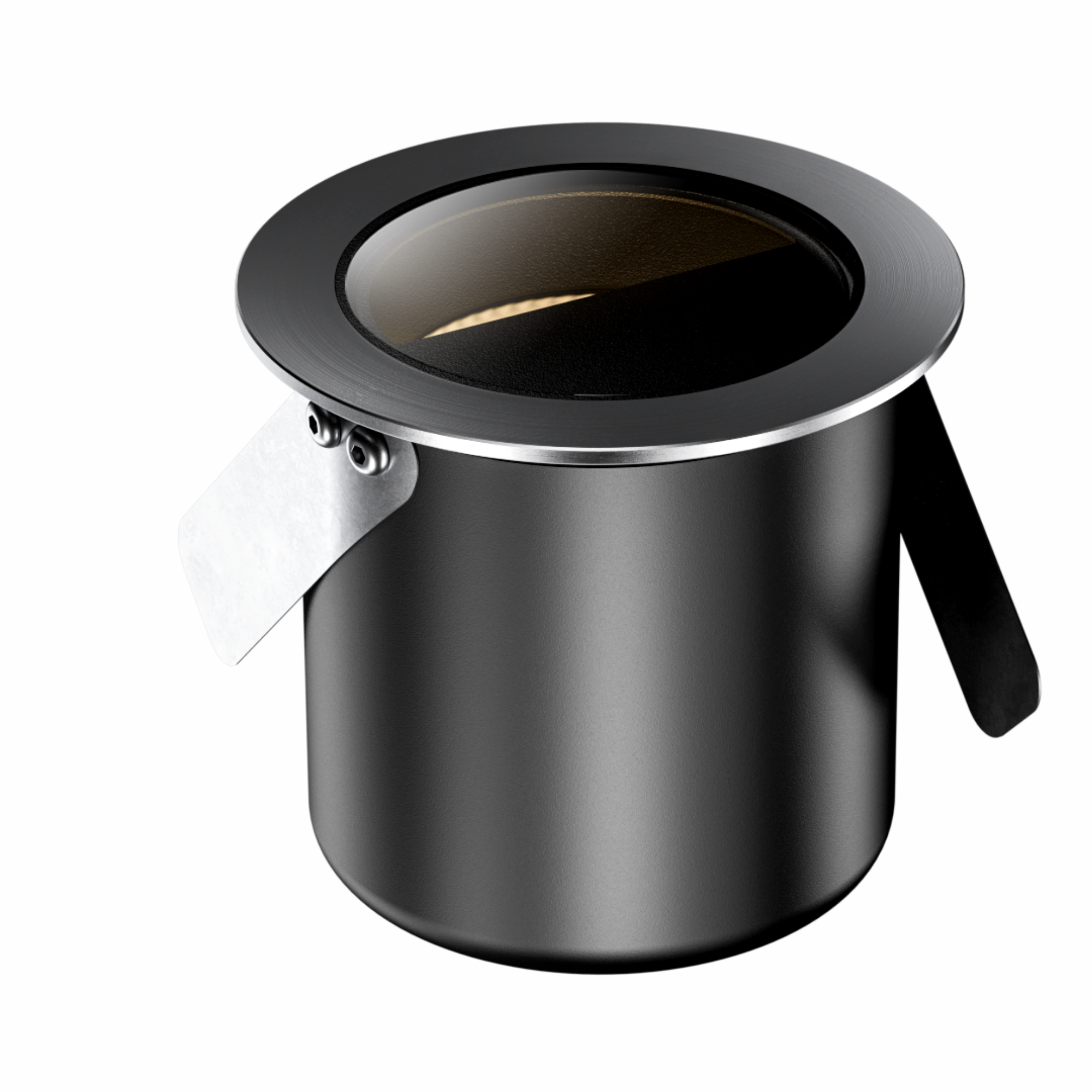

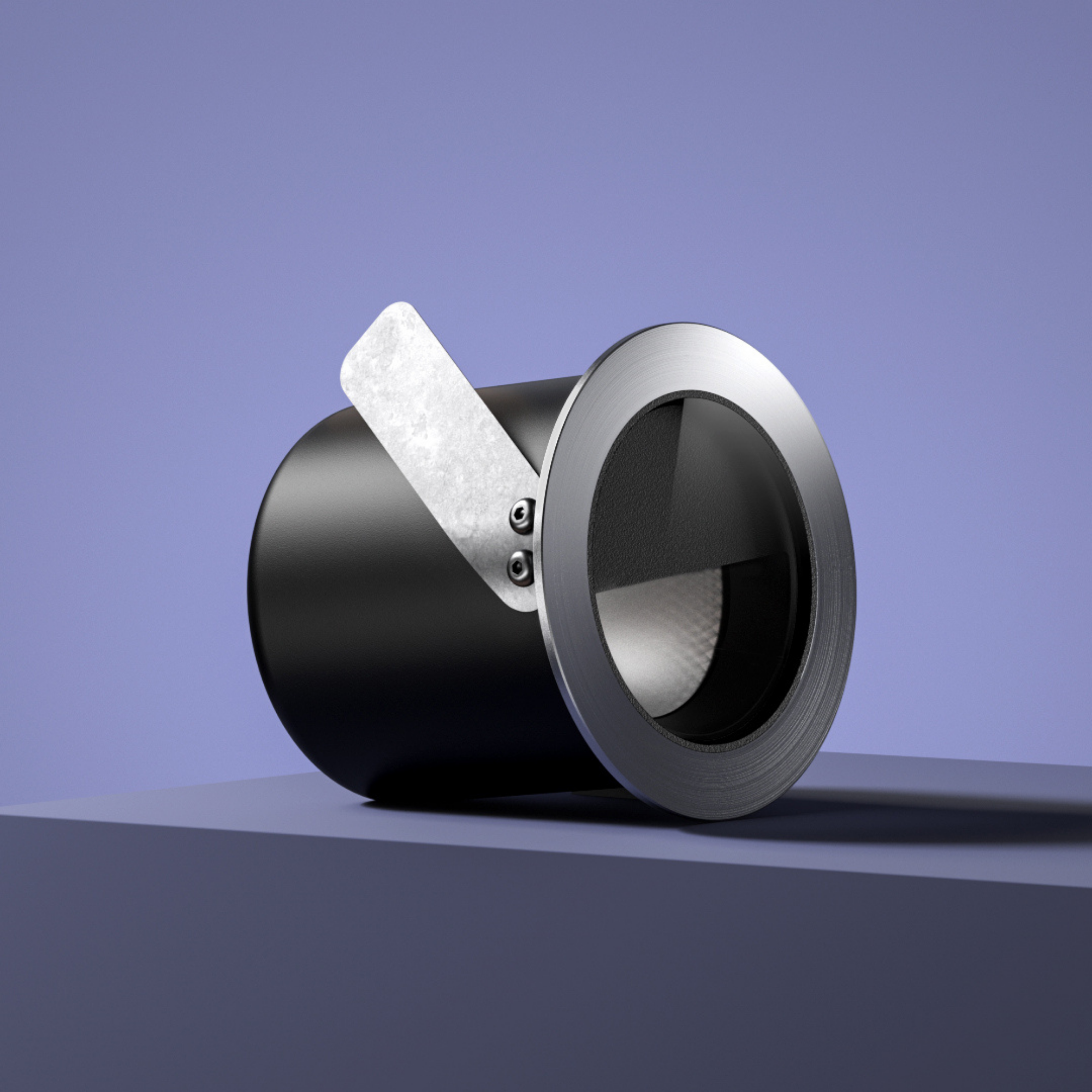

Alta Plus Uplight

Name: Alta Plus Uplight
Price: 207.94 GBP

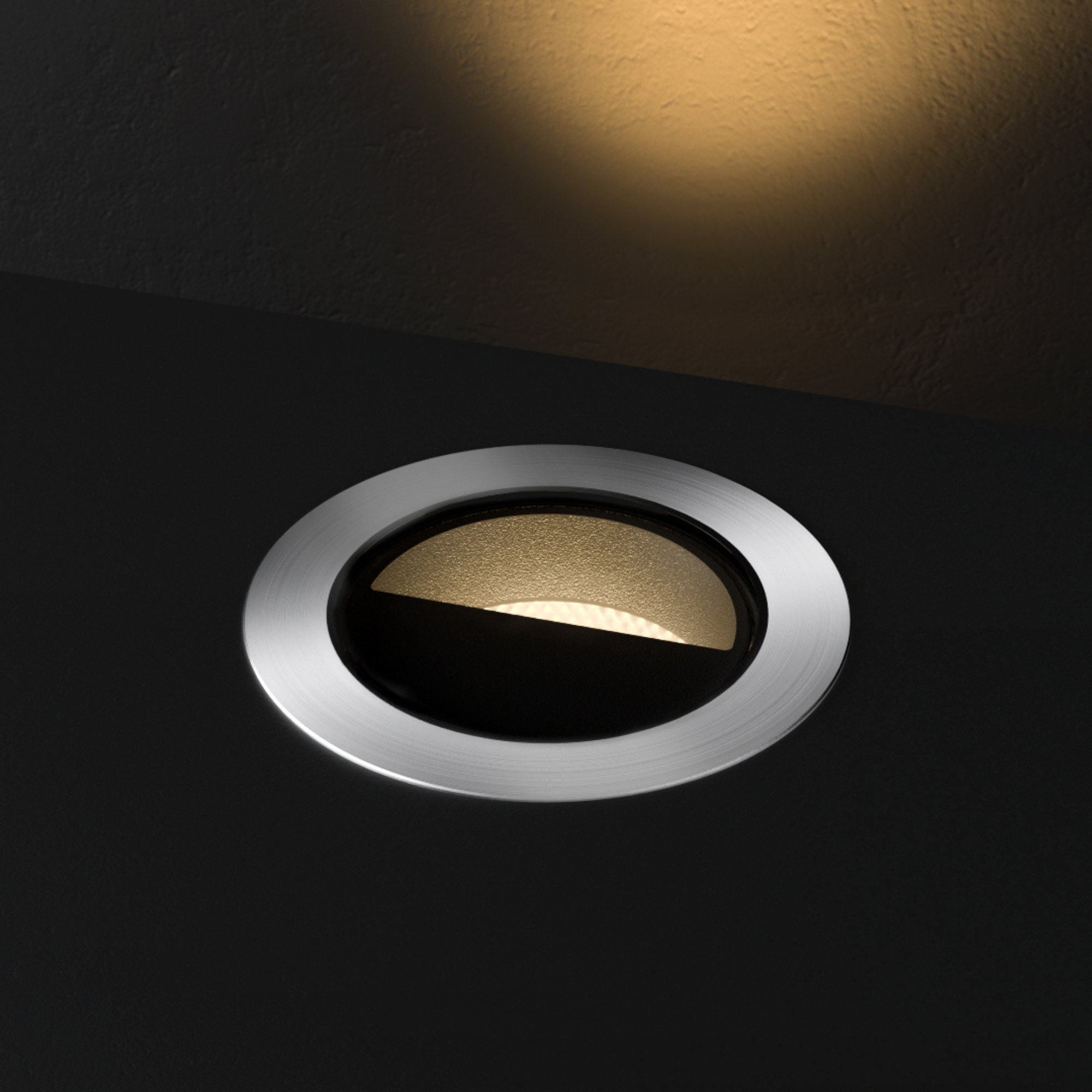

The Alta Plus Uplight is a powerful recessed architectural fitting designed for illuminating larger walls, columns, façades and landscape features while maintaining a discreet in-ground appearance. Its 80mm bezel and deeply recessed optical system help control glare, while a comprehensive selection of beam distributions — including spot, narrow, medium, wide, flood, wash and crisp options — allows the lighting effect to be tailored from focused accent illumination to broad architectural washing. Available with Orluna’s Origin Natural light engine, the Alta Plus delivers exceptional colour rendering with a typical CRI of 98, alongside 2700K, 3000K and 4000K colour temperatures. It can be specified in IP54 or IP67, with premium bezel finishes including stainless steel, anodised options, bronze and brass tones, as well as selected RAL colours. Honeycomb and frosted lens accessories provide further optical control, while mains dim, DALI, 0-10V and non-dimmable driver options make it easy to integrate into considered residential, hospitality and exterior lighting schemes.

Email For Price

Usually ships within 10-14 working days

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

General Information

The Alta Plus Uplight is a powerful recessed architectural fitting designed for illuminating larger walls, columns, façades and landscape features while maintaining a discreet in-ground appearance. Its 80mm bezel and deeply recessed optical system help control glare, while a comprehensive selection of beam distributions — including spot, narrow, medium, wide, flood, wash and crisp options — allows the lighting effect to be tailored from focused accent illumination to broad architectural washing.

Available with Orluna’s Origin Natural light engine, the Alta Plus delivers exceptional colour rendering with a typical CRI of 98, alongside 2700K, 3000K and 4000K colour temperatures. It can be specified in IP54 or IP67, with premium bezel finishes including stainless steel, anodised options, bronze and brass tones, as well as selected RAL colours. Honeycomb and frosted lens accessories provide further optical control, while mains dim, DALI, 0-10V and non-dimmable driver options make it easy to integrate into considered residential, hospitality and exterior lighting schemes.

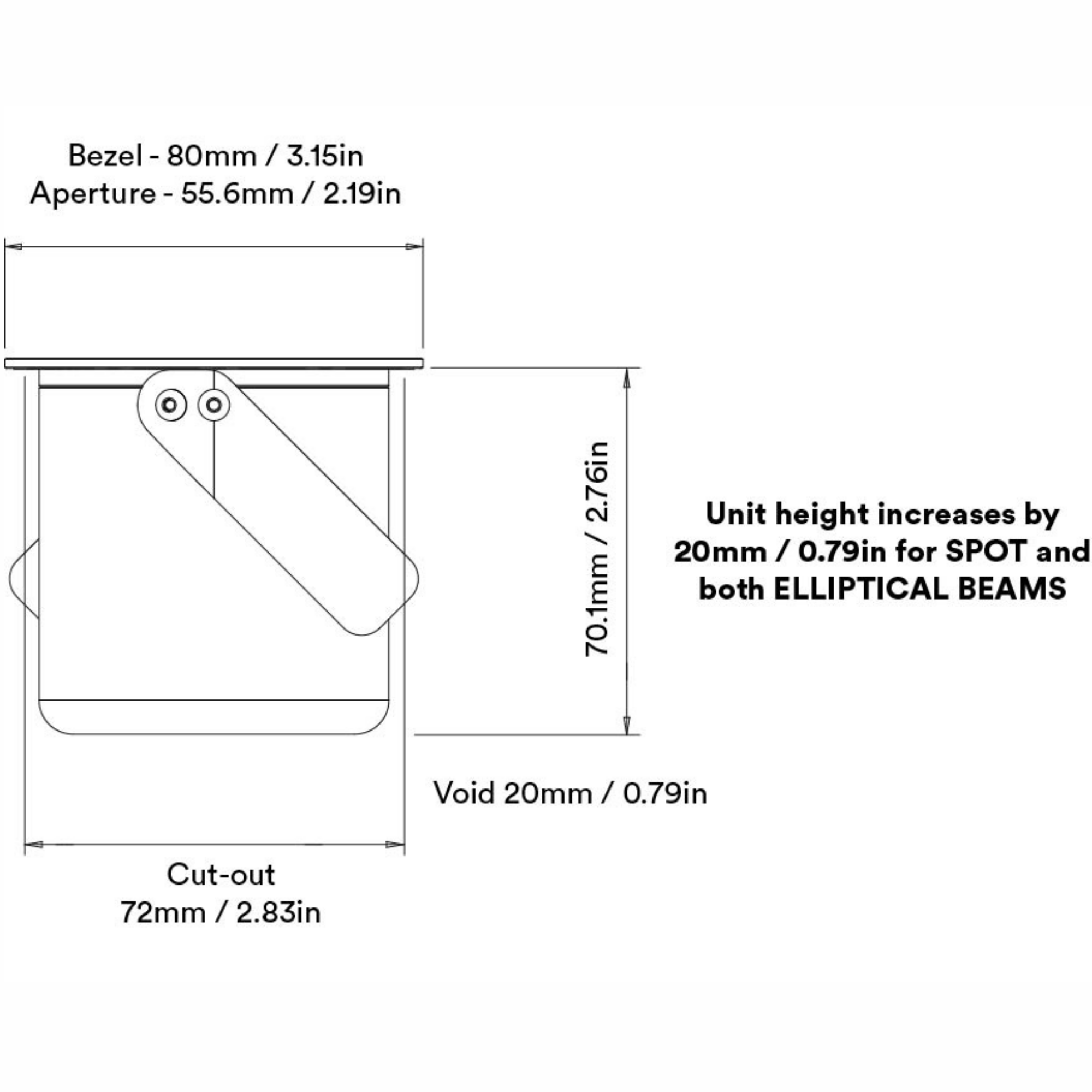

Overall Diameter: 80mm Ø

Overall Depth: 70.1mm

Cut-out Diameter: 72mm Ø

Recess Depth Required: 90mm

Mounting Method: Springs / Installation sleeve

Material: Metal

Bezel Finish: White RAL 9010 / White RAL 9003 / Black RAL 9005 / Other RAL / Dark Bronze / Medium Bronze / Light Bronze / Burnished Brass / Polished Brass / Brushed Chrome / Polished Chrome / Other Metallic / White RAL9016 Anodised / Black Anodised / Bronze Anodised / Burnished Anodised / Stainless Steel

Baffle Finish: Black RAL 9005

Light Source: Integrated LED

Lumen Output (delivered, per fitting): 302lm / 386lm / 684lm / 679lm / 647lm / 691lm

Colour Temperature: 2700K / 3000K

CRI (Ra): 98

Beam Angle: 10° / 14° / 27° / 42° / 49° / 57°

Optic Accessories: Honeycomb / Frosted Lens / Kicker optic

Circuit Wattage: 11.4W

Forward Voltage (Vf): 34V

Drive Current: 300mA

Driver Required: Yes

Driver Included: No

Driver Location & Access: Remote mounted

Dimmable: Yes

Dimming Protocol: Phase / 0-10V / DALI

IP Rating: IP54 / IP67

Download Spec Sheet
