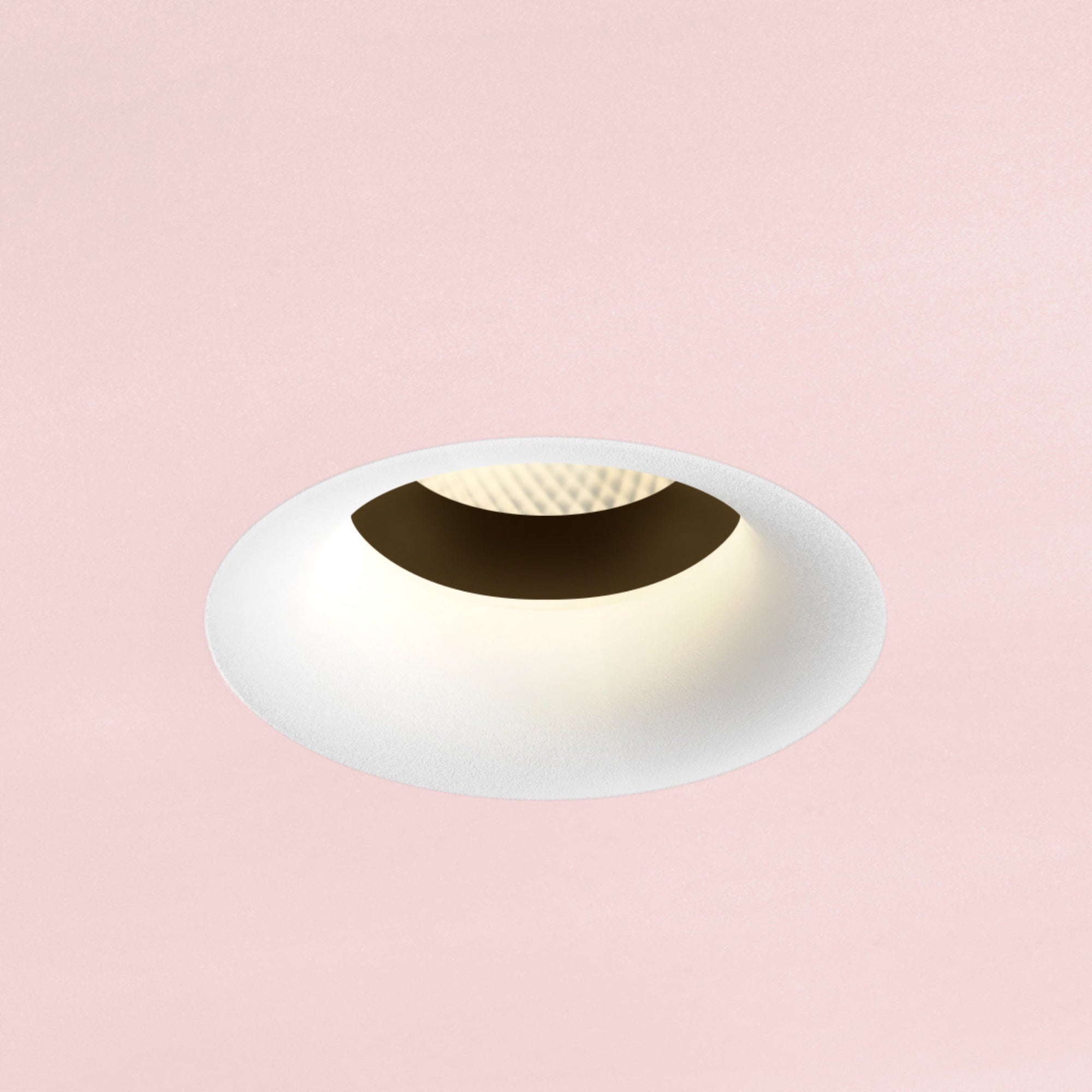

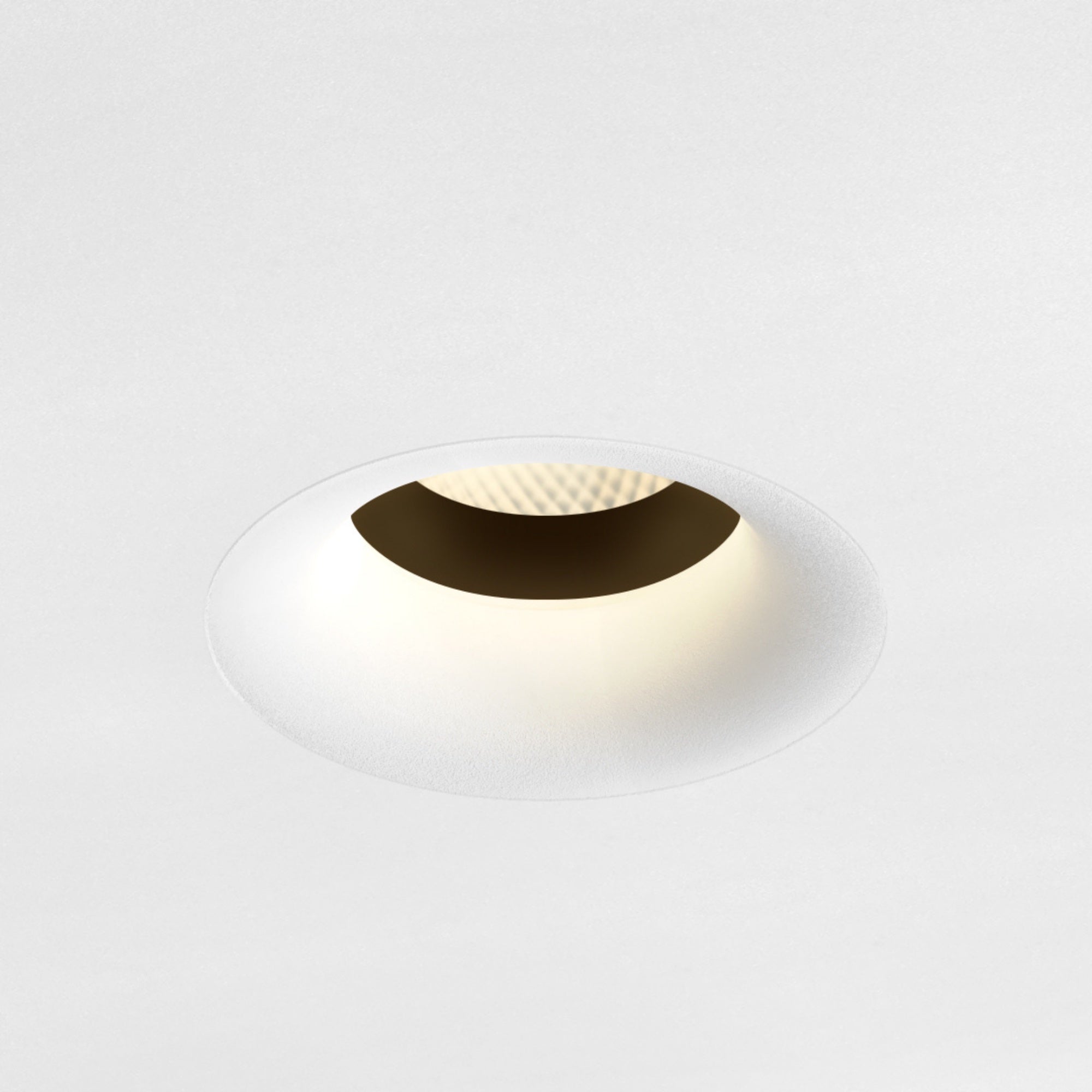

Camber Mini Adjustable Downlight

Name: Camber Mini Adjustable Downlight
Price: 183.97 GBP

The Camber Mini Adjustable Downlight is a miniature architectural fitting designed to deliver precise directional lighting from a discreet ceiling aperture. Despite its compact proportions, it produces approximately 300 lumens, while 28° tilt allows the light to be directed towards artwork, joinery, furniture and architectural details. Its gently curved profile and recessed black baffle help the fitting disappear into the ceiling while providing effective glare control, making it particularly suited to refined residential interiors. Available with Orluna’s Origin Natural light engine, the Camber Mini delivers exceptional CRI 98 colour rendering with 2700K, 3000K and 4000K options. Beam choices include spot, medium, wide, wash and elliptical distributions, while IP54 and IP65 versions, multiple finishes, optical accessories and mains dim, DALI, 0-10V or non-dimmable drivers provide extensive specification flexibility.

£183.97

Tax included and shipping calculated at checkout

You can't add more Camber Mini Adjustable Downlight in Default Title to cart

Usually ships within 10-14 working days

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

General Information

The Camber Mini Adjustable Downlight is a miniature architectural fitting designed to deliver precise directional lighting from a discreet ceiling aperture. Despite its compact proportions, it produces approximately 300 lumens, while 28° tilt allows the light to be directed towards artwork, joinery, furniture and architectural details. Its gently curved profile and recessed black baffle help the fitting disappear into the ceiling while providing effective glare control, making it particularly suited to refined residential interiors.

Available with Orluna’s Origin Natural light engine, the Camber Mini delivers exceptional CRI 98 colour rendering with 2700K, 3000K and 4000K options. Beam choices include spot, medium, wide, wash and elliptical distributions, while IP54 and IP65 versions, multiple finishes, optical accessories and mains dim, DALI, 0-10V or non-dimmable drivers provide extensive specification flexibility.

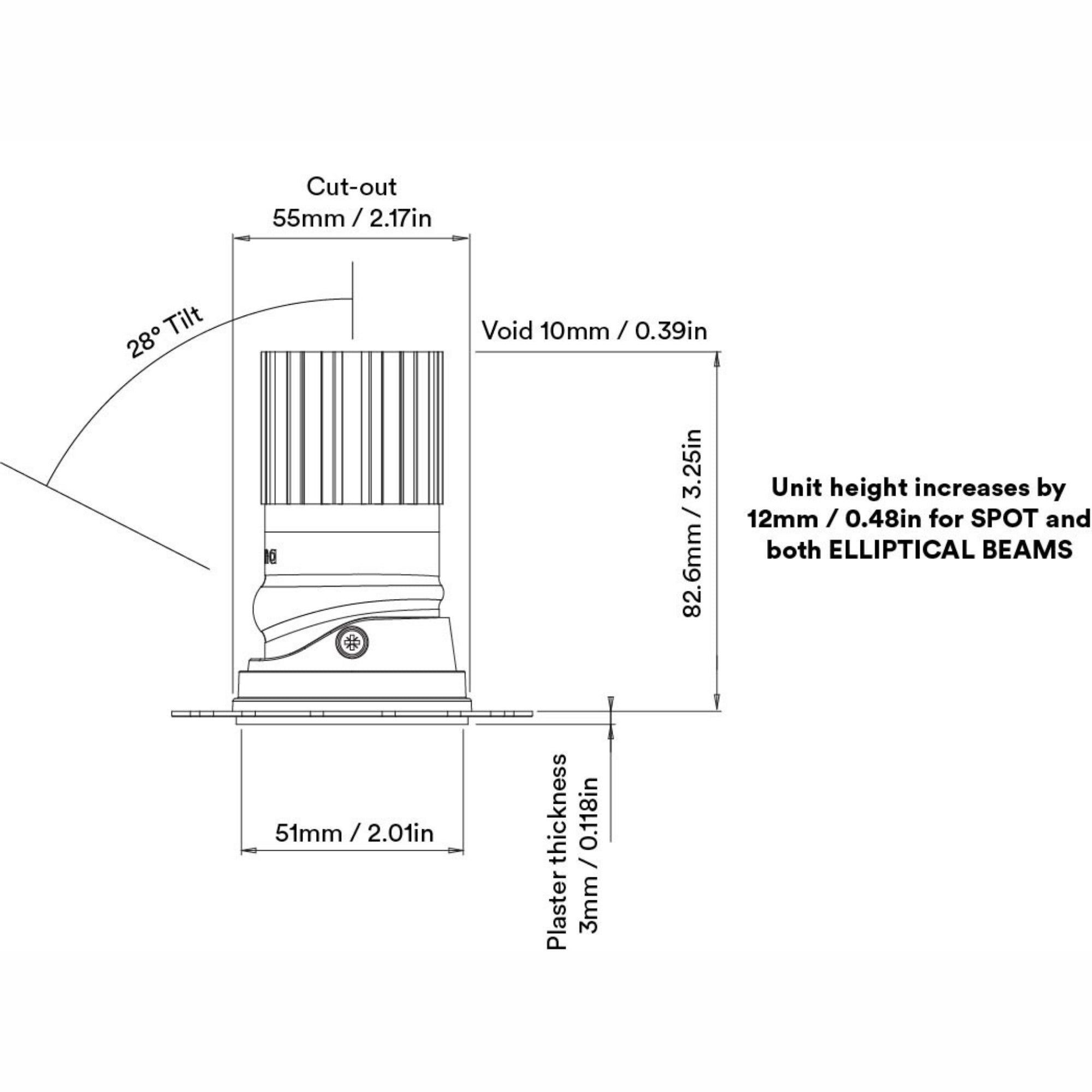

Overall Diameter: 51mm Ø

Overall Depth: 82.6mm

Cut-out Diameter: 55mm Ø

Recess Depth Required: 92.6mm

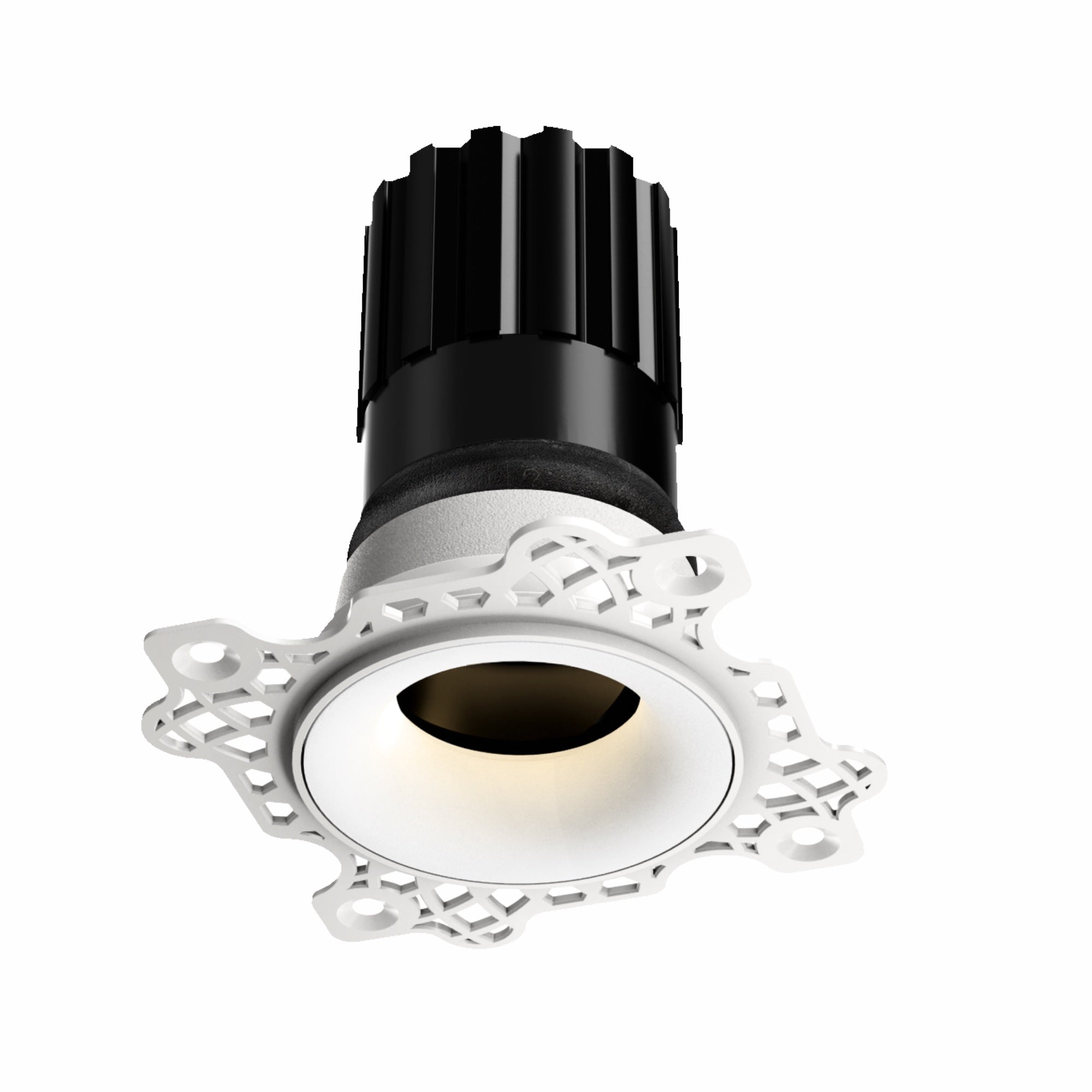

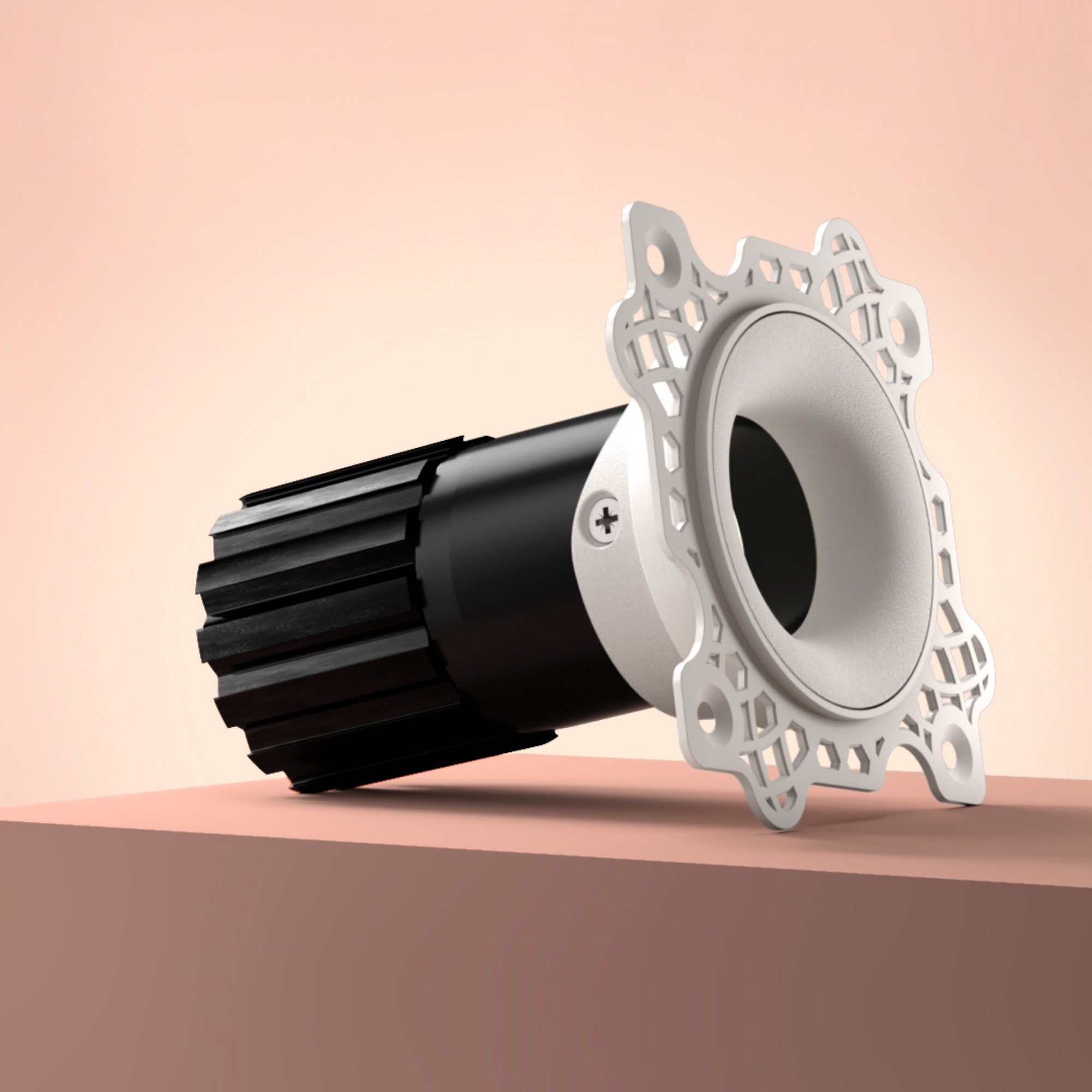

Mounting Method: Plaster-in plate, trimless

Tilt Angle: 28°

Rotation Angle: 360°

Material: Metal / Plastic

Bezel Finish: White 9010 / White RAL 9003 / Other RAL / Polished Brass / Brushed Chrome / Polished Chrome / Other Metallic / Dark Bronze* / Medium Bronze* / Light Bronze* / Burnished Brass* / Anodised White 9016 / Anodised Black / Anodised Bronze / Anodised Burnished

Baffle Finish: Black 9005 / White RAL 9010 / White RAL 9003 / Other RAL / Polished Brass / Brushed Chrome / Polished Chrome / Other Metallic

Light Source: Integrated LED

Replaceable Light Engine (Zhaga): Yes

Lumen Output (delivered, per fitting): 151lm / 296lm / 278lm / 242lm / 682lm

Colour Temperature: 2700K / 3000K

CRI (Ra): 98

R9: 99

Beam Angle: 15° / 20° / 30° / 34°

Optic Accessories: Honeycomb Louvre / Frosted Lens / Spreader Lens

Circuit Wattage: 5.8W

Forward Voltage (Vf): 33.4V

Drive Current: 155mA

Driver Required: Yes

Driver Included: No

Driver Location & Access: Remote mounted - Local to fixture

Dimmable: Yes

Dimming Protocol: Mains Dim / DALI / 0-10v

IP Rating: IP54 / IP65

Fire Rating: Yes

Fire Hood Required: On request

Emergency Version Available: Yes

Download Spec Sheet
