Curve Mini Adjustable Downlight

Name: Curve Mini Adjustable Downlight
Price: 152.33 GBP

The Curve Mini Adjustable Downlight is a compact architectural fitting designed to deliver high-quality directional light from a discreet ceiling aperture. Producing up to approximately 300 lumens, it forms part of Orluna’s smallest high-performing adjustable downlight family and is particularly well suited to refined residential interiors. Its softly curved profile helps the fitting blend into the ceiling, while 28° tilt provides useful directional control for artwork, joinery, furniture and architectural details. Available with Orluna’s Origin Natural light engine, the Curve Mini offers exceptional CRI 98 colour rendering with 2700K and 3000K options. Beam choices include medium, wide, wash, spot and elliptical distributions, while IP54 and IP65 configurations, multiple finish options and mains dim, DALI, 0-10V or non-dimmable control provide broad specification flexibility. Its combination of miniature proportions, high-quality light and precise adjustment makes it ideal for luxury residential and hospitality schemes.

£152.33

Tax included and shipping calculated at checkout

You can't add more Curve Mini Adjustable Downlight in Default Title to cart

Usually ships within 10-14 working days

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

General Information

The Curve Mini Adjustable Downlight is a compact architectural fitting designed to deliver high-quality directional light from a discreet ceiling aperture. Producing up to approximately 300 lumens, it forms part of Orluna’s smallest high-performing adjustable downlight family and is particularly well suited to refined residential interiors. Its softly curved profile helps the fitting blend into the ceiling, while 28° tilt provides useful directional control for artwork, joinery, furniture and architectural details.

Available with Orluna’s Origin Natural light engine, the Curve Mini offers exceptional CRI 98 colour rendering with 2700K and 3000K options. Beam choices include medium, wide, wash, spot and elliptical distributions, while IP54 and IP65 configurations, multiple finish options and mains dim, DALI, 0-10V or non-dimmable control provide broad specification flexibility. Its combination of miniature proportions, high-quality light and precise adjustment makes it ideal for luxury residential and hospitality schemes.

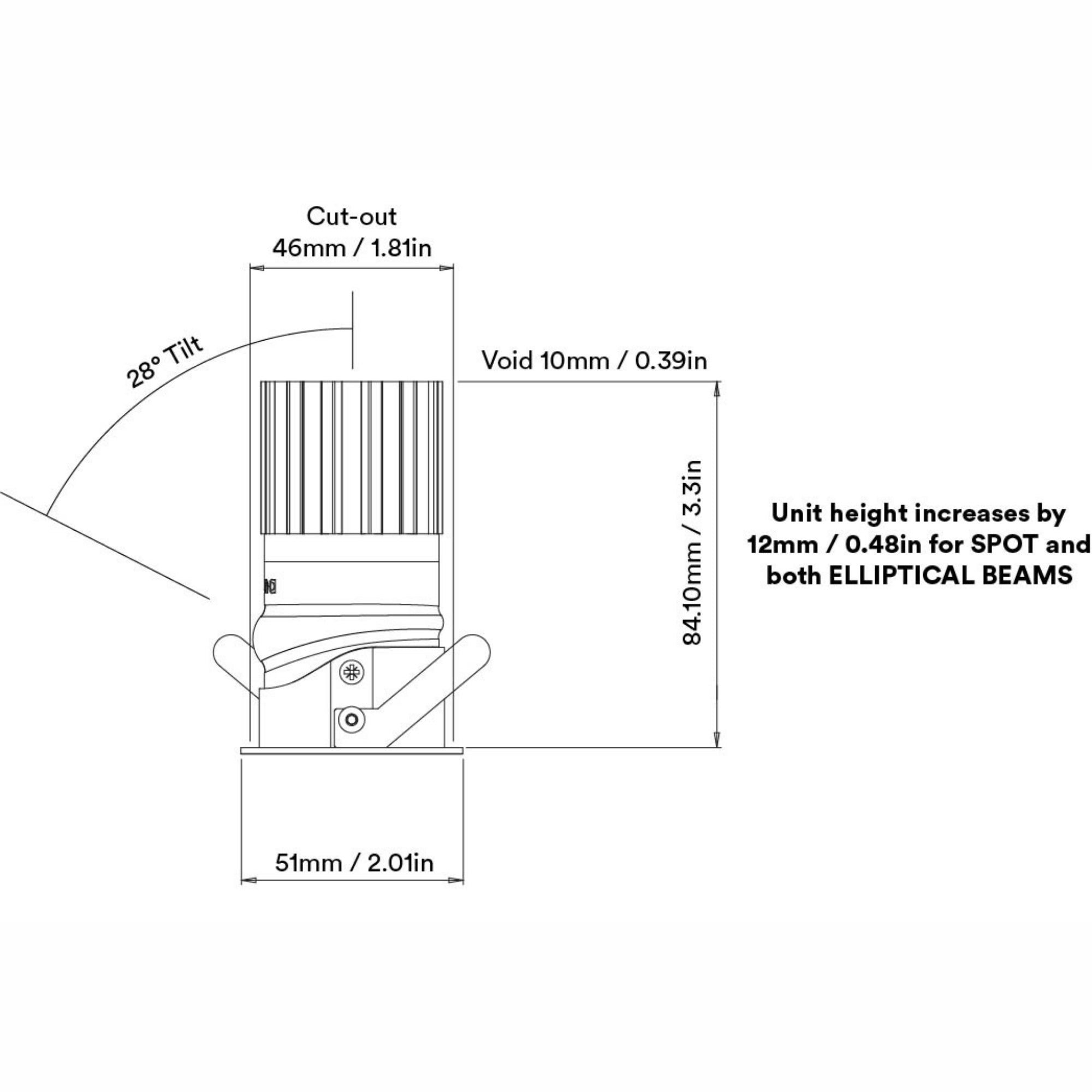

Overall Diameter: 51mm Ø

Overall Depth: 84.1mm

Cut-out Diameter: 46mm Ø

Recess Depth Required: 94.1mm

Mounting Method: Springs

Tilt Angle: 28°

Rotation Angle: 360°

Material: Metal / Plastic

Bezel Finish: White 9010 / White RAL 9003 / Other RAL / Polished Brass / Brushed Chrome / Polished Chrome / Other Metallic / Dark Bronze* / Medium Bronze* / Light Bronze* / Burnished Brass* / Anodised White 9016 / Anodised Black / Anodised Bronze / Anodised Burnished

Baffle Finish: Black 9005 / White RAL 9010 / White RAL 9003 / Other RAL / Polished Brass / Brushed Chrome / Polished Chrome / Other Metallic

Light Source: Integrated LED

Replaceable Light Engine (Zhaga): Yes

Lumen Output (delivered, per fitting): 151lm / 296lm / 278lm / 242lm / 682lm

Colour Temperature: 2700K / 3000K

CRI (Ra): 98

R9: 99

Beam Angle: 15° / 20° / 30° / 34°

Optic Accessories: Honeycomb Louvre / Frosted Lens / Spreader Lens

Circuit Wattage: 5.8W

Forward Voltage (Vf): 33.4V

Drive Current: 155mA

Driver Required: Yes

Driver Included: No

Driver Location & Access: Remote mounted - Local to fixture

Dimmable: Yes

Dimming Protocol: Mains Dim / DALI / 0-10v

IP Rating: IP54 / IP65

Fire Rating: Yes

Fire Hood Required: On request
