Phos

Eyeconic Mini Trim Fixed Downlight

The Eyeconic Mini Trim Adjustable Downlight is a compact architectural fitting with a sculpted anti-glare baffle for refined, comfortable illumination. Featuring 360° rotation, 28° tilt and interchangeable beam optics, it provides excellent flexibility for general and accent lighting. IP65 and fire-rated performance make it a versatile choice for premium residential and hospitality interiors.

Bezel Colour: Black

Black
White

Baffle Colour: Black

Black
White

Product variants

Usually ships within 4 weeks

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

General Information

The Eyeconic Mini Trim Fixed Downlight by Phos is a compact recessed architectural fitting designed to deliver precise illumination with excellent glare control. Its discreet 62mm bezel surrounds a beautifully sculpted anti-glare baffle, helping the fitting sit quietly within the ceiling while providing a refined lighting effect. A choice of 10°, 20°, 30° and 50° beam angles allows the light distribution to be tailored from focused accent lighting through to broader general illumination, making it particularly suited to luxury residential, hospitality and design-led interiors.

Designed and manufactured in the UK, the Eyeconic Mini Trim Fixed is IP65 rated, 60-minute fire certified and acoustic rated, with interchangeable optics and accessories that can be changed before or after installation. Power options range from 4W to 14W, with outputs reaching over 800 lumens, alongside CRI 90+ performance and 2700K or 3000K colour temperatures depending on specification. Available across the Phos finish range, its combination of compact proportions, optical flexibility and architectural detailing makes it a versatile choice for considered professional lighting schemes.

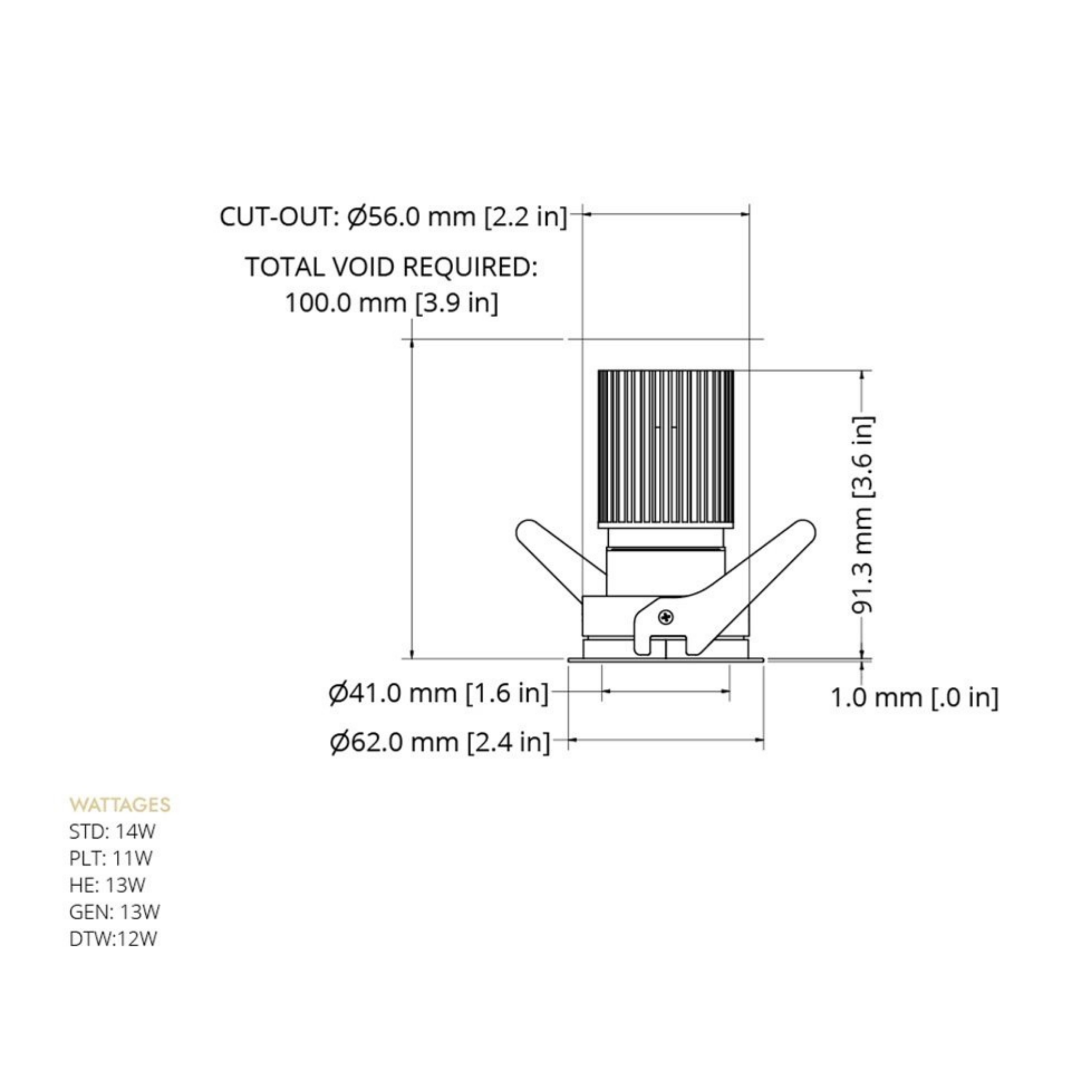

Overall Diameter: 62mm Ø

Overall Depth: 91mm

Cut-out Diameter: 56mm Ø

Recess Depth Required: 100mm

Material: Metal

Bezel Finish: Matt White / Matt Black / Other on request

Baffle Finish: Matt Black / Matt White / Other on request

Tilt Angle: -

Rotation Angle: -

Light Source: Integrated LED

Lumen Output (delivered, per fitting): 725lm / 650lm / 630lm / 669lm

Colour Temperature: 2700K / 3000K

CRI (Ra): 90.9

R9: ≥ 90

Beam Angle: 10° / 20° / 30° / 50°

Optic Accessories: Softening lens

Glare Shield Accessories: Honeycomb

Circuit Wattage: 14W

Supply Voltage: 220 – 240V

Driver Required: Yes

Driver Location & Access: Remote, above ceiling

Dimmable: Yes

Dimming Protocol: Phase / 0-10V / DALI

IP Rating: IP65

IP Rating Applies To: From front of fitting

Fire Rating: 60min
