Phos

Eyeconic Recessed Square Trimless Fixed Downlight

Name: Eyeconic Recessed Square Trimless Fixed Downlight
Price: 103.2 GBP

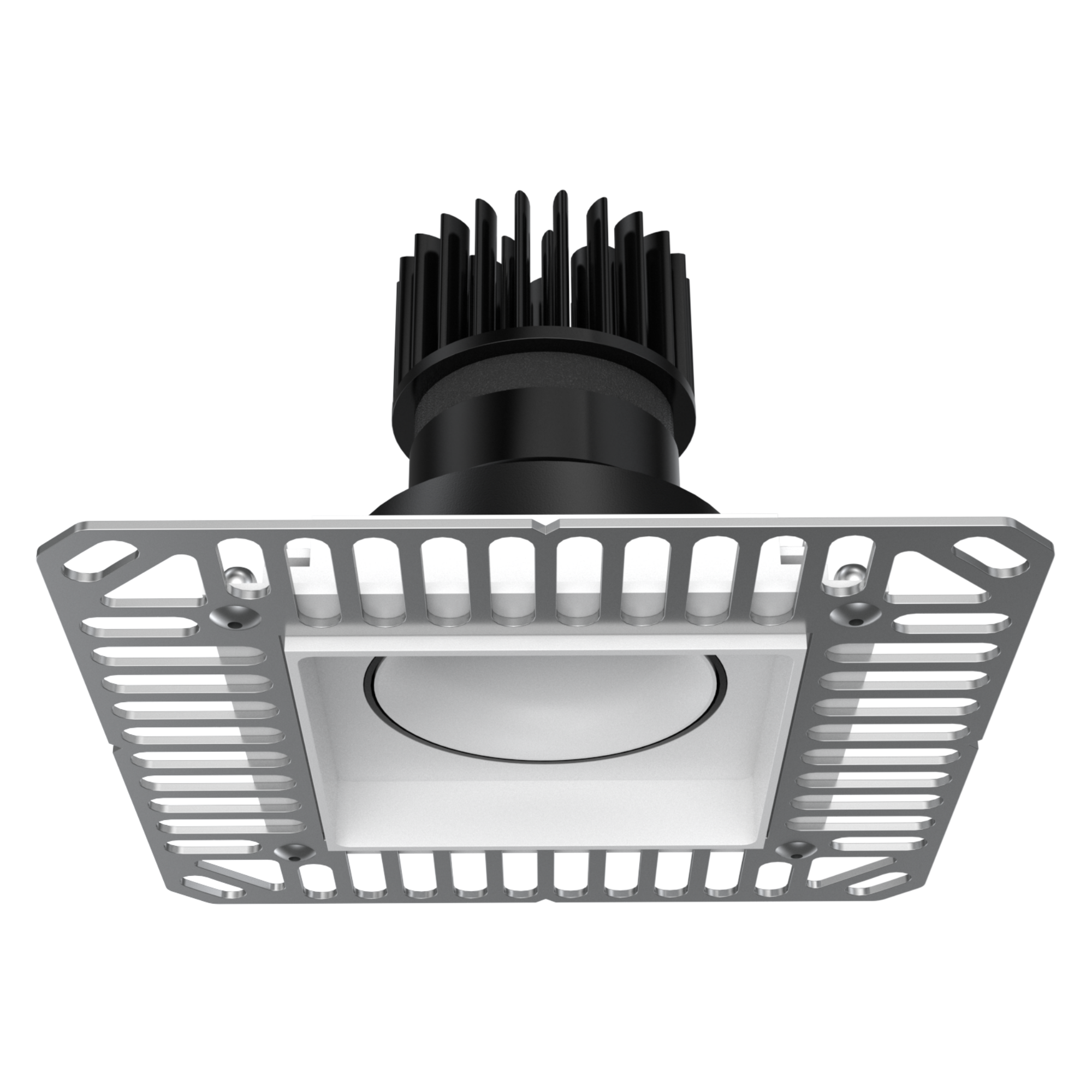

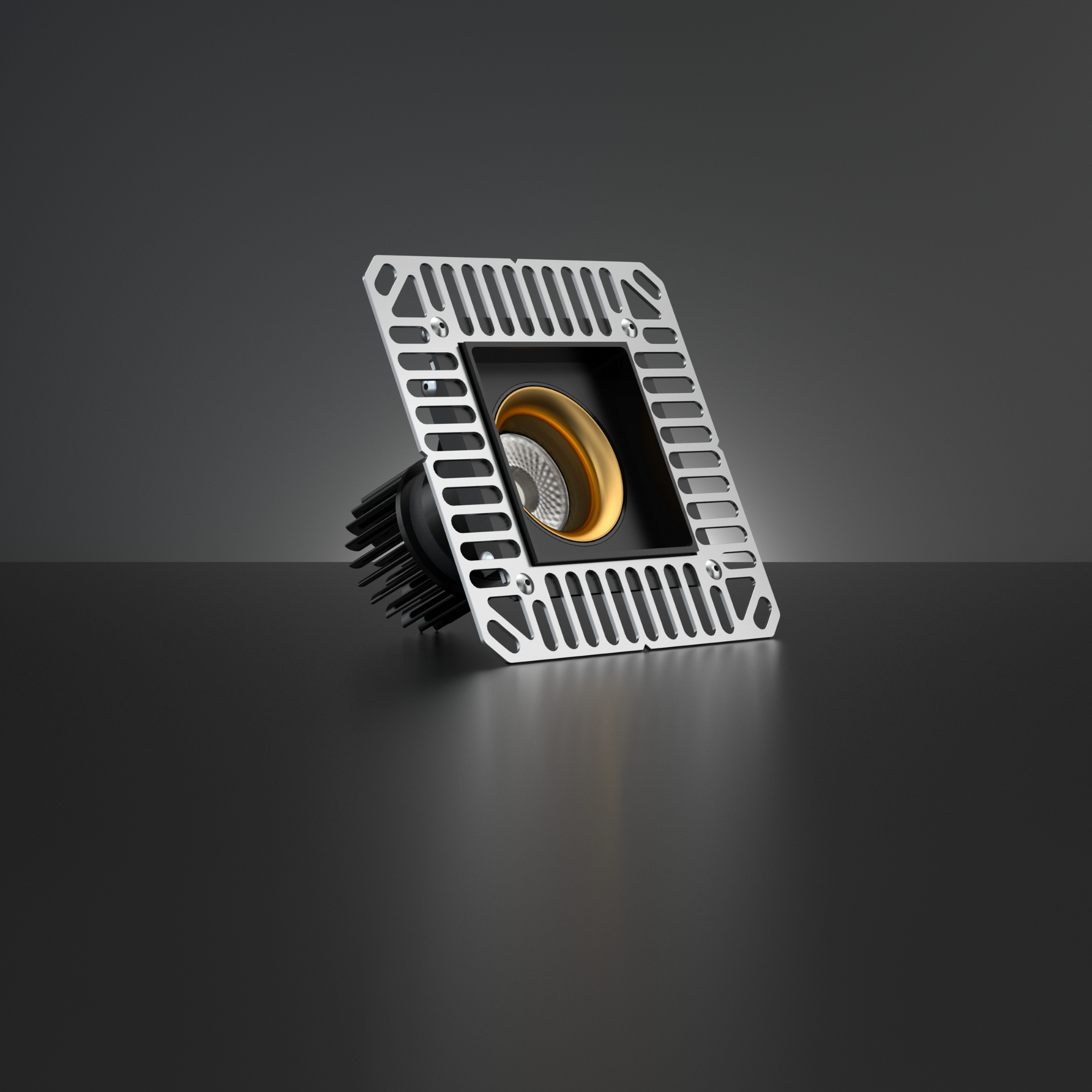

The Eyeconic Recessed Square Trimless Fixed Downlight is a plaster-in architectural fitting with a 60 x 60mm aperture and sculpted anti-glare baffle. Four interchangeable beam angles provide flexibility for general, accent and feature lighting, while IP65 and fire-rated performance support demanding specifications. Its seamless square form makes it ideal for refined residential and hospitality interiors.

Email For Price

Usually ships within 4 weeks

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

General Information

The Eyeconic Recessed Square Trimless Fixed Downlight by Phos is a discreet architectural fitting designed to combine a clean plaster-in finish with precise, low-glare illumination. Its 60 x 60mm square aperture features a sculpted anti-glare baffle, while the trimless frame allows the fitting to integrate seamlessly into the ceiling for a refined, minimal appearance. The fixed format makes it particularly well suited to general lighting, feature illumination and considered residential or hospitality schemes where a crisp architectural ceiling aesthetic is important.

Designed and manufactured in the UK, the Eyeconic Recessed Square Trimless Fixed is IP65 rated, 60-minute fire certified and acoustic rated. Standard 10°, 20°, 30° and 50° beam angles provide flexibility from tighter accent lighting through to broader illumination, with interchangeable optics and accessories that can be changed before or after installation. Available across the Phos finish range, it offers architects, interior designers and lighting designers a versatile downlight for premium residential, hospitality and design-led interiors.

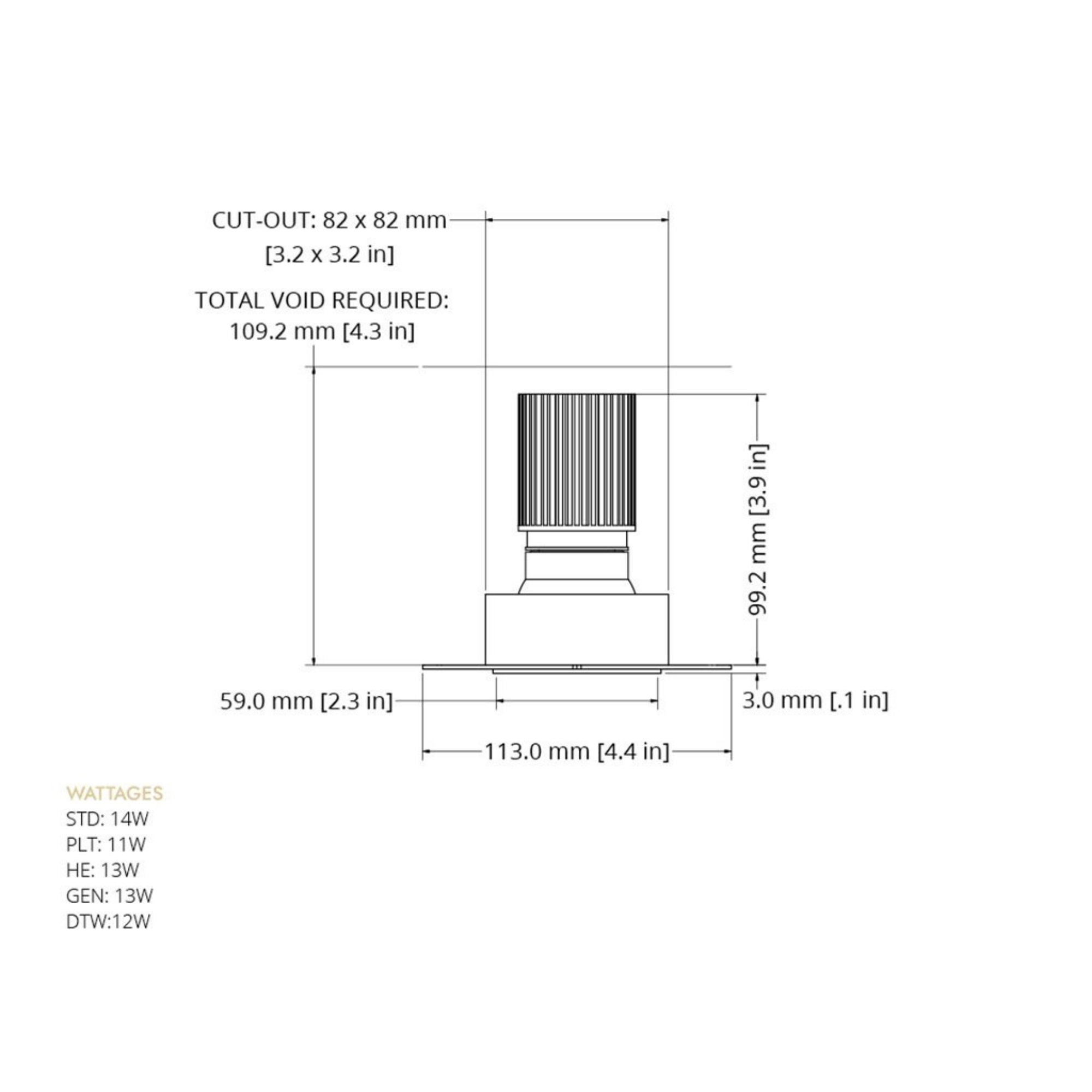

Overall Diameter: 59 x 59

Overall Depth: 99.2mm

Cut-out Diameter: 82 x 82

Recess Depth Required: 109.2mm

Material: Metal

Bezel Finish: Matt White / Matt Black / Other on request

Baffle Finish: Matt Black / Matt White / Other on request

Tilt Angle: -

Rotation Angle: -

Light Source: Integrated LED

Lumen Output (delivered, per fitting): 725lm / 650lm / 630lm / 669lm

Colour Temperature: 2700K / 3000K

CRI (Ra): 90.9

R9: ≥ 90

Beam Angle: 10° / 20° / 30° / 50°

Optic Accessories: Softening lens

Glare Shield Accessories: Honeycomb

Circuit Wattage: 14W

Supply Voltage: 220 – 240V

Driver Required: Yes

Driver Location & Access: Remote, above ceiling

Dimmable: Yes

Dimming Protocol: Phase / 0-10V / DALI

IP Rating: IP65

IP Rating Applies To: From front of fitting

Fire Rating: 60min

Download Spec Sheet
