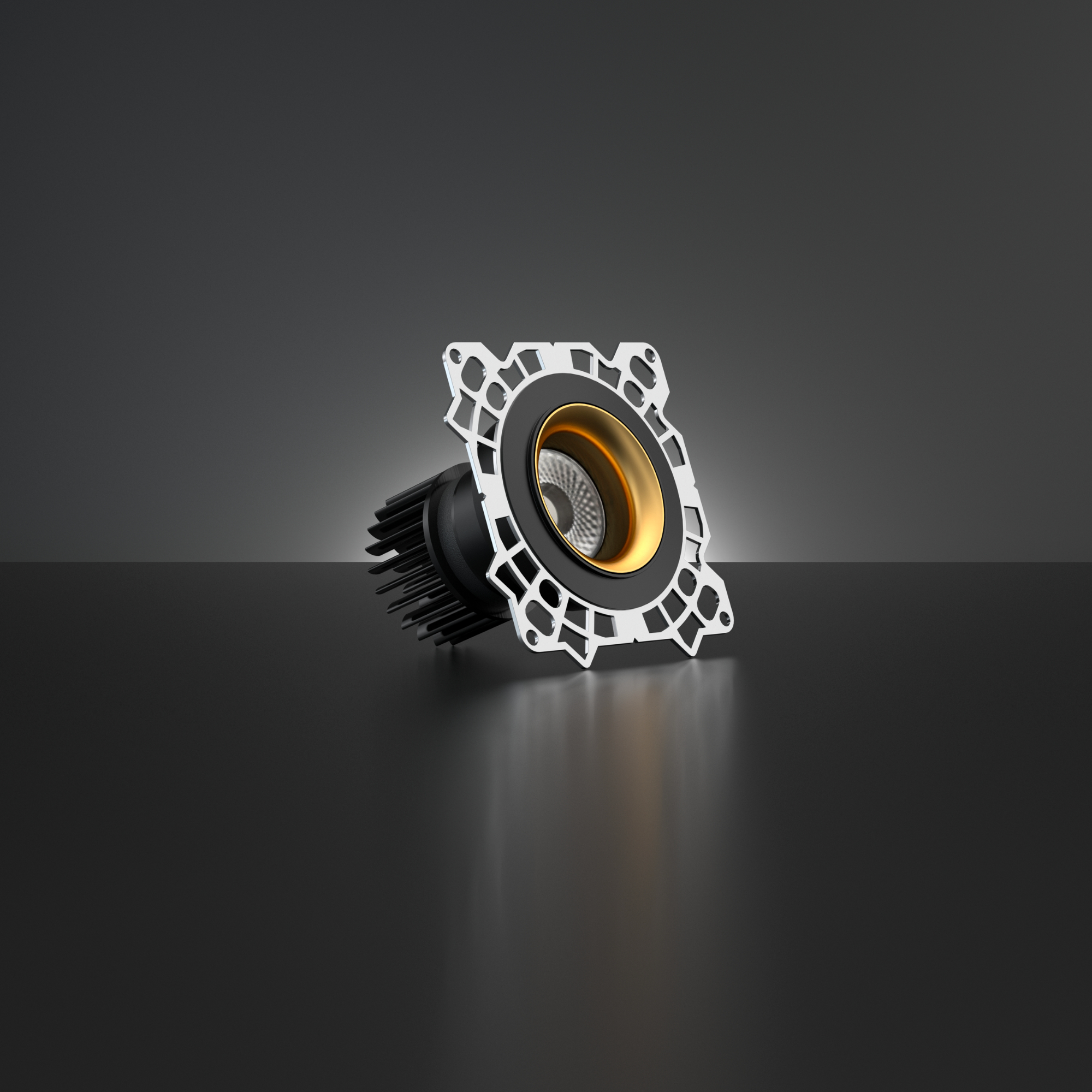

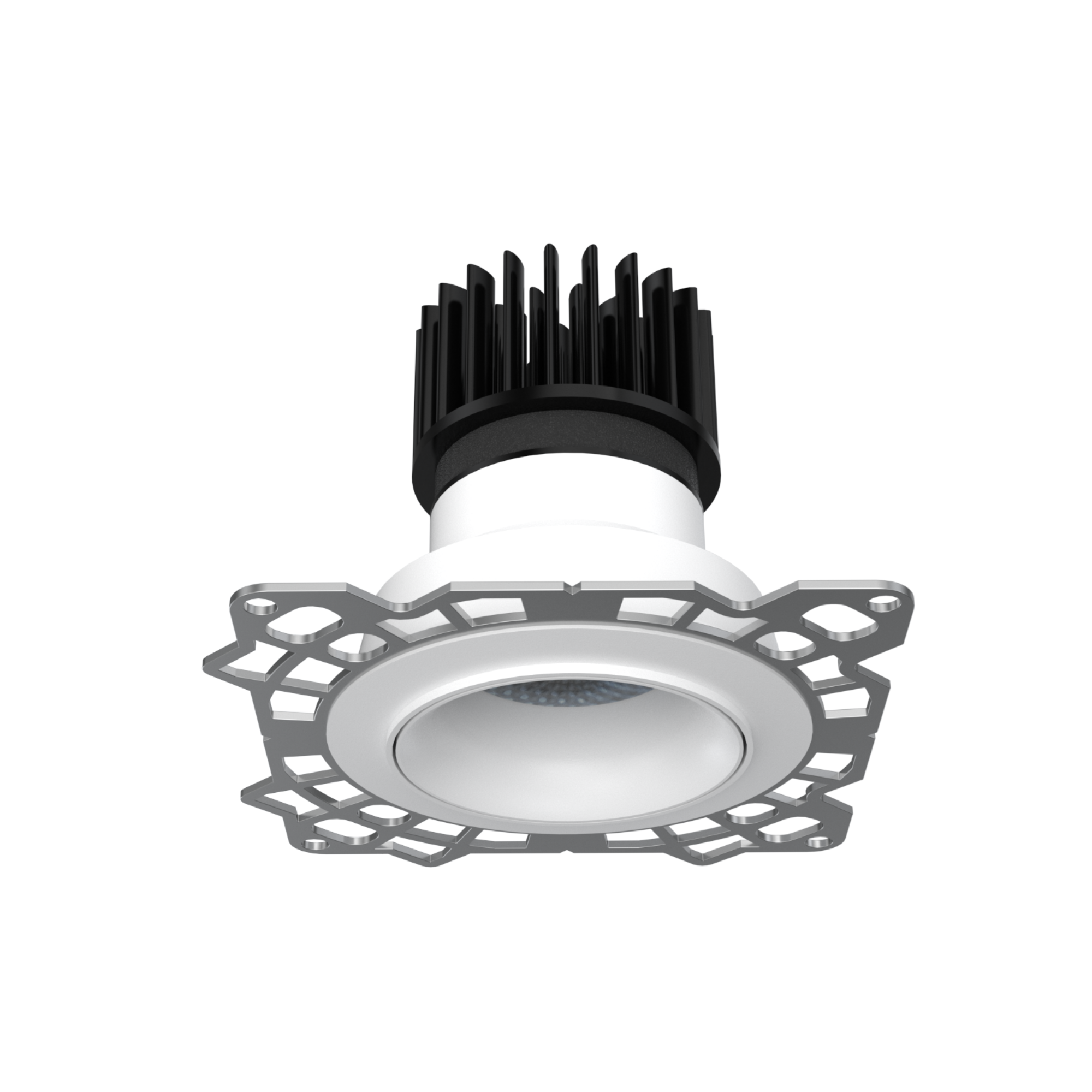

Eyeconic Trimless Fixed Downlight
Usually ships within 4 weeks
Built To Order Item, we are unable to accept returns unless they are found to be faulty.
Designed and manufactured in the UK, the Eyeconic Trimless Adjustable is IP65 rated, 60-minute fire certified and acoustic rated, with interchangeable optics and accessories that can be changed before or after installation. Standard beam angles of 10°, 20°, 30° and 50° provide flexibility from focused accent lighting through to broader illumination, while 2700K and 3000K colour temperatures, CRI 90+ performance and phase, 0-10V or DALI dimming options support professional specification. Available across the Phos finish range, it is a highly versatile choice for architects, interior designers and lighting designers seeking a seamless adjustable downlight.

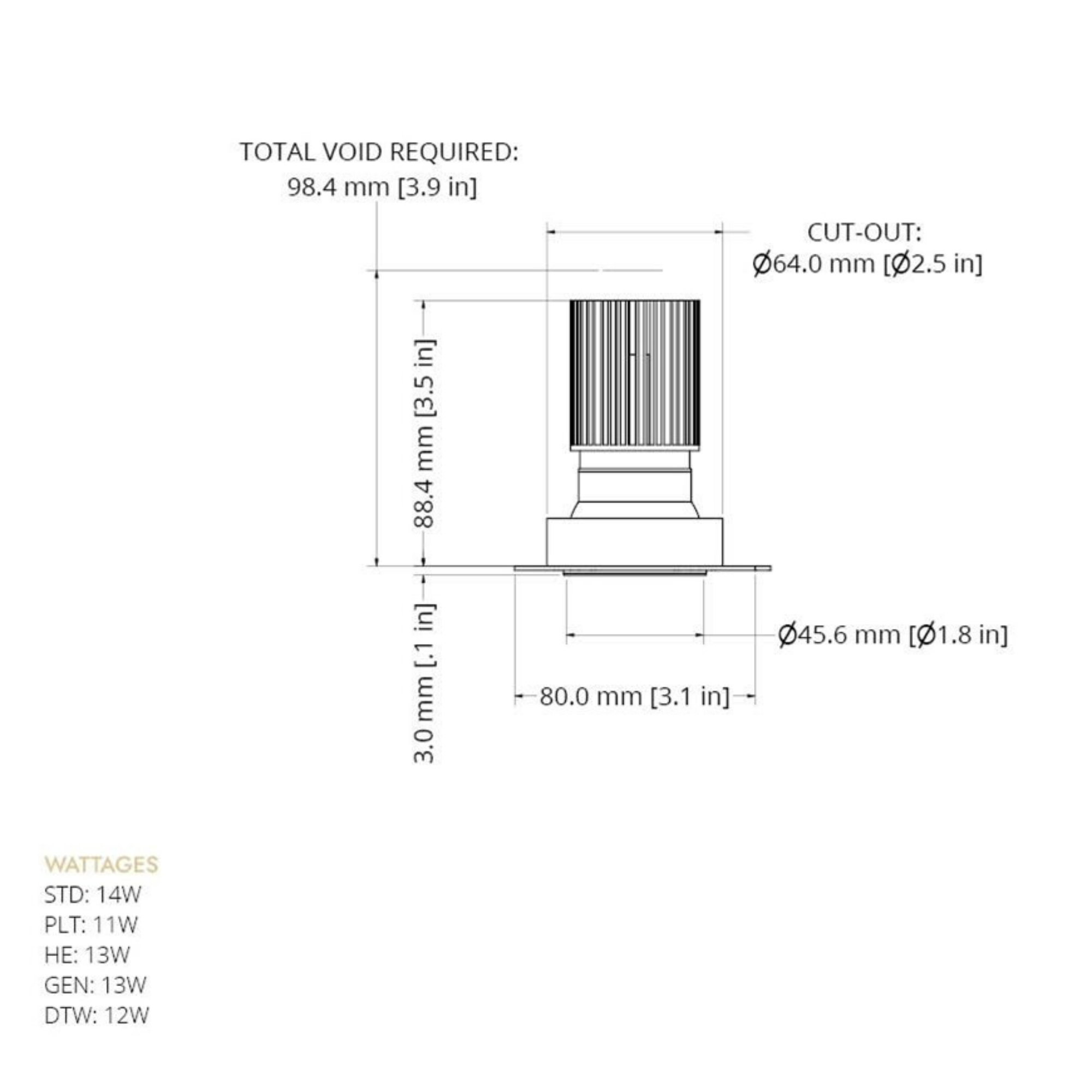

Overall Diameter: 46mm Ø
Overall Depth: 88.4mm
Cut-out Diameter: 80mm Ø
Recess Depth Required: 98.4mm
Material: Metal
Bezel Finish: Matt White / Matt Black / Other on request
Baffle Finish: Matt Black / Matt White / Other on request
Tilt Angle: -
Rotation Angle: -
Light Source: Integrated LED
Lumen Output (delivered, per fitting): 725lm / 650lm / 630lm / 669lm
Colour Temperature: 2700K / 3000K
CRI (Ra): 90.9
R9: ≥ 90
Beam Angle: 10° / 20° / 30° / 50°
Optic Accessories: Softening lens
Glare Shield Accessories: Honeycomb
Circuit Wattage: 14W
Supply Voltage: 220 – 240V
Driver Required: Yes
Driver Location & Access: Remote, above ceiling
Dimmable: Yes
Dimming Protocol: Phase / 0-10V / DALI
IP Rating: IP65
IP Rating Applies To: From front of fitting
Fire Rating: 60min
