Vendor: LightGraphix

LD10237 Wall Light

SKU: LD10237-

The LD10237 Wall Light is a powerful surface-mounted fitting designed for upward or downward wall washing. Available with multiple LED engines, beam angles and colour temperatures from 2200K to 5000K, it offers excellent flexibility for architectural applications. With IP67 protection, recessed low-glare optics and discreet fixing, it is ideal for premium interior and exterior projects.

Regular price £307.79 Sale price £307.79

Tax included and shipping calculated at checkout

You can't add more LD10237 Wall Light in Default Title to cart

Usually ships within 4 weeks

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

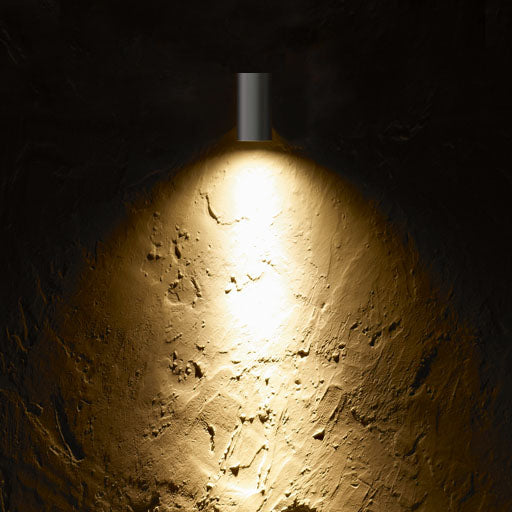

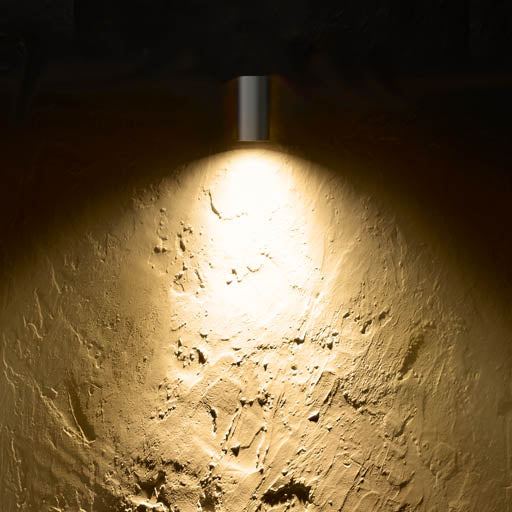

The LD10237 Wall Light is a powerful surface-mounted architectural fitting designed for precise wall washing across both interior and exterior applications. Depending on its orientation, the fitting can direct light either upwards or downwards, making it highly versatile for façades, feature walls, circulation spaces and yacht installations. The LED is recessed within the body and secured with anti-glare rings to reduce direct view of the source, while the machined aluminium construction creates a clean, minimal appearance with excellent durability.

Available with E3, E3-2CH, F1, Tunable White, RGBW and CLR LED engines, the LD10237 Wall Light supports colour temperatures from 2200K to 5000K and a variety of beam angles for tailored lighting effects. The body is machined from a solid billet of aluminium and fixed to a stainless steel first-fix bracket using discreet M6 security grub screws, creating a robust installation with minimal visual impact. Rated IP67, the LD10237 is well suited to demanding exterior environments while offering the flexibility required for premium residential, hospitality and marine lighting schemes.

Height: 115mm

Width: 71mm

Depth: 85mm

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 4.2W @ 350mA / 6W @ 500mA / 8.4W @700mA

Lumens: 379lm / 493lm / 653lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12°/ 19° / 34° / 54° / 15° x 49°

Driver Required: Yes - Remote mounted

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 14V

IP rating: IP67

Fire rated: -

The LD10237 Wall Light is a powerful surface-mounted architectural fitting designed for precise wall washing across both interior and exterior applications. Depending on its orientation, the fitting can direct light either upwards or downwards, making it highly versatile for façades, feature walls, circulation spaces and yacht installations. The LED is recessed within the body and secured with anti-glare rings to reduce direct view of the source, while the machined aluminium construction creates a clean, minimal appearance with excellent durability.

Available with E3, E3-2CH, F1, Tunable White, RGBW and CLR LED engines, the LD10237 Wall Light supports colour temperatures from 2200K to 5000K and a variety of beam angles for tailored lighting effects. The body is machined from a solid billet of aluminium and fixed to a stainless steel first-fix bracket using discreet M6 security grub screws, creating a robust installation with minimal visual impact. Rated IP67, the LD10237 is well suited to demanding exterior environments while offering the flexibility required for premium residential, hospitality and marine lighting schemes.

Height: 115mm

Width: 71mm

Depth: 85mm

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 4.2W @ 350mA / 6W @ 500mA / 8.4W @700mA

Lumens: 379lm / 493lm / 653lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12°/ 19° / 34° / 54° / 15° x 49°

Driver Required: Yes - Remote mounted

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 14V

IP rating: IP67

Fire rated: -
