LD10238 Spotlight

Name: LD10238 Spotlight
SKU: LD10238-
Price: 213.59 GBP

The LD10238 Spotlight is a compact, high-output architectural spotlight designed for low-glare interior and exterior illumination. Featuring up to 891 lumens, 90° adjustment and multiple beam, LED and mounting options, it offers exceptional flexibility across demanding projects. With IP67 protection, anti-glare accessories and extensive control choices, it is ideal for premium architectural and landscape lighting.

£213.59

Tax included and shipping calculated at checkout

You can't add more LD10238 Spotlight in Default Title to cart

Usually ships within 4 weeks

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

General Information

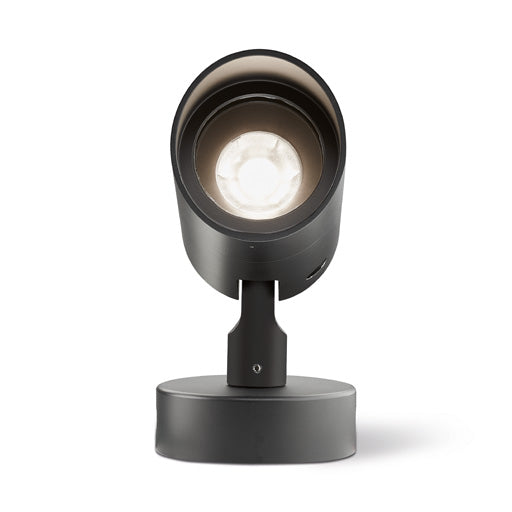

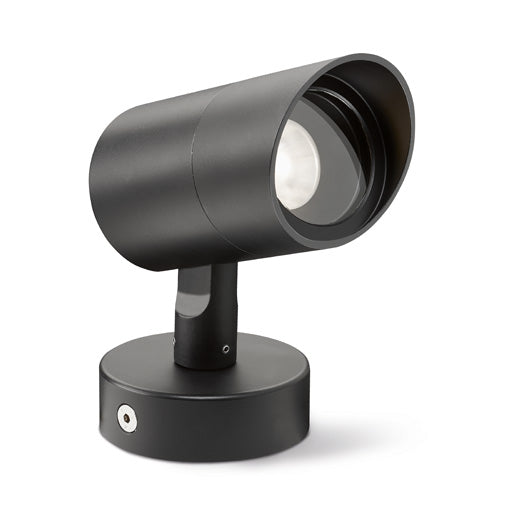

The LD10238 Spotlight is a compact, high-powered surface-mounted fitting designed for precise architectural lighting across interior and exterior applications. Its LED and lens assembly are recessed by 47mm within the body to reduce glare, while the supplied anti-glare cowl and optional honeycomb louvre provide further visual comfort. The fitting offers up to 90° head tilt adjustment and a wide range of beam options, from a narrow 12° spot for columns and architectural features to a 15° x 49° spreader lens for effective wall washing.

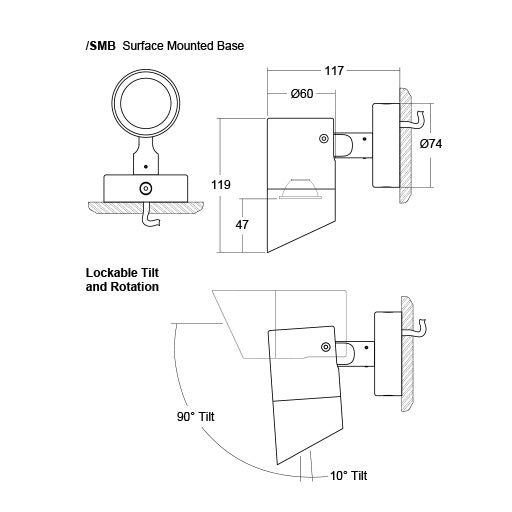

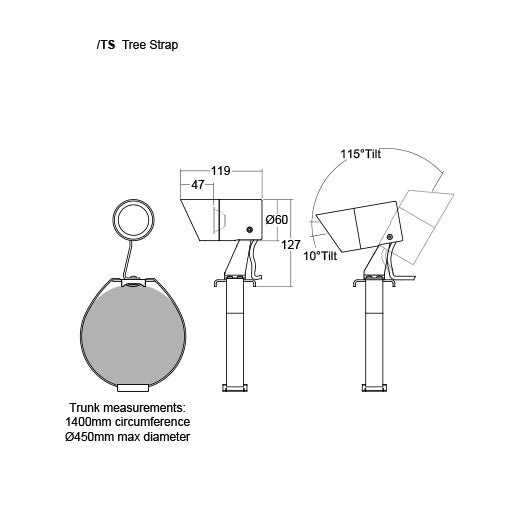

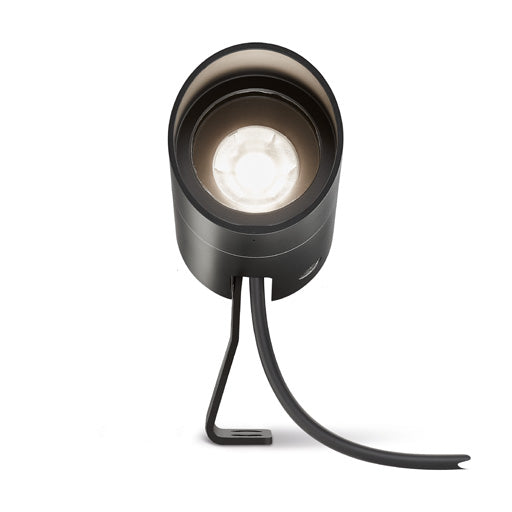

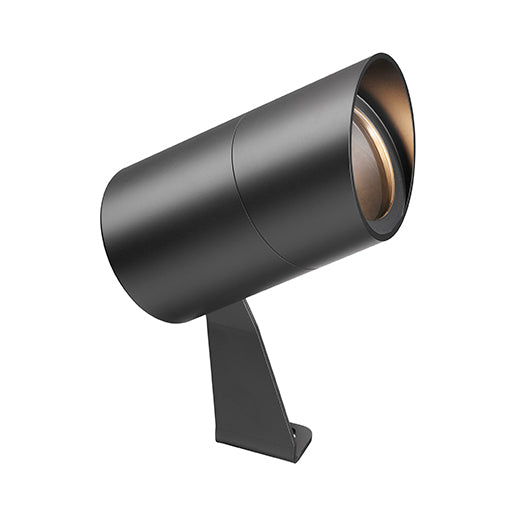

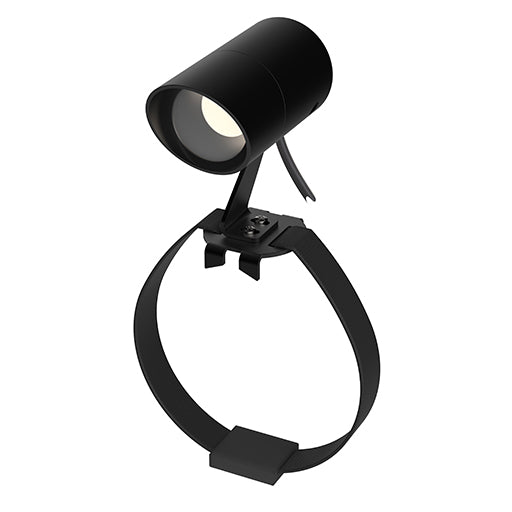

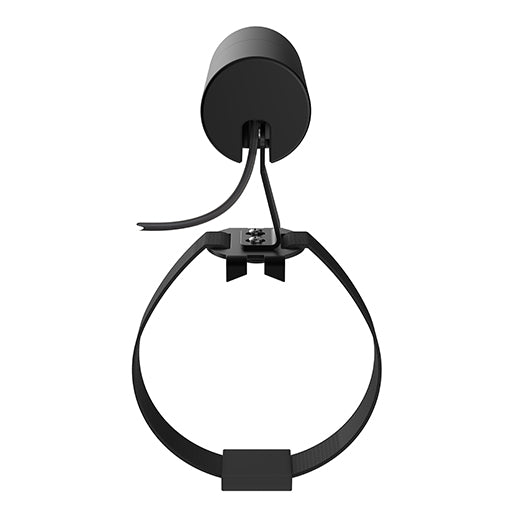

A broad choice of LED engines includes E3, E3-2CH, N1, F1, Tunable White, RGBW and CLR, with colour temperatures from 2200K to 5000K, 90+ CRI options and outputs up to 891 lumens. Rated IP67, the LD10238 Spotlight is manufactured from machined anodised aluminium and is available in a wide selection of standard and bespoke RAL finishes. Multiple mounting options include surface bases, adjustable arms, ground spikes and tree straps, while switched, 0-10V, Casambi, DMX, DALI and mains dimmable drivers provide extensive control flexibility for premium residential, hospitality, landscape and marine projects.

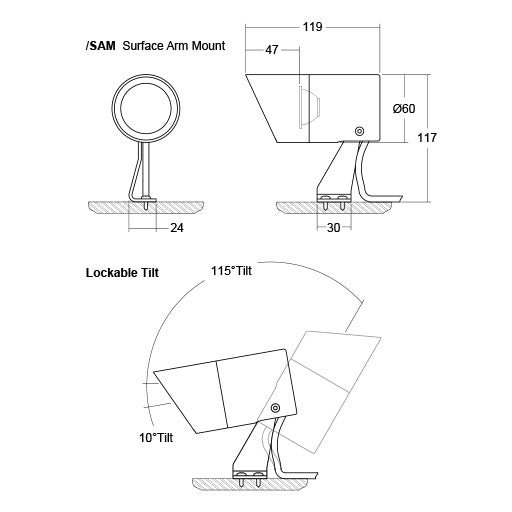

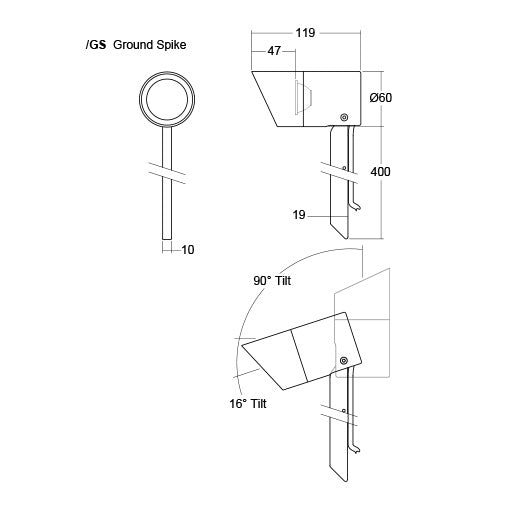

Height: 117mm

Width: 60mm Ø

Depth: 119mm

Tilt Angle (°): 105°

Rotation Angle (°): 300°

Light Source: LED

Wattage: 4.4W @ 350mA / 6.4W @ 500mA / 9.2W @ 700mA

Lumens: 379lm / 493lm / 653lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 18° / 31° / 55°

Driver Required: Yes - Remote mounted
