Vendor: LightGraphix

LD141DR Uplight

SKU: LD141DRX

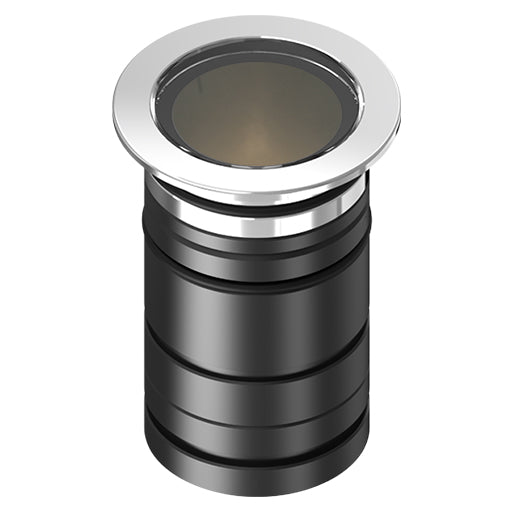

The LD141DR Uplight is a compact deep-recessed exterior fitting designed for super low-glare architectural illumination. Featuring a 53mm recessed lens assembly, IP67 protection and a choice of high-output or super warm LED engines, it combines strong performance with excellent visual comfort. Ideal for wall washing and recessed uplighting in premium exterior schemes.

Regular price £174.96 Sale price £174.96

Tax included and shipping calculated at checkout

You can't add more LD141DR Uplight in Default Title to cart

Usually ships within 4 weeks

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

The LD141DR Uplight is a compact recessed exterior LED fitting designed for applications where super low glare is essential. Its lens assembly is recessed by 53mm into the body, significantly reducing direct view of the light source while maintaining a strong architectural lighting effect. Despite its compact dimensions, the LD141DR delivers powerful performance, making it ideal for recessed uplighting, wall washing and other premium exterior applications where visual comfort is a priority.

Two LED engine options are available to suit different lighting requirements. The E3 NICHIA LED engine delivers up to 440 lumens with a precise 12° narrow beam, while the F1 CREE LED engine offers a super warm 2200K colour temperature for softer, more atmospheric schemes. Constructed with a 316 stainless steel bezel, hard anodised aluminium body and 6mm toughened glass with black ceramic screen printing, the fitting is rated IP67 for reliable outdoor use. A range of fixing options is available, alongside an optional half-moon glare shield for further visual control.

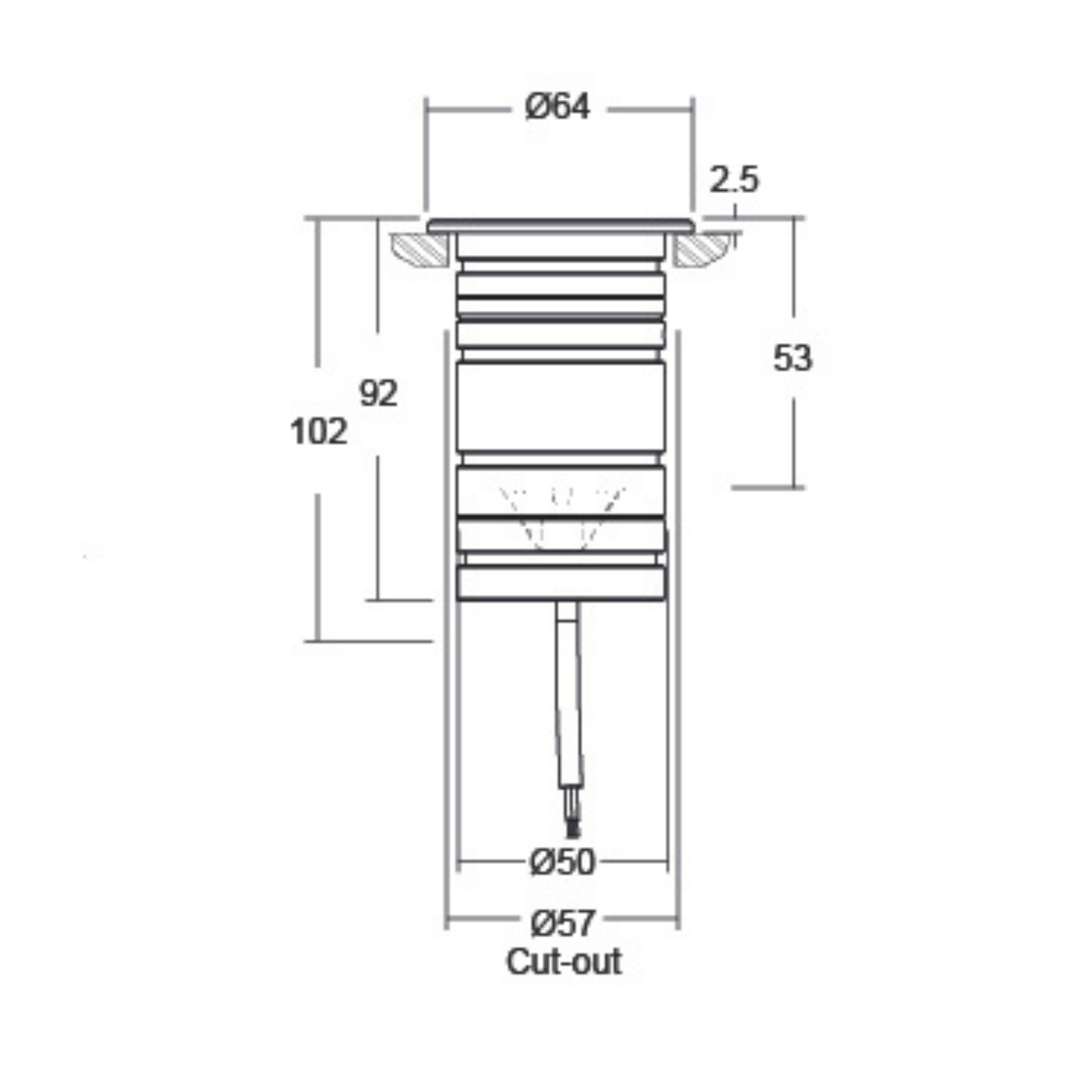

Overall Diameter: 64mm Ø

Depth: 102mm

Cut Out: 57mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 4.4W @ 350mA / 5.8W @ 500mA / 8.3W @ 700mA

Lumens: 574lm / 740lm / 949lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 31° / 48°

Driver Required: Yes - Remote mounted 350mA

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 2.6V

IP rating: IP68

Fire rated: -

The LD141DR Uplight is a compact recessed exterior LED fitting designed for applications where super low glare is essential. Its lens assembly is recessed by 53mm into the body, significantly reducing direct view of the light source while maintaining a strong architectural lighting effect. Despite its compact dimensions, the LD141DR delivers powerful performance, making it ideal for recessed uplighting, wall washing and other premium exterior applications where visual comfort is a priority.

Two LED engine options are available to suit different lighting requirements. The E3 NICHIA LED engine delivers up to 440 lumens with a precise 12° narrow beam, while the F1 CREE LED engine offers a super warm 2200K colour temperature for softer, more atmospheric schemes. Constructed with a 316 stainless steel bezel, hard anodised aluminium body and 6mm toughened glass with black ceramic screen printing, the fitting is rated IP67 for reliable outdoor use. A range of fixing options is available, alongside an optional half-moon glare shield for further visual control.

Overall Diameter: 64mm Ø

Depth: 102mm

Cut Out: 57mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 4.4W @ 350mA / 5.8W @ 500mA / 8.3W @ 700mA

Lumens: 574lm / 740lm / 949lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 31° / 48°

Driver Required: Yes - Remote mounted 350mA

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 2.6V

IP rating: IP68

Fire rated: -
