Vendor: LightGraphix

LD151 Uplight

SKU: LD151-

The LD151 Uplight is a compact, high-performance recessed fitting designed for low-glare wall and column illumination. Available with multiple LED engines, beam angles and colour temperatures from 2200K to 5000K, it offers exceptional flexibility for architectural projects. With IP67 and IK08 protection, premium bezel finishes and a wide choice of control options, it is suited to demanding interior and exterior applications.

Regular price £234.97 Sale price £234.97

Tax included and shipping calculated at checkout

You can't add more LD151 Uplight in Default Title to cart

Usually ships within 4 weeks

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

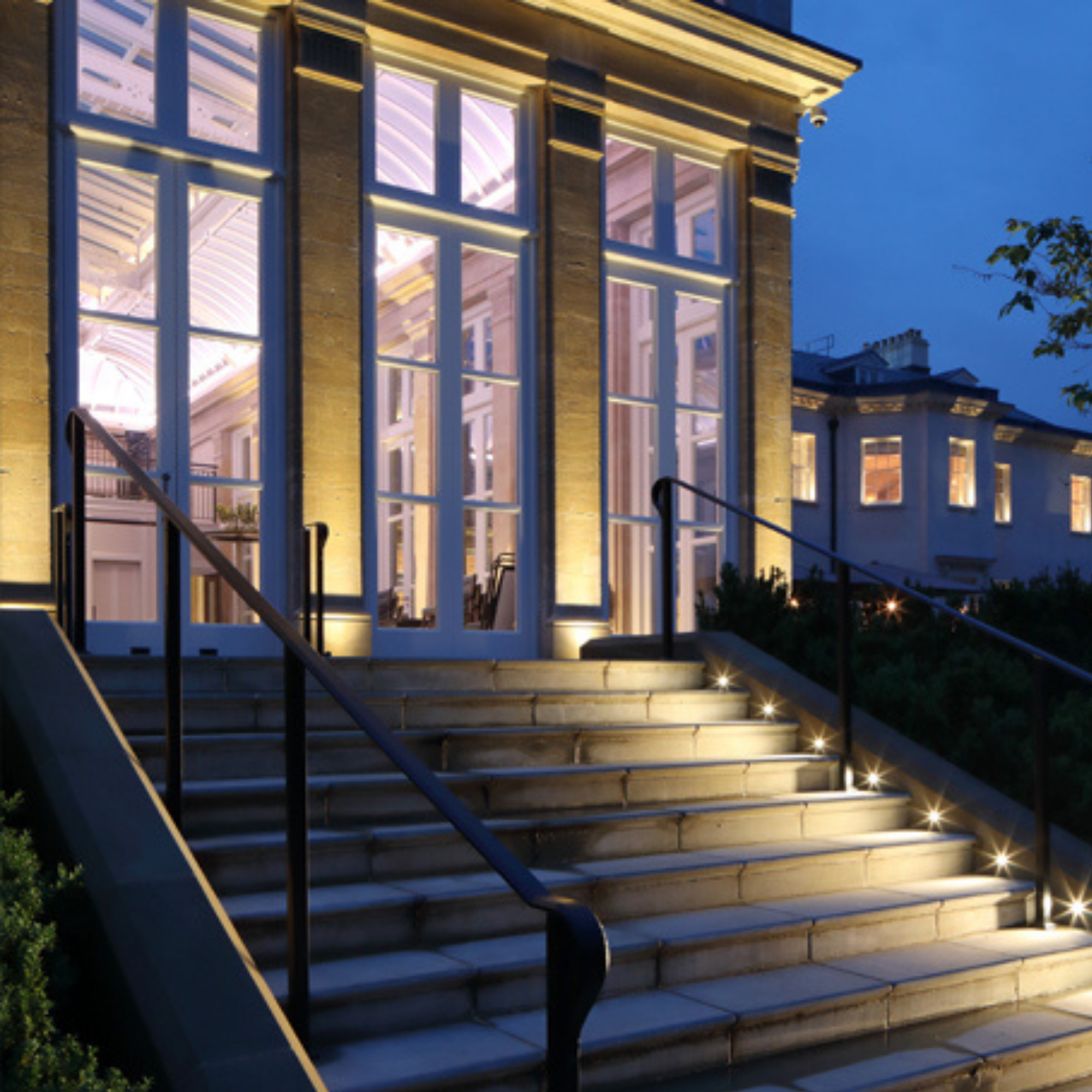

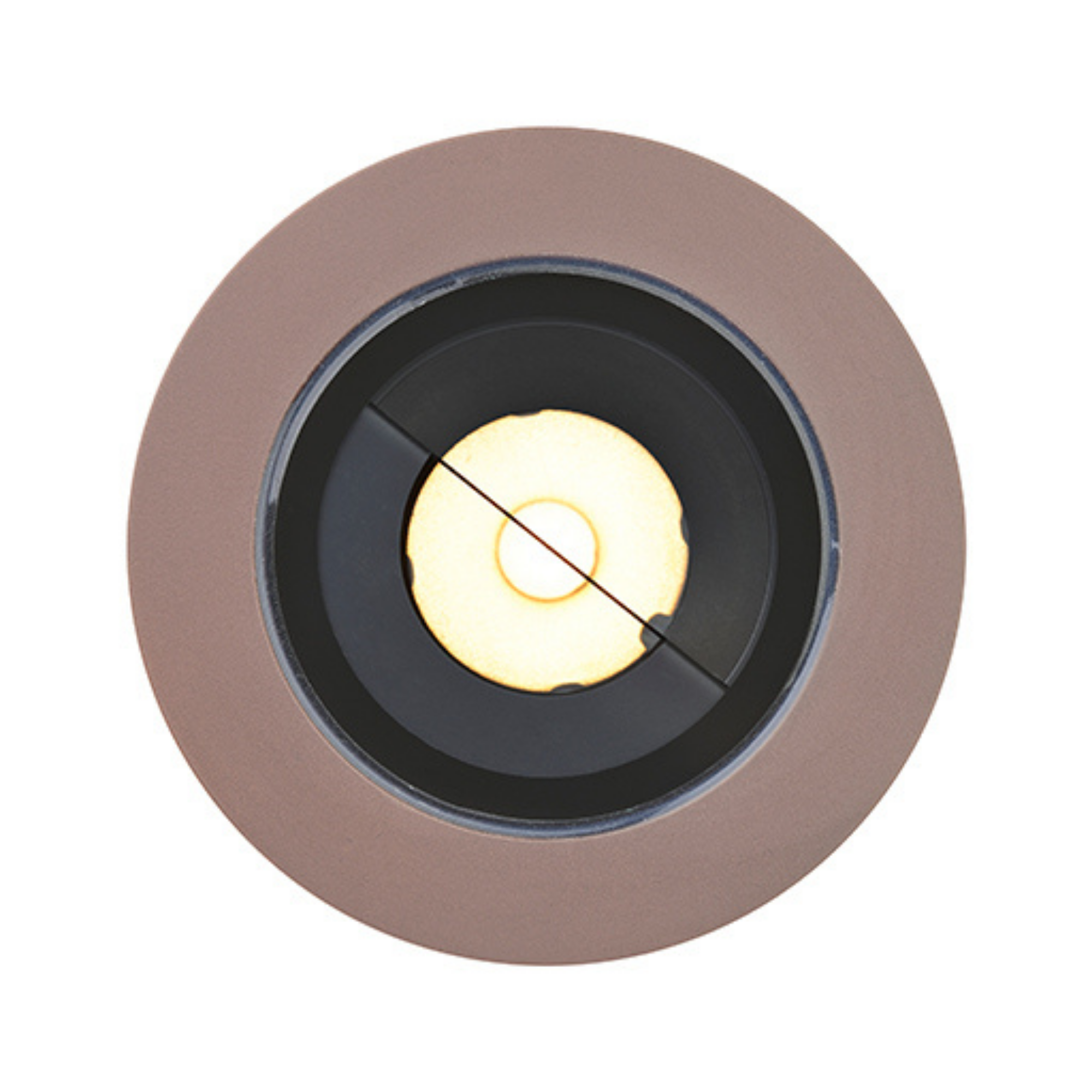

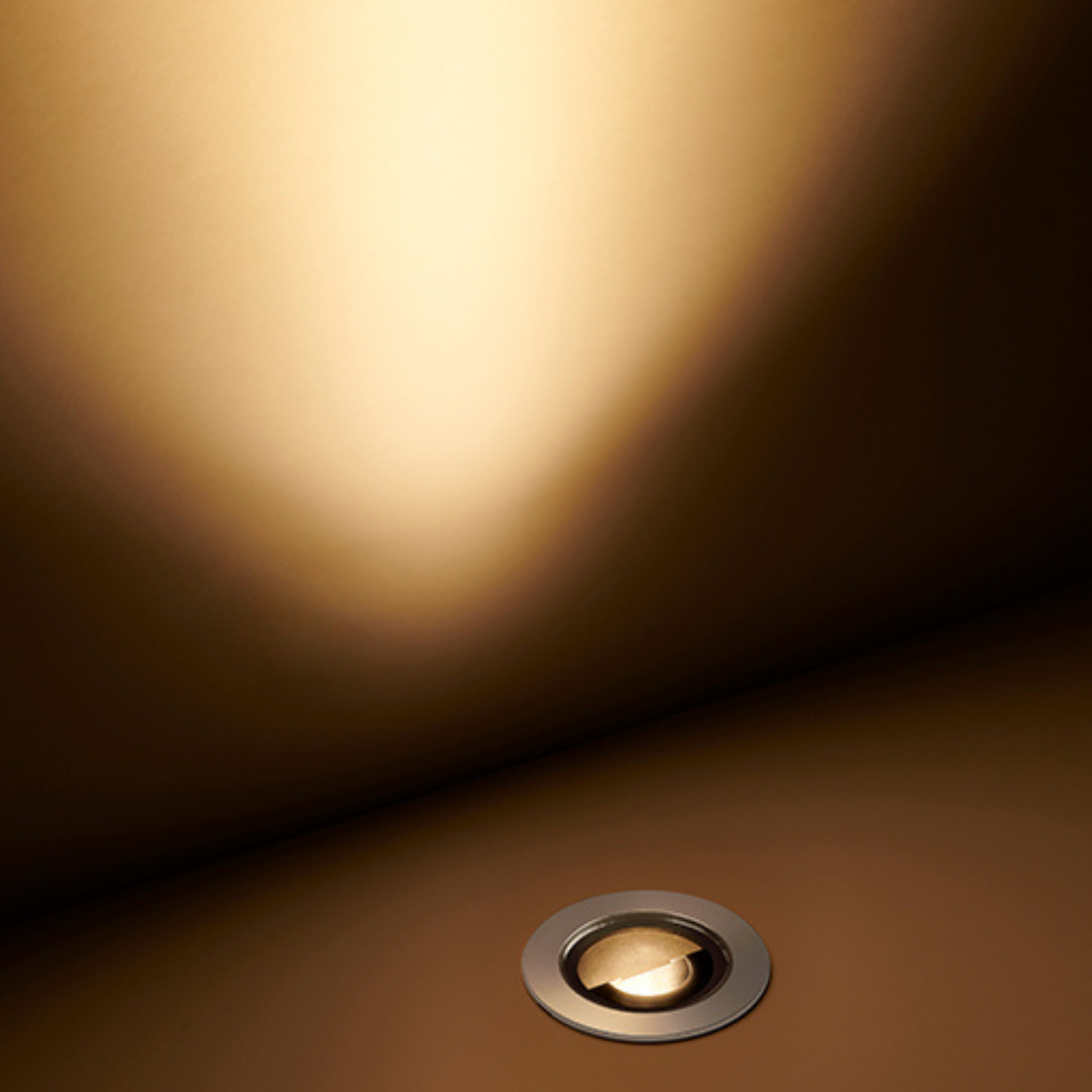

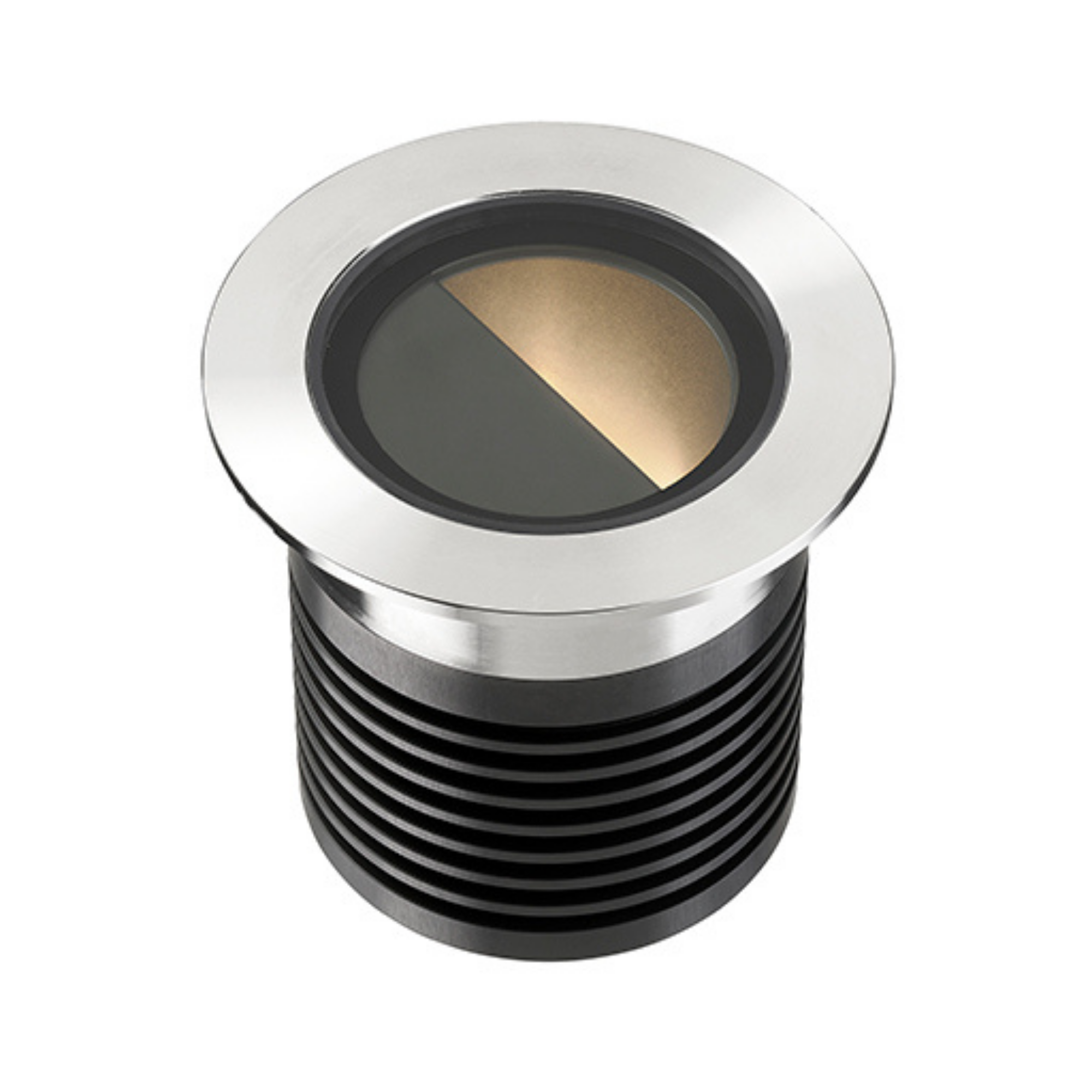

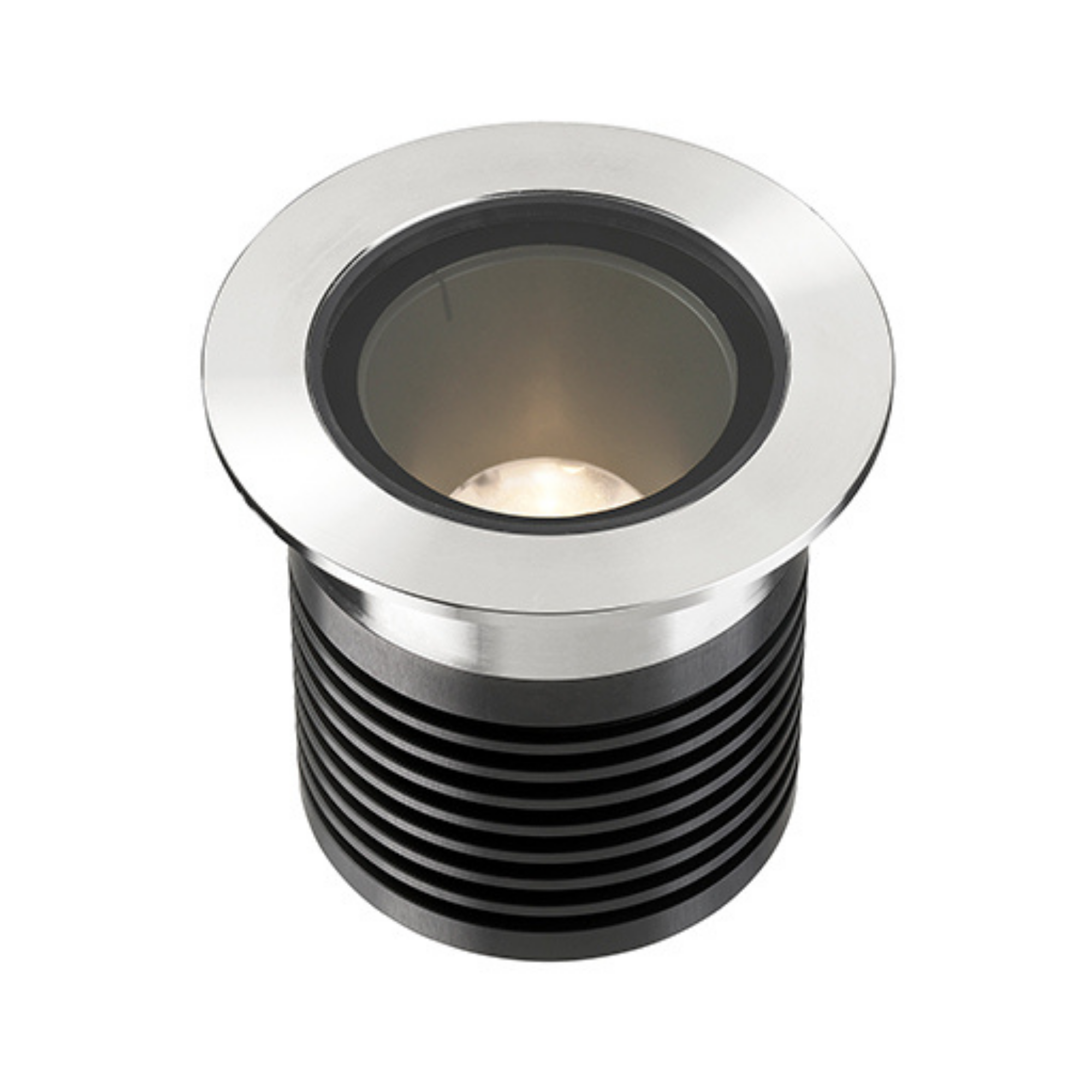

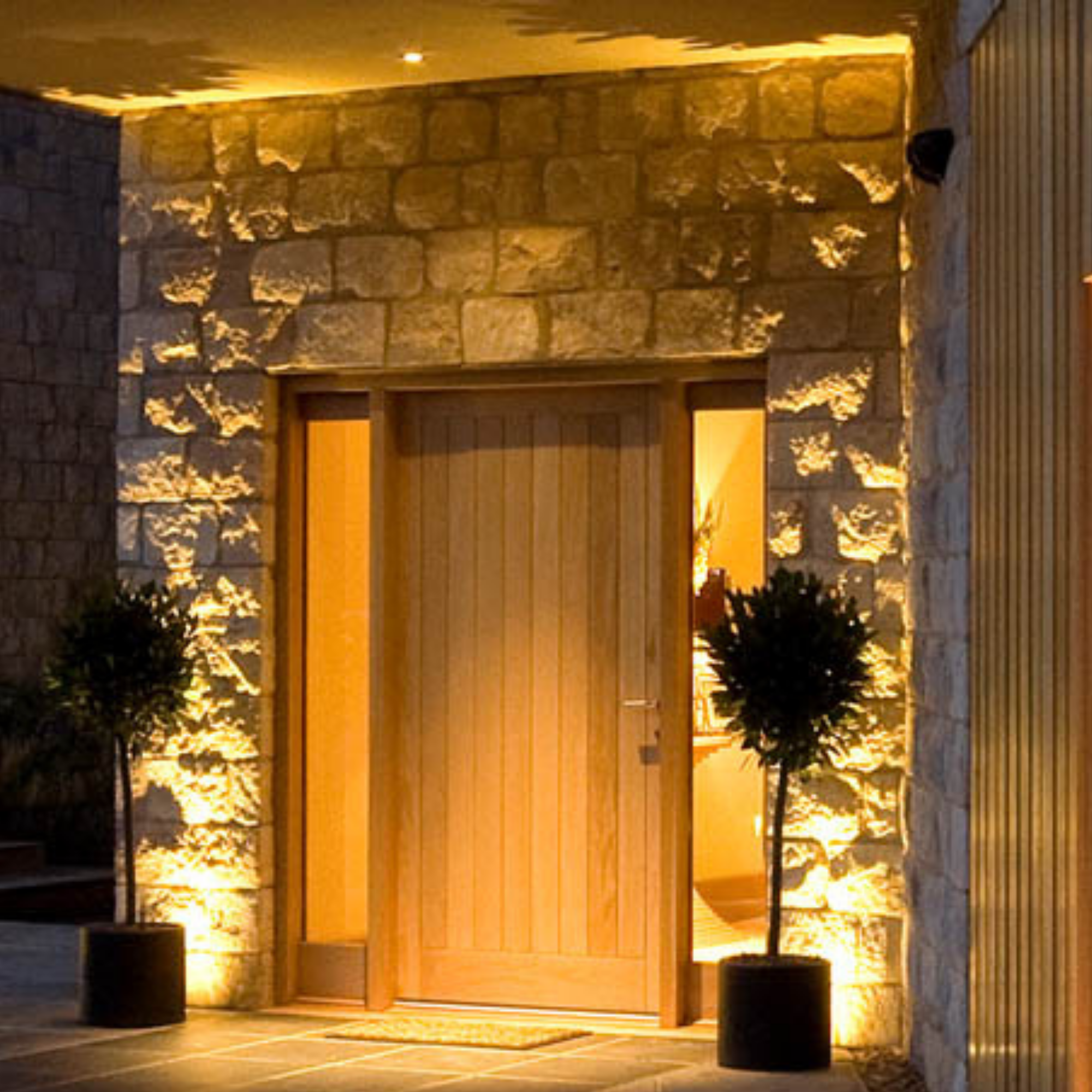

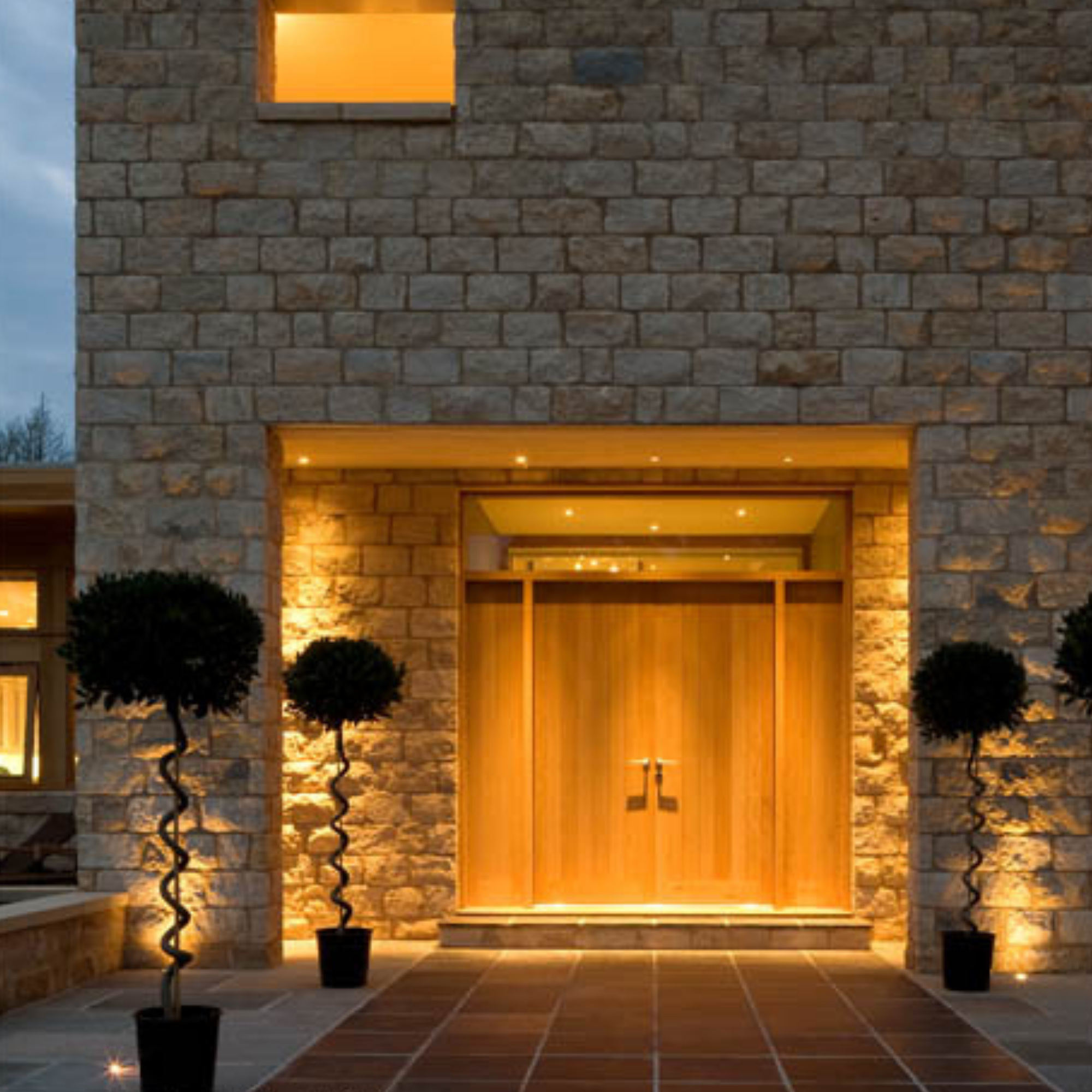

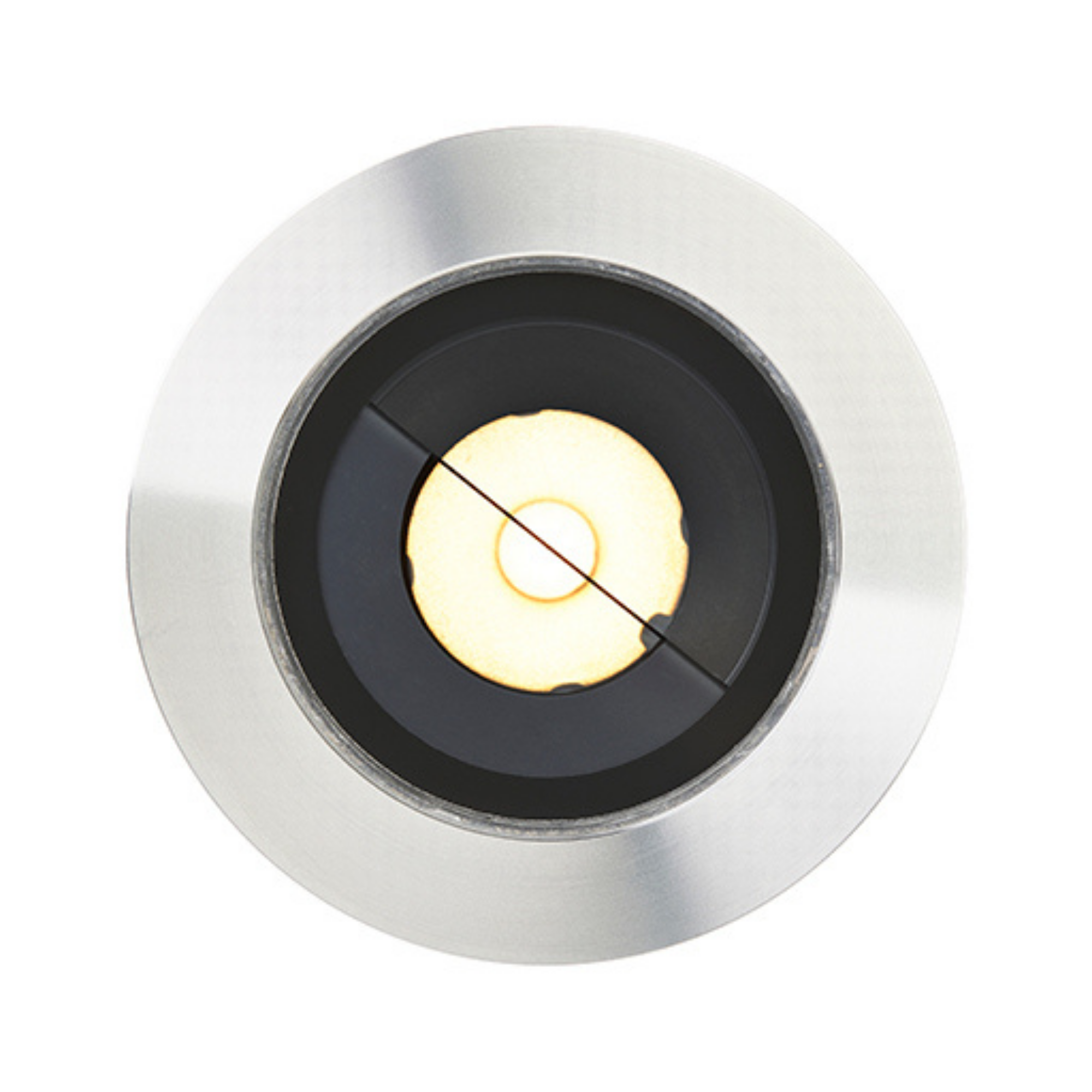

The LD151 Uplight is a powerful recessed architectural fitting designed to deliver low-glare illumination to interior and exterior walls, columns and feature surfaces. Despite its compact size and shallow depth, it offers strong performance with a wide choice of beam angles, colour temperatures and control options. The LED and lens are recessed within a matt black anodised body to reduce glare, while the minimal bezel with black-trimmed toughened glass and no visible fixings creates a clean, refined appearance for premium residential, hospitality, landscape and yacht applications.

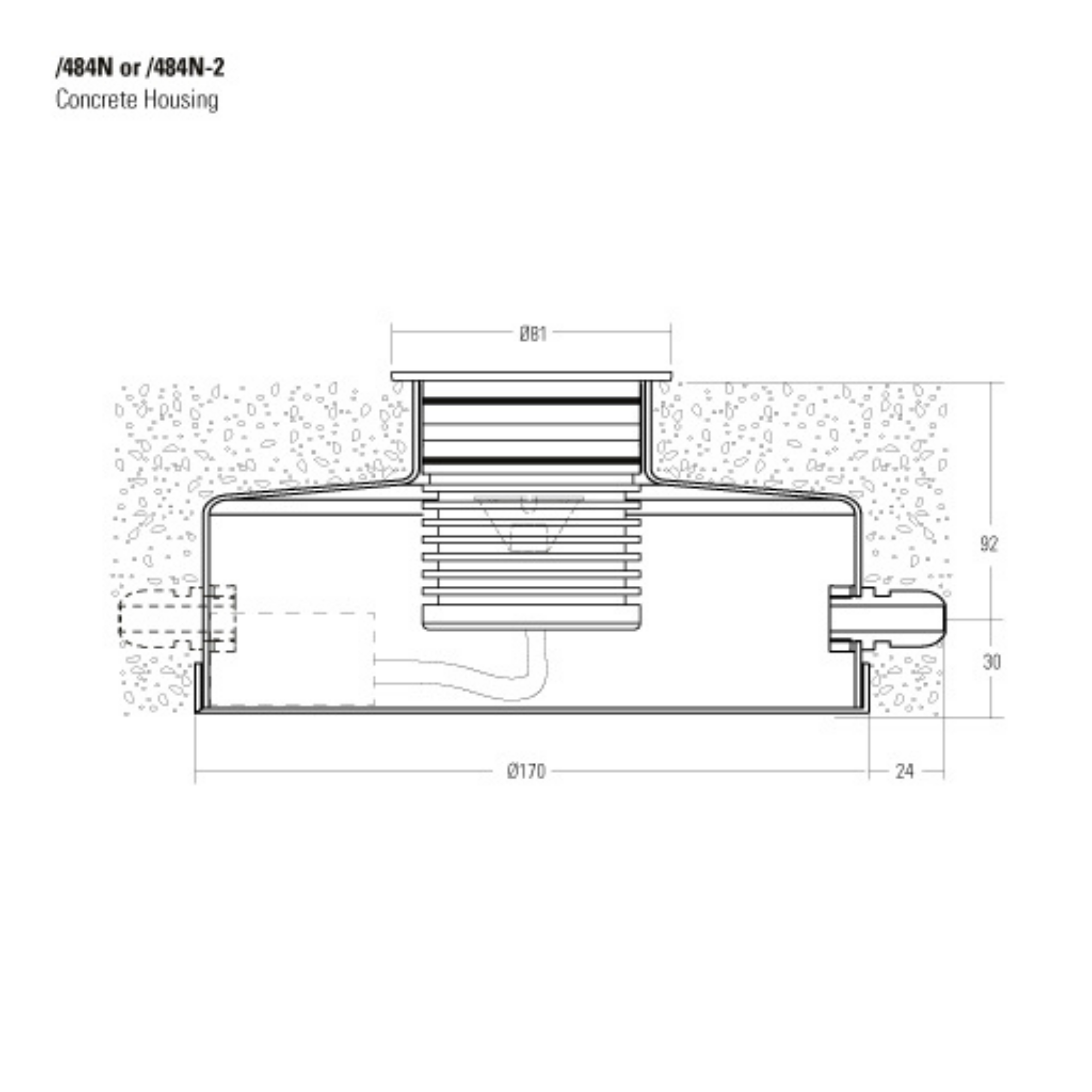

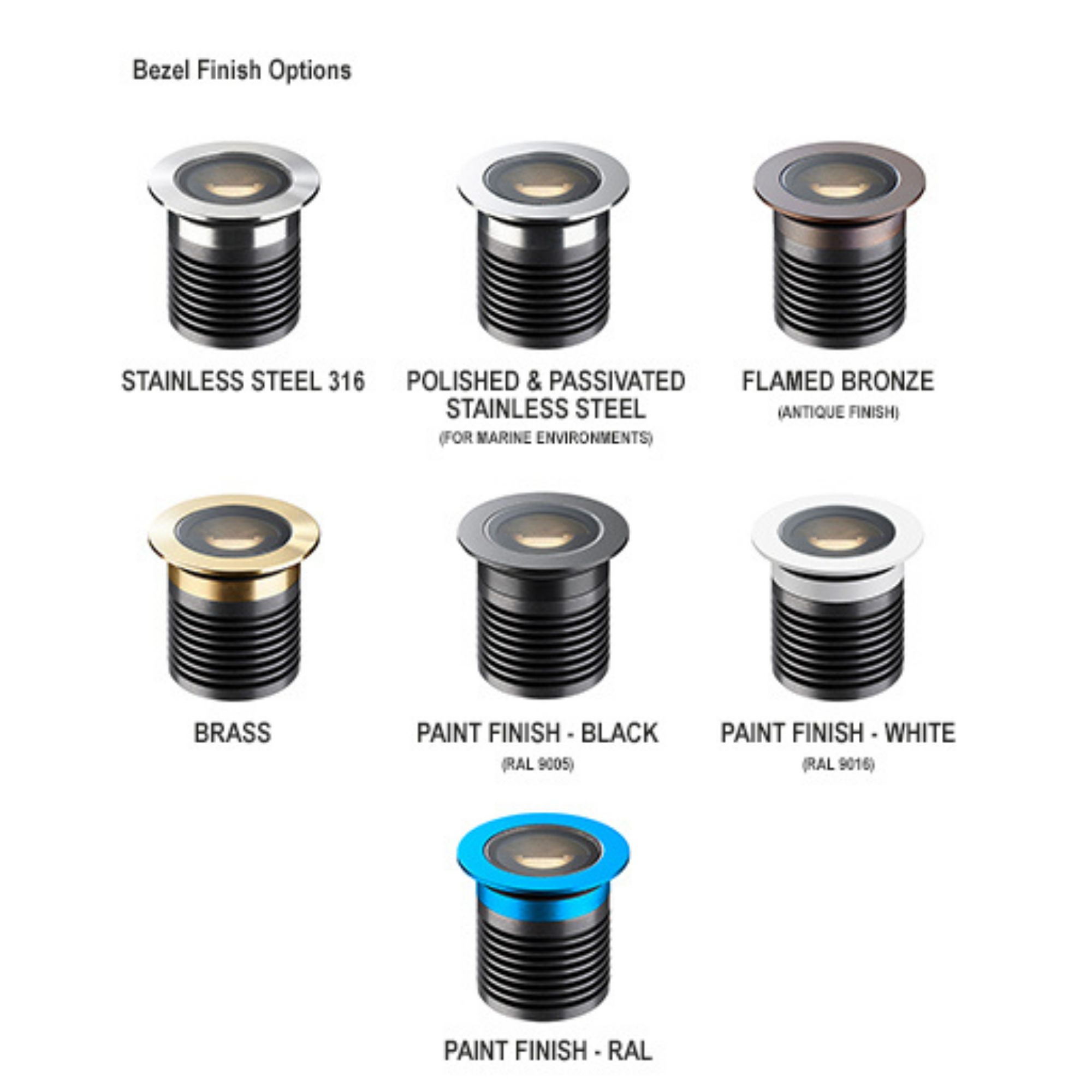

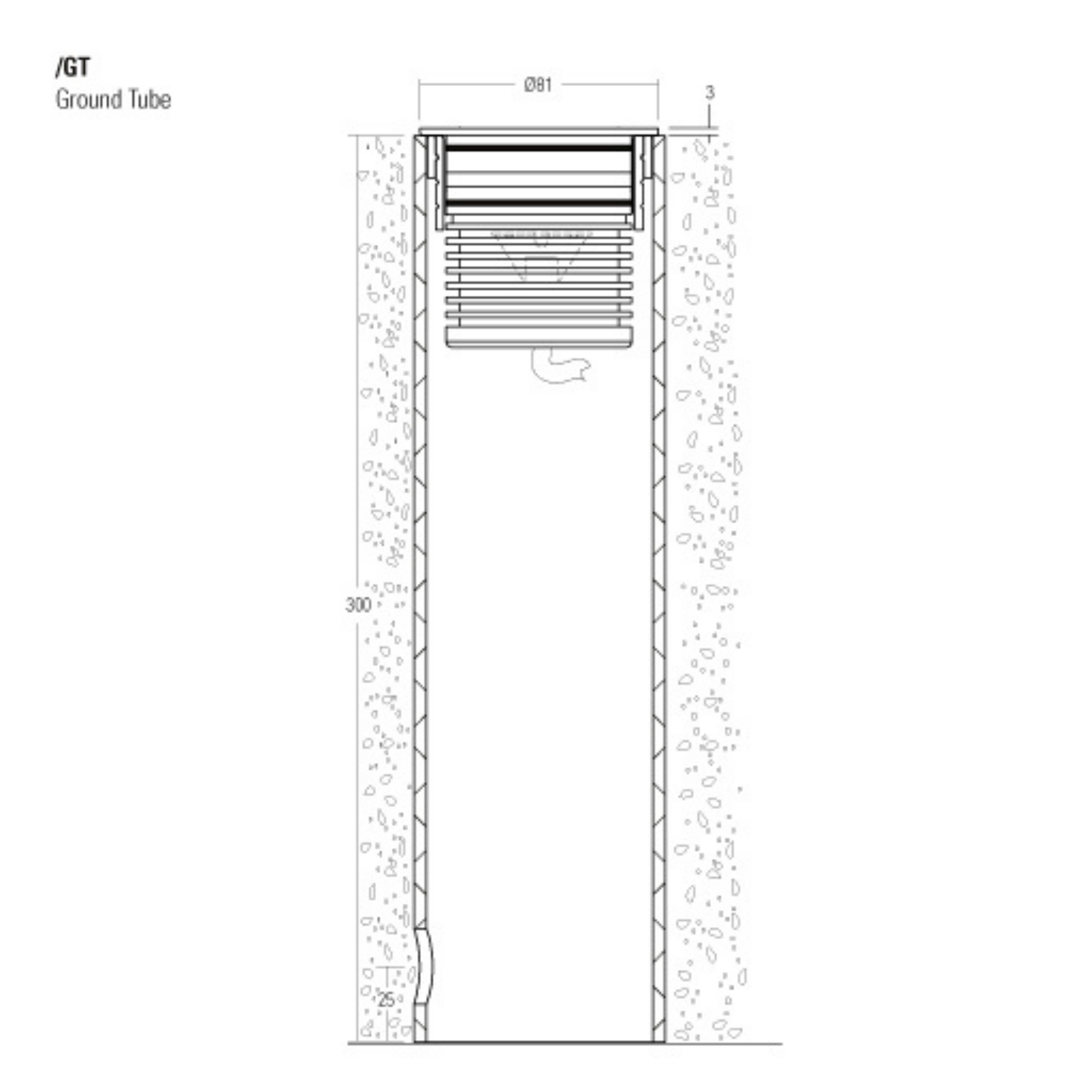

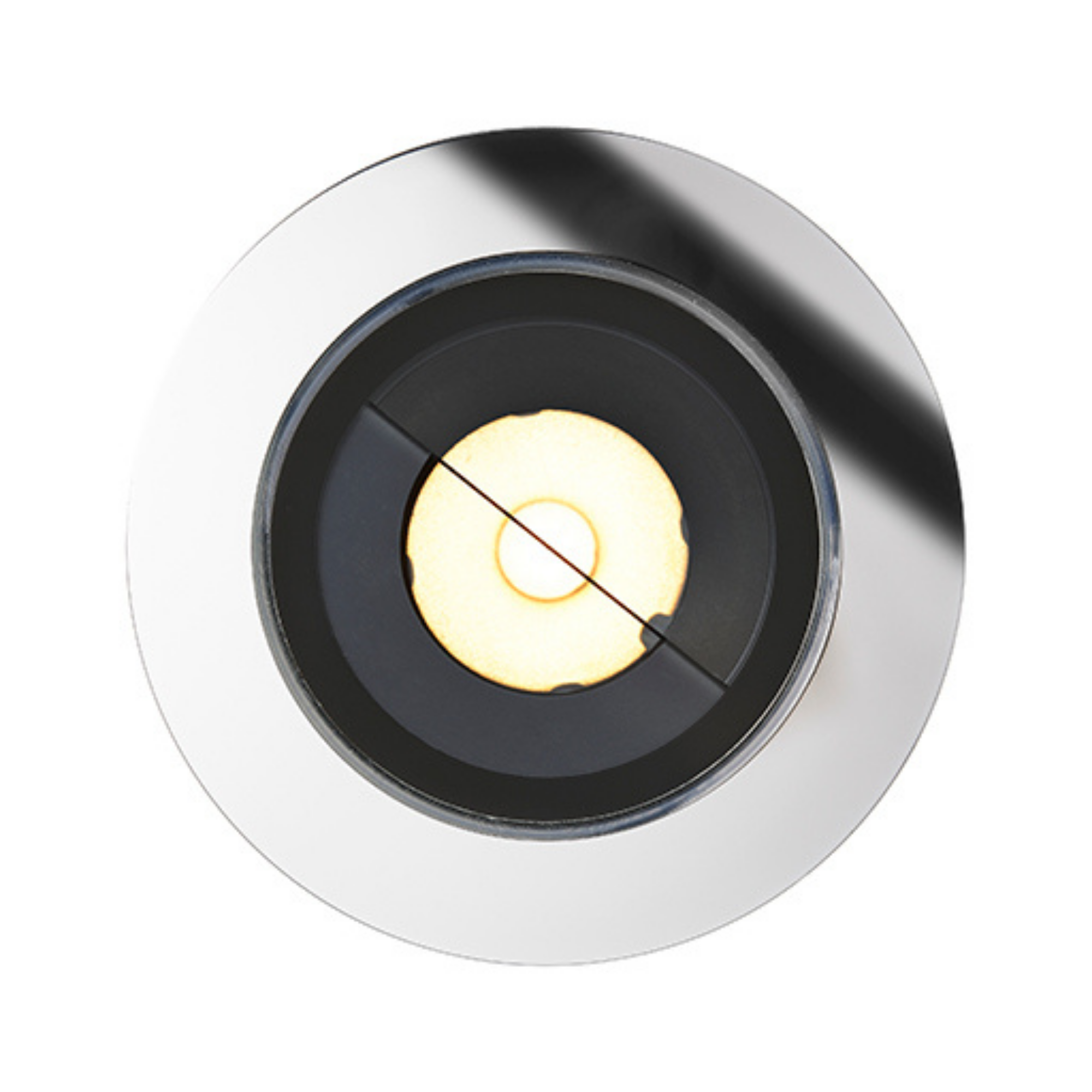

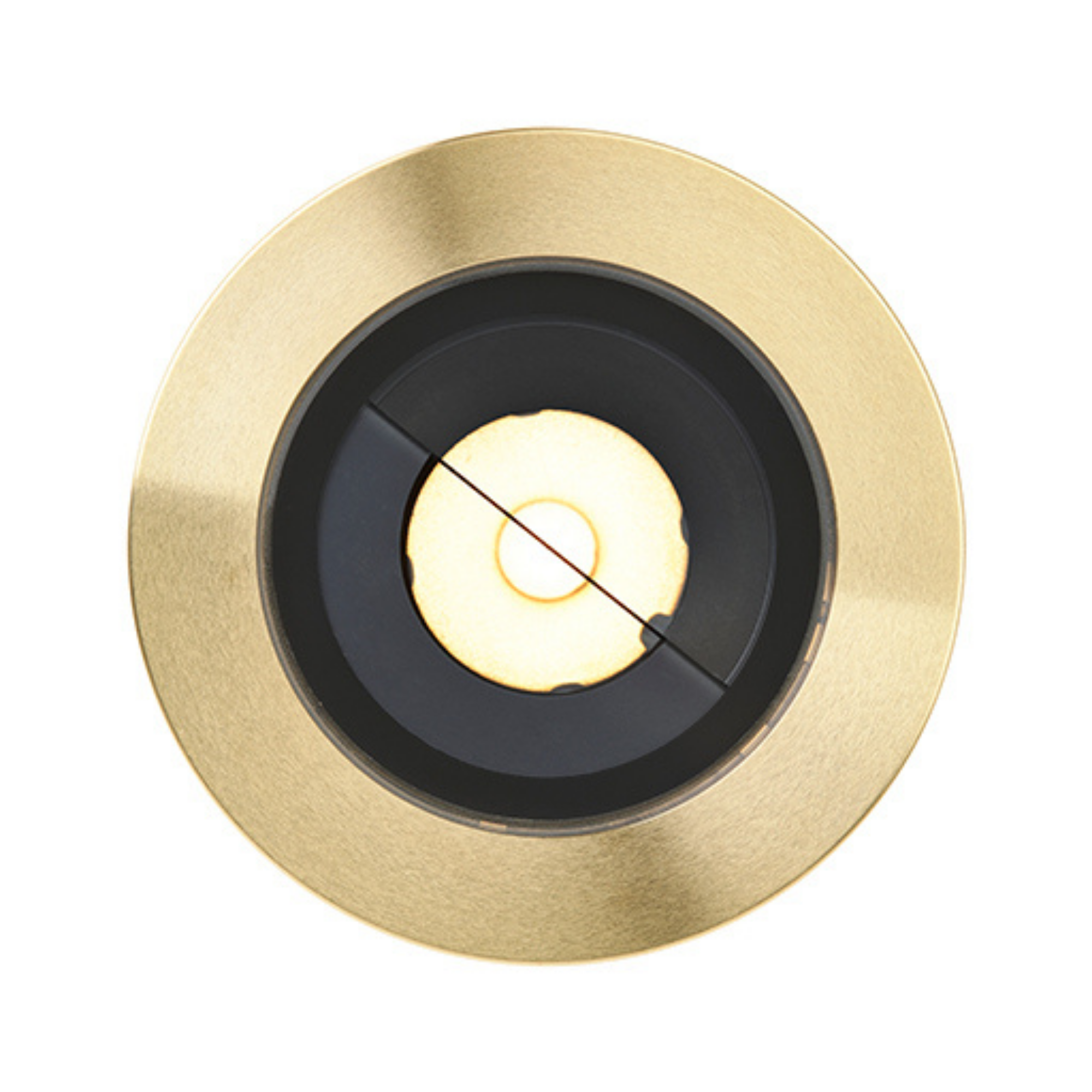

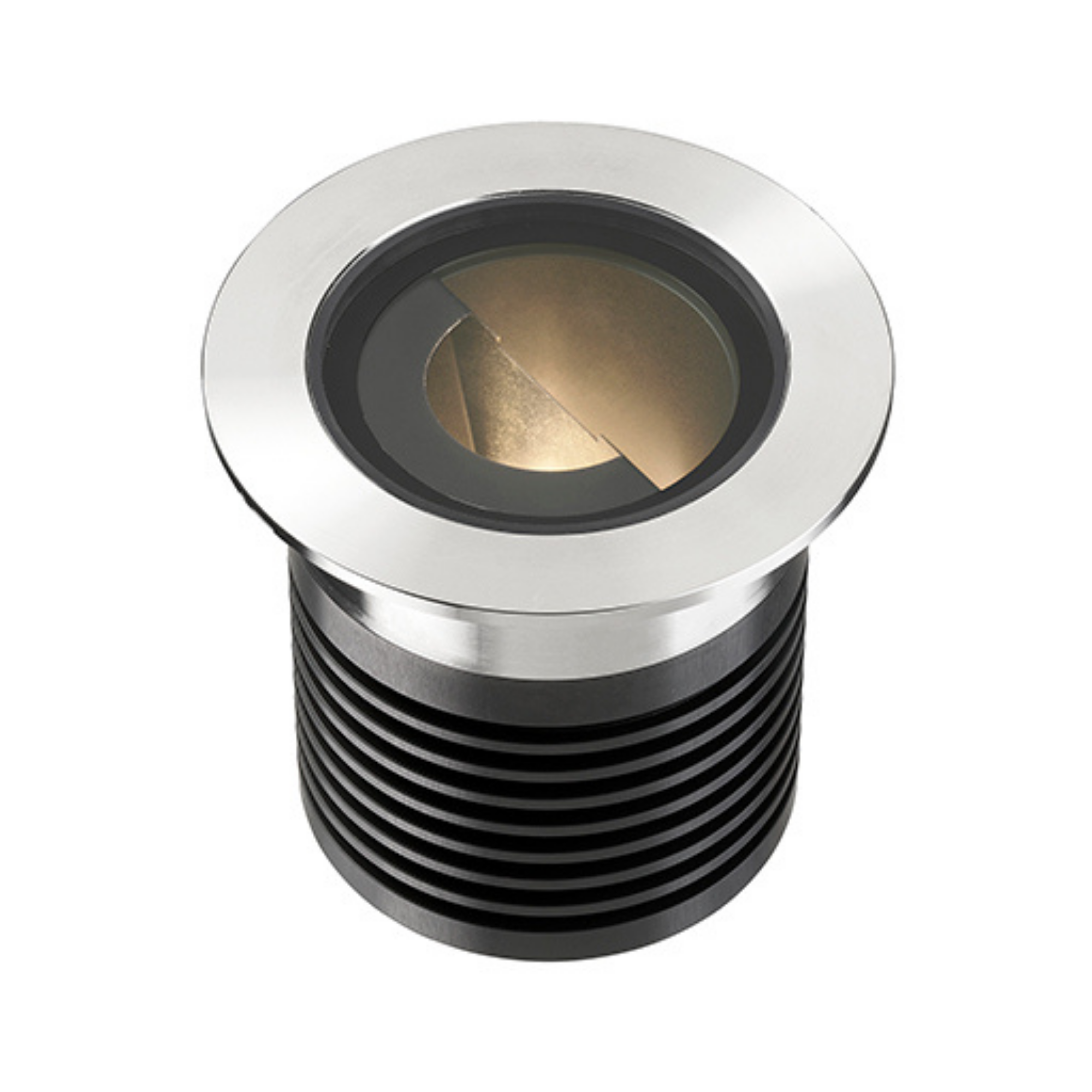

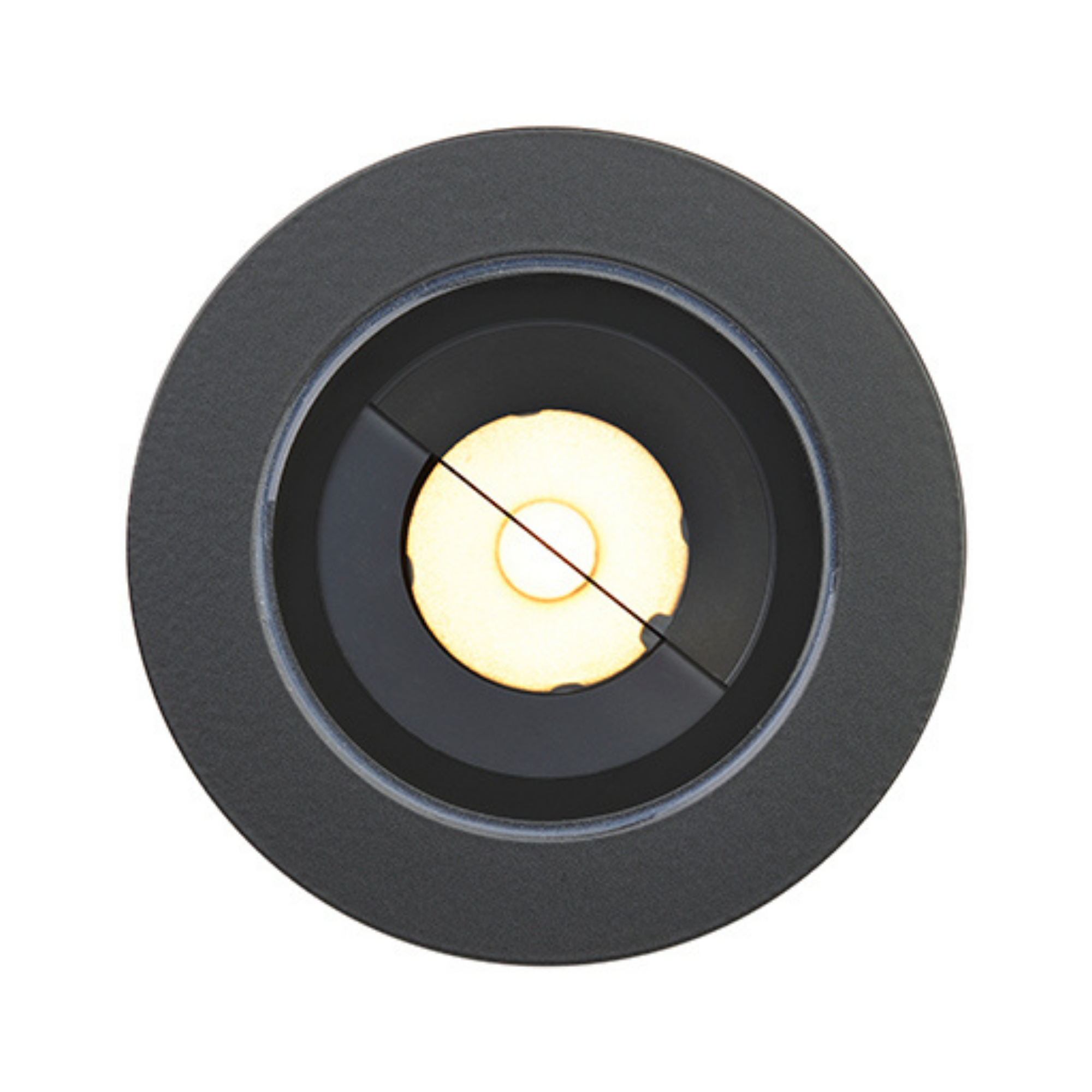

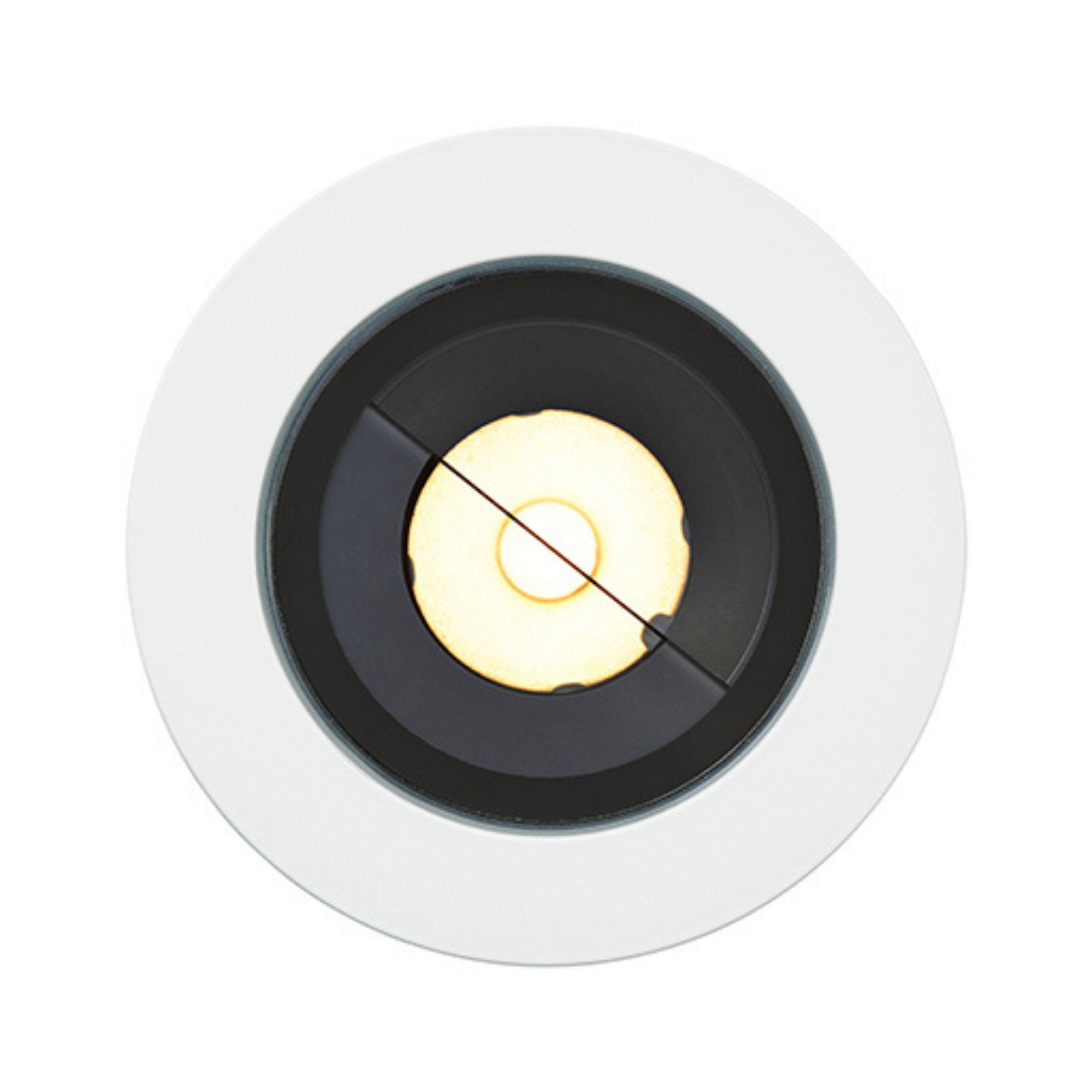

A broad range of LED engines is available, including E3, F1, Tunable White, RGBW and CLR, with colour temperatures from 2200K to 5000K and outputs up to 647 lumens from the E3 engine. The fitting is rated IP67 and IK08, with bezels available in 316 stainless steel, polished and passivated stainless steel, brass, flamed solid bronze and painted finishes. Optional glare shields, fixing sleeves, concrete housings and ground tubes allow the fitting to be tailored to the installation, while switched, 0-10V, Casambi, DMX, DALI and mains dimmable driver options provide extensive control flexibility.

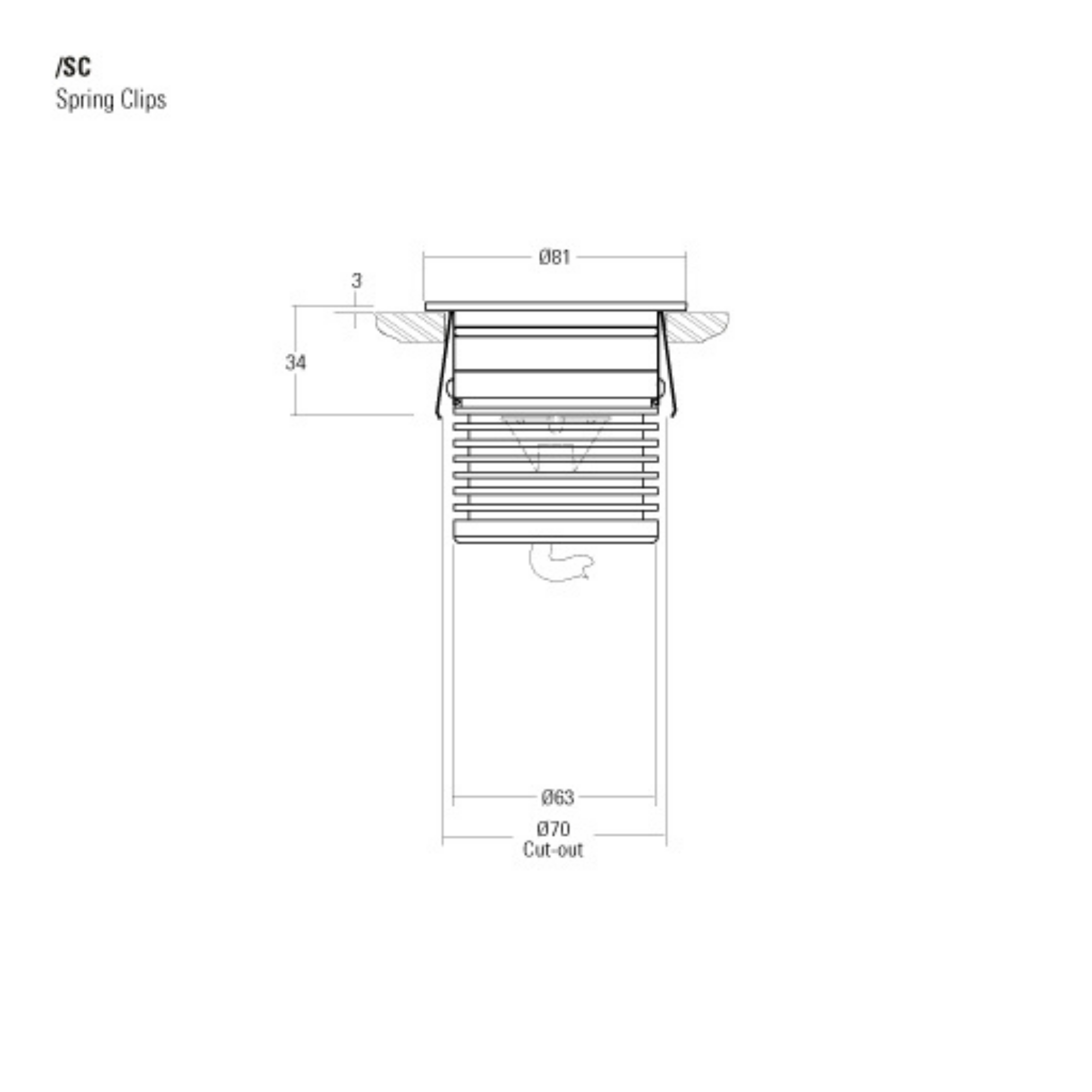

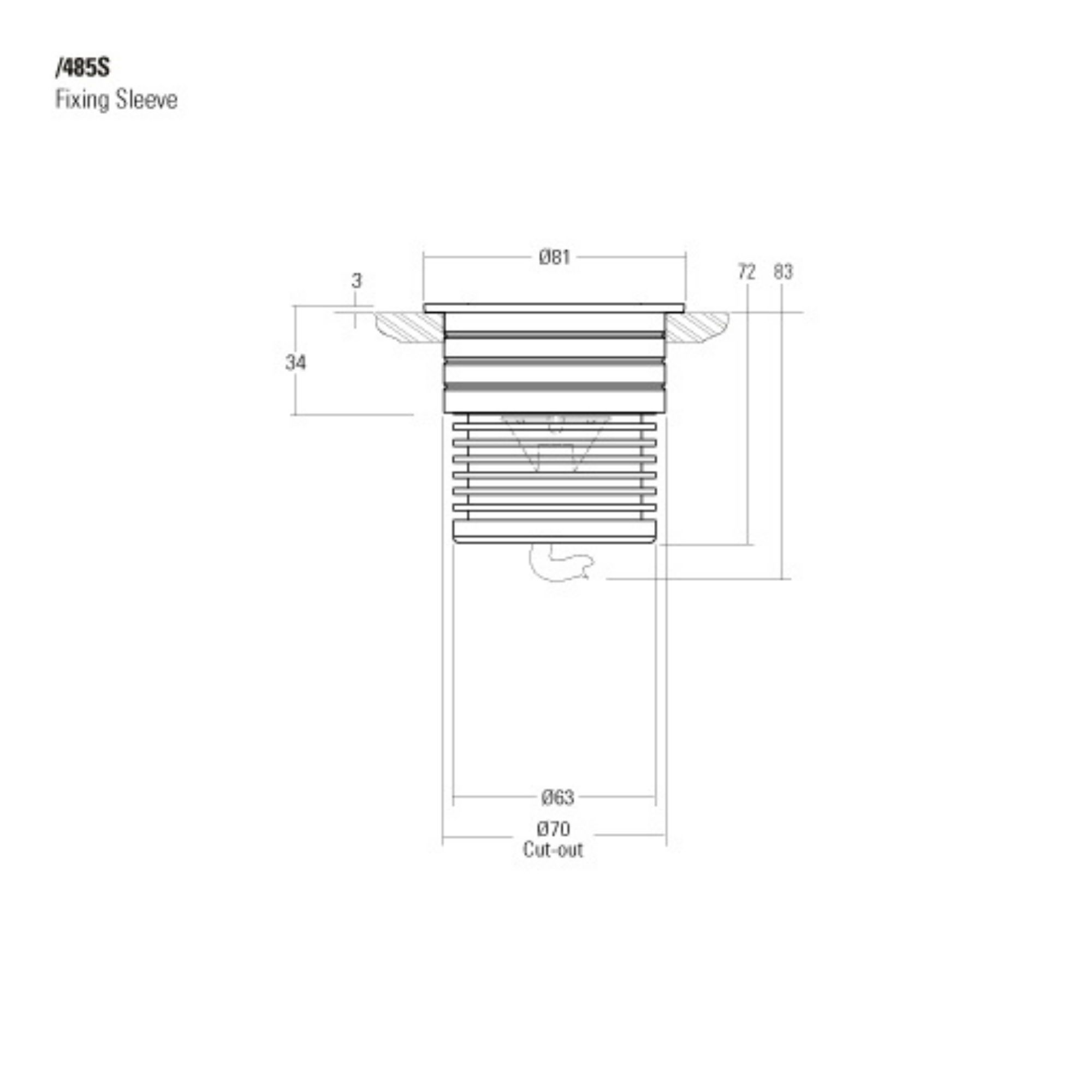

Overall Diameter: 81mm Ø

Depth: 83mm

Cut Out: 70mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: (E3)4.4W @ 350mA / 5.8W @ 500mA / 8.3W @ 700mA (F1) 3.3W @ 350mA / 5W @ 500mA / 7.2W @ 700mA

Lumens: (E3) 363lm / 477lm / 647lm (F1) 211lm / 272lm / 348lm

Kelvin: 2200K / 2700K / 3000K / 4000K / 5000K

CRI: 90+

Beam Degree: 12° / 31° / 48°

Driver Required: Yes - Remote mounted 350mA

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: Engine Dependent

IP rating: IP67

Fire rated: -

The LD151 Uplight is a powerful recessed architectural fitting designed to deliver low-glare illumination to interior and exterior walls, columns and feature surfaces. Despite its compact size and shallow depth, it offers strong performance with a wide choice of beam angles, colour temperatures and control options. The LED and lens are recessed within a matt black anodised body to reduce glare, while the minimal bezel with black-trimmed toughened glass and no visible fixings creates a clean, refined appearance for premium residential, hospitality, landscape and yacht applications.

A broad range of LED engines is available, including E3, F1, Tunable White, RGBW and CLR, with colour temperatures from 2200K to 5000K and outputs up to 647 lumens from the E3 engine. The fitting is rated IP67 and IK08, with bezels available in 316 stainless steel, polished and passivated stainless steel, brass, flamed solid bronze and painted finishes. Optional glare shields, fixing sleeves, concrete housings and ground tubes allow the fitting to be tailored to the installation, while switched, 0-10V, Casambi, DMX, DALI and mains dimmable driver options provide extensive control flexibility.

Overall Diameter: 81mm Ø

Depth: 83mm

Cut Out: 70mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: (E3)4.4W @ 350mA / 5.8W @ 500mA / 8.3W @ 700mA (F1) 3.3W @ 350mA / 5W @ 500mA / 7.2W @ 700mA

Lumens: (E3) 363lm / 477lm / 647lm (F1) 211lm / 272lm / 348lm

Kelvin: 2200K / 2700K / 3000K / 4000K / 5000K

CRI: 90+

Beam Degree: 12° / 31° / 48°

Driver Required: Yes - Remote mounted 350mA

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: Engine Dependent

IP rating: IP67

Fire rated: -
