LD170 Wall Light
Usually ships within 4 weeks
Built To Order Item, we are unable to accept returns unless they are found to be faulty.

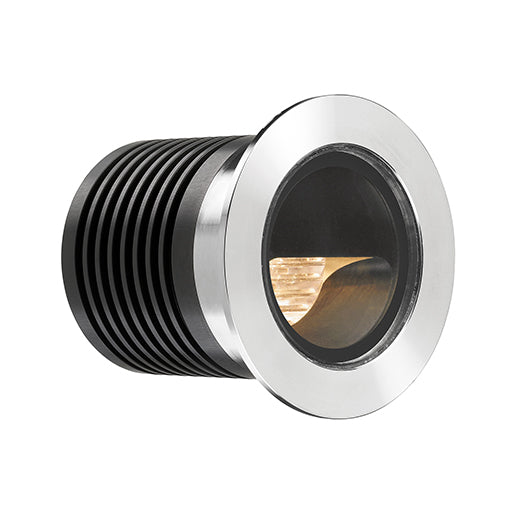

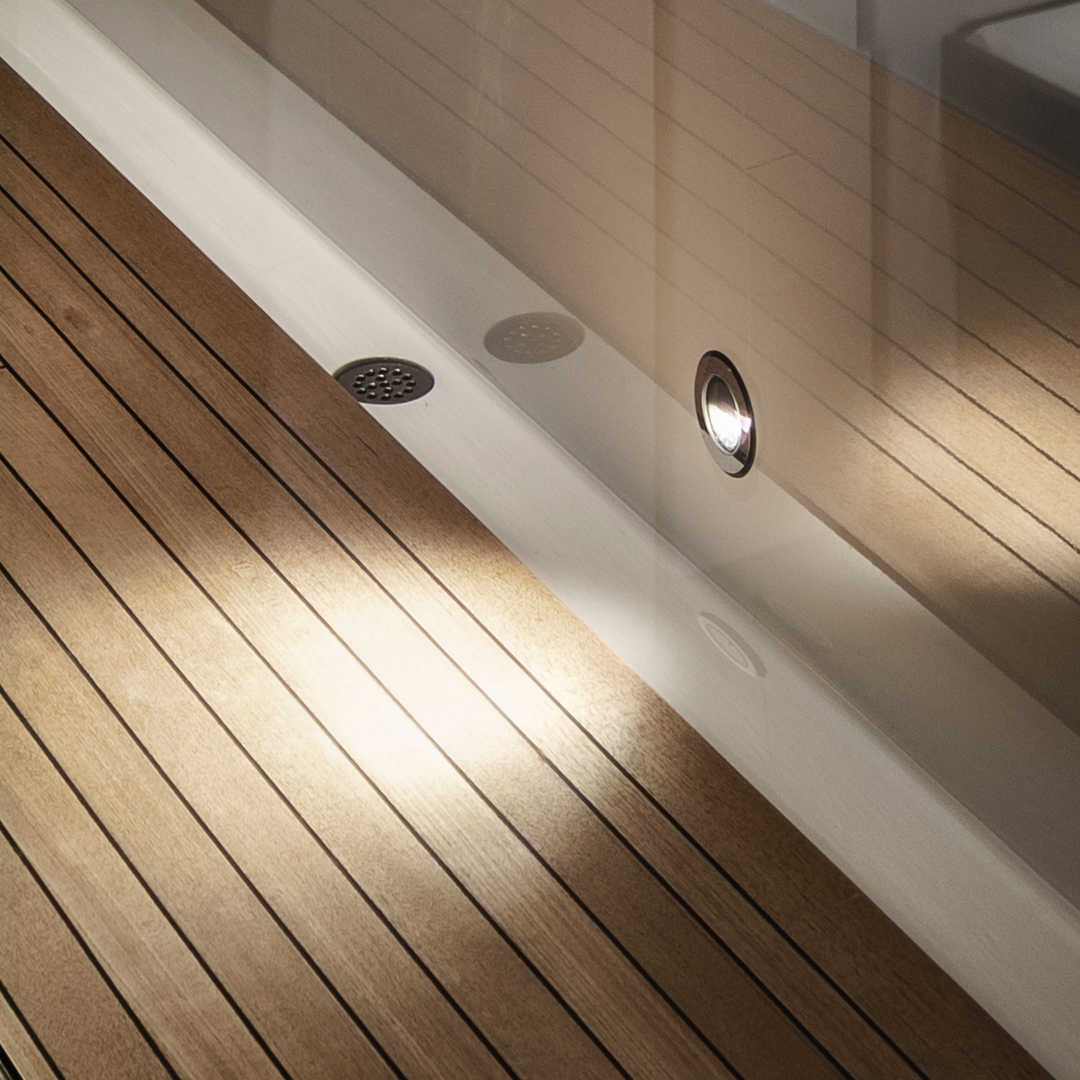

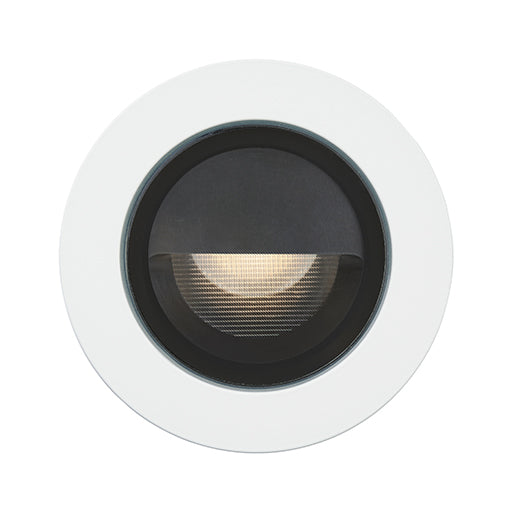

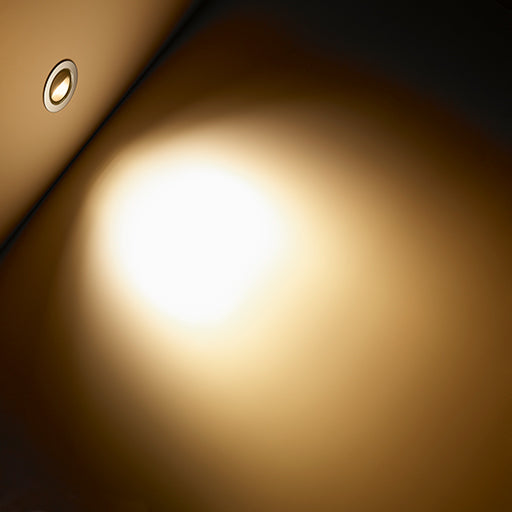

The LD170 Wall Light is a powerful yet compact recessed fitting designed to create a low-glare, uniform floor wash across broad steps, pathways and circulation areas. Its wide oval beam, integral glare baffle and 20° kick lens work together to focus light down onto the lit surface while minimising spill above the horizontal. The LED and lens are recessed within a matt black anodised body for improved visual comfort, while the minimal bezel with black-trimmed toughened glass and no visible fixings creates a clean architectural finish.

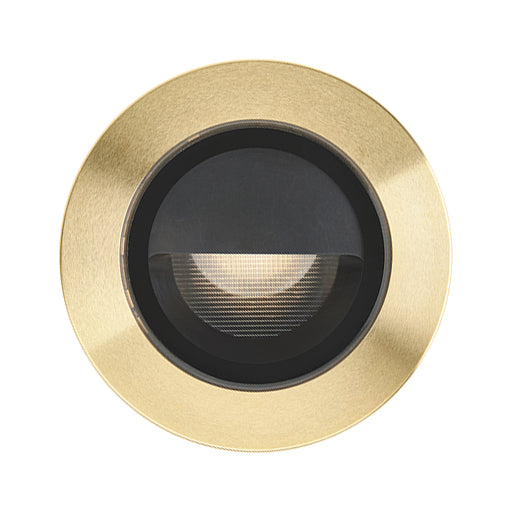

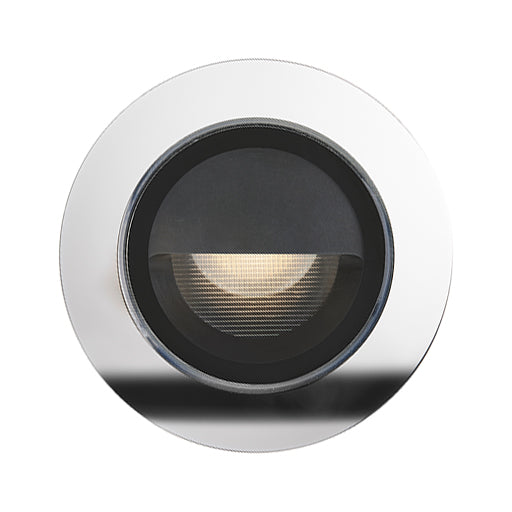

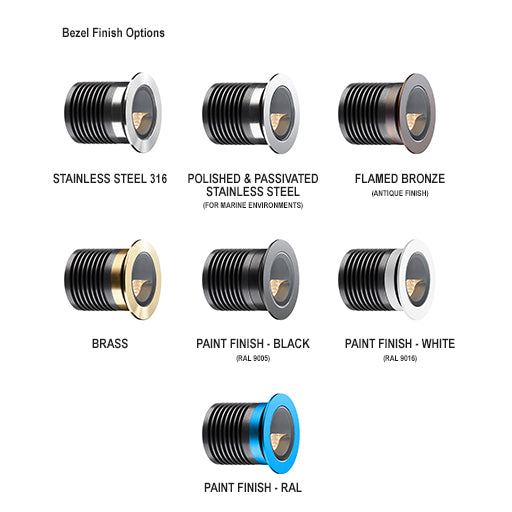

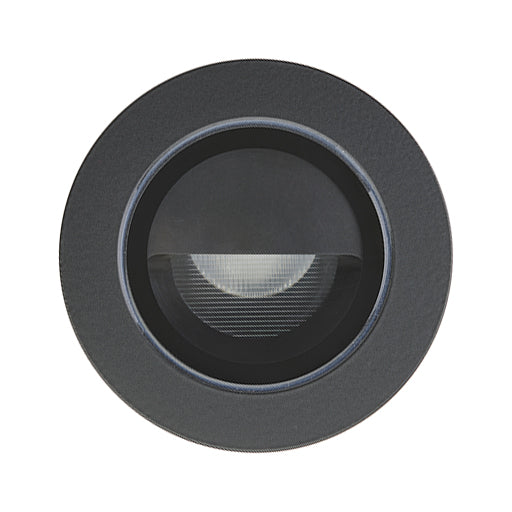

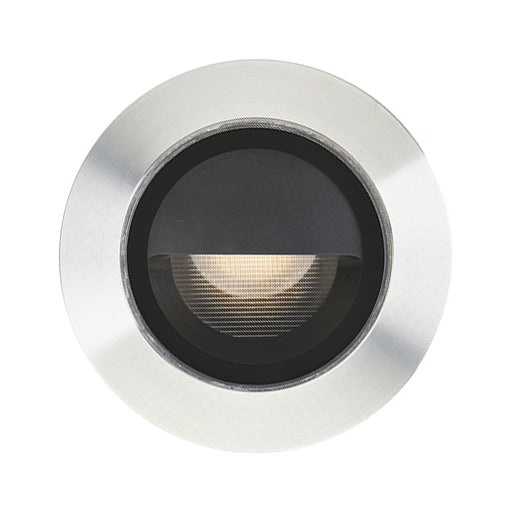

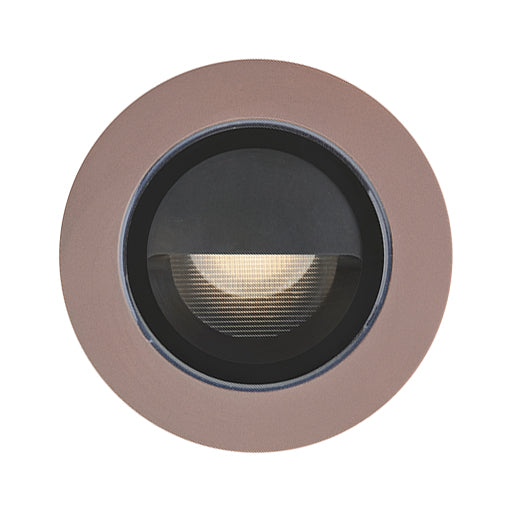

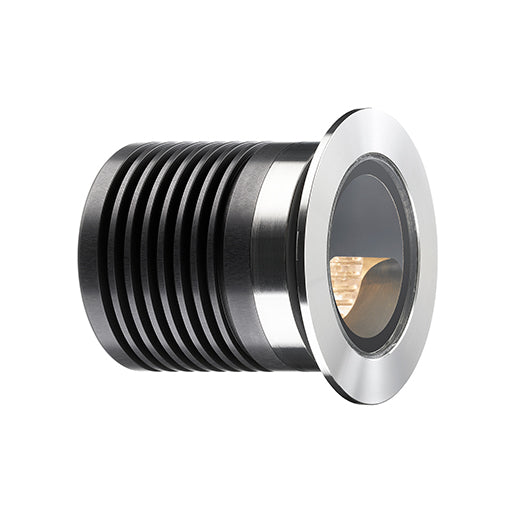

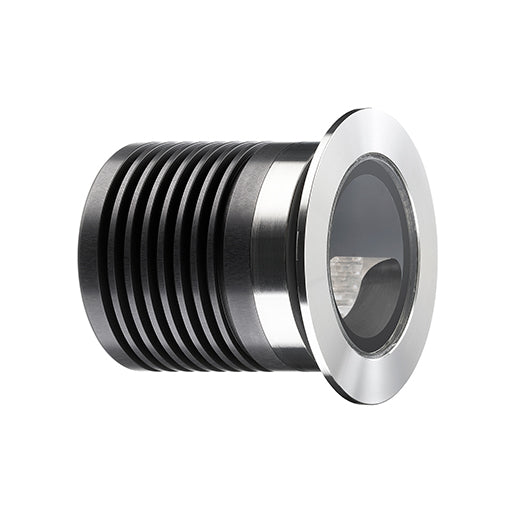

Available with E3 and F1 LED engines, the LD170 Wall Light supports colour temperatures from 2200K to 5000K, with additional options including Tunable White, RGBW and secondary-channel configurations. The fitting is rated IP67 and IK08, with bezel finishes available in 316 stainless steel, polished and passivated stainless steel, machined brass, flamed solid bronze and RAL paint finishes. Hidden fixing is achieved using a first-fix sleeve with O-rings, while switched, 0-10V, Casambi, DMX, DALI and mains dimmable driver options provide excellent control flexibility.

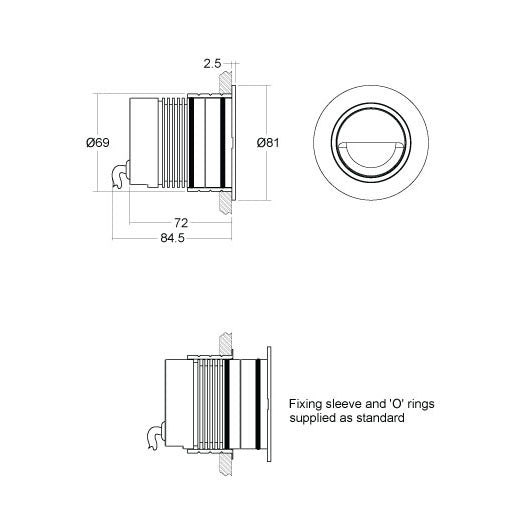

Overall Diameter: 81mm Ø
Depth: 84.5mm
Cut Out: 69mm Ø
Tilt Angle (°): -
Rotation Angle (°): -
Light Source: LED
Wattage: 4.2W @ 350mA / 6W @ 500mA / 8.4W @ 700mA
Lumens: 363lm / 477lm / 647lm
Kelvin: 2200K / 2700K / 3000K
CRI: 93+
Beam Degree: 13° x 44°
Driver Required: Yes - Remote mounted
Switched: -
Dimmable: Yes
Dimming Type: Driver Dependent
Voltage: 14V
IP rating: IP67
Fire rated: -
