Vendor: LightGraphix

LD238 Spotlight

SKU: LD238-

The LD238 Spotlight is a compact surface-mounted exterior fitting combining powerful LED performance with precise beam control. Available with E3 or F1 LED engines, multiple beam angles and optional glare-control accessories, it offers excellent flexibility for architectural and landscape lighting. With IP67 protection and multiple mounting options, it is suited to demanding exterior and marine applications.

Regular price £172.93 Sale price £172.93

Tax included and shipping calculated at checkout

You can't add more LD238 Spotlight in Default Title to cart

Usually ships within 4 weeks

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

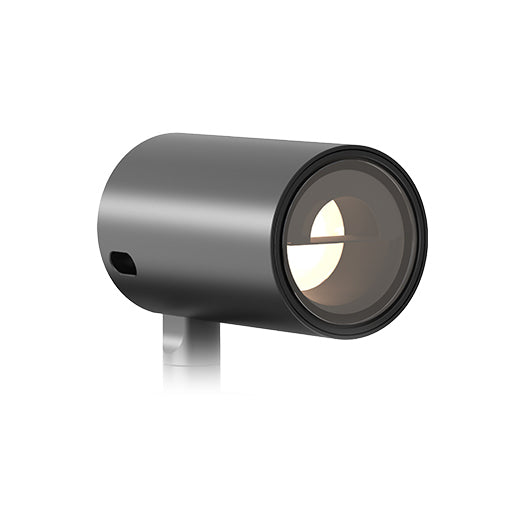

The LD238 Spotlight is a compact surface-mounted exterior spotlight designed to deliver powerful architectural illumination from a discreet form. Despite its small size, it offers excellent performance with a choice of E3 NICHIA or F1 CREE LED engines, providing either high-output illumination of up to 597 lumens or a super warm 2200K colour temperature. A single optic ensures clean, consistent beam quality, while multiple beam angles and optional half or full cowls allow the fitting to be tailored for precise accent and feature lighting.

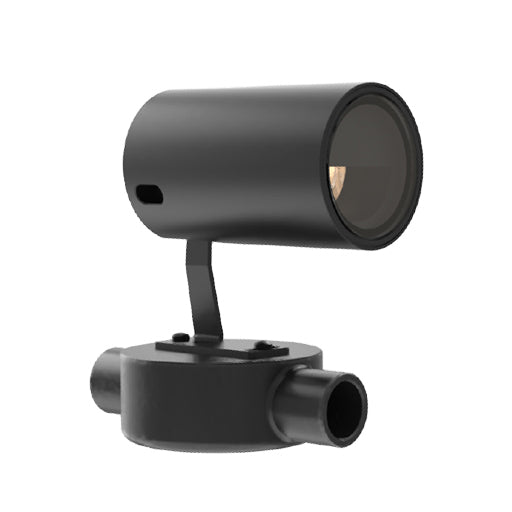

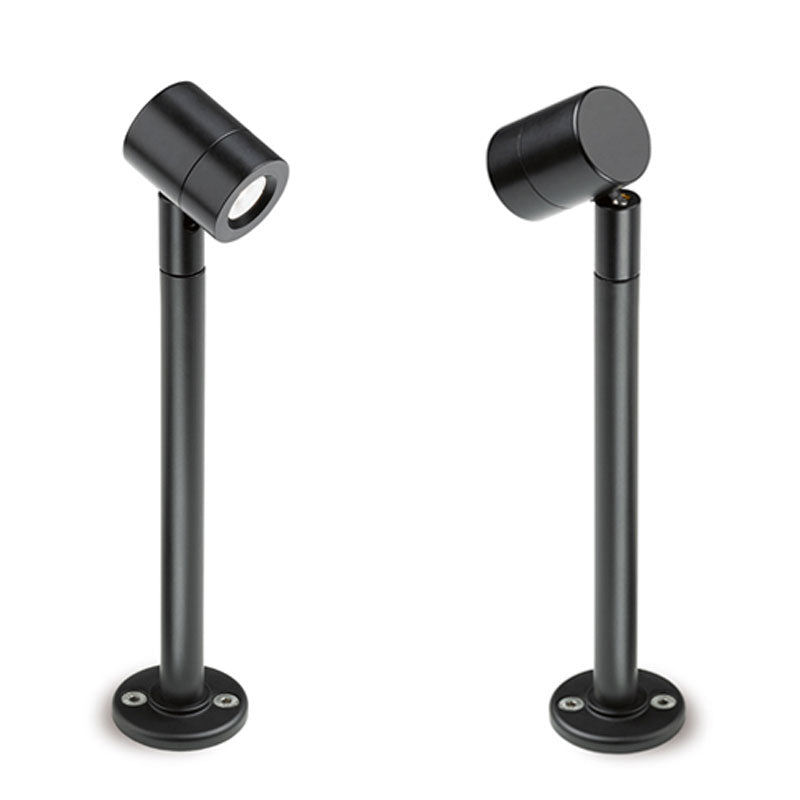

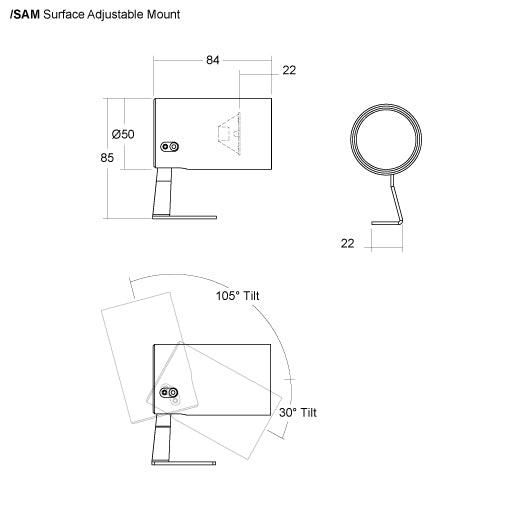

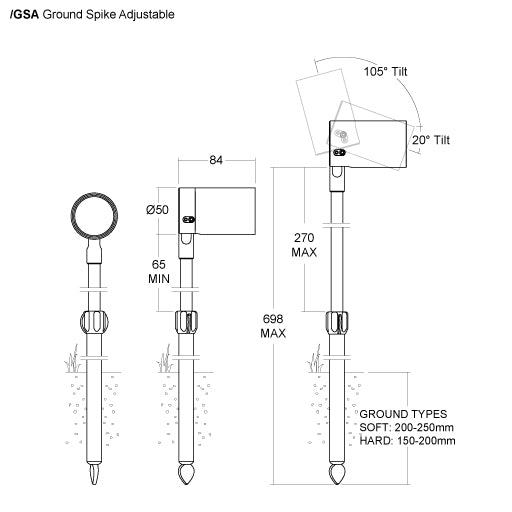

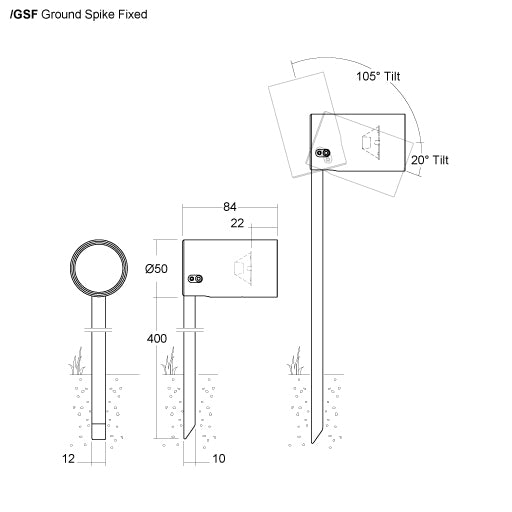

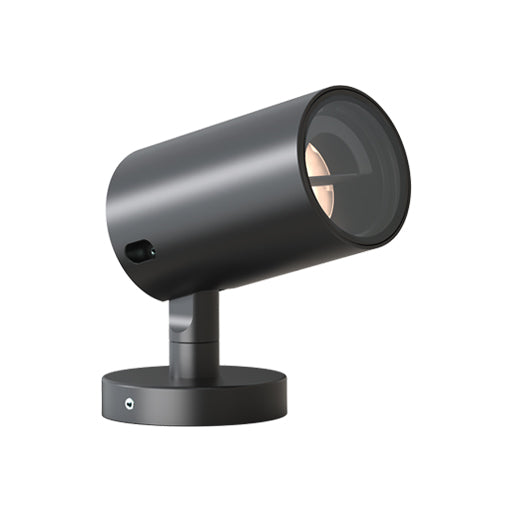

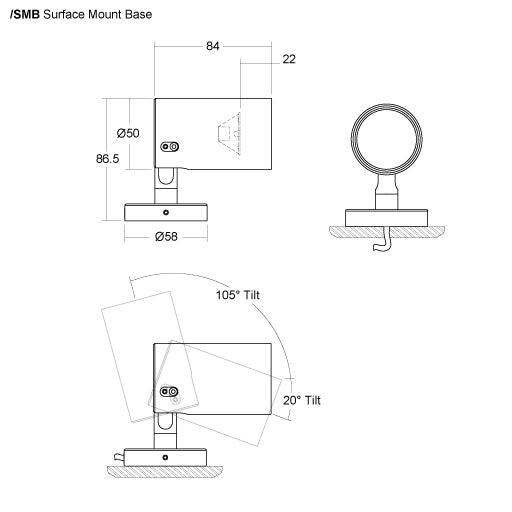

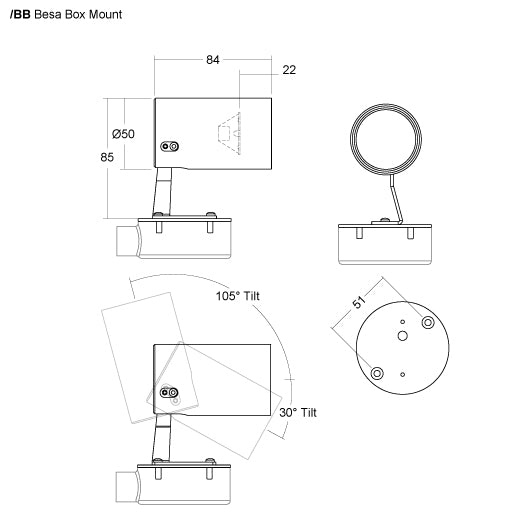

Rated IP67 and manufactured from anodised aluminium, the LD238 Spotlight is built for demanding exterior and marine environments. A wide range of fixing options includes surface mount base, Besa box mount, adjustable surface mount, tree strap and both fixed and adjustable ground spikes, giving exceptional installation flexibility across landscape and architectural schemes. Optional glare shields, half-moon shields and honeycomb louvres provide additional visual comfort, making the LD238 a versatile choice for premium residential, hospitality and exterior lighting projects.

Height: 87mm

Width: 50mm Ø

Depth: -

Tilt Angle (°): 105°

Rotation Angle (°): 300°

Light Source: LED

Wattage: 4.4W @ 350mA / 6.4W @ 500mA / 9.2W @ 700mA

Lumens: 359lm / 465lm / 597lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 18° / 31° / 55°

Driver Required: Yes - Remote mounted

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 11.8V

IP rating: IP67

Fire rated: -

The LD238 Spotlight is a compact surface-mounted exterior spotlight designed to deliver powerful architectural illumination from a discreet form. Despite its small size, it offers excellent performance with a choice of E3 NICHIA or F1 CREE LED engines, providing either high-output illumination of up to 597 lumens or a super warm 2200K colour temperature. A single optic ensures clean, consistent beam quality, while multiple beam angles and optional half or full cowls allow the fitting to be tailored for precise accent and feature lighting.

Rated IP67 and manufactured from anodised aluminium, the LD238 Spotlight is built for demanding exterior and marine environments. A wide range of fixing options includes surface mount base, Besa box mount, adjustable surface mount, tree strap and both fixed and adjustable ground spikes, giving exceptional installation flexibility across landscape and architectural schemes. Optional glare shields, half-moon shields and honeycomb louvres provide additional visual comfort, making the LD238 a versatile choice for premium residential, hospitality and exterior lighting projects.

Height: 87mm

Width: 50mm Ø

Depth: -

Tilt Angle (°): 105°

Rotation Angle (°): 300°

Light Source: LED

Wattage: 4.4W @ 350mA / 6.4W @ 500mA / 9.2W @ 700mA

Lumens: 359lm / 465lm / 597lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 18° / 31° / 55°

Driver Required: Yes - Remote mounted

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 11.8V

IP rating: IP67

Fire rated: -
