LD41 Uplight

SKU: LD41-C1

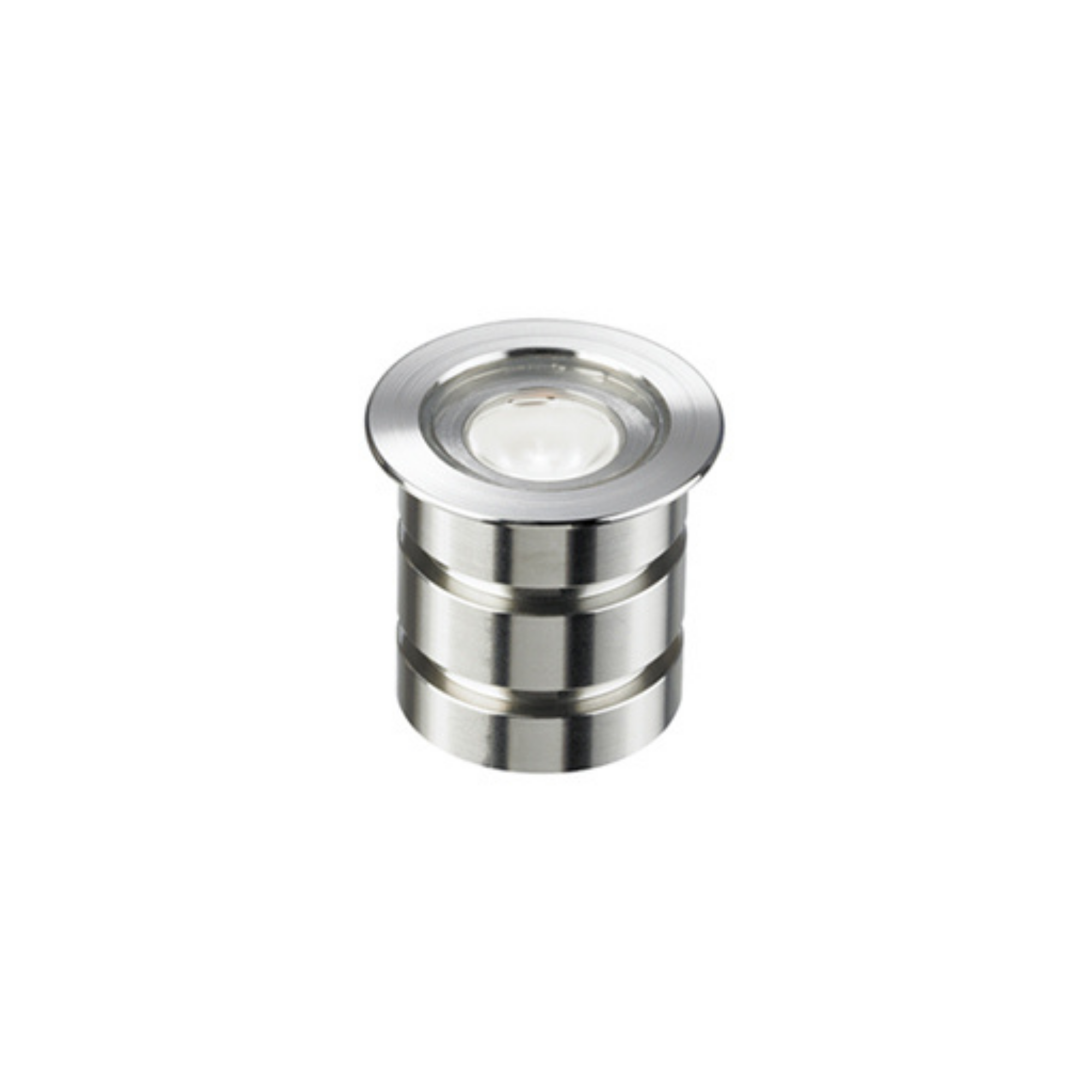

The LD41 Uplight is a miniature recessed LED fitting with a bezel diameter of just 34mm. Featuring IP68 protection, a machined 316 stainless steel body and replaceable NICHIA LED engine, it is suited to demanding interior and exterior applications. A choice of beam angles provides flexibility for uplighting, steps, wall washing and marine projects.
£72.43 £72.43

Tax included and shipping calculated at checkout

You can't add more LD41 Uplight in Default Title to cart

Usually ships within 4 weeks

Built To Order Item, we are unable to accept returns unless they are found to be faulty.
The LD41 Uplight is an exceptionally compact recessed LED fitting with a bezel diameter of just 34mm, making it ideal for discreet architectural uplighting where minimal visual impact is required. Despite its miniature size, the fitting is engineered for robust performance and is available with a choice of beam angles to suit a wide variety of applications, including recessed uplighting, steps, wall washing, display lighting and yacht installations. Its small footprint allows it to integrate neatly into premium residential, hospitality and marine schemes.

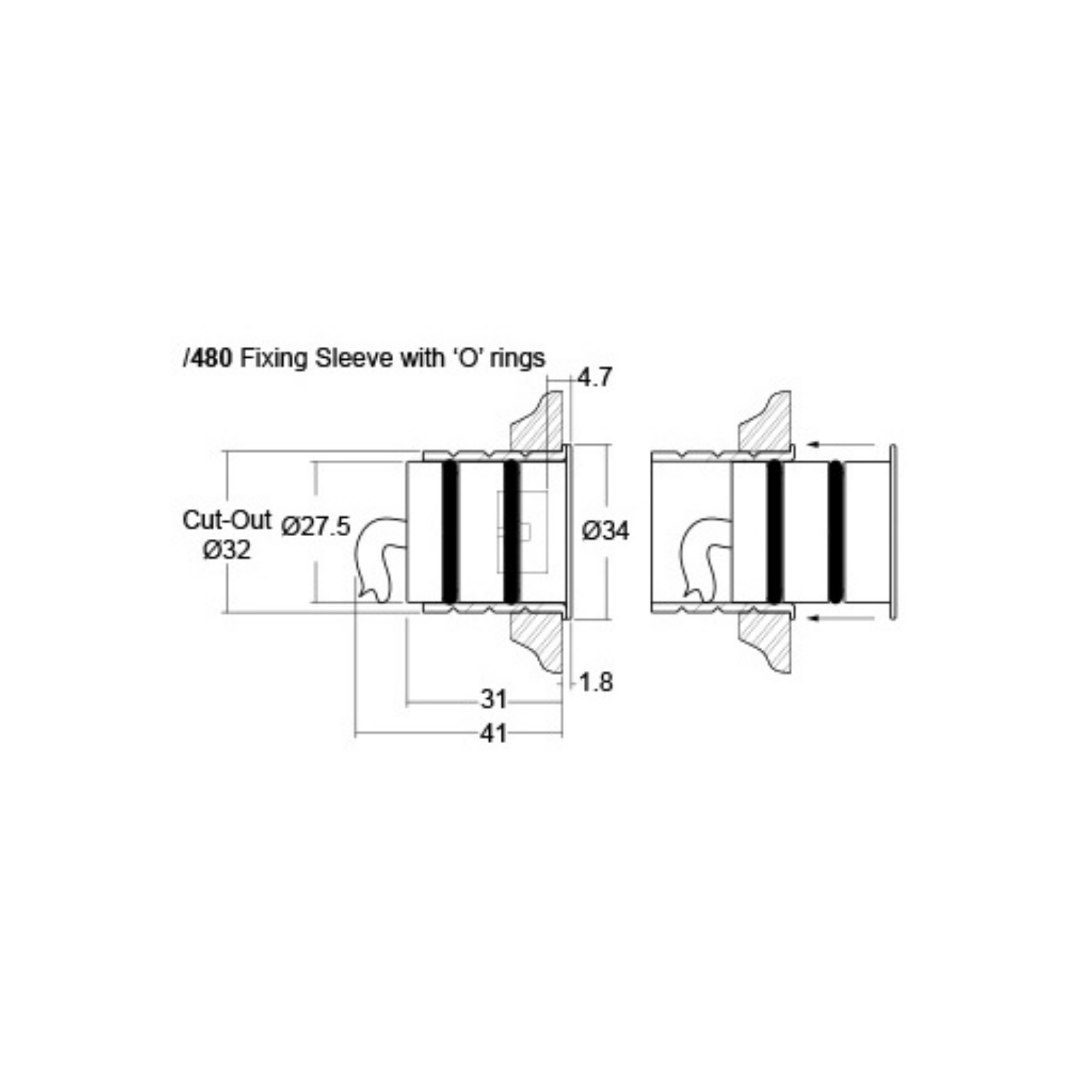

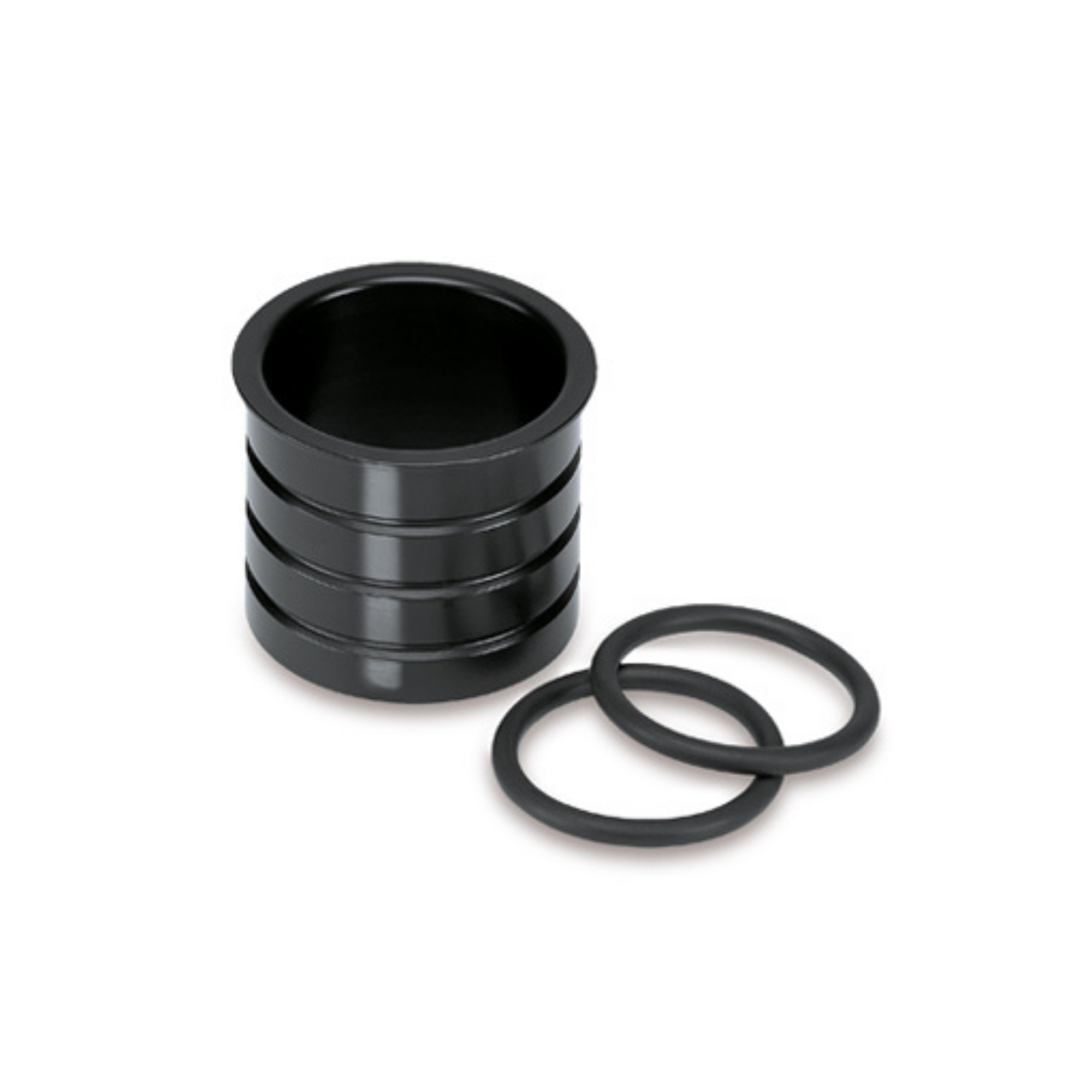

Machined from 316 stainless steel, the LD41 Uplight is designed for demanding interior and exterior environments and carries an IP68 rating. It uses a replaceable NICHIA C1 LED engine, available in 1.2W at 350mA or 1.7W at 500mA, offering reliable performance in a highly compact format. Installation is achieved using a fixing sleeve with O-rings or a dedicated ground tube, making the LD41 a versatile solution for precise, discreet architectural uplighting.

Overall Diameter: 34mm Ø

Depth: 41mm

Cut Out: 32mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 1.2W @ 350mA / 1.7W @ 500mA

Lumens: 103lm / 134lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 31°/ 48° / 12° x 36°

Driver Required: Yes - Remote mounted 350mA

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 3V

IP rating: IP68

Fire rated: -
Download Spec Sheet
The LD41 Uplight is an exceptionally compact recessed LED fitting with a bezel diameter of just 34mm, making it ideal for discreet architectural uplighting where minimal visual impact is required. Despite its miniature size, the fitting is engineered for robust performance and is available with a choice of beam angles to suit a wide variety of applications, including recessed uplighting, steps, wall washing, display lighting and yacht installations. Its small footprint allows it to integrate neatly into premium residential, hospitality and marine schemes.

Machined from 316 stainless steel, the LD41 Uplight is designed for demanding interior and exterior environments and carries an IP68 rating. It uses a replaceable NICHIA C1 LED engine, available in 1.2W at 350mA or 1.7W at 500mA, offering reliable performance in a highly compact format. Installation is achieved using a fixing sleeve with O-rings or a dedicated ground tube, making the LD41 a versatile solution for precise, discreet architectural uplighting.

Overall Diameter: 34mm Ø

Depth: 41mm

Cut Out: 32mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 1.2W @ 350mA / 1.7W @ 500mA

Lumens: 103lm / 134lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 31°/ 48° / 12° x 36°

Driver Required: Yes - Remote mounted 350mA

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 3V

IP rating: IP68

Fire rated: -
