LD46 Wall Light

SKU: LD46-C1

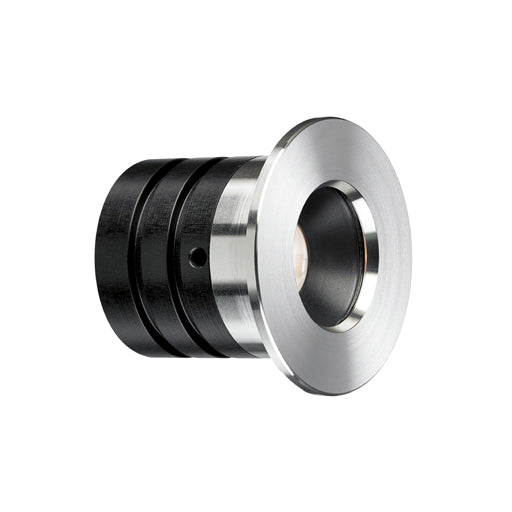

The LD46 Wall Light is a compact round recessed LED fitting designed for low-glare step and pathway lighting. Featuring IP67 protection, a machined 316 stainless steel bezel and replaceable NICHIA LED engine, it is suited to demanding interior and exterior applications. Multiple beam angles and dimming options provide precise control for floor-wash and circulation lighting.
£118.61 £118.61

Tax included and shipping calculated at checkout

You can't add more LD46 Wall Light in Default Title to cart

Usually ships within 4 weeks

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

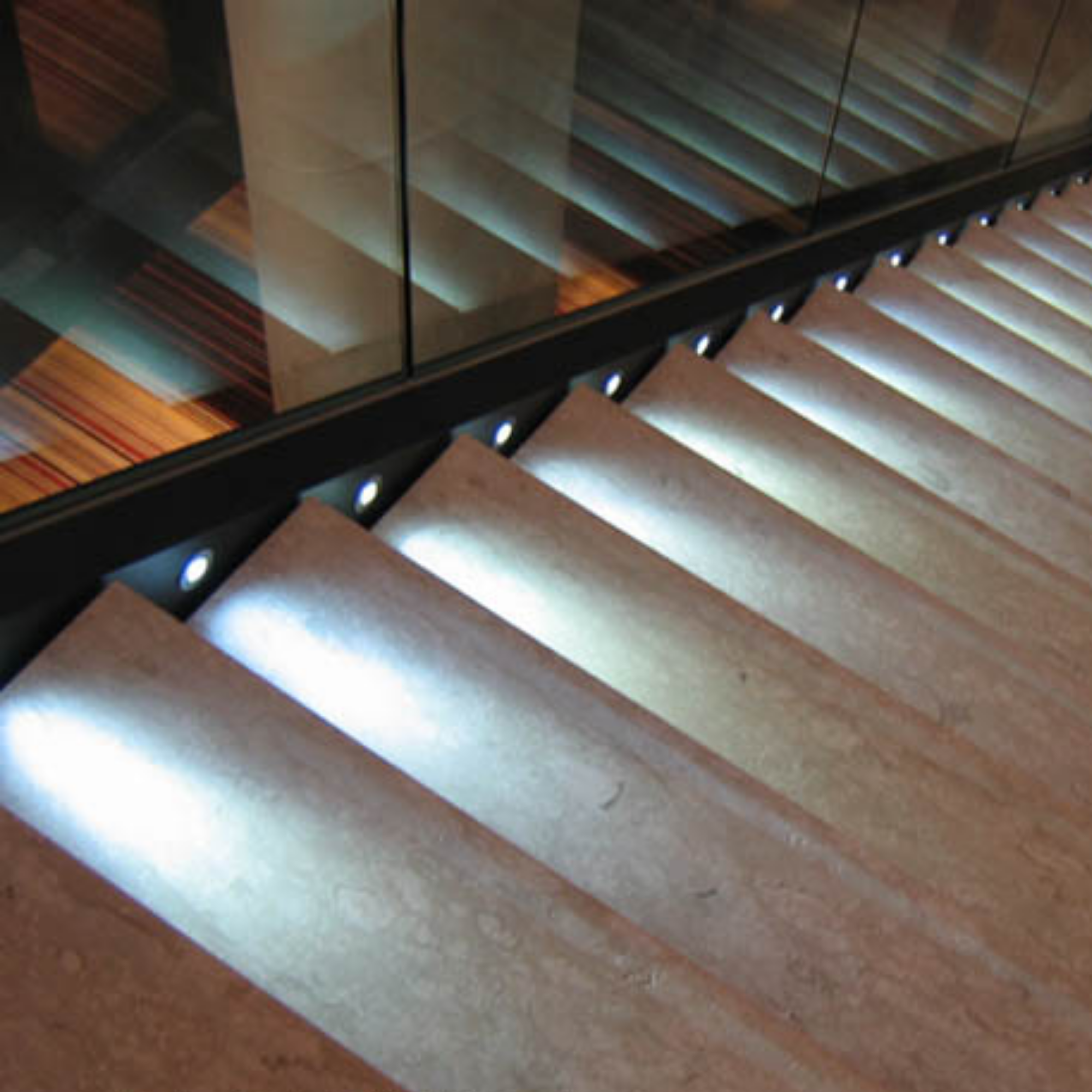

The LD46 Wall Light is a compact round recessed LED fitting designed for discreet step, pathway and floor-wash illumination. Its set-back optics are recessed within a black anodised body to reduce glare, while the clean circular bezel and concealed fixings create a refined architectural appearance. A 12° beam can gently graze light across a step, while a 31° beam provides a broader wash towards the edges, giving the LD46 excellent flexibility for interior and exterior circulation areas.

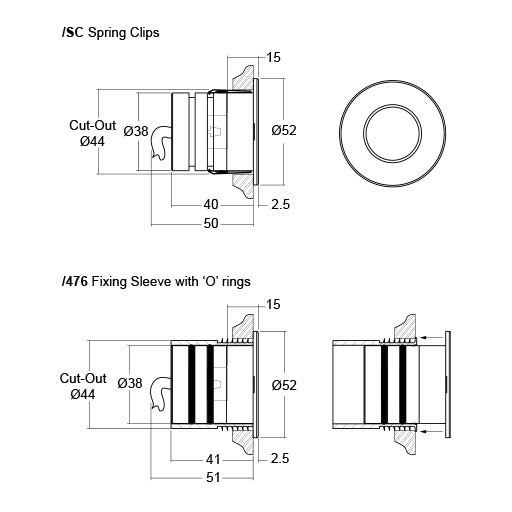

Manufactured with a machined 316 stainless steel bezel, hard anodised aluminium body and 5mm borosilicate glass, the LD46 Wall Light is rated IP67 for demanding environments. It uses a replaceable NICHIA C1 LED engine, available in 1.2W at 350mA, 1.7W at 500mA or 2.4W at 700mA, with a choice of beam angles and colour temperatures. Installation options include spring clips or O-rings with a first-fix sleeve, while an integral anti-wicking barrier provides additional protection against moisture ingress. Switched, 0-10V, DMX, DALI and mains dimmable driver options are also available.

Height: 52mm

Width: 50mm

Depth: 60mm

Cut Out: 44mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 1.2W @350mA / 1.7W @500mA / 2.4W @700mA

Lumens: 106lm / 138lm / 177lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 31° / 48°

Driver Required: Yes - Remote mounted

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 2.8V

IP rating: IP68

Fire rated: -
Download Spec Sheet
The LD46 Wall Light is a compact round recessed LED fitting designed for discreet step, pathway and floor-wash illumination. Its set-back optics are recessed within a black anodised body to reduce glare, while the clean circular bezel and concealed fixings create a refined architectural appearance. A 12° beam can gently graze light across a step, while a 31° beam provides a broader wash towards the edges, giving the LD46 excellent flexibility for interior and exterior circulation areas.

Manufactured with a machined 316 stainless steel bezel, hard anodised aluminium body and 5mm borosilicate glass, the LD46 Wall Light is rated IP67 for demanding environments. It uses a replaceable NICHIA C1 LED engine, available in 1.2W at 350mA, 1.7W at 500mA or 2.4W at 700mA, with a choice of beam angles and colour temperatures. Installation options include spring clips or O-rings with a first-fix sleeve, while an integral anti-wicking barrier provides additional protection against moisture ingress. Switched, 0-10V, DMX, DALI and mains dimmable driver options are also available.

Height: 52mm

Width: 50mm

Depth: 60mm

Cut Out: 44mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 1.2W @350mA / 1.7W @500mA / 2.4W @700mA

Lumens: 106lm / 138lm / 177lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 31° / 48°

Driver Required: Yes - Remote mounted

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 2.8V

IP rating: IP68

Fire rated: -
