Vendor: LightGraphix

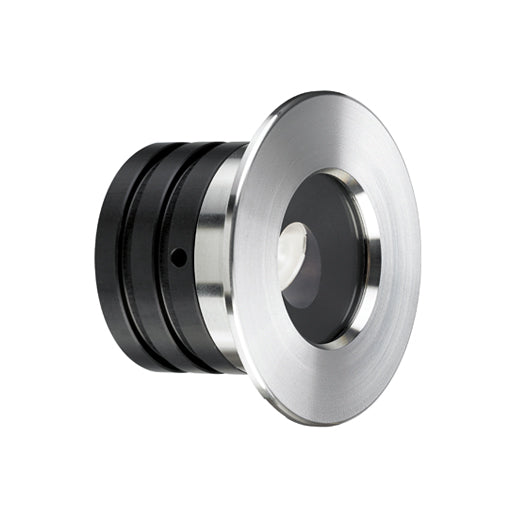

LD48 Wall Light

SKU: LD48-C1-

The LD48 Wall Light is a recessed LED fitting with a 20° tilted optic for precise, low-glare floor washing. Featuring IP67 protection, a machined 316 stainless steel bezel and replaceable NICHIA LED engine, it is suited to demanding interior and exterior applications. Multiple beam, finish and dimming options provide flexibility for steps, pathways and circulation areas.

Regular price £135.06 Sale price £135.06

Tax included and shipping calculated at checkout

You can't add more LD48 Wall Light in Default Title to cart

Usually ships within 4 weeks

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

The LD48 Wall Light is a compact recessed LED fitting designed to provide controlled floor-wash illumination with minimal glare. Its LED and lens assembly are recessed and tilted by 20° within a black anodised body, directing light precisely onto the floor while reducing direct view of the source. With no visible fixings and a concealed gasket holding the glass in place, the fitting maintains a clean architectural appearance without an exposed glue line, making it ideal for steps, pathways and circulation areas.

Manufactured with a machined 316 stainless steel bezel, hard anodised aluminium body and 5mm borosilicate glass, the LD48 Wall Light is rated IP67 for demanding interior and exterior environments. It uses a replaceable NICHIA C1 LED engine, available in 1.2W at 350mA, 1.7W at 500mA or 2.4W at 700mA, with a choice of beam angles and colour temperatures. An integral anti-wicking barrier provides additional protection against moisture ingress, while switched, 0-10V, DMX, DALI and mains dimmable driver options offer flexibility across premium architectural and marine projects.

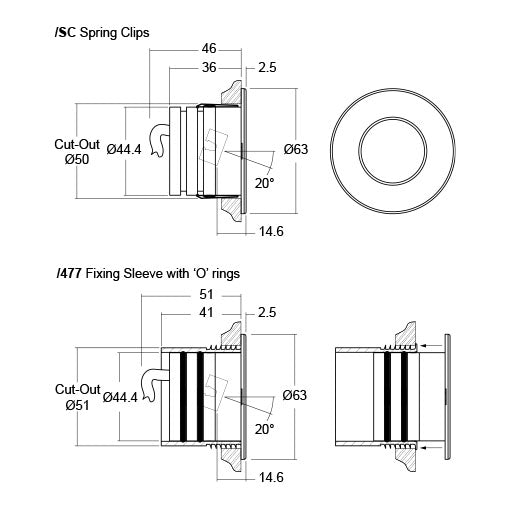

Height: -

Width: 63mm Ø

Depth: 46mm

Cut Out: 51mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 1.2W @350mA / 1.7W @500mA / 2.4W @700mA

Lumens: 106lm / 138lm / 177lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 31° / 48°

Driver Required: Yes - Remote mounted

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 2.8V

IP rating: IP68

Fire rated: -

The LD48 Wall Light is a compact recessed LED fitting designed to provide controlled floor-wash illumination with minimal glare. Its LED and lens assembly are recessed and tilted by 20° within a black anodised body, directing light precisely onto the floor while reducing direct view of the source. With no visible fixings and a concealed gasket holding the glass in place, the fitting maintains a clean architectural appearance without an exposed glue line, making it ideal for steps, pathways and circulation areas.

Manufactured with a machined 316 stainless steel bezel, hard anodised aluminium body and 5mm borosilicate glass, the LD48 Wall Light is rated IP67 for demanding interior and exterior environments. It uses a replaceable NICHIA C1 LED engine, available in 1.2W at 350mA, 1.7W at 500mA or 2.4W at 700mA, with a choice of beam angles and colour temperatures. An integral anti-wicking barrier provides additional protection against moisture ingress, while switched, 0-10V, DMX, DALI and mains dimmable driver options offer flexibility across premium architectural and marine projects.

Height: -

Width: 63mm Ø

Depth: 46mm

Cut Out: 51mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 1.2W @350mA / 1.7W @500mA / 2.4W @700mA

Lumens: 106lm / 138lm / 177lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 31° / 48°

Driver Required: Yes - Remote mounted

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 2.8V

IP rating: IP68

Fire rated: -
