LD50 Spike Light

Name: LD50 Spike Light
Brand: LightGraphix
SKU: LD50-C1
Price: 155.69 GBP

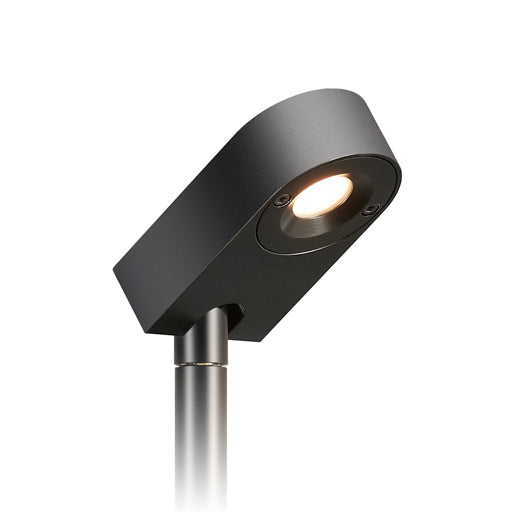

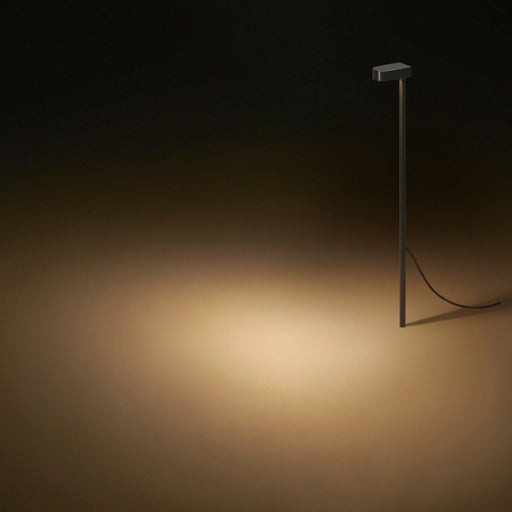

The LD50 Spike Light is a compact low-glare path light with wide oval beam options for smooth, even floor washing. Its adjustable head and optional 20° tilt film allow the beam to be directed precisely while keeping the fitting discreet. With IP65 protection and multiple finish and dimming options, it is ideal for refined landscape and pathway lighting.

£155.69

Tax included and shipping calculated at checkout

You can't add more LD50 Spike Light in Default Title to cart

Usually ships within 4 weeks

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

General Information

The LD50 Spike Light is a compact low-level path light designed to produce a wide, even floor wash with exceptionally low glare. Available with 18° x 37° oval and 46° x 80° extra oval beam options, it can cover broader pathway areas with fewer fittings. The extra oval version incorporates an additional 20° tilt film to project the beam further onto the path while allowing the head to remain horizontal, helping maintain visual comfort and a discreet appearance.

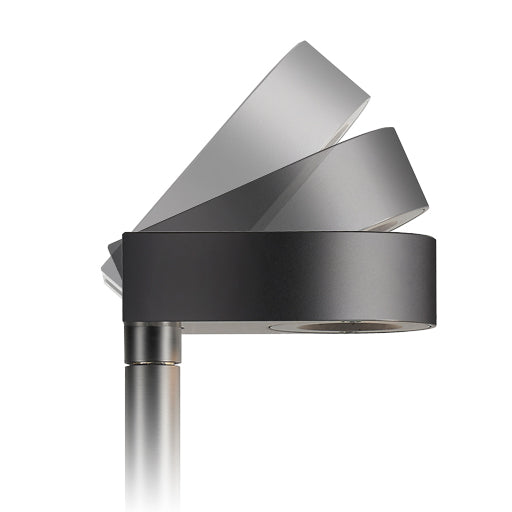

The fitting features a friction-set head that can be adjusted up to 90°, allowing greater flexibility when positioning the light further from the pathway. A concealed cable exits from the bottom of the ground spike to preserve the minimal aesthetic, while the black hard anodised aluminium body is available with a wide choice of powder-coated finishes. Rated IP65 and offered with C1 LED engine options up to 2.4W at 700mA, the LD50 can also be specified with switched, 0-10V, Casambi, DMX, DALI or mains dimmable drivers.

Height: 680mm

Width: 39mm Ø

Depth: 70mm

Tilt Angle (°): 20°

Rotation Angle (°): -

Light Source: LED

Wattage: 1.2W @ 350mA / 1.7W @ 500mA / 2.4W @ 700mA

Lumens: 82lm / 108lm / 140l

Kelvin: 2200K / 2700K / 3000K

CRI: 93.5

Beam Degree: 18° x 37° / 46° x 80°

Driver Required: Yes - Remote mounted
