Vendor:
LightGraphix
LD70 Downlight
Regular price
£75.77
Sale price
£75.77
Usually ships within 4 weeks
Built To Order Item, we are unable to accept returns unless they are found to be faulty.
Share

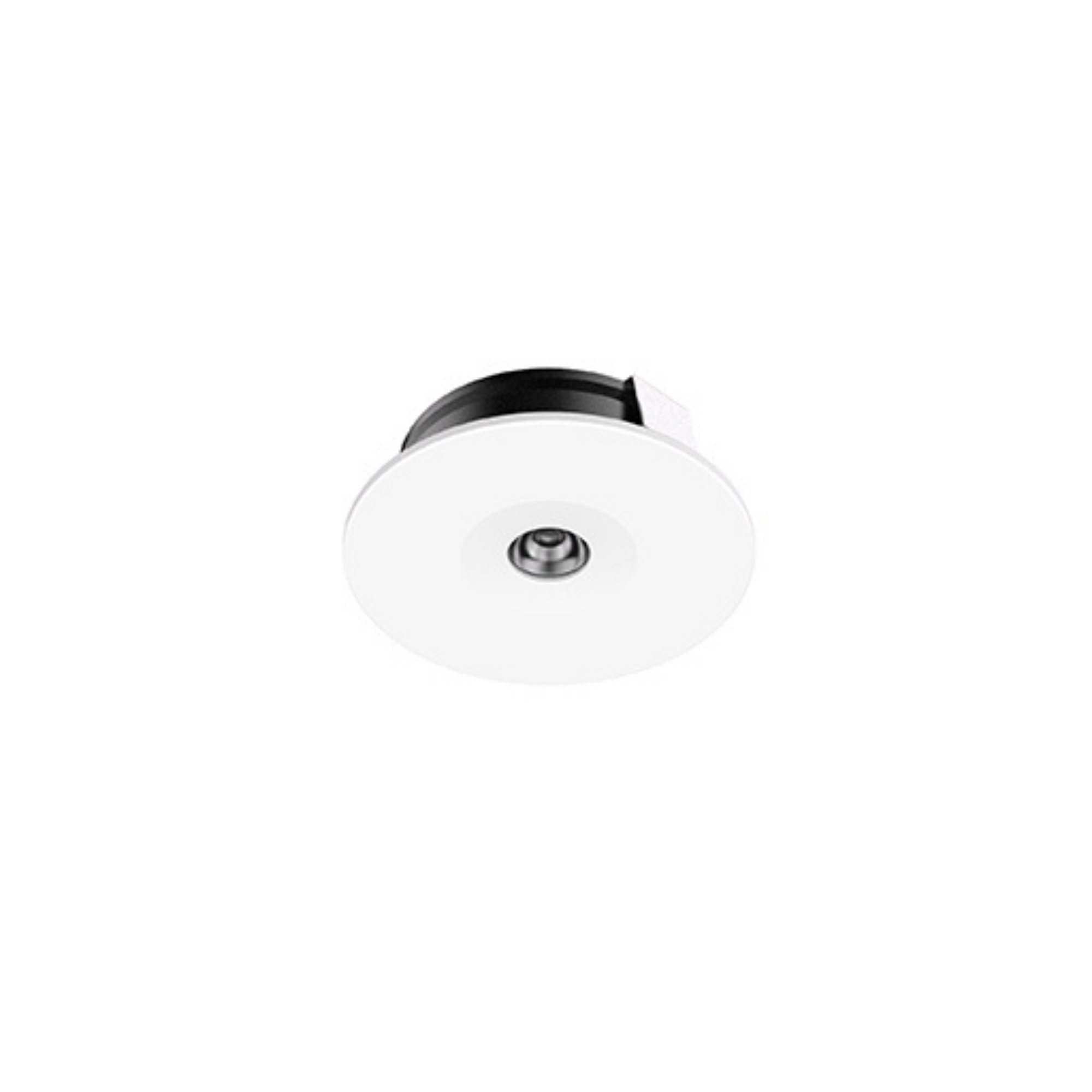

The LD70 Downlight is an ultra-shallow recessed LED fitting designed for discreet architectural lighting in display cabinets, shelving and compact joinery. Requiring a recess depth of only 13mm, it is particularly well suited to applications where installation space is extremely limited. Its minimal bezel keeps the fitting visually unobtrusive, while the miniature optic provides precise illumination for display, shelf and wall-wash applications.
Available with Cree XPG LED outputs of 1.2W at 350mA, 1.7W at 500mA or 2.4W at 700mA, the LD70 Downlight offers flexibility across a wide range of interior lighting requirements. Manufactured from anodised aluminium with stainless steel spring clips and rated IP20, it combines compact dimensions with reliable performance. The wider LD70 family is also available with no cowl, half cowl or full cowl options, allowing glare control to be tailored to the application.
Available with Cree XPG LED outputs of 1.2W at 350mA, 1.7W at 500mA or 2.4W at 700mA, the LD70 Downlight offers flexibility across a wide range of interior lighting requirements. Manufactured from anodised aluminium with stainless steel spring clips and rated IP20, it combines compact dimensions with reliable performance. The wider LD70 family is also available with no cowl, half cowl or full cowl options, allowing glare control to be tailored to the application.
Overall Diameter: 42mm Ø
Depth: 17mm
Cut Out: 35mm Ø
Tilt Angle (°): -
Rotation Angle (°): -
Light Source: LED
Wattage: 1.2W @ 350mA / 1.7W @ 500mA / 2.4W @ 700mA
Lumens: 109lm / 142lm / 189lm
Kelvin: 2200K / 2700K / 3000K
CRI: 93+
Beam Degree: 30° / 50°
Driver Required: Yes - Remote mounted 350mA / 500mA / 700mA
Switched: -
Dimmable: Yes
Dimming Type: Driver Dependent
Voltage: 3.0V / 3.2V / 3.4V
IP rating: IP20
Fire rated: -
